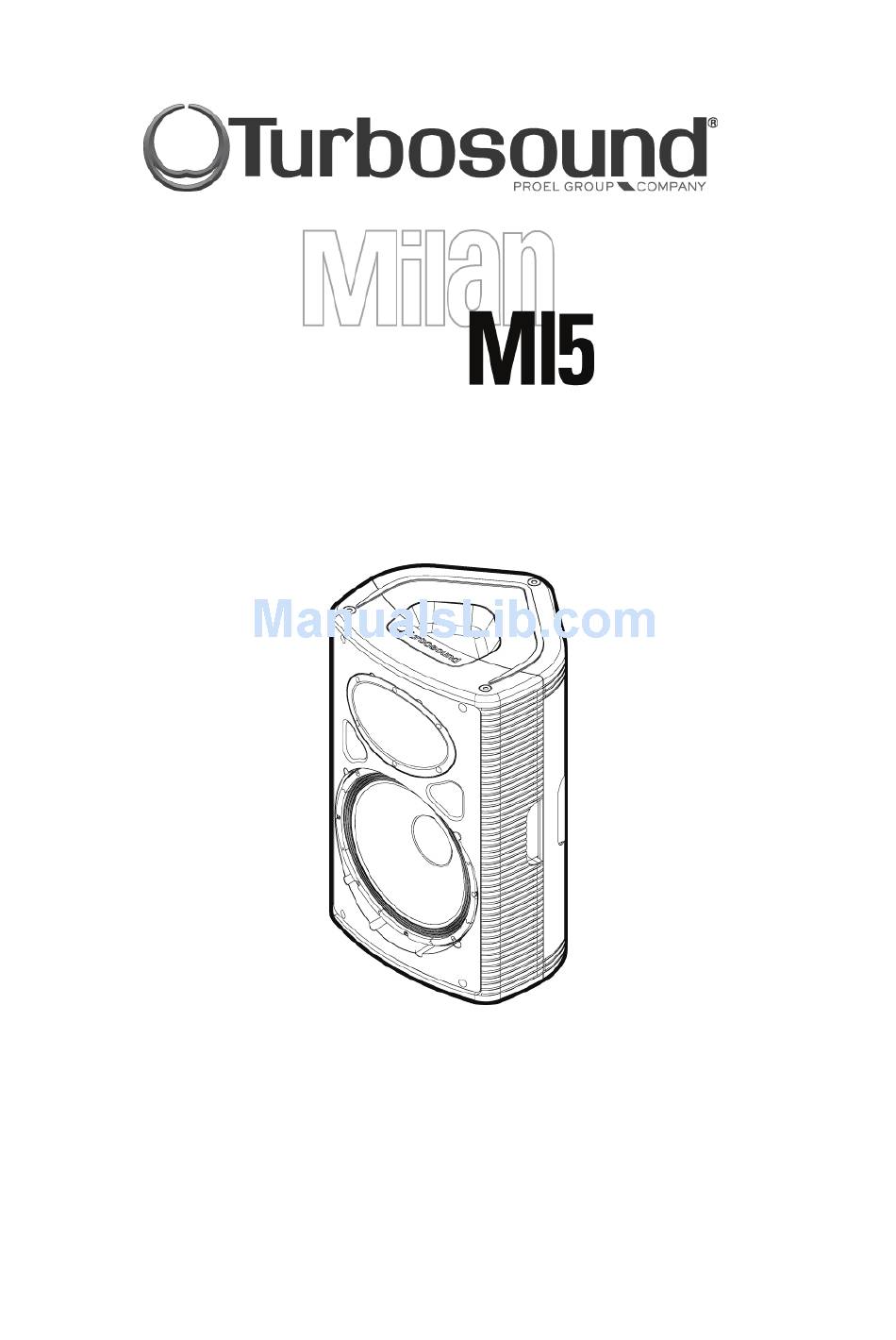

Page 1: User Guide
USER GUIDE Turbosound Ltd Star Road, Partridge Green West Sussex RH13 8RY United Kingdom Tel: +44 (0)1403 711447 Fax: +44 (0)1403 710155 web: www.turbosound.com Issue 1.0 © Turbosound Ltd... -
Page 2: Table Of Contents
user manual MILAN Contents USER GUIDE ................................... 1 Contents ..................................2 EC Declaration of Conformity ........................4 Safety considerations ..........................5 Introduction ..............................6 Thanks ..................................6 Unpacking .................................. 6 Contents ................................. 6 Getting Started ............................7 Self-Powered Loudspeakers ........................8 Signal Flow Block Diagram ............................. - Page 3 user manual MILAN Spare Parts ..............................24 Accessories ................................24 Warranty ..............................25 Contact Information ..........................26 Customer Service ..............................26 Product Information ............................... 26 Notes ................................27 MILAN user manual Page 3...
-
Page 4: Ec Declaration Of Conformity
MILAN EC Declaration of Conformity Manufacturer Turbosound Ltd, Star Road, Partridge Green, West Sussex, RH13 8RY, UK tel: +44 (0)1403 711447 fax: +44 (0)1403 710155 www.turbosound.com Products: Milan MI5 Standards: Relevant Specifications used as basis for tests EN55103-1:1996... -
Page 5: Safety Considerations
Use only accessories and attachments approved by the manufacturer. If the product is to be permanently installed use only rigging hardware approved by Turbosound. Unplug the loudspeaker during lightning storms or when it is not to be used for long periods of time. -
Page 6: Introduction
By engaging in an on-going rigorous program of research and development all TURBOSOUND products are carefully engineered for world class performance and reliability. If you would like further information about this or any other TURBOSOUND product, please contact us. Detailed product information is available on our website at: www.turbosound.com We look forward to helping you in the near future. -
Page 7: Getting Started
user manual MILAN Getting Started BASS TREBLE MIX OUT LIMIT BASS MODE -6dB POWER LEVEL INPUT 1 INPUT 2 LEVEL LINE LINE Turn the level controls fully anticlockwise (MIN) on both input channels. Set the Bass and Treble tone controls to their centre position (no boost or cut). Connect your signal sources (mixing console, keyboard, microphone, acoustic guitar) to the input connectors and select MIC or LINE as appropriate for that source. -
Page 8: Self-Powered Loudspeakers
user manual MILAN Self-Powered Loudspeakers Milan series self-powered loudspeakers are equipped with an integrated Class D amplifier module, taking consistent performance, convenience and ease of use to a new level. Featuring lightweight high-power amplifiers using 48kHz DSP and operating at better than 90% efficiency, Milan eliminates the need for separate amplifier racks and controllers, as well as the attendant cabling. -
Page 9: Bass Mode
user manual MILAN Bass Mode The BASS MODE switch introduces a 100Hz filter in the bass part of the frequency response. In the ‘B’ position it allows better integration of sub-bass loudspeakers with Milan MI5 loudspeakers by preventing an overlap in the bass frequencies. The subjective result is extended bass response. If you are using Milan without subwoofers we recommend that you select the ‘A’... -
Page 10: Model Information

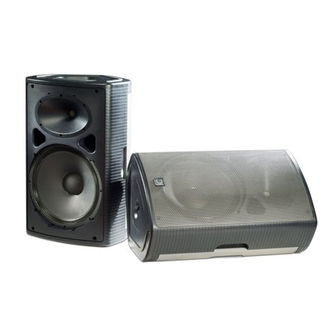

user manual MILAN Model Information Milan MI5 Self-Powered Loudspeaker The Milan MI5 is a self-powered sound reinforcement loudspeaker designed for many different portable and permanently installed applications. It consists of a 450 watt program 15” neodymium low frequency driver, matched with a 1” neodymium high frequency compression driver on a 90°... -
Page 11: Milan Mi5 Features
user manual MILAN Milan MI5 Features • 450 watt lightweight digital Class D amplifier for excellent audio quality • Internal DSP with frequency-dependent limiting ensures long term reliability • Integrated mixer provides two input channels each with microphone and line inputs via combination jack/XLR connectors •... -
Page 12: Connector Wiring
user manual MILAN Connector wiring The amplifier inputs are designed to accept balanced (three conductor) connections, and it is recommended that this method be used since it offers the best rejection of noise, hum and radio interference, especially where long cable runs are involved. XLR connectors should be wired pin 2 hot, while the standard wiring for 3-pole jack plug connectors is tip hot (+ve) and ring cold (-ve) as shown below. -
Page 13: Connecting To The Milan Mi5
user manual MILAN Connecting to the Milan MI5 1. Mains Connector and Fuseholder Mains power is connected to the loudspeaker via a combination IEC connector and fuseholder. The power supply BASS TREBLE MIX OUT is auto-sensing and can be connected to mains supplies LIMIT BASS ranging from 110 volts to 240 volts AC without the need to... -
Page 14: Bass Mode Switch
user manual MILAN 8. Bass Mode switch This slide switch introduces a fourth order high-pass filter in the lower part of the frequency response at 100Hz, and is useful to avoid boominess due to proximity to the floor when the Milan loudspeaker is used as a floor monitor. -
Page 15: Connection Diagrams
user manual MILAN Connection Diagrams Small band setup using the integrated mixer and Mix Out The built in two channel mixer allows the simultaneous use of either two low impedance dynamic microphones, a microphone and line level source, or two line level sources. The line level source could be an acoustic instrument such as a guitar with either passive or active on-board electrics, a keyboard, or MP3 player. -
Page 16: Stereo Pa With An External Mixer
user manual MILAN Stereo PA with an external mixer Two Milan loudspeakers form the left and right elements of a stereo PA setup with all signal sources connected to an external mixing console. Ensure that the mic/line switch is set to LINE on both loudspeakers. -
Page 17: Stereo Pa With An External Mixer And Subwoofer(S)
user manual MILAN Stereo PA with an external mixer and subwoofer(s) In this example, sub frequencies are routed to a separate subwoofer(s) in order to gain extended frequency response and higher overall sound level. Connect the mixer output first to the subwoofers and then loop up to the Milan loudspeakers. -
Page 18: Stereo Pa With Powered Wedge Monitors
user manual MILAN Stereo PA with powered wedge monitors On larger gigs a separate monitor system provides good quality foldback for individual performers and helps to keep the PA sound less cluttered. Select the BASS MODE ‘A’ or ‘B’ position as required on the Milan monitors. -
Page 19: Loudspeaker Placement
user manual MILAN Loudspeaker Placement In order to avoid the possibility of feedback locate the loudspeakers in front of your microphones and do not point microphones directly at the front of a loudspeaker. When using speaker stands, try to raise the loudspeakers as high as practically possible (at least higher than the heads of the audience) since people are very good absorbers of sound, especially at high frequencies. -
Page 20: Installing The Milan Loudspeaker
user manual MILAN Installing the Milan loudspeaker Using the M10 rigging points The Milan loudspeaker can be permanently installed in a venue, suspended from eyebolts fitted to the internal M10 rigging points on the top and bottom of the cabinet. Three possible orientations are available: vertically upright, or upside down to position the high frequency driver closer to the audience, or sideways if required. -
Page 21: Troubleshooting
user manual MILAN Troubleshooting Fault Check Action No power to the Is the mains lead plugged in? Connect the mains lead loudspeaker Is the mains outlet live? Check the mains outlet or switch to another outlet Is the power switch on? Press the mains switch No sound / quiet sound Is the level control turned... -
Page 22: Product Dimensions
user manual MILAN Product Dimensions Milan MI5 MILAN user manual Page 22... -
Page 23: Technical Specifications
user manual MILAN Technical Specifications Milan MI5 Dimensions 720mmH x 470mmW x 400mmD (28.3” x 18.5” x 15.7”) Net weight 22kg (48.4lbs) Frequency range 36Hz – 17kHz ±3dB 23Hz – 22kHz ±10dB Dispersion 90°H x 60°V @ -6dB points Max SPL (cont/max) 125dB/131dB Construction Injection-moulded polypropylene enclosure, self-coloured in... -
Page 24: Spare Parts
user manual MILAN Spare Parts Stock Code Model Description LS1530 LS-1530 15” (381mm) low frequency driver 04A9330 CD-118 HF compression driver 05B9320 RD-116/118 Replacement HF diaphragm 07A090 MG-MI5 Metal grille (with badge) Accessories Stock Code Model Description 07B508/0.6 PA-60 Speaker pole 35mm x 60cm long 07B508 PA-90 Speaker pole 35mm x 90cm long... -
Page 25: Warranty
This warranty does not affect any statutory rights of the purchaser. Should any fault develop with a component of your Turbosound system the faulty unit should be sent, in its original packaging, to the supplier or your local authorised Turbosound dealer with the shipping prepaid. -
Page 26: Contact Information
MILAN Contact Information Turbosound Ltd Star Road Partridge Green West Sussex RH13 8RY United Kingdom Customer Service If your product requires servicing please contact your local distributor or retailer. A complete list is available on our website at: www.turbosound.com/distrib/distribs.php... -
Page 27: Notes
user manual MILAN Notes MILAN user manual Page 27... - Page 28 user manual MILAN MILAN user manual Page 28...
Need help?
Do you have a question about the MILAN MI5 and is the answer not in the manual?
Questions and answers

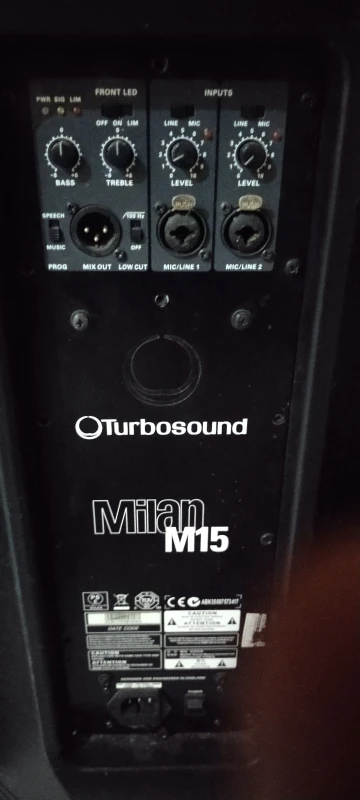

Saya membutuhkan skematik turbo sound milan m15 guna perbaikan unit saya yang rusak
