TXD series
USER MANUAL
Turbosound Ltd., Star Road, Partridge Green, West Sussex RH13 8RY UK
Tel: +44 (0)1403 711447 Fax: +44 (0)1403 710155
web: www.turbosound.com
Issue 1.3 July 2006
Copyright © 2006 Turbosound Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TXD series and is the answer not in the manual?

Questions and answers

Bob Holada
July 2, 2025

TXD-80 speakers specifications

Summary of Contents for Turbosound TXD series

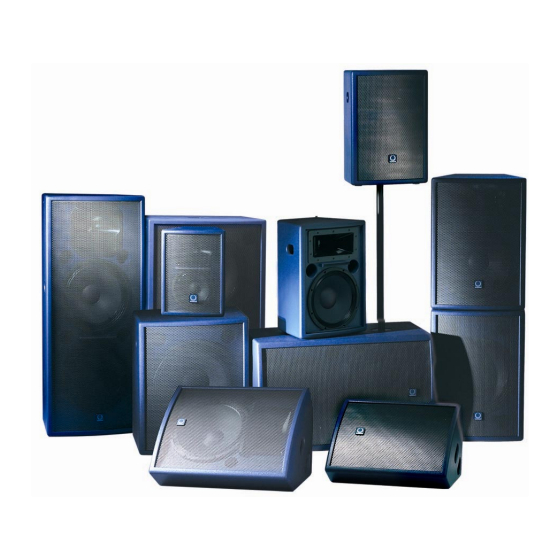

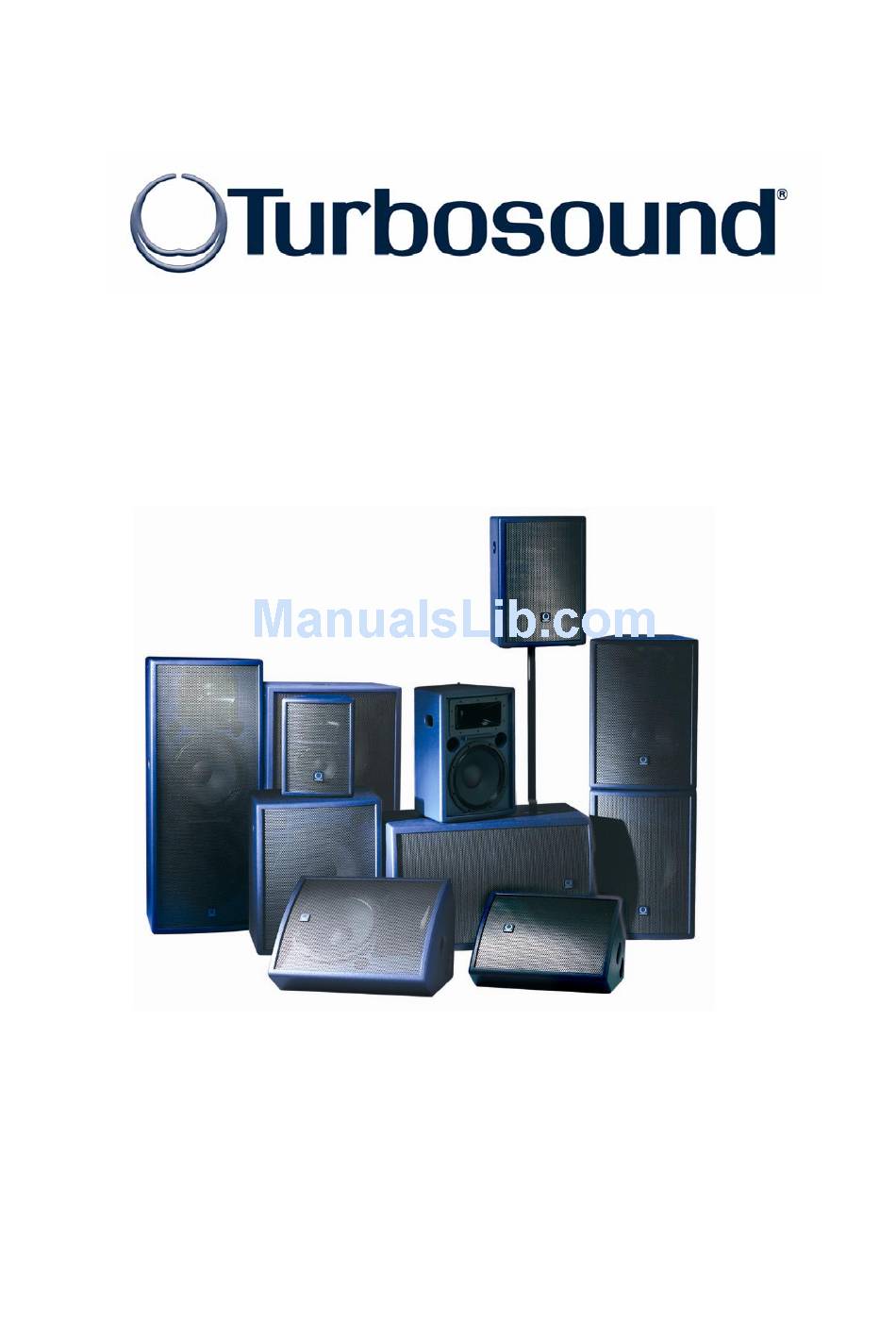

  • Page 1 TXD series USER MANUAL Turbosound Ltd., Star Road, Partridge Green, West Sussex RH13 8RY UK Tel: +44 (0)1403 711447 Fax: +44 (0)1403 710155 web: www.turbosound.com Issue 1.3 July 2006 Copyright © 2006 Turbosound Ltd.
  • Page 2: Table Of Contents

    Removal of the low frequency driver(s)... 24 Removal of the high frequency compression driver ... 24 Appendix A... 26 Technical Specifications ... 26 Appendix B ... 28 Spares and Accessories... 28 Flying Accessories ... 28 Appendix C ... 29 TXD series manual page 2...
  • Page 3 Use of thread locking compounds ... 29 Appendix D... 30 Limited Warranty ... 30 Warranty Coverage ... 30 Shipping... 30 Incidental and consequential damages ... 31 Limitation of implied warranties... 31 user manual TXD series TXD series manual page 3...
  • Page 4: Introduction

    Congratulations, you have just purchased a professional loudspeaker system from the renowned Turbosound range, designed to give you the best in audio quality and many years of reliable, trouble free operation. It offers superior audio quality, full technical documentation, and rigging and flying hardware options.
  • Page 5: Features

    HF drive units from both transient peaks and long term heating effects. • Professional appearance: TXD series enclosures are equally suited to live sound and DJ applications as well as permanent installations. •...
  • Page 6: Product Range Summary

    The TXD-081 is equipped with internal rigging points for use with Turbosound wall and ceiling brackets, and M10 eyebolts. A standard 35mm pole mount is fitted.
  • Page 7: Txd-151

    TXD series the rear of the cabinet for use with Turbosound wall and ceiling brackets. Two Neutrik Speakon NL4MP speaker connectors are located on the rear panel, providing input and parallel connections to additional TXD series cabinets or bass enclosures.
  • Page 8: Txd-115

    Pole mount sockets are fitted on the top and sides of the cabinet to enable full range cabinets to be mounted on optional 35mm poles. When used in a horizontal format the two side-mounted pole mounts allow two TXD series enclosures to be mounted on top of a single TXD series manual...
  • Page 9: Txd-118

    The TXD-118 is a front-loaded low frequency loudspeaker enclosure designed to give bass and sub-bass reinforcement to TXD series 2-way enclosures in a wide variety of live sound applications, as well as in fixed installations ranging from cafes, pubs, bars and restaurants to retail stores and houses of worship.
  • Page 10: Txd-12M

    A Neutrik Speakon NL4MP connector is located at each end of the cabinet on recessed panels, providing input and parallel link connections to additional TXD series monitors. TXD-15M The TXD-16M is a switchable passive/biamp two-way wedge monitor enclosure designed for use in a wide variety of live sound, fixed installation and mobile DJ applications that require professional sound quality in an easily transportable format.
  • Page 11 Speakon NL4MD-V-S connector provided. Two Neutrik Speakon NL4MP connectors are also provided for input and parallel link connections to additional TXD series monitors. The cabinet is constructed from 15mm (5/8”) birch plywood, screwed and glued together for maximum rigidity.
  • Page 12: System Requirements

    TXD series SYSTEM REQUIREMENTS TXD series enclosures (with the exception of the TXD-252 and TXD-15M) are passive loudspeaker systems. This means that they require only one amplifier channel for correct operation, the frequency splitting between the low frequency driver and the high frequency driver or mid and high frequency driver being accomplished by the internal passive crossover network built into each enclosure.
  • Page 13: Bi-Amplified Operation

    Bi-amplified operation TXD series two-way loudspeakers can also be operated in bi-amplified mode together with any of the available bass enclosures, in order to give enhanced audio performance and greater overall sound pressure level. In this case one amplifier will power the full range loudspeakers, while another is required to power the bass cabinets.
  • Page 14: Amplifier Considerations

    – than operating a more powerful one within its ratings. Equalisation TXD series enclosures are designed to provide smooth and even frequency response. They do not need excessive amounts of external equalisation to overcome the sonic deficiencies often found in many lesser designs.
  • Page 15: Dispersion

    For best results the loudspeakers should be either mounted on tripod stands or supported on straight poles on top of TXD series bass enclosures. In order to optimise the sound coverage, point the loudspeakers inwards slightly, such that the centre lines intersect at a distance approximately equal to twice the width of the stage.
  • Page 16: System Connections

    TXD series SYSTEM CONNECTIONS The following diagrams illustrate several TXD series applications, ranging from a simple live performance system of just two loudspeakers to a multi-zoned nightclub system. Passive two way system Connect a second pair of loudspeakers in parallel (shown with dotted lines) if required, using the link connections on the rear panel.
  • Page 17: Passive Full-Range System With Subs

    Passive full-range system with subs Connect the power amplifier first to the bass cabinets, and then to the two-way loudspeakers using the link connections. Passive full-range system with subs Connect to the bass cabinets as in the example above. TXD series manual page 17...
  • Page 18: Passive Full-Range System With Subs

    Passive full-range system with subs Live performance monitor system Take auxiliary feeds from the mixer via a graphic equaliser to two separate channels of a power amplifier. Connect a second unit in parallel to form mirror-image pairs. TXD series manual page 18...
  • Page 19: Bi-Amplified System With Subs

    TXD series Bi-amplified system with subs TXD series manual page 19...
  • Page 20: Club System With Multiple Zones

    TXD series Club system with multiple zones TXD series manual page 20...
  • Page 21: Mounting And Fixing

    TXD series low frequency enclosures to accept the various poles. TXD series cabinets, including low frequency enclosures, can be rigged in permanent installations using optional M10 shoulder eyebolts. The top of each cabinet is provided with two internal threaded rigging points, and a further rigging point is provided on the back panel which is used to vary the amount of downward angle.
  • Page 22: Pole Assembly

    TXD series Pole assembly TXD-121 P A-60 TXD-215 TXD series manual page 22 TXD-151 TXD-151 TXD-121 P A-60 P A-90 P A-100 TXD-215 TXD-215 TXD-121 TXD-151 TXD-081 P A-90 P A-90 P A-100 TXD-118 TXD-115 TXD-115...
  • Page 23: Choosing The Best Location

    This rigging information is specifically related to the requirements of TXD series enclosures only. For more detailed information on the whole topic of rigging various handbooks are available. If you are in any doubt contact your Turbosound dealer who will be able to refer you to an experienced rigging company.
  • Page 24: Maintenance

    TXD series MAINTENANCE If any of the drive units in your TXD series cabinet should cease functioning and need to be replaced repaired, you are advised to remove the faulty unit from the cabinet and send it to a professional service centre authorised to repair Turbosound loudspeakers.
  • Page 25 TXD series TXD series manual page 25...
  • Page 26: Appendix A

    Connectors (2) Speakon NL4MP wired pin 1+ positive, pin 1- negative Due to continuing product improvement the above specifications are subject to change. TXD series manual page 26 TXD-121 TXD-12M 553mm x 411mm x 435mm x 533mm x 352mm 288mm (21.8”...
  • Page 27 36Hz – 150Hz ±4dB 98dB, 1 watt @ 1 metre 300 watt r.m.s. 600 watts program 123dB continuous 129dB peak 15mm (5/8”) birch plywood Powder coated perforated steel (2) Speakon NL4MP wired pin 1+ positive, pin 1- negative TXD series manual page 27...
  • Page 28: Appendix B

    EB-10 CB-55 WB-20 WB-55 PA-60 PA-90 PA-100 PA-120 PB-55 TXD series manual page 28 1” HF compression driver 3” diaphragm compression driver 8” LF loudspeaker 12” LF loudspeaker 15” LF loudspeaker 15” LF loudspeaker 15” LF loudspeaker 18" LF loudspeaker...
  • Page 29: Appendix C

    The recommended thread-locking compound is Loctite 222. The threaded rigging points used in TXD series enclosures are manufactured from zinc-plated mild steel. Therefore, and additionally if the external bolts used are zinc-plated, zinc-passivated, stainless steel or anodised (as the majority are), then the corresponding activator, Loctite 7471, should be used to achieve 100% performance.
  • Page 30: Appendix D

    Turbosound Ltd. (Att: Customer Service), Star Road, Partridge Green, West Sussex RH13 8RY, England, or your local authorised Turbosound representative.
  • Page 31: Incidental And Consequential Damages

    Incidental and consequential damages Turbosound's liability is limited to the repair or replacement, at our option, of any defective product, and shall not be liable for any incidental and consequential damages including, without limitation, injury to persons or property or loss of use.
  • Page 32 TXD series manual page 2 Turbosound Ltd. Star Road, Partridge Green West Sussex RH13 8RY UK Tel: +44 (0)1403 711447 Fax: +44 (0)1403 710155 web: www.turbosound.com...
