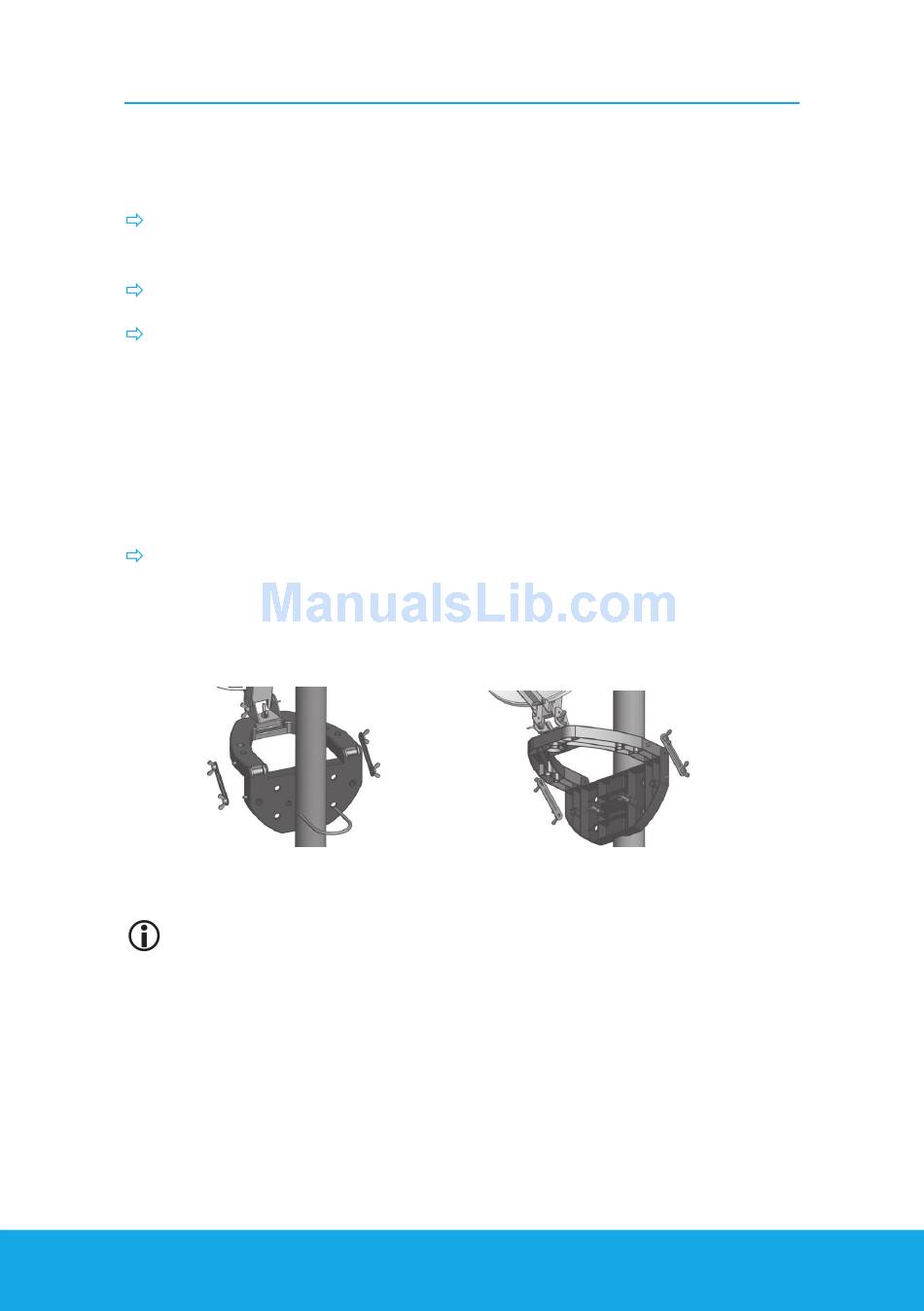

Installation on a mast
First of all, rotate the antenna by 180° so that the LNB will face
away from the antenna base.
Now, flap down the antenna base by 90° using the articulation.
Then fix the lateral rods with the wing nuts at the left and right
side of the base to get the required stability. The cavities of the
lateral rods must face towards the inside of the base. Now. the
lateral rods rest directly on the base. The spring ring and the plain
washer must be placed between the lateral rods and the wing
nuts. Here, the plain washer rests on the respective lateral rod.
The spring ring must be placed between the plain washer and the
wing nut.
For fixing the base on the mast, place the U bracket around the
mast and lead it through the corresponding holes of the base.
Now tighten the wing nuts uniformly.
The maximum diameter of the mast must not exceed
60mm.
