Antenna installation
The antenna consists of a few individual components and is simple
to install.
Take out the system components from the transport bag.
Remove the packing material.
Installation of the antenna
Step 1:
Step 2:
18
Helpline No. UK/Northern Ireland 01422 263270

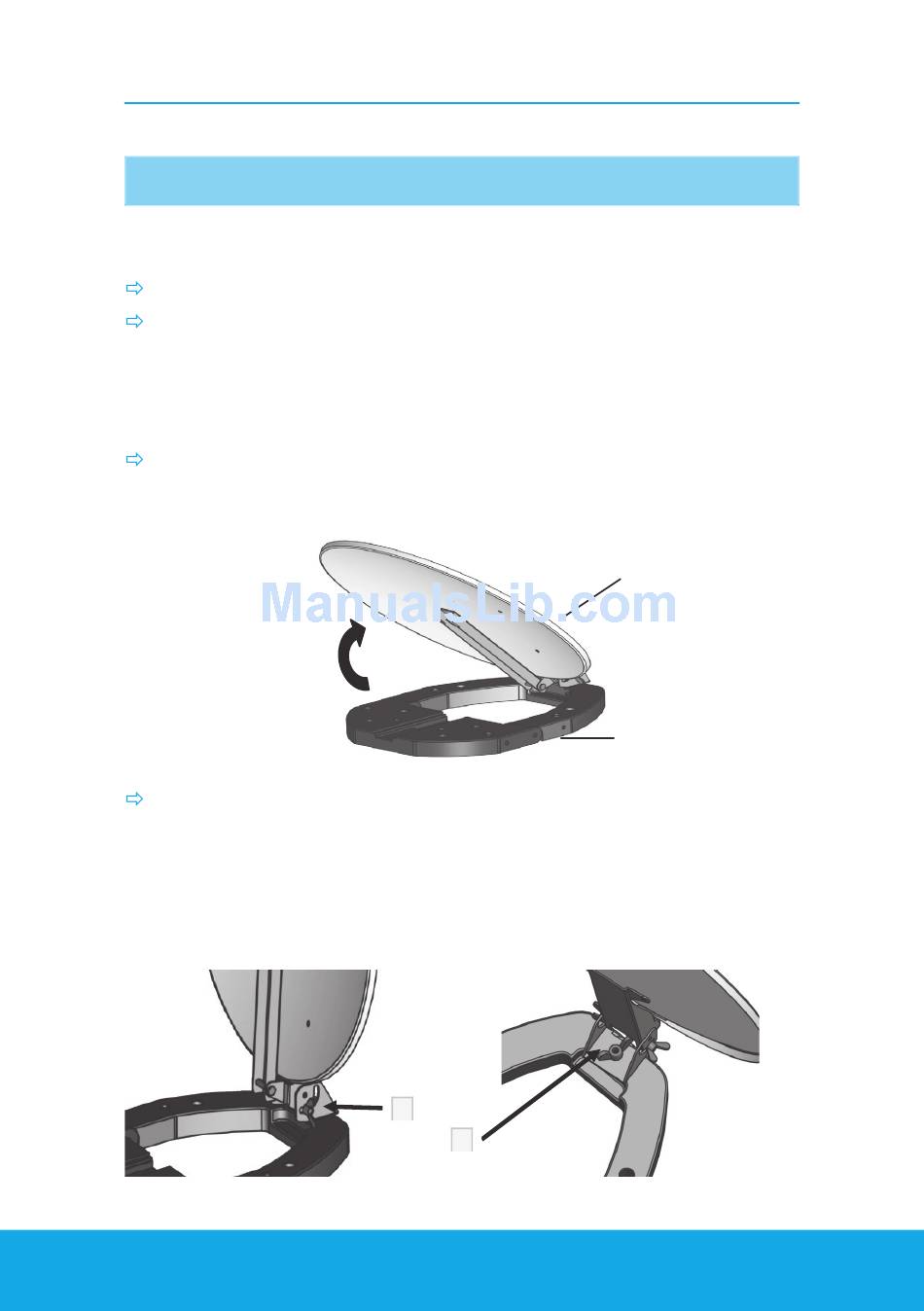

Place the antenna with its base on a suitable surface
and open it in the direction of the arrow until it is in a
vertical position.
Now, the antenna is open. For fixing the angle of
inclination of the antenna please tighten both wing nuts
(arrow 1). The adjustment of the angle of inclination is
described in section "Direction of the antenna" on page
37. The horizontal direction (azimuth) by rotating the
antenna will be fixed with the wing nut at arrow 2.
1
Base of antenna
2
Rep. Ireland 1890 812049
antenna
