Exerpeutic Inversion Table Owner's Manual page 14

ASSEMBLY

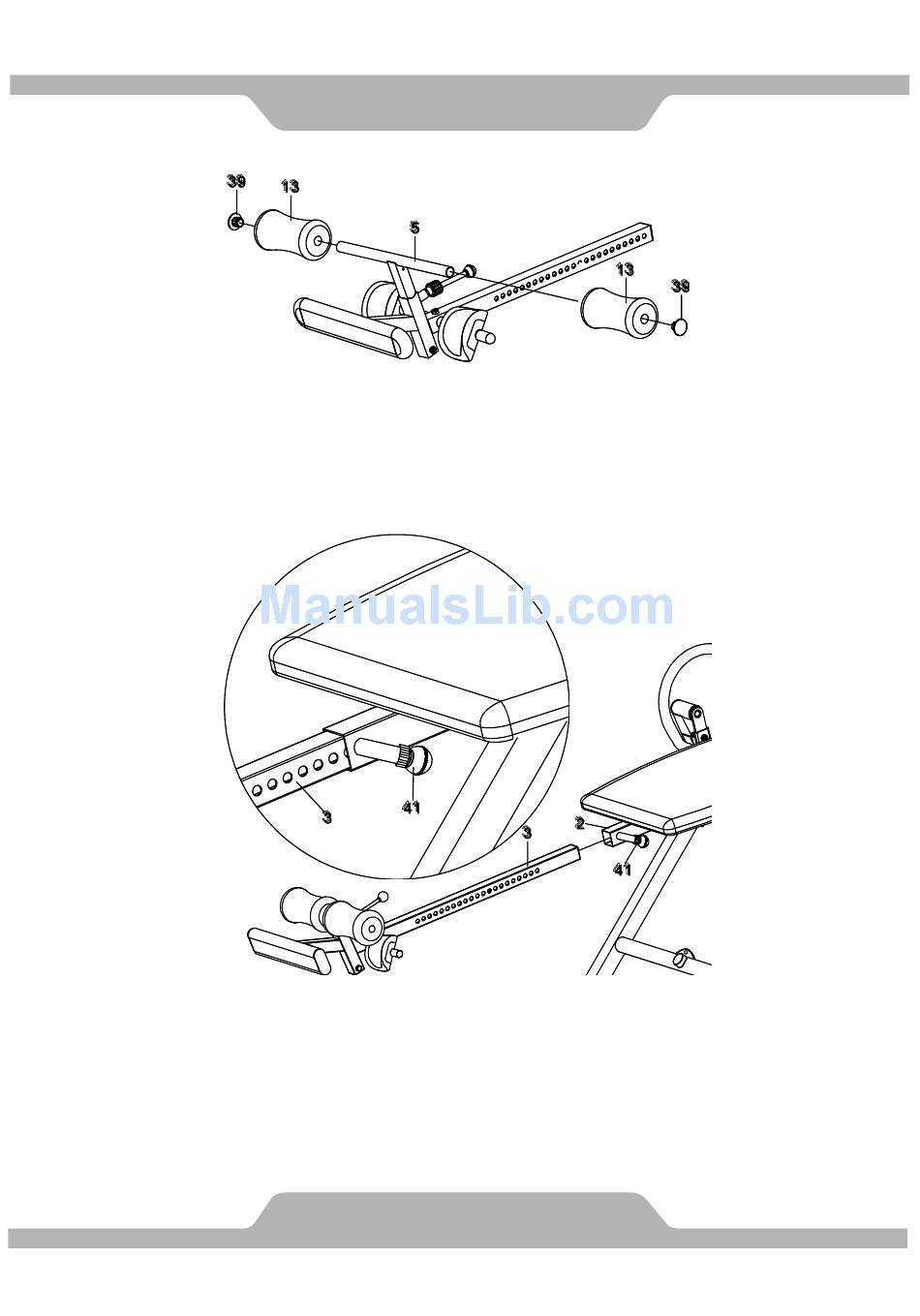

Step 7:
Slide one Front Heel Holder (13) onto one end of the Adjustable Instep Frame
(5). Use the same procedure to attach the other Front Heel Holder (13) onto
the other end of the Adjustable Instep Frame (5). Install two Adjustable Instep
Frame Round End Caps (39) onto both ends of the Adjustable Instep Frame (5)
and Front Heel Holders (13).
Step 8:
Pull out the Adjustable Boom Knob (41), and slide the Adjustable Boom (3) into
the square bracket on the bottom of the Backrest Frame (2). Slide the
Adjustable Boom (3) upward, until the desired height on the height scale is just
below the bracket on the Backrest Frame (2). Lock the Adjustable Boom (3) in
place by releasing the Adjustable Boom Knob (41) and sliding the Adjustable
Boom (3) up or down slightly until the Adjustable Boom Knob (41) "pops" down
into the locked position.
13
