Exerpeutic Inversion Table Owner's Manual page 13

Tool:
2 Wrenches (#13 & #17)

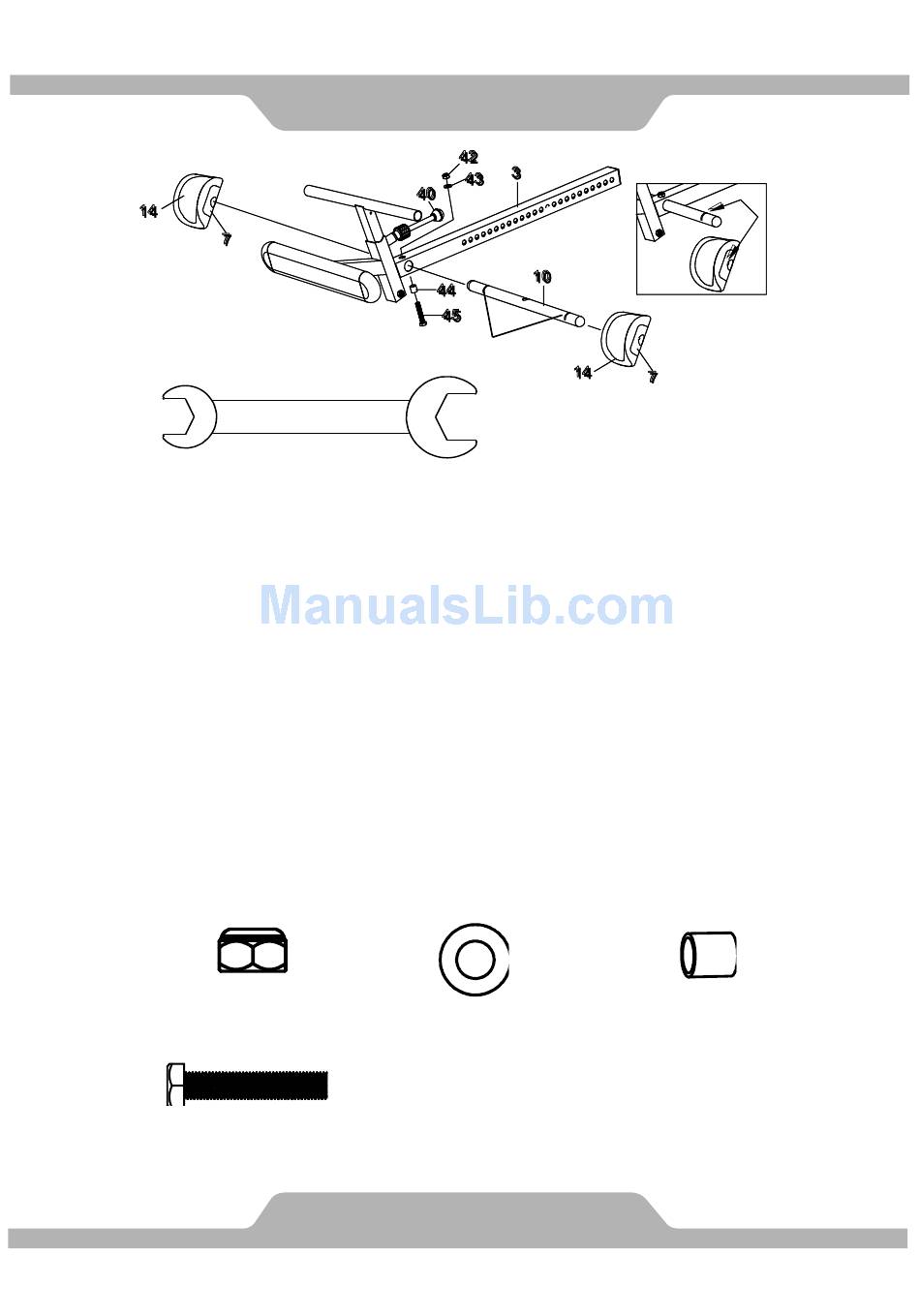

Step 6:
Slide the Rod (10) with both slots facing the Adjustable Instep Frame Knob (40)
through the large round hole on the side of Adjustable Boom (3), and secure the
Rod (10) on the Adjustable Boom (3) with one M8 Nylon Nut (42), one
Ø16xØ8.5x2.0 Flat Washer (43), one Metal Bushing (44), and M8x48mm
Hexagon Head Bolt (45).
Slide one Steel Heel Holder Bracket (7) and one Rear Rubber Heel Holder (14)
onto one end of the Rod (10) until the lock tooth is wedged into the slot in the
Rod (10), as shown in detailed drawing.
Use the same procedure to attach the other Steel Heel Holder Bracket (7) and
Rear Rubber Heel Holder (14) onto the other end of the Rod (10).
NOTE: Make sure the lock teeth are wedged into the slots in the Rod (10) to
lock the Steel Heel Holder Brackets (7) and Rear Rubber Heel Holders (14) in
place before use.
Hardware:
(42) Nylon Nut M8
1 PC
(45) Hexagon Head Bolt
M8x48mm
1 PC
ASSEMBLY
Slot
(43) Flat Washer
Ø16xØ8.5x2.0
1 PC
12
(44) Metal Bushing
1 PC
