Empire DVX36FP31L-4 Installation Instructions And Owner's Manuals

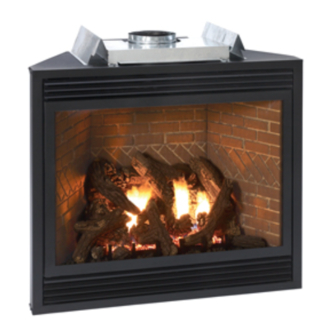

Direct vent zero clearance gas fireplace heater
Hide thumbs Also See for DVX36FP31L-4:
Table of Contents

Advertisement

Quick Links

See also: Installation Instructions & Owner's Manual
EMPIRE
EMPIRE
Comfort Systems
LUXURY DIRECT VENT GAS
FIREPLACE HEATER
MILLIVOLT STANDING
PILOT
DVX36FP31L(N,P)-4
DVX42FP31L(N,P)-4
INTERMITTENT PILOT
DVX36FP71L(N,P)-3
DVX42FP71L(N,P)-3
UL FILE NO. MH30033
WARNING: If not installed, operated and maintained
in accordance with the manufacturer's instructions,
this product could expose you to substances in fuel
or from fuel combustion which can cause death or
serious illness.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA only)
or mobile home, where not prohibited by state or local
codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified
kit is used.

INSTALLATION INSTRUCTIONS

DIRECT IGNITION
DVX36FP51LN-2
DVX42FP51LN-2
REMOTE RF
DVX36FP91(N,P)-2
DVX42FP91(N,P)-2
GAS-FIRED
AND
OWNER'S MANUAL
Direct Vent Zero Clearance Gas
Fireplace Heater
Installer:
Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
WARNING: If the information in these instructions
are not followed exactly, a fire or explosion may
result causing property damage, personal injury or
loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use
any phone in your building.
•
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVX36FP31L-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Empire DVX36FP31L-4

Summary of Contents for Empire DVX36FP31L-4

  • Page 1: Installation Instructions

    INSTALLATION INSTRUCTIONS EMPIRE EMPIRE OWNER’S MANUAL Comfort Systems Direct Vent Zero Clearance Gas LUXURY DIRECT VENT GAS Fireplace Heater FIREPLACE HEATER MILLIVOLT STANDING DIRECT IGNITION PILOT DVX36FP31L(N,P)-4 DVX36FP51LN-2 DVX42FP31L(N,P)-4 DVX42FP51LN-2 INTERMITTENT PILOT REMOTE RF DVX36FP71L(N,P)-3 DVX36FP91(N,P)-2 DVX42FP71L(N,P)-3 DVX42FP91(N,P)-2 UL FILE NO. MH30033...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION PAGE IMPORTANT SAFETY INFORMATION ............................3 SAFETY INFORMATION FOR USERS OF LP GAS ........................4 REQUIREMENTS FOR MASSACHUSETTS ........................... 5 INTRODUCTION ....................................6 SPECIFICATIONS .................................... 7 SPECIAL VENT SYSTEMS ................................7 VENT SYSTEM IDENTIFICATION ..............................8 FIREPLACE DIMENSIONS ................................

  • Page 3: Important Safety Information

    • Installation and repair should be done by a qualified glass frame assembly from Empire. See parts list on service person. The appliance should be inspected Pages 66 to 69 for ordering.

  • Page 4: Safety Information For Users Of Lp Gas

    SAFETY INFORMATION FOR USERS OF LP GAS Propane (LP-Gas) is a flammable gas which can cause fires with the members of your household. Someday when there and explosions. In its natural state, propane is odorless and may not be a minute to lose, everyone’s safety will depend colorless. You may not know all the following safety precautions on knowing exactly what to do. If, after reading the following which can protect both you and your family from an accident. information, you feel you still need more information, please Read them carefully now, then review them point by point contact your gas supplier.

  • Page 5: Requirements For Massachusetts

    REQUIREMENTS FOR MASSACHUSETTS For all side wall horizontally vented gas fueled equipment installed SIGNAGE. A metal or plastic identification plate shall be in every dwelling, building or structure used in whole or in part for permanently mounted to the exterior of the building at a residential purposes, including those owned or operated by the minimum height of eight feet above grade directly in line with Commonwealth and where the side wall exhaust vent termination...

  • Page 6: Introduction

    U.S.A. and Canada. • Modification of the fireplace or direct vent system. Qualified Installing Agency • Installation other than as instructed by Empire Comfort Systems, Installation and replacement of gas piping, gas utilization equipment Inc. or accessories and repair and servicing of equipment shall be •...

  • Page 7: Specifications

    Excel DV Venting 5” - 8” Excel DV Venting 4” - 6 ⅝” Empire Flexvent Kit DVVK-5F Empire Horizontal Round Termination Kit DVVK-4RE Note: DVA-47 not for use with Flex Vent Kits. For use with Simpson Duravent vents only. 31449-4-1113...

  • Page 8: Vent System Identification

    *Note: If using three 90° elbows during horizontal termination, see Figure 28. Figure 1 Special Venting Components (Simpson Duravent) See Empire Comfort Systems Retail Price List for Simpson Duravent part numbers and pricing. Special DV Vent Kits for DVX36 Available from Empire Comfort Systems, Inc. dealers. DVVK-4VP (DVVK-4V) Direct-Vent Fireplace Vent Kit - Vertical, Includes SD-991, SD-953, and SD-943...

  • Page 9: Fireplace Dimensions

    FIREPLACE DIMENSIONS Dimension DVX36FP DVX42FP 34 3/4" (882.7 mm) 34 3/4" (882.7 mm) 39" (990.6 mm) 43" (1092.2 mm) 19 7/8" (505 mm) 19 7/8" (505 mm) 25" (635 mm) 25" (635 mm) 36" (914.4 mm) 40" (1016 mm) 26 1/2" (673.1 mm) 26 1/2"...

  • Page 10: Clearances

    CLEARANCES Mantel Chart Clearance to Combustibles Back 0" (0 mm) Side 0" (0 mm) Floor 0" (0 mm) Top Stand-off 0" (0 mm) Top Framing Edge 6" (152 mm) Figure 5 Clearances Clearance from top front edge of fireplace to ceiling is 36" Clearance from side of fireplace to adjacent sidewall is 6".

  • Page 11: Locating Fireplace

    LOCATING FIREPLACE NOTICE: When you install your Direct Vent Fireplace in Room divider or Flat Island and Room Divider installation is possible as long on wall corner positions, a minimum of 6 inches clearance must as the horizontal portion of the vent system does not exceed 20 feet be maintained from the perpendicular wall and the front edge of with a minimum vertical run of 8 feet.

  • Page 12: Gas Supply

    GAS SUPPLY The gas pipeline can be brought in through the right or left side of Each appliance should have its own manual gas cock. the appliance. Consult the current National Fuel Gas Code, ANSI A manual main gas cock should be located in the vicinity of the unit. Z223.1 CAN/CGA-B149 (.1 or .2) installation code.

  • Page 13: Installation

    INSTALLATION Framing and Finishing Choose unit location. Frame in fireplace with a header across the top. It is important to allow for finished face when setting the depth of the frame. See Figure 10B. Attach fireplace to frame using nailing flange. Preset depth to suit facing material (adjustable to 1/2", 5/8"...
  • Page 14 INSTALLATION (continued) Flush Mount Mantel Installation The fireplace must extend 3/4" beyond finished wall surface when using a flush mount mantel. Refer to Figure 13 to locate nailing flanges on fireplace sides. Mark and drill two 1/8" holes into fireplace side to mount each nailing flange.
  • Page 15 Flush Wall Installation Attention: Cold climate installation recommendation: When installing this unit against a non-insulated exterior wall, it is recommended that the outer walls be insulated to conform to applicable insulation codes. Vent Runs In planning the installation for the fireplace, it is necessary to install certain components before the appliance is completely positioned and installed.

  • Page 16: Installation

    INSTALLATION (continued) TOP, 90° ELBOW TO CORNER INSTALLATION TOP, 90° ELBOW TO HORIZONTAL HORIZONTAL OUT THE WALL OUT THE WALL “A” WALL FIRESTOP/ 90º ELBOW “A” THIMBLE PIPE LENGTH “B” 6” (152mm) MINIMUM “C” VENT 9” (229mm) “D” MINIMUM VENT CAP WALL FIRESTOP/ THIMBLE Dim.

  • Page 17: Venting Fireplace - Top

    VENTING FIREPLACE - TOP Venting Graph (Dimensions in Feet) To Use the Vent Graph 1. Determine the height of the center of the horizontal vent pipe. Using this dimension on the Sidewall Vent Graph, locate the point it intersects with the slanted graph line. 2.
  • Page 18 VENTING FIREPLACE - TOP (continued) Below Grade Installation When it is not possible to meet the required vent terminal clearances of 12" (305mm) above grade level, a snorkel kit is recommended. It allows installation depth down to 7" (178mm) below grade level. The 7"...
  • Page 19 VENTING FIREPLACE - TOP (continued) Figure 25 Figure 24 MINIMUM HOLE LOCATION DIMENSIONS FOR THROUGH THE WALL HORIZONTAL INSTALLATIONS WITH 90 DEGREE ELBOW OFF TOP OF FIREPLACE FIREPLACE HARD ELBOW DIMENSIONS SERIES "A" "B" "C" DVX36FP 43-1/2" 5" 7" (1105mm) (127mm) (178mm) DVX42FP...

  • Page 20: Examples - Top Vent Run

    EXAMPLES - TOP VENT RUN Example H2 3ft, H3 1ft = 4ft (90° + 90° + 90°) = 6ft V1 = 21ft H = 10ft V = 21ft Figure 28 Figure 27 Figure 29 Page 20 31449-4-1113...

  • Page 21: Vent Clearances

    VENT CLEARANCES AREA WHERE TERMINAL IS NOT PERMITTED VENT TERMINAL AIR SUPPLY INLET Figure 30 *Clearance above grade, veranda, porch, deck or balcony clearance to non-mechanical air supply inlet to building or [*12 inches (30cm) minimum] the combustion air inlet to any other appliance [*12 inches (30cm) minimum for appliances ≤...

  • Page 22: Venting Framing And Finishing

    VENTING FRAMING AND FINISHING Installing Support Brackets A horizontal pipe support MUST BE used for each 3 feet of horizontal run. The pipe supports should be placed around the pipe and nailed in place to framing members. There MUST BE a 3 inch clearance to combustibles above flue pipe and elbows and 1 inch clearance on both sides and bottom of the flue pipe to combustibles on all horizontal pipe sections and elbows.

  • Page 23: Venting Framing And Finishing

    VENTING FRAMING AND FINISHING (continued) EXISTING CEILING JOISTS NAILS, 4 REQUIRED CEILING FIRESTOP NEW FRAMING CEILING BELOW Vent Size Vent Size 6 5/8" 10" 10" 6 5/8" 10" 10" 8" 10 1/2" 10 1/2" 8" 10 1/2" 10 1/2" Figure 35 Figure 33 See Horizontal Termination Page 25 and Vertical Termination Pages 26 and 27.

  • Page 24: Termination Clearances

    TERMINATION CLEARANCES Termination clearance for buildings with combustible and noncombustible exteriors. INSIDE CORNER OUTSIDE CORNER RECESSED LOCATION “A” = COMBUSTIBLE 9” (229mm) “F” = COMBUSTIBLE 6” (152mm) = NONCOMBUSTIBLE 2” (51mm) = NONCOMBUSTIBLE 6” (152mm) BALCONY BALCONY WITH PERPENDICULAR SIDE WALL WITH NO SIDE WALL “C”...

  • Page 25: Horizontal Termination

    HORIZONTAL TERMINATION NOTE: Termination cap should pass through the wall firestop from the exterior of the building. Adjust the termination cap to its final exterior position on the building. WARNING CUT VINYL SIDING AWAY TO FIT STANDOFF Termination cap must be positioned so that arrow is pointing up. Attach the termination cap with the four wood screws provided.

  • Page 26: Vertical Termination

    VERTICAL TERMINATION Locate and mark the center point of the venting pipe. Using a nail on the underside of the roof and drive this nail through this center point. Make the outline of the roof hole around this center point. NOTE: Size of the roof hole dimensions depend on the pitch of the roof.

  • Page 27: Vertical Termination

    VERTICAL TERMINATION (continued) Installing the Vent System in a Chase Continue replacing components per the vent system configuration. A chase is a vertical box-like structure built to enclose the gas Be certain that each succeeding vent component is securely fitted appliance and/or it’s vent system.

  • Page 28: Dvvk-4Fv Direct Vent Termination Kit

    The vertical termination cap MUST be vented directly to the outside. The termination kit MUST NEVER be connected to a This termination kit can only be used with Empire Comfort Sys- chimney flue(s) servicing a separate solid-fuel burning appli- tems direct vent fireplaces listed for use with DVVK-4FV Verti- ance or any other appliances.
  • Page 29 DVVK-4FV DIRECT VENT TERMINATION KIT (cont.) PRE-INSTALLATION INFORMATION: Installation of the Vertical Flex Termination Kit WARNING Items Required For Installation: Ensure that the venting system exits the structure through the Tools Building Supplies roof and does not terminate less than 12 inches (305mm) above Phillips Screwdriver Framing Materials the roof.
  • Page 30 DVVK-4FV DIRECT VENT TERMINATION KIT (cont.) Step-By-Step Installation For Flex DV Kit Unpack vent components and check all items for shipping Next, determine the location for the cutout in the roof opening. damage. This opening must be large enough to provide a minimum 1” For this venting system to operate as designed it is dependent air space clearance from the vertical vent pipe to any combus- on the use of all parts and procedures detailed in these in-...
  • Page 31 DVVK-4FV DIRECT VENT TERMINATION KIT (cont.) 10. With the flex vent assembly and the 48” long hard pipe com- ponents laid out on the floor, begin securing these parts to- gether. First, apply a generous bead of silicone sealant to the inside of the 4”...
  • Page 32 DVVK-4FV DIRECT VENT TERMINATION KIT (cont.) 17. To attach the vent connections at the fireplace, be sure the 7” 19. Once the lower connections are made and the flex pipe is diameter adapter collar has been installed per step 3. Apply a secured with support bands as required (3 feet minimum be- bead of silicone sealant to the 4”...
  • Page 33 DVVK-4FV DIRECT VENT TERMINATION KIT (cont.) VERTICAL TERMINATION STORM COLLAR 4’ LONG RIGID PIPE ROOF FLASHING ADJUSTABLE ROOF JACK ASSEMBLY ROOF EXTERIOR CLEARANCE TO COMBUSTIBLES REQUIRED FROM VENT PIPE CLAMPS AT FLUE & INLET VENT CONNECTIONS ADJUSTABLE STORM COLLAR (USE TO FIRESTOP/THIMBLE KEEP INSULATION OUT OF ASSEMBLY...

  • Page 34: Dvvk-4Fv Direct Vent Termination Kit

    DVVK-4FV DIRECT VENT TERMINATION KIT (cont.) Vertical Flex Termination Kit Item Quantity Number Item Description Repair Part No. Supplied 4”/7” Vertical Termination Cap MF100038 Roof Support Kit MF100503 2 Ply Alum Flex 4” Diameter by 6 ft. MF04ALA2F006 2 Ply Alum Flex 7” Diameter by 6 ft. MF07ALA2F006 4”/7”...

  • Page 35: Dvvk-4F Flex Vent Instructions

    DVVK-4F FLEX VENT INSTRUCTIONS (DVX36 only) The DVVK-4F FLEX VENT KIT includes the following compo- Remove the 6-⅝" diameter vent collar from the fireplace. nents: Replace this collar with the 7" diameter Flex Vent adapter • Horizontal Termination Cap collar provided with the vent kit. •...

  • Page 36: Dvvk-4Re Vent Kit Installation Instructions

    NOTICE: If installing onto wood, lap, or vinyl siding, the vinyl siding kit should be used (sold separately, part number DV-822). 9” The vinyl siding vent kit, DV-822, is available from Empire Comfort Systems, Inc. The depth is 3” (76mm), which enables the vent Figure 54 cap to be extended away from vinyl siding or projections.
  • Page 37 DVVK-4RE VENT KIT INSTALLATION INSTRUCTIONS (continued) Remove outside mounting plate with tube attached from wall. 12. Seal the 4” (102mm) diameter flue outlet tube. Follow instruc- Mark and cut the extra length of the 6 5/8” (168mm) diameter tions and diagram. See Figure 58. tube from the opposite end.

  • Page 38: Dvvk-4Re Vent Kit Installation Instructions

    DVVK-4RE VENT KIT INSTALLATION INSTRUCTIONS (continued) Follow correct option according to venting method. Connecting Directly to Fireplace Connecting to Rigid Vent System If the air inlet and flue outlet tubes are to be connected directly to If the air inlet and flue outlet tubes are to be connected to a the unit (no rigid venting system is being used), then the gasket rigid venting system (and not directly to the back of the unit), then provided must be used to seal the 4”...

  • Page 39: Dvvk-5F Flex Vent Instructions

    DVVK-5F FLEX VENT INSTRUCTIONS (DVX42 only) The DVVK-5F FLEX VENT KIT includes the following compo- vent is 1" from sides and bottom, and 3" above the vent pipe. nents: See Figure 62. • Horizontal Termination Cap In most cases, after determining the length of the vent that •...

  • Page 40: Propane/Lp Gas Conversion Settings

    PROPANE/LP GAS CONVERSION SETTINGS Maxitrol Valve Conversion (Direct Ignition Only) REGULATOR FITTING Model AIR SHUTTER BURNER ORIFICE SETTINGS NOTE: STAMPED WITH GAS TYPE SET FOR USE Opening "A" Propane/LP Orifice Figure 64 DVX36 FULL OPEN 1.65 MM DVX42 FULL OPEN 1.80 MM Figure 63 Page 40...

  • Page 41: Log Identification

    LOG IDENTIFICATION REAR BOTTOM LOG (A) REAR TOP LOG (B) Part Number - R9228 Part Number - R9222 BOTTOM LEFT LOG (C) BOTTOM LEFT CENTER LOG (D) Part Number - R9227 Part Number - R9372 BOTTOM RIGHT CENTER LOG (E) BOTTOM RIGHT LOG (F) Part Number - R9225 Part Number - R9229...

  • Page 42: Log Placement (13 Log Set)

    LOG PLACEMENT (13 LOG SET) Before you begin: If you are installing logs into the DVX36 or DVX42 6. Place Bottom Left Log (C) on far left pin of burner. The "lip" of model then this fireplace is supplied with a set of 13 ceramic fiber the log will hang off the side of the burner.
  • Page 43 LOG PLACEMENT (13 LOG SET) 9. Place Bottom Right Log (F) on far right pin on the burner. The 12. Place Top Left Log (I) on two left pins on (B) Log. "lip" of the log will hang off the side of the burner. 13.
  • Page 44 LOG PLACEMENT (13 LOG SET) 15. Place Front Center Log (L) between third and fourth grates on 18. Replace glass door onto firebox. the burner. The short "Y" branch will point left and the bottom 19. Secure the two glass frame spring clamps at bottom of firebox. of the "Y"...

  • Page 45: Log Placement (13 Log Set)

    LOG PLACEMENT (13 LOG SET) Figure 67 Figure 68 Log Set Parts List Index Letter Part Number Description R9228 Rear Bottom Log R9222 Rear Top Log R9227 Bottom Left Log R9372 Bottom Left Center Log R9225 Bottom Right Center Log R9229 Bottom Right Log R9223 Front Left Log...

  • Page 46: Millivolt System Operating Instructions

    MILLIVOLT SYSTEM OPERATING INSTRUCTIONS 750 Millivolt System The OWNER should carefully read and follow these operating The standing pilot (750 millivolt system) is a continuous burning instructions at all times. Lower the door assembly to view the gas pilot. The pilot remains ON even when the main burner is OFF. controls for the fireplace.
  • Page 47 MILLIVOLT OPERATING INSTRUCTIONS (continued) STANDING PILOT OPERATING INSTRUCTIONS Installation of Remote Receiver Remote/Off/On Switch Place remote receiver on the floor of fireplace behind the louver as The fireplace is equipped with a Remote/OFF/ON switch. A wire far forward as possible. harness is attached to the Remote/OFF/ON switch.

  • Page 48: Millivolt Standing Pilot Wiring Diagram

    MILLIVOLT STANDING PILOT WIRING DIAGRAM REMOTE CONTROL RECEIVER (OPTIONAL) THERMOSTAT (OPTIONAL) WALL SWITCH GAS VALVE REMOTE/OFF/ON SWITCH (OPTIONAL) REMOTE CONTROL RECEIVER REMOTE/OFF/ON SWITCH GREEN REMOTE BLACK GREEN THERMOPILE IF ANY OF THE ORIGINAL WIRE AS SUPPLIED WITH THIS UNIT MUST BE REPLACED, IT MUST BE REPLACED WITH NO.

  • Page 49: Millivolt Standing Pilot Lighting Instructions

    MILLIVOLT STANDING PILOT LIGHTING INSTRUCTIONS FOR YOUR SAFETY, READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. This appliance has a pilot which must be lighted by hand. department.

  • Page 50: Millivolt Standing Pilot Troubleshooting

    Defective valve. —If thermocouple is producing more than 15 millivolts, replace a. Flame impingement on logs. faulty valve. —Check and adjust log position. Contact Empire Comfort 3. Pilot burning, no gas to burner, valve knob “ON”, REMOTE/ Systems, Inc. OFF/ON switch “ON.” b. Debris around throat of main burner.

  • Page 51: Direct Ignition Lighting Instructions

    DIRECT IGNITION LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE. A. BEFORE LIGHTING smell all around the appliance area B.

  • Page 52: Direct Ignition Wiring Diagram

    DIRECT IGNITION WIRING DIAGRAM GAS VALVE SPARK IGNITOR VALVE DE GAZ (OPTIONAL) WALL SWITCH OR THERMOSTAT ÉTINCELLE ALLUMER INTERRUPTEUR MURAL (FACULTATIVE) CONTROL MODULE (OPTIONAL) REMOTE CONTROL AUTORITÉ MODULE RECEIVER 120V (FACULATIVE) CONTROLE E DISTANCE DU RECEPTEUR 120 VAC LINE BLACK NOIR 120 VAC RTN BLACK NOIR WHITE BLANC...

  • Page 53: Initial Start Up Gas Line Purge

    INITIAL START UP GAS LINE PURGE NOTE: UNIT MUST BE PROPERLY GROUNDED FOR ELECTRONIC IGNITION TO FUNCTION. On initial installation, or after extended periods where the fireplace has not been used, gas lines may require purging. The installer or qualified service person may use the following purge procedures to prevent the delays that would be caused by waiting for the lockout periods between tries for ignition.

  • Page 54: Direct Ignition Propane/Lp Gas Conversion

    DIRECT IGNITION PROPANE/LP GAS CONVERSION The conversion shall be carried out in accordance with the DVX36FP53, or marked 1.80 mm for DVX42FP53. requirements of the provincial authorities having jurisdiction Important: Failure to install the correct orifice will result in and in accordance with the requirements of the CSA B149.2 unit over-firing that could overheat the appliance and result installation code (Canada) and with the requirements of the in a fire.

  • Page 55: Ipi Electronic System Operating Instructions

    IPI ELECTRONIC SYSTEM OPERATING INSTRUCTIONS 5.25 VDC ELECTRONIC CONTROL VALVE OPTIONAL REMOTE CONTROLS Optional remote controls are available for use with this appliance. The electronic control valve system includes the ability to switch It is recommended that the remote receiver be placed either in a the pilot from a standing pilot mode to an intermittent pilot mode.

  • Page 56: Ipi Electronic System Wiring Diagram

    IPI ELECTRONIC SYSTEM WIRING DIAGRAM If any of the original wire as supplied with this unit must be replaced, it must be replaced with equivalent gauge and temperature rated wire. This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes.

  • Page 57: Intermittent Pilot Lighting Instructions

    INTERMITTENT PILOT LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. This appliance has a pilot which can be lighted with the C.

  • Page 58: Intermittent Pilot Control System Troubleshooting

    INTERMITTENT PILOT CONTROL SYSTEM TROUBLESHOOTING Brief Description of the Components The gas valve is fitted with a manual HI/LO knob to allow for man- ual modulation of the gas outlet pressure to the appliance burner. The controls are designed to be used with either LPG or Natural Gas and can be converted by use of an OEM supplied conversion kit.
  • Page 59 INTERMITTENT PILOT CONTROL SYSTEM TROUBLESHOOTING If the DFC giving signal lock out: Verify the electrical connections’ integrity and The board should be unlocked to make sure they are in accordance with the relevant reinitiate a pilot flame ignition (for Is the DFC board in system wiring diagram.
  • Page 60 INTERMITTENT PILOT CONTROL SYSTEM TROUBLESHOOTING Replace DFC board. Main burner lights when the pilot only Replace the gas valve. should light. Verify the pilot flame fully engulfs the tip of the sense electrode. If not replace the pilot assembly. Replace the pilot assembly. Carefully clean the electrical connections of the sense cable, and the DFC board sense cable connection.

  • Page 61: Rf Operating Instructions

    RF OPERATING INSTRUCTIONS RF VALVE OPERATION (AF-4040 Electronic Gas Valve system ance will operate from an appliance mounted rocker switch only) (#3) or optional wall switch connected to the two BROWN Please refer to the separate instructions for detailed operation and wires on the Control Module.

  • Page 62: Rf Maintenance Instructions

    RF MAINTENANCE INSTRUCTIONS MAINTENANCE TROUBLESHOOTING Maintenance frequency must be determined individually for each IMPORTANT: All service and trouble-shooting procedures should application. Some considerations are: be performed by an experienced qualified service technician. • Exposure to water, dirt, chemicals and heat can damage the If the pilot will not stay lit: gas control and shut down the control system.

  • Page 63: Rf Wiring Diagram

    RF WIRING DIAGRAM NOTICE: For "RF" Fireplace models with Premium Multi-Function Remote Control, Refer to the separate instructions for operation of the remote control system. Figure 74 31449-4-1113 Page 63...

  • Page 64: Rf Standing Pilot Lighting Instructions

    RF STANDING PILOT LIGHTING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE. A. This appliance has a pilot which must be lighted with C.

  • Page 65: Maintenance And Service

    All damaged gaskets on the glass frame assembly and combustion chamber must be replaced by a qualified service person. If damage occurs to the combustion chamber, it must be replaced by a qualified service person. Contact Empire Comfort Systems, Inc. for replacement parts. Glass Cleaning It will be necessary to clean the glass periodically.

  • Page 66: Parts List - Dvx36Fp(3,5,7,9)

    PARTS LIST - DVX36FP(3,5,7,9) Part Number Index No. Description DVX36FP3 DVX36FP5 DVX36FP7 DVX36FP9 R9347 R9347 R9347 R9347 Insulation, Top Shield 23437 23437 23437 23437 Top Shield 23219 23219 23219 23219 Top Standoff (Qty. 2) R7566 R7566 R7566 R7566 Vent Adapter R7573 R7573 R7573 R7573...
  • Page 67 PARTS LIST - DVX36FP(3,5,7,9) Part Number Index No. Description DVX36FP3 DVX36FP5 DVX36FP7 DVX36FP9 R7578 R7733 R11126 R10415* Gas Valve (LPG) R7577 R7733 R11125 R10415* Gas Valve (Nat) 17161 20207 24900 26307 Gas Valve Bracket 23502 23502 23502 23502 Grate Assembly (Qty. 2) 23070 26631 23070...

  • Page 68: Parts List - Dvx42Fp(3,5,7,9)

    PARTS LIST - DVX42FP(3,5,7,9) Part Number Index No. Description DVX42FP3 DVX42FP5 DVX42FP7 DVX42FP9 R9348 R9348 R9348 R9348 Insulation, Top Shield 23437 23437 23437 23437 Top Shield 23219 23219 23219 23219 Top Standoff (Qty. 2) R7567 R7567 R7567 R7567 Vent Adapter R7573 R7573 R7573 R7573...
  • Page 69 PARTS LIST - DVX42FP(3,5,7,9) Part Number Index No. Description DVX42FP3 DVX42FP5 DVX42FP7 DVX42FP9 R7578 R7733 R11126 R10415* Gas Valve (LPG) R7577 R7733 R11125 R10415* Gas Valve (Nat) 17161 20207 29400 26307 Gas Valve Bracket 23502 23502 23502 23502 Grate Assembly (Qty. 2) 23070 26631 23070...

  • Page 70: Parts View

    PARTS VIEW Note: Refer to page 45 when ordering logs. Page 70 31449-4-1113...

  • Page 71: Master Parts Distributor List

    MASTER PARTS DISTRIBUTOR LIST To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort. com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem with the unit.

  • Page 72: Fbb4 Optional Variable Speed Blower Installation

    FBB4 OPTIONAL VARIABLE SPEED BLOWER INSTALLATION Attention: Install blower assembly before connecting gas inlet 5. Insert blower assembly into interior, bottom of fireplace. supply line Position blower assembly behind gas valve, align notch on back of blower assembly with center screw on fireplace Note: Junction box on right side of fireplace must be pre-wired at back and push blower assembly against fireplace back.

  • Page 73: Junction Box Wiring Installation Instructions

    FBB4 OPTIONAL VARIABLE SPEED BLOWER INSTALLATION R7731 BLOWER MOTOR 31920 SWITCH ASSEMBLY R4192 SPEED CONTROL KNOB R4186 SPEED CONTROL 110 VOLT AC JUNCTION BOX BLACK SWITCH WHITE GROUND SPEED CONTROL JUNCTION BOX WIRING INSTALLATION INSTRUCTIONS CAUTION: ALL WIRING SHOULD BE DONE BY A QUALIFIED ELECTRICIAN AND SHALL BE IN COMPLIANCE WITH ALL LOCAL, CITY AND STATE BUILDING CODES.

  • Page 74: Accent Lamp

    ACCENT LAMP Your Luxury Direct Vent Gas Fireplace comes equipped with our "Accent Lamp." The light has been pre-wired and is controlled from the Rheostat. If in the event the lamp or lens needs to be replaced, follow the instructions below: Unplug the Accent Lamp from the junction box inside the fireplace.

  • Page 75: Accessories

    ACCESSORIES The following accessory parts can be obtained from your Empire Comfort Systems dealer. If you need additional information beyond what your dealer can furnish, contact Empire Comfort Systems Inc., Nine Eighteen Freeburg Ave., Belleville, Illinois 62220-2623. DECORATIVE ACCESSORIES Decorative Louver Leaf...

  • Page 76: Quick Reference Guide

    Empire Comfort Systems Web Site www.empirecomfort.com EMPIRE EMPIRE 918 Freeburg Avenue Belleville, Illinois 62220-2623 Comfort Systems The Tahoe Direct Vent Zero Clearance Gas Fireplace Heater MILLIVOLT STANDING PILOT: DVX(36,42)FP31L(N,P)-4 DIRECT IGNITION: DVX(36,42)FP51LN-2 INTERMITTENT PILOT: DVX(36,42)FP71L(N,P)-3 REMOTE RF MODELS: DVX(36,42)FP91(N,P)-2 All Brick Liners are made from Ceramic Fiber for rich detail and lasting beauty.

  • Page 77: Firebox Dimensions

    Empire Comfort Systems Web Site www.empirecomfort.com EMPIRE EMPIRE 918 Freeburg Avenue Belleville, Illinois 62220-2623 Comfort Systems The Tahoe Direct Vent Zero Clearance Gas Fireplace Heater MILLIVOLT STANDING PILOT: DVX(36,42)FP31L(N,P)-4 DIRECT IGNITION: DVX(36,42)FP51LN-2 INTERMITTENT PILOT: DVX(36,42)FP71L(N,P)-3 REMOTE RF MODELS: DVX(36,42)FP91(N,P)-2 GAS-FIRED All Brick Liners are made from Ceramic Fiber for rich detail and lasting beauty.

  • Page 78: Warranty

    WARRANTY Empire Comfort Systems Inc. warranties this hearth product to be free from defects at the time of purchase and for the periods specified below. Hearth products must be installed by a qualified technician and must be maintained and operated safely, in accordance with the instructions in the owner’s manual. This warranty applies to the original purchaser only and is not transferable.

  • Page 79: Appliance Service History

    APPLIANCE SERVICE HISTORY Date Dealer Name Service Technician Name Service Performed/Notes 31449-4-1113 Page 79...
  • Page 80 Empire Comfort Systems Inc. EMPIRE EMPIRE 918 Freeburg Ave. Belleville, IL 62220 If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. Comfort Systems www.empirecomfort.com...

This manual is also suitable for:

Dvx36fp31ln-4Dvx42fp31ln-4Dvx36fp31lp-4Dvx42fp31lp-4Dvx42fp51ln-2Dvx42fp31l-4 ... Show all
