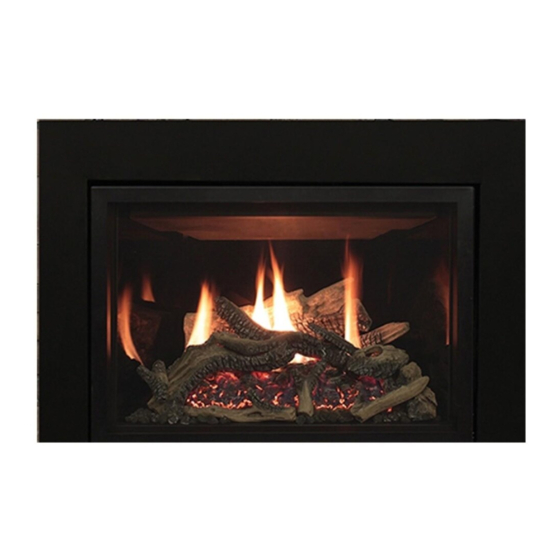

Empire LS35TINF Installation Instructions And Owner's Manual

Log set

Advertisement

Quick Links

INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do
not use any phone in your building.
Leave the building immediately.
Immediately call your gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL
WARNING
LOG SET MODEL
LS35TINF
For Use With DVCT35CBN-1
Fireplace Inserts
NOTICE: Ceramic logs may differ in appearance
from those shown in this manual.
If not installed, operated and maintained
in accordance with the manufacturer's
instructions, this product could expose you
to substances in fuel or from fuel combustion
which can cause death or serious illness.
GAS-FIRED
WARNING

Advertisement

loading

Summary of Contents for Empire LS35TINF

  • Page 1 INSTALLATION INSTRUCTIONS AND OWNER’S MANUAL INSTALLER: LOG SET MODEL GAS-FIRED LS35TINF Leave this manual with the appliance. CONSUMER: For Use With DVCT35CBN-1 Retain this manual for future reference. Fireplace Inserts WARNING FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death or property damage.
  • Page 2: Log Identification

    LOG IDENTIFICATION DVCT35 LOG SET PART DESCRIPTION FRONT EMBER 38450 REAR 38451 LOWER RIGHT 38452 RIGHT 38453 UPPER RIGHT 38454 LOWER LEFT 38455 LEFT 38456 Page 2 38463-0-1117...
  • Page 3 LOG IDENTIFICATION DVCT35 LOG SET PART DESCRIPTION FRONT UPPER LEFT 38457 LEFT CROSSOVER 38458 CENTER 38459 CENTER CROSSOVER 38460 LEFT FRONT 38461 RIGHT FRONT 38462 GLOWING 15496 EMBERS PACKET COALS 36747 (APPROX.100) 38463-0-1117 Page 3...
  • Page 4: Log And Ember Placement

    LOG AND EMBER PLACEMENT NOTICE: Install liners before logs. See separate Liner Installation instructions for details. CAUTION Do not handle these logs with your bare hands. Always wear gloves to prevent skin irritation from ceramic fibers. After handling the logs, wash your hands gently with soap and water to remove any trace of fibers.
  • Page 5 LOG AND EMBER PLACEMENT Place Ember Bed (A) between burner using Pins 2 and 3 as shown. You may elect to place glowing embers along the back burner at this time. TOP VIEW FRONT VIEW 38463-0-1117 Page 5...
  • Page 6 LOG PLACEMENT Place Rear Log (B) onto burner Pins 4 and 5 as shown. TOP VIEW FRONT VIEW Page 6 38463-0-1117...
  • Page 7 LOG PLACEMENT Place Lower Right Log (C) onto pin on Ember Bed (A) as shown. TOP VIEW FRONT VIEW 38463-0-1117 Page 7...
  • Page 8 LOG PLACEMENT Place Right Log (D) on right side of Rear Log (B) as shown. TOP VIEW FRONT VIEW Page 8 38463-0-1117...
  • Page 9 LOG PLACEMENT Place Upper Right Log onto pin in Lower Right Log (C) as shown. TOP VIEW FRONT VIEW 38463-0-1117 Page 9...
  • Page 10 LOG PLACEMENT Place Lower Left Log (F) onto pin in Ember Bed (A) as shown. TOP VIEW FRONT VIEW Page 10 38463-0-1117...
  • Page 11 LOG PLACEMENT Place Left Log (G) onto pin in Lower Left Log (F) as shown. TOP VIEW FRONT VIEW 38463-0-1117 Page 11...
  • Page 12 LOG PLACEMENT Place Upper Left Log (H) onto pin in Rear Log (B) and Pin (1) in base as shown. TOP VIEW FRONT VIEW Page 12 38463-0-1117...
  • Page 13 LOG PLACEMENT Place Left Crossover Log (I) onto pin in Upper Left Log (H) as shown. TOP VIEW FRONT VIEW 38463-0-1117 Page 13...
  • Page 14 LOG PLACEMENT 10. Place Center Log (J) onto pin in Ember Bed (A) as shown. TOP VIEW FRONT VIEW Page 14 38463-0-1117...
  • Page 15 LOG PLACEMENT 11. Place Center Crossover Log (K) onto pin in Upper Left Log (H) and pin in Ember Bed (A) as shown. TOP VIEW FRONT VIEW 38463-0-1117 Page 15...
  • Page 16 LOG PLACEMENT 12. Place Left Front Log (L) as shown. TOP VIEW FRONT VIEW Page 16 38463-0-1117...
  • Page 17 LOG PLACEMENT 13. Place Right Front Log (M) as shown. TOP VIEW FRONT VIEW 38463-0-1117 Page 17...
  • Page 18 LOG PLACEMENT 14. Place Decorative Coals along the front and sides of burner. DO NOT cover burner ports. The log set is complete. TOP VIEW FRONT VIEW Page 18 38463-0-1117...
  • Page 19: Master Parts Distributor List

    MASTER PARTS DISTRIBUTOR LIST To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort. com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem with the unit.
  • Page 20 Empire Comfort Systems Inc. Belleville, IL If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. www.empirecomfort.com Page 20 38463-0-1117...
