Product Overview; Front Panel - D-Link KVM-440 Quick Install Manual

Front Panel

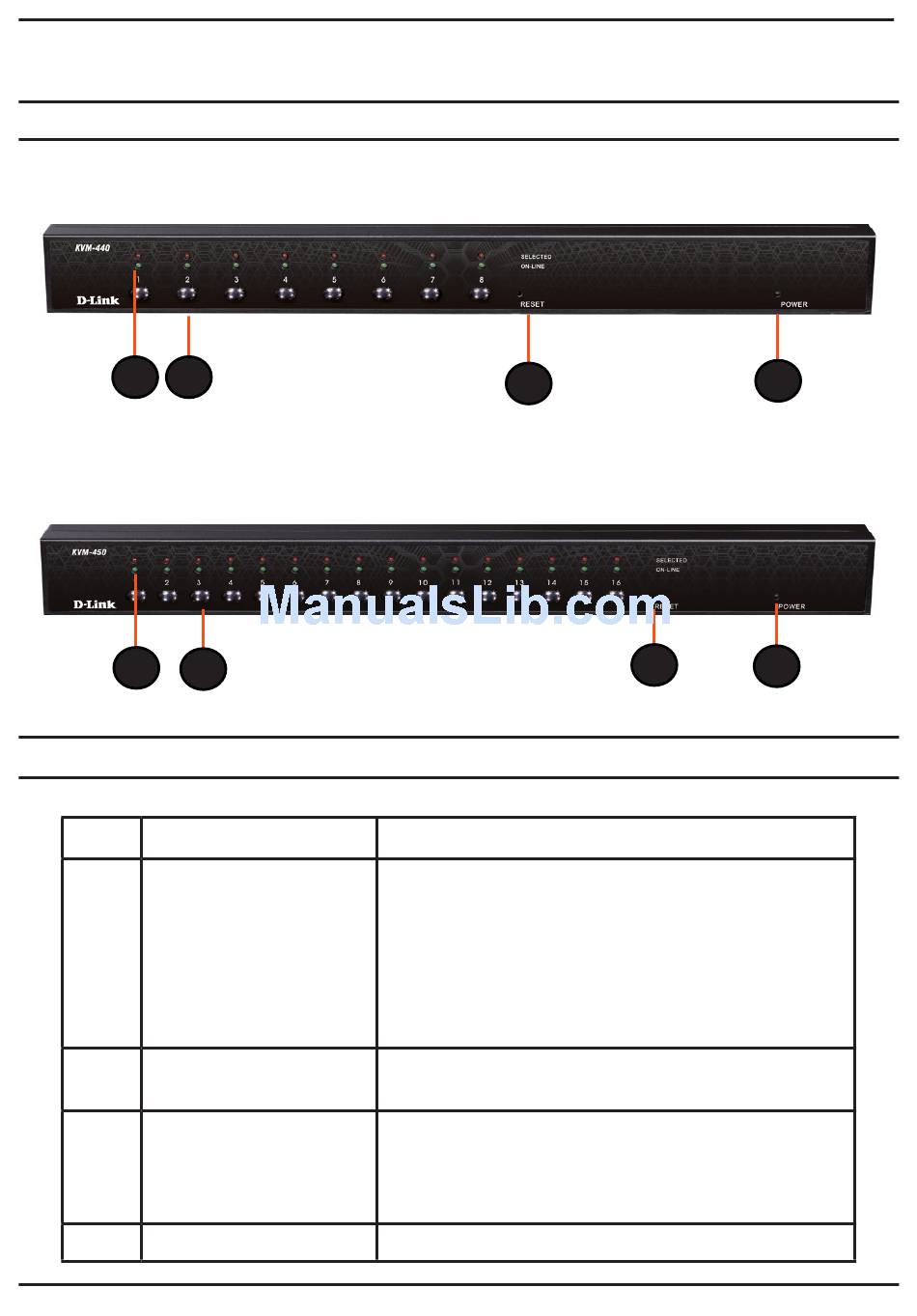

Figure 1- KVM-440 Front Panel
A B
Figure 2 - KVM-450 Front Panel
A
Device Status LEDs and Buttons
Item Feature
A Status LEDs
B Switch Button
C Reset Switch
D Power LED
3

Product Overview

B
C
Description
Selected (Red):
A Red LED indicates that the corresponding PC is
selected.
Online (Green):
A Green LED indicates that the corresponding PC
is online.
Press the button corresponding to the computer
you would like to control via console.
Press the Reset switch when you would like to reset
the device. The reset switch must be depressed
using a thin object like the end of a paper clip, or a
ball point pen.
Indicates that the device is powered on.
