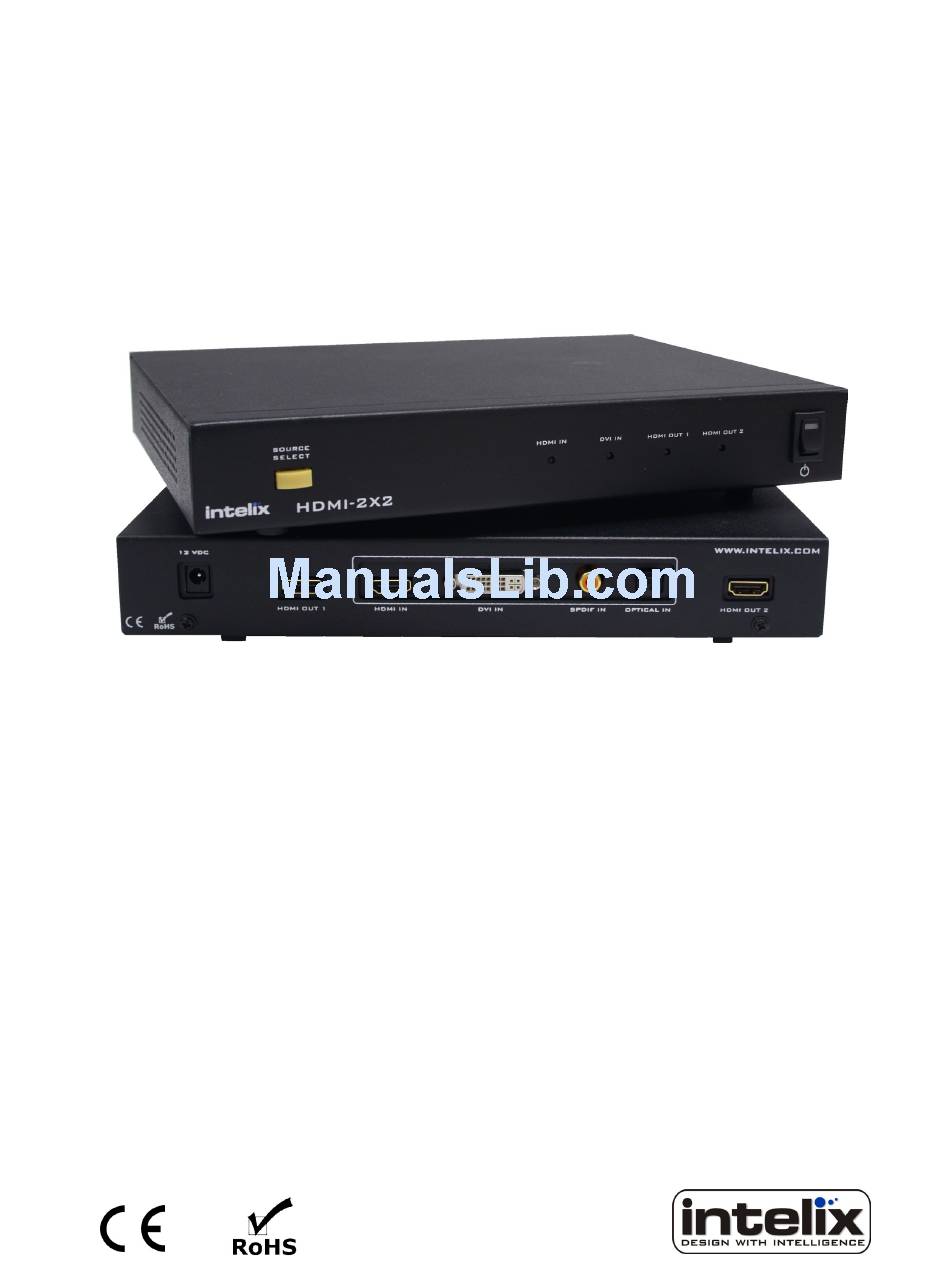

- Page 1 HDMI-2X2 2 input by 2 output Distribution Amplifier...
- Page 2 Intelix HDMI-2X2 Installation Manual Table of Contents Overview..................... 3 Installation ..................4 Technical Specifications ..............5 Warranty ..................... 6 Contact Information………………………………………………… .. 7 Copyright 2007 Intelix LLC. Design with Intelligence www.intelix.com...
- Page 3 Intelix HDMI-2X2 Installation Manual Overview The Intelix HDMI-2X2 is not a standard 2 by 2 distribution amplifier. Instead, it features two independent inputs—an HDMI input, as well as a DVI input with optional digital SPDIF or optical audio. When the DVI/digital audio source is selected, the HDMI-2X2 automatically converts the signal to the HDMI format and routes it to two HDMI outputs.
- Page 4 1. Power-off the source and destination audio and video devices. 2. Connect the input sources to the HDMI-2X2 using high-quality HDMI or DVI and digital audio cables. 3. Connect the output destination to the HDMI-2X2 using high-quality HDMI cables.
-
Page 5: Technical Specifications
Max Power Consumption ................. 15 watts Power......................12 VDC Regulatory .....................CE, RoHS Shipping Weight..................5.0 lbs Intelix Part Number ................HDMI-2X2 Warranty ..................... 2 years *Intelix recommends linking a maximum of five units with the units no more than 30 feet apart. www.intelix.com... - Page 6 3) Malfunction resulting from abuse or misuse of the product; 4) Exterior chassis appearance; 5) Malfunction occurring after repairs have been made by anyone other than Intelix or any of its authorized service representatives; 6) Acts of nature; 7) Optional embedded software upgrades or updates.
- Page 7 Intelix HDMI-2X2 Installation Manual Thank you for your purchase. We appreciate your business. Please contact us with your questions and comments. Intelix 2222 Pleasant View Road Suite 1 Middleton, WI 53562 Phone: 608-831-0880 Toll-Free: 866-4-MATMIX Fax: 608-831-1833 www.intelix.com intelix@intelix.com Copyright 2007 Intelix LLC.
