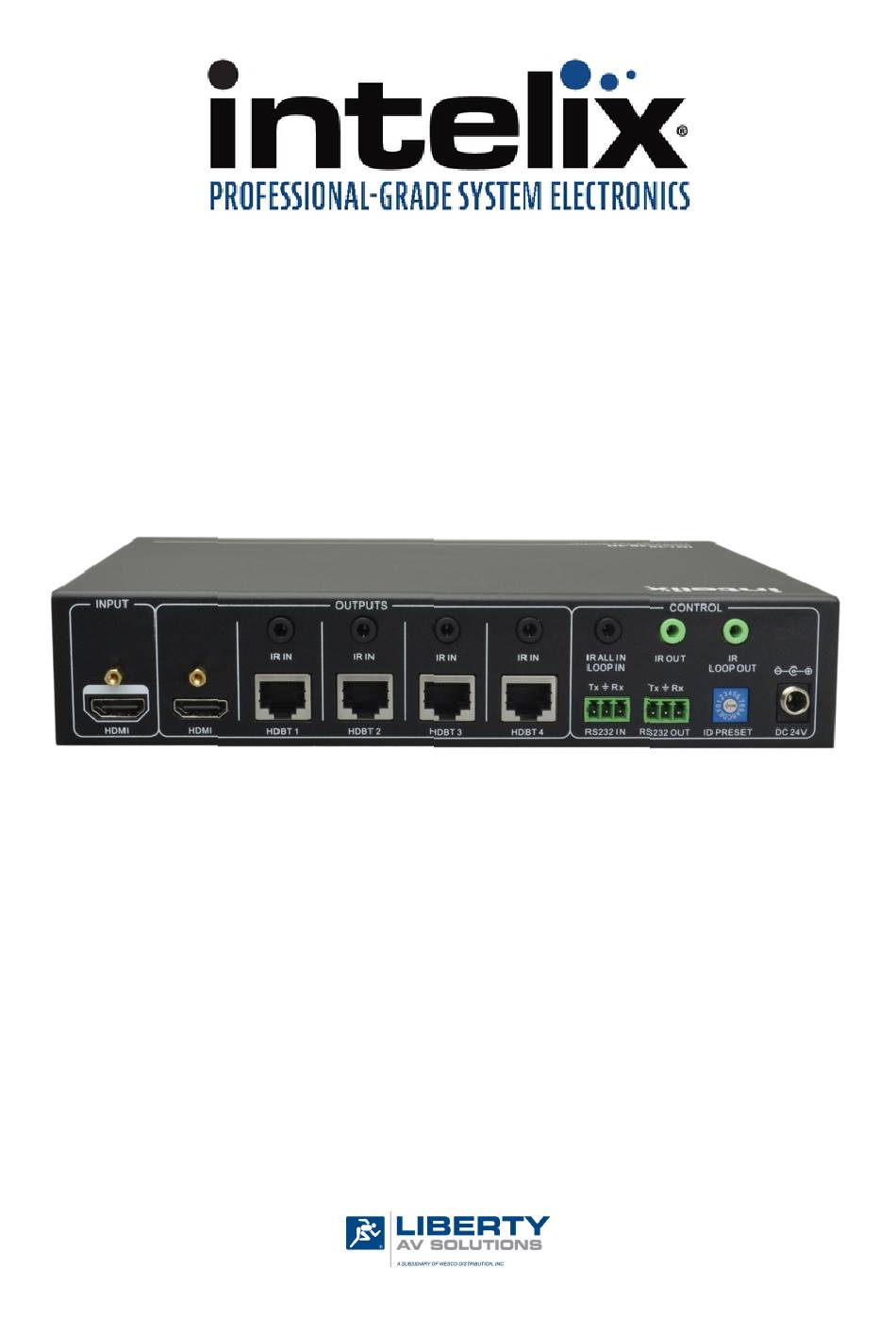

INT-1X4B-1H Owners Manual
Rev 181101
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INT-1X4B-1H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intelix INT-1X4B-1H

  • Page 1 INT-1X4B-1H Owners Manual Rev 181101 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 80921 Fax: 719-260-0075...
  • Page 2 Do not block the air ventilation openings. Only mount the equipment per Intelix’s instructions. » Use only with the cart, stand, table, or rack specified by Intelix or sold with the equipment. When/if a cart is used, use caution when moving the cart/equipment combination to avoid injury from tip-over.
  • Page 3: Table Of Contents

    INT-1X4B-1H Owners Manual Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panel View ������������������������������������������������������������������������������������������������������������������������� Front View ����������������������������������������������������������������������������������������������������������������������������������������������������� Rear View ������������������������������������������������������������������������������������������������������������������������������������������������������ Installation Instructions ������������������������������������������������������������������������������������������������������������������������������ Quick Start ���������������������������������������������������������������������������������������������������������������������������������������������������� Mount the Distribution Amplifier ����������������������������������������������������������������������������������������������������������������� Set EDID Mode and Device ID ����������������������������������������������������������������������������������������������������������������������...
  • Page 4 The Intelix INT-1X4B-1H 1:4 HDBaseT distribution amplifier accepts a single HDMI input and splits into four HDBaseT outputs. The INT-1X4B-1H is designed with an HDMI loop out which is intended to cascade to additional INT-1X4B-1H units to distribute to multiple displays via HDBaseT. It supports video resolutions up to 4K@60Hz / 4:2:0 / 8bit deep color and all HDMI audio formats.
  • Page 5 4. EDID - Dip switch setting for EDID management • L.RES - The INT-1X4B-1H reads EDID from all connected displays, and then the source device will automatically obtain the EDID which contain the lowest resolution •...
  • Page 6 RS232 IN on the next INT-1X4B-1H in a cascading topology 5. ID PRESET - Assigns a single digit ID to the INT-1X4B-1H when cascading multiple INT-1X4B-1H units and using RS232 control, therefore each splitter must have a unique ID. Use a small, flathead screwdriver to set the ID.
  • Page 7 Verify signal status Mount the Distribution Amplifier At least 2 inches of free air space is required on both sides of the INT-1X4B-1H for proper side ventilation. Avoid mounting the INT-1X4B-1H near a power amplifier or any other source of significant heat.
  • Page 8: Connect Displays

    HDMI Output Connect the display device or second INT-1X4B-1H to the HDMI output using an HDMI cable that is less than or equal to 5 meters in length. For a display that further away, it is highly recommended to utilize the HDBaseT outputs.
  • Page 9: Connect Rs232 Control (Optional)

    • Parity = none While the INT-1X4B-1H requires RS232 commands to be sent to it at 9600 baud, multiple baud rates are available to communicate with the remote devices. Connect the included straight-through serial cable between the RS232 port on the INT-1X4B-1H and the controller.
  • Page 10: Daisy-Chain Additional Distribution Amplifiers

    INT-1X4B-1H Owners Manual Daisy-chain Additional Distribution Amplifiers A maximum total of (3) INT-1X4B-1H distribution amplifiers may be connected to distribute a single source signal to up to 12 displays via HDBaseT extenders. Assign Unique Identifier for RS232 Control When sending RS232 through the HDBaseT outputs to the...
  • Page 11: Apply Power

    Plug the power supply into the power input port on the rear of the distribution amplifier. Twist the locking ring clockwise to prevent accidental disconnection of power. Verify Signal Status The LEDs on the front of the INT-1X4B-1H will assist in verifying the operation in the system without having to leave the primary equipment area. Input LED •...
  • Page 12: Cabling Requirements

    INT-1X4B-1H Owners Manual Cabling Requirements HDBaseT Cabling To ensure proper performance of the INT-1X4B-H, it is recommended that you use solid core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably over longer distances.
  • Page 13: Application Diagram

    INT-1X4B-1H Owners Manual Application Diagram Remote Media Player Control System IR RECEIVER HDMI CATx up to 70m / 230’ RS232 Intelix INT-HD70-RX (not included) Display 1 Display 2 Display 3 Display 4...
  • Page 14: Rs232 Control

    2400, 4800, 9600, 19200, 38400, 57600, or 115200. All commands below are in HEX format, to use ASCII formatted strings with the INT-1X4B-1H convert the ASCII format to HEX. Device Selection Use the command structure below to first select the desired INT-1X4B-1H to which you will end commands to.
  • Page 15: Turning Rs232 Communication Ports On And Off

    INT-1X4B-1H Owners Manual Turning RS232 Communication Ports ON and OFF To select particular HDBaseT ports to communicate discrete serial strings to, you can use the following command structure to turn the communication port either ON or OFF. AB AC BC XX XX...
  • Page 16: Technical Specifications

    INT-1X4B-1H Owners Manual Technical Specifications Input/Output Connections HDMI Input One (1) HDMI Type A Receptacle Connector HDBaseT Outputs Four (4) Shielded RJ45 Female HDMI Output One (1) HDMI Type A Receptacle Connector RS232 In One (1) 3-Pole/3.5mm Euroblock RS232 Out One (1) 3-Pole/3.5mm Euroblock...
  • Page 17 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
