Intelix DIGI-1X4B-1H Installation And Operation Manual

Hdmi distribution amp with four hdbaset outputs and one hdmi loop output
Table of Contents

Advertisement

Quick Links

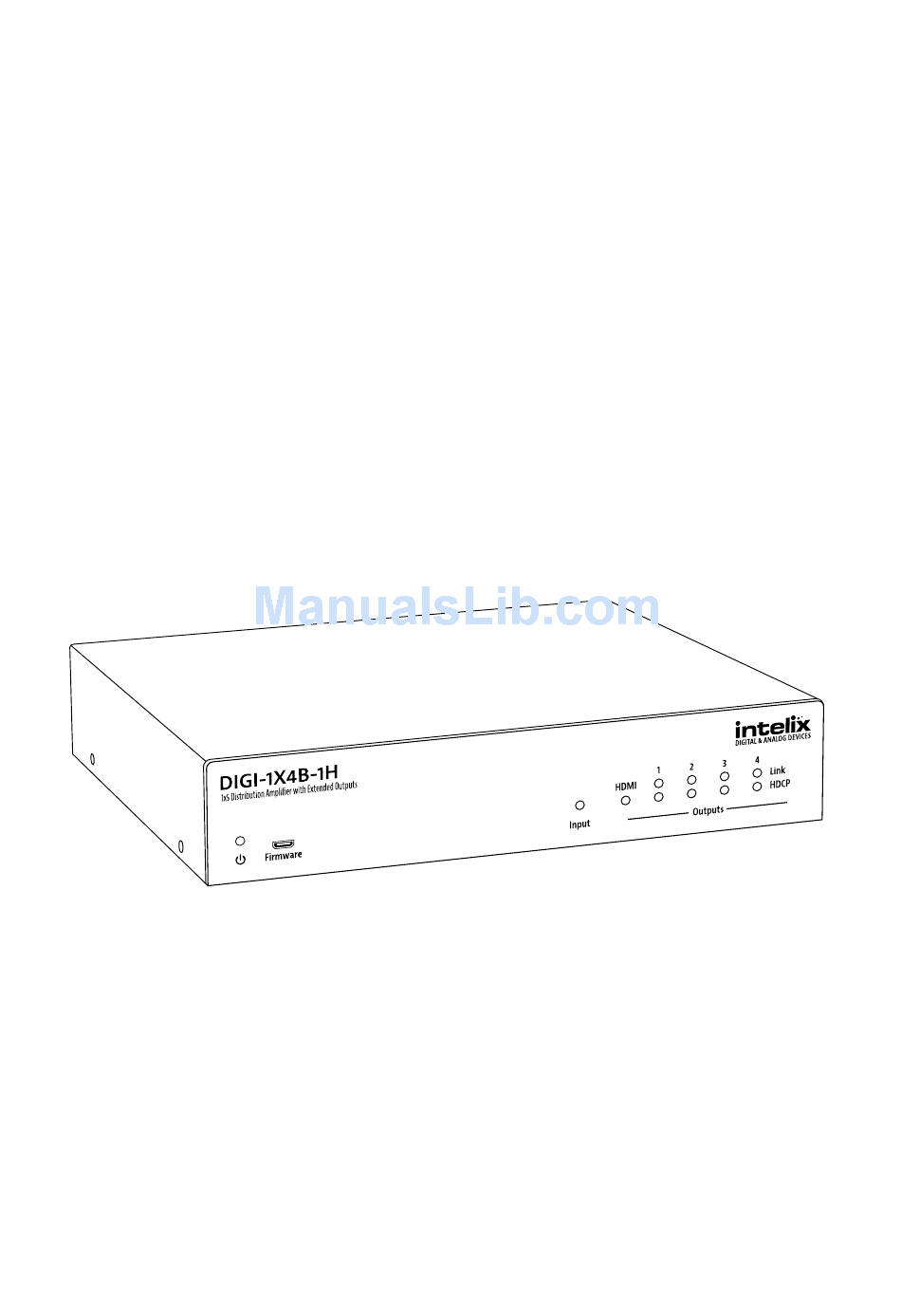

DIGI-1X4B-1H Installation and
Operation Guide
Rev 141231
8001 Terrace Ave
Phone: 608-831-0880
Suite 201
Toll-Free: 866-462-8649
Middleton, WI 53562
Fax: 608-831-1833

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIGI-1X4B-1H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intelix DIGI-1X4B-1H

  • Page 1 DIGI-1X4B-1H Installation and Operation Guide Rev 141231 8001 Terrace Ave Phone: 608-831-0880 Suite 201 Toll-Free: 866-462-8649 Middleton, WI 53562 Fax: 608-831-1833...
  • Page 2 DIGI-1X4B-1H Installation Guide...
  • Page 3: Important Safety Instructions

    » Use only with the cart, stand, table, or rack specified by Intelix or sold with the equipment. When/if a cart is used, use caution when moving the cart/equipment combination to avoid injury from tip-over.
  • Page 4: Table Of Contents

    DIGI-1X4B-1H Installation Guide Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������� Front Panel ���������������������������������������������������������������������������������������������������������������������������������������������������� Rear Panel ����������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ������������������������������������������������������������������������������������������������������������������������������ Quick Start ���������������������������������������������������������������������������������������������������������������������������������������������������� Mount the Distribution Amplifier ������������������������������������������������������������������������������������������������������������������ Shelf Mounting Instructions ........................Table Mounting Instructions ........................
  • Page 5: Product Overview

    The Intelix DIGI-1X4B-1H is designed with an HDMI loop out which is intended to cascade to additional units, allowing for system expansion for larger systems. A unique control design allows the RS232 port to be addressed and cascaded, allowing control commands to be discretely directed to the RS232 port of any attached HDBaseT receiver.
  • Page 6: Package Contents

    DIGI-1X4B-1H Installation Guide Package Contents Please verify the following items are in the shipping box prior to installation of the DIGI-1X4B-1H. DIGI-1X4B-1H Distribution Shelf Feet with Screws Amplifier 4 ea 1 ea 24V DC 2.5A Power Mounting Rails with Screws...
  • Page 7: Front And Rear Panels

    DIGI-1X4B-1H Installation Guide Front and Rear Panels Front Panel Power Indicator LED Firmware Update Port HDMI Input Indicator LED HDMI Output Indicator LED HDBaseT Link Indicator LED (4 ea) HDBaseT HDCP Indicator LED (4 ea)
  • Page 8: Rear Panel

    DIGI-1X4B-1H Installation Guide Rear Panel HDMI Input HDMI Output HDBaseT Outputs with PoE (4 ea) IR Input ID Selector RS232 Input EDID Selector Switches 24V DC Input IR Loop IR Output RS232 Loop...
  • Page 9: Installation Instructions

    Verify signal status Mount the Distribution Amplifier At least 2 inches of free air space is required on both sides of the DIGI-1X4B-1H for proper side ventilation. Avoid mounting the DIGI-1X4B-1H near a power amplifier or any other source of significant heat.
  • Page 10: Set Edid Mode And Device Id

    The rotary switch is labeled in hexadecimal (Hex), while the RS232 commands use decimal (Dec). Use a small, flat blade screwdriver to set the ID of each DIGI-1X4B-1H to a different hexadecimal value. Connect Source Connect the source devices to HDMI inputs using HDMI cables that are less than or equal to 5 meters in length.
  • Page 11: Connect Displays

    DIGI-1X4B-1H Installation Guide Connect Displays HDMI Output Connect the display device or second DIGI-1X4B-1H to the HDMI output using an HDMI cable that is less than or equal to 5 meters in length. For a display that further away, it is highly recommended to utilize the HDBaseT outputs.
  • Page 12: Connect Ir Control

    DIGI-1X4B-1H Installation Guide Connect IR Control The DIGI-1X4B-1H has an advanced bidirectional IR control protocol through the HDBaseT output port, which allows for the control of the source or displays. Intelix recommends using the DIGI-HD60C-R for installations which require IR extension.
  • Page 13: Connect Rs232 Control

    1 Stop Bit • Parity = none While the DIGI-1X4B-1H requires RS232 commands to be sent to it at 9600 baud, multiple baud rates are available to communicate with the remote devices. Connect the included straight-through serial cable between the RS232 port on the DIGI-1X4B-1H and the controller.
  • Page 14: Daisy-Chain Additional Distribution Amplifiers

    DIGI-1X4B-1H Installation Guide Daisy-chain Additional Distribution Amplifiers Multiple DIGI-1X4B-1H distribution amplifiers may be connected to distribute a single source signal to up to 64 displays via HDBaseT extenders. Assign Unique Identifier for RS232 Control When sending RS232 through the HDBaseT outputs to the displays, each distribution amplifier must have a unique identifier assigned to it.
  • Page 15: Apply Power

    Twist the locking ring clockwise to prevent accidental disconnection of power. Verify Signal Status The LEDs on the front of the DIGI-1X4B-1H will assist in verifying the operation in the system without having to leave the primary equipment area. Input LED •...
  • Page 16: Rs232 Protocol

    The rotary switch is labeled in hexadecimal (Hex), while the RS232 commands use decimal (Dec). Use the supplied screwdriver to set the ID of each DIGI-1X4B-1H to a different hexadecimal value. When daisy-chaining multiple distribution amplifiers, please allow 100 ms (0.10 s) between commands.
  • Page 17: Rs232 To Displays Via Hdbaset

    DIGI-1X4B-1H Installation Guide RS232 to Displays via HDBaseT Command strings may be passed through the DIGI-1X4B-1H to the displays connected to the HDBaseT output ports. When sending commands to multiple displays, only the response from the display at the lowest HDBaseT port number will be passed to the controller.
  • Page 18: Troubleshooting

    DIGI-1X4B-1H Installation Guide Troubleshooting Distribution amplifier does not power on Verify power outlet is active. » » Verify the power supply connector is secured to the rear of the distribution amplifier. No video from HDBaseT output » Verify the link LED for the HDBaseT output is lit solid.
  • Page 19: Technical Specifications

    DIGI-1X4B-1H Installation Guide Technical Specifications Input/Output Connections HDMI Input One (1) HDMI Type A Receptacle Connector HDBaseT Outputs Four (4) Shielded RJ45 Female HDMI Output One (1) HDMI Type A Receptacle Connector RS232 In One (1) 3-Pole/3.5mm Euroblock RS232 Loop One (1) 3-Pole/3.5mm Euroblock...
  • Page 20 Please contact us with your questions and comments. Intelix 8001 Terrace Ave, Ste 201 Middleton, WI 53562 Phone: 608-831-0880 Toll Free: 866-462-8649 Fax: 608-831-1833 www.intelix.com intelix@intelix.com Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
