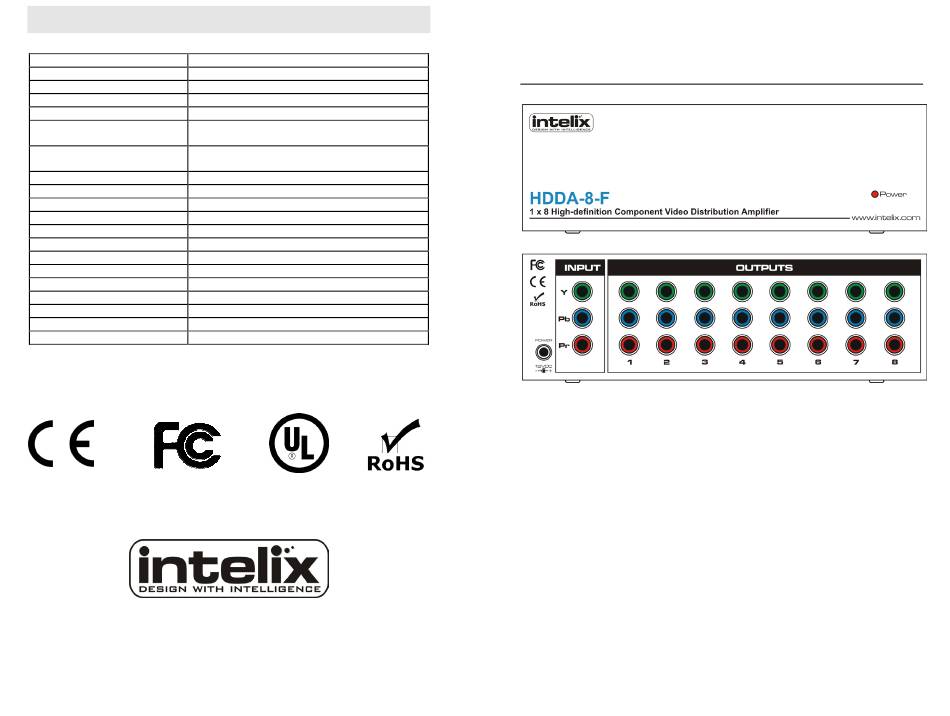

Intelix HDDA-8-F Installation Manual

Specifications
12 VDC
Voltage Requirement
Power DC
Current Requirement 500 mA maximum
Input Connectors Three (3) female RCA (1 YPbPr)
Twenty-four (24) female RCA (8 YPbPr)
Output Connectors
Output Range 150 feet
(without a secondary balun)
Dependant on the balun's distance limitations
Output Range
(with a secondary balun)
High-definition Compatible 1080i, 1080p, 720p, 480i, 480p compatible
Video Signal Bandwidth 300 MHz
Audio Frequency Response 20 Hz to 20 kHz
Audio Crosstalk Better than -65 dB
Shipping Weight 2 lbs
Black Metal
Enclosure
Dimensions 7.75" x 2.40" x 2.40"
Intelix Part # HDDA-8-F
Yes
Linkable
Diagnostic Red power LED
Regulations/Certifications CE, FCC, RoHS, UL
Included Accessories (1) 12 VDC Power Supply
Warranty 2 years
*Specifications subject to change without notice
2222 Pleasant View Road, Suite #1
Middleton, WI. 53562
608-831-0880
FAX 608-831-1833
intelix@intelix.com
www.intelix.com

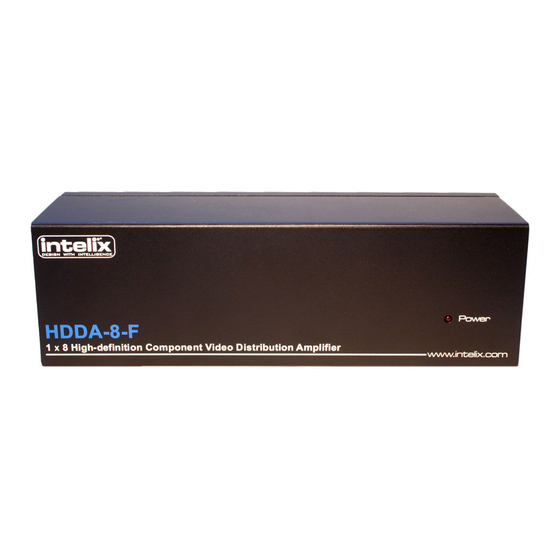

HDDA-8-F High-Definition Component Video
Distribution Amplifier
Installation Manual
Overview
Ideal for whole home distribution, restaurant and bar, and
commercial audio/video applications, the Intelix HDDA-8-F
distribution amplifier provides eight high-definition component
video (YPbPr) outputs from a single source. Multiple HDDA-8-F
amplifiers may be linked when more than eight outputs are required.
If required, the HDDA-8-F may also be used to distribute composite
video, Y/C video, and analog audio.
Features
- 300 MHz Bandwidth
- Supports 1080i and 1080p high-definition signals
- Composite video, Y/C video, and analog audio compatible
- Linkable
- Ultra Compact Size
Rugged Metal Housing
-
