HD14S Installation Guide

Important notice:

•
Do not attempt to disassemble or alter the extender housing. There are no user-serviceable parts inside
the unit. Doing so will void your warranty.
•
To minimize the possibility of equipment damage from electrostatic discharge (ESD), all source and
destination equipment must be powered off during installation.
•
Do not connect the extender to a telecommunication outlet wired to unrelated equipment. Doing so may
damage the unit or any connected equipment. Ensure all connected twisted pair cabling is straight-through
(point-to-point).
•
Allow proper ventilation to reduce the risk of thermal failure.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD14S and is the answer not in the manual?

Questions and answers

Related Manuals for Intelix HD14S

Summary of Contents for Intelix HD14S

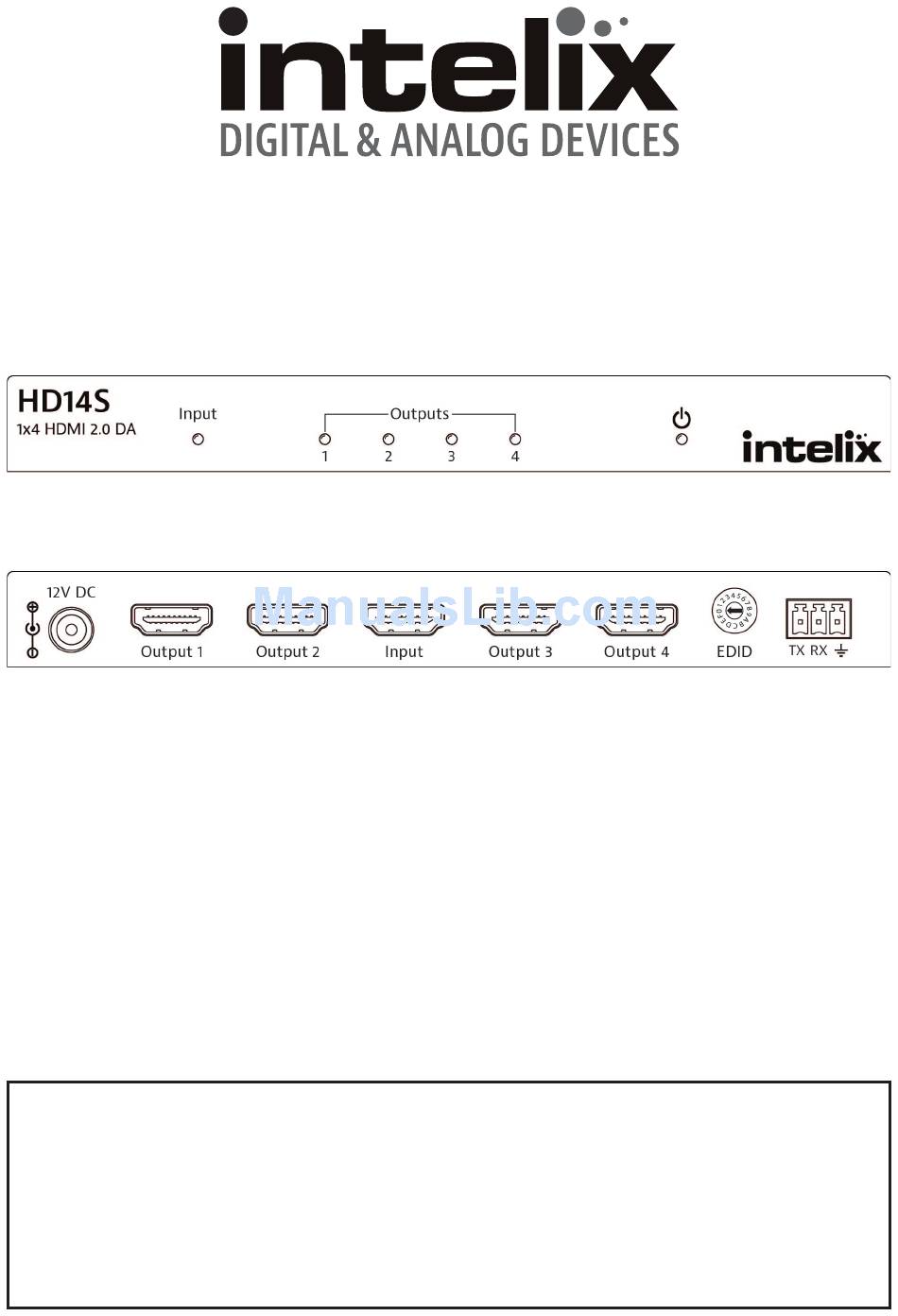

  • Page 1 HD14S Installation Guide Important notice: • Do not attempt to disassemble or alter the extender housing. There are no user-serviceable parts inside the unit. Doing so will void your warranty. • To minimize the possibility of equipment damage from electrostatic discharge (ESD), all source and destination equipment must be powered off during installation.

  • Page 2: Front Panel Connections

    The Intelix HD14S is a 1x4 HDMI splitter with HDMI 2.0 and HDCP 2.2. The HD14S supports data rates up to 18Gbps and resolutions of 4K2K@60Hz (4:2:0). The HD14S features EDID management which provides multiple EDID options for various resolutions output and HDCP encryption between all devices, ensuring the HDMI source reliably outputs the correct content for the display.

  • Page 3: Troubleshooting Tips

    Connect an HDMI cable between the source and HDMI input of the HD14S. Connect an HDMI cable between the display(s) and the HDMI output(s) of the HD14S. Connect the 12V DC power supply to the locking power connector. Power on attached audio/video devices.

  • Page 4: Technical Specifications

    Technical Specifications I/O Connections HDMI Input One (1) HDMI Type A Receptacle HDMI Outputs Four (4) HDMI Type A Receptacle (1 per output) Supported Audio and Video Maximum Data Rate 18 Gbps HDTV Video Resolutions 480p, 576p, 720p, 1080i, 1080p, 4Kx2K @30Hz, 4Kx2K @60Hz (4:2:0) VESA Video Resolutions Up to 1920x1200 Embedded Audio Compatibility...
