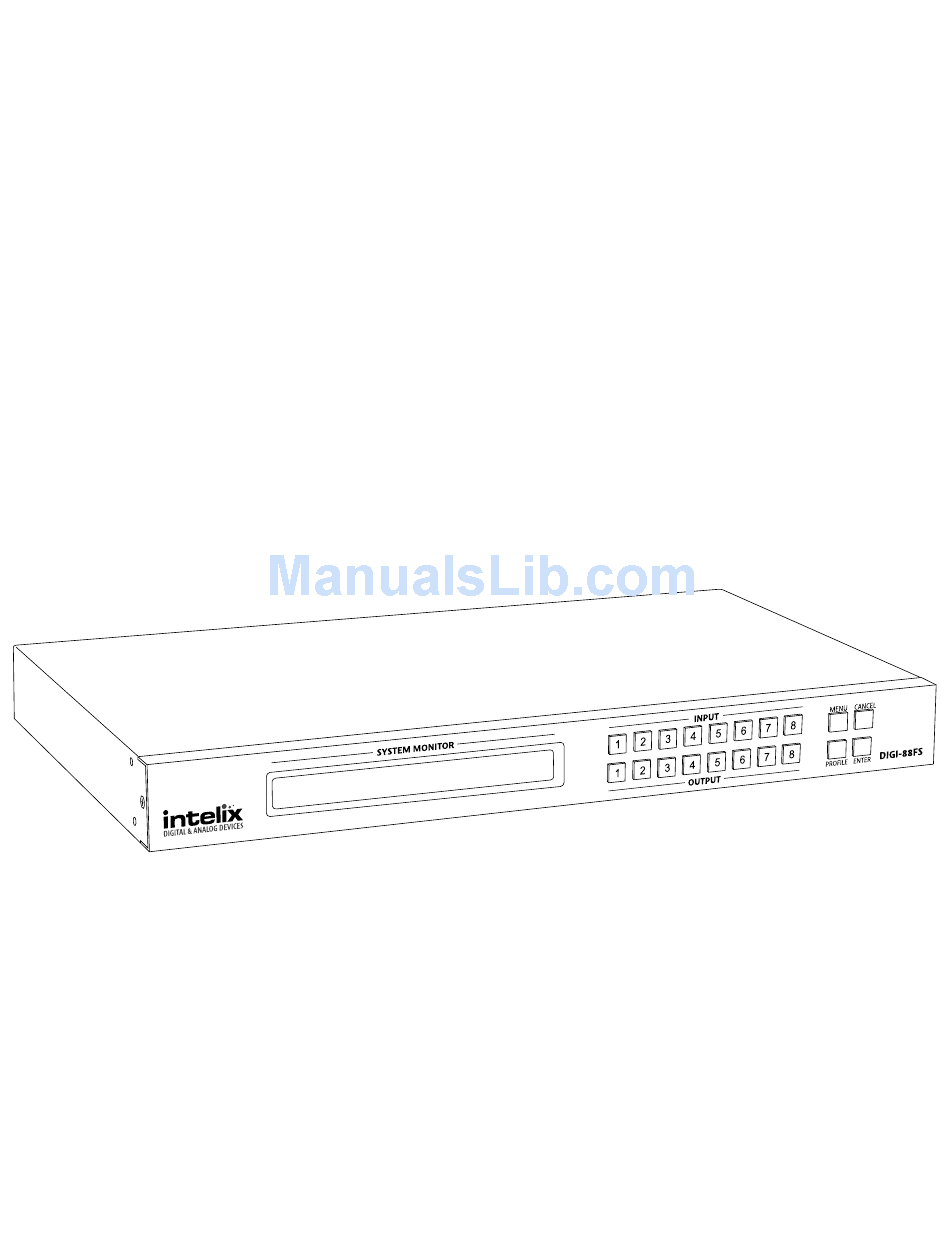

DIGI-88FS Installation and
Operation Guide
Rev 141006
8001 Terrace Ave
Phone: 608-831-0880
Suite 201
Toll-Free: 866-462-8649
Middleton, WI 53562
Fax: 608-831-1833

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIGI-88FS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Intelix DIGI-88FS

  • Page 1 DIGI-88FS Installation and Operation Guide Rev 141006 8001 Terrace Ave Phone: 608-831-0880 Suite 201 Toll-Free: 866-462-8649 Middleton, WI 53562 Fax: 608-831-1833...
  • Page 3: Important Safety Instructions

    » Use only with the cart, stand, table, or rack specified by Intelix or sold with the equipment. When/if a cart is used, use caution when moving the cart/equipment combination to avoid injury from tip-over.
  • Page 4: Table Of Contents

    DIGI-88FS Installation Guide Table of Contents Product Overview ��������������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������������� Front Panel ���������������������������������������������������������������������������������������������������������������������������������������������������������� Rear Panel ����������������������������������������������������������������������������������������������������������������������������������������������������������� IR Remote ��������������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ���������������������������������������������������������������������������������������������������������������������������������� Quick Start �������������������������������������������������������������������������������������������������������������������������������������������������������� Rack mount the Matrix ������������������������������������������������������������������������������������������������������������������������������������� Connect Ground ������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 5 On-Screen Display ��������������������������������������������������������������������������������������������������������������������������������������������� CEC �������������������������������������������������������������������������������������������������������������������������������������������������������������������� Baud Rate Settings �������������������������������������������������������������������������������������������������������������������������������������������� Reset to Factory Defaults ���������������������������������������������������������������������������������������������������������������������������������� Telnet Commands ������������������������������������������������������������������������������������������������������������������������������������������� Connecting to the DIGI-88FS ����������������������������������������������������������������������������������������������������������������������������� Help, Command List ������������������������������������������������������������������������������������������������������������������������������������������ Troubleshooting ��������������������������������������������������������������������������������������������������������������������������������������������� Matrix does not power on ��������������������������������������������������������������������������������������������������������������������������������� Image looks “fuzzy” ������������������������������������������������������������������������������������������������������������������������������������������ Image looks “squashed” or “stretched” ������������������������������������������������������������������������������������������������������������...
  • Page 6: Product Overview

    HDMI input if the current video source is powered off. The DIGI-88FS can be controlled via the front panel, infrared (IR), RS232, or via a web GUI when connected to an internal network. The extensive variety of control options makes the DIGI-88FS an easily accessible matrix for any control system.
  • Page 7: Package Contents

    DIGI-88FS Installation Guide Package Contents Please verify the following items are in the shipping box prior to installation of the DIGI-88FS. Shelf Feet with Screws DIGI-88FS Matrix Switcher (installed on matrix) 1 ea 4 ea Rack Ears with Screws Infrared Remote Control...
  • Page 8: Front And Rear Panels

    DIGI-88FS Installation Guide Front and Rear Panels Front Panel LCD screen Input select buttons MENU button CANCEL button Output select buttons PROFILE button ENTER button Rear Panel AC power input Power switch Ground screw HDMI outputs IR input for matrix TCP/IP (Telnet) control input;...
  • Page 9: Ir Remote

    DIGI-88FS Installation Guide IR Remote The included IR remote performs AV routing and power on/off functions. Please see page 18 (IR Remote Operation) for information on controlling the matrix from the IR remote. The remote control requires one CR2025, which is included and installed for convenience. A clear plastic tab...
  • Page 10: Installation Instructions

    Apply power Rack mount the Matrix At least 2 inches of free air space is required on both sides of the DIGI-88FS for proper side ventilation. Avoid mounting the DIGI-88FS near a power amplifier or any other source of significant heat.
  • Page 11: Connect Sources

    Connect Control IR Control When IR control of the DIGI-88FS is necessary, the IR EYE input allows the IR remote to control the matrix via the supplied IR receiver. Insert the TRS 3.5 mm plug of the IR receiver to the matrix IR input...
  • Page 12: Rs232 Control

    3 = RX 5 = GND Connect a standard straight-through serial cable with DE9 connector between the RS232 port on the DIGI-88FS and the controller. TCP/IP (Telnet) Control The TCP/IP port requires a standard straight-through Category 5e or greater cable with the TIA/EIA-568B crimp pattern for operation.
  • Page 13: Router Connection

    Brown Web Browser Control The DIGI-88FS includes a web portal to allow control and configuration of the matrix via a standard web browser. The IP address is the same address that is used for TCP/IP control. See page 19 (Web GUI) for detailed information regarding the web browser interface, including customization.
  • Page 14: Apply Power

    DIGI-88FS Installation Guide Apply Power Plug the power cable into the AC power input on the rear of the matrix. The DIGI-88FS supports 100-240V AC at 50 or 60 Hz. Press the power switch up to turn on the matrix.
  • Page 15: Front Panel Operation

    DIGI-88FS Installation Guide Front Panel Operation Unlock the Front Panel The DIGI-88FS ships with the front panel in a password protected state. The default password is 1234 and must be entered with the INPUT selection keys. Basic Routing To set a route using the front panel of the DIGI-88FS: Press the desired input button (source).
  • Page 16: Front Panel Menu

    Customized - Automatically retrieves and saves the EDID settings of a connected display to an input source. This can be customized in the web GUI. See page XX for more information. The DIGI-88FS will pass CEC commands from the display to the source when this feature is enabled. This feature is disabled by default.
  • Page 17: Osd

    Security Mode This option turns on and turns off the front panel lock out option of the DIGI-88FS. It also provides an option to change the default password from 1234 to another four digit password.
  • Page 18: Ir Remote Operation

    DIGI-88FS Installation Guide IR Remote Operation The ON and OFF buttons will enable and disable all input sources respectively. To change the route for an output, select the output port, then select the input port. If no input selections are made within four seconds, the output selection will time out.
  • Page 19: Web Gui

    DIGI-88FS Installation Guide Web GUI To access the web browser GUI, type the DIGI-88FS’s IP address into the address bar of any browser. If a Security Alert dialog box appears, accept the certificate. The welcome screen will appear. The DIGI-88FS’s default IP address is: http://192.168.0.178...
  • Page 20: Setup Sub-Menu

    HDMI source switch off. This feature is turned off by default. While the default baud rate of the DIGI-88FS is 19200, other baud rates are available to control the matrix via RS232: 9600, 38400, and 115200.
  • Page 21: Customized Video Data

    DIGI-88FS Installation Guide Customized Video Data Up to 18 input resolutions may be selected. Choose one of the selected video resolutions to be the “native” resolution for the EDID table. Customized Audio Data There are eight different audio formats available to select. There are six fields where one of the eight formats may be assigned.
  • Page 22: Profile Sub-Menu

    DIGI-88FS Installation Guide Profile Sub-Menu Selection To add profiles that can be accessed simply by pressing the Profile button, select the profile number from the dropdown, then click Add. To delete a profile from the list, select the profile’s radio button, then click Delete at the bottom right of the page.
  • Page 23: Rs232 Commands

    DIGI-88FS Installation Guide RS232 Commands Default RS232 settings: 19200 baud, 8 Data bits, 1 Stop bit, Parity = None There are no spaces between any of the characters in the command string. i = Input Command xx = Input Number (input 2 would be 02)
  • Page 24: Get Av Status

    Port 1 - The EDID from output port 1 is passed to all video sources. Remix - Uses the EDID of each connected display according to its connection when the DIGI-88FS is first powered on, or immediately after pressing 3 to select the remix option.
  • Page 25: Power On Detection

    Command osdon<CR><LF> Turn on OSD (default) osdoff<CR><LF> Turn off OSD The DIGI-88FS will pass CEC commands from the display to the source when this feature is enabled. This feature is disabled by default. Description Command cecoyyon<CR><LF> Enable CEC for output yy cecoyyoff<CR><LF>...
  • Page 26: Baud Rate Settings

    DIGI-88FS Installation Guide Baud Rate Settings Description Command baud9600<CR><LF> Set baud to 9600 baud19200<CR><LF> Set baud to 19200 (default) baud38400<CR><LF> Set baud to 38400 baud115200<CR><LF> Set baud to 115200 Reset to Factory Defaults Sending the reset command to the matrix will reset the matrix to the original factory settings, including the front panel password and RS232 baud rates.
  • Page 27: Telnet Commands

    DIGI-88FS Installation Guide Telnet Commands Connecting to the DIGI-88FS Using a telnet client, connect to the DIGI-88FS at the assigned IP address. The default IP address is 192.168.0.178. Depending on the telnet software, port 23 may need to be specified.
  • Page 28: Help, Command List

    DIGI-88FS Installation Guide Help, Command List Sending H through the telnet software will provide a listing of all available commands inside the telnet software. - Set Gateway - Help, Command List - Set IP subnet mask - Set IP Address...
  • Page 29: Troubleshooting

    » Verify output resolution matches display. Image looks “squashed” or “stretched” » Verify source content matches display aspect ratio. Disable Instant Switch in the web GUI. » Cannot control via RS232 Verify baud rate settings in controller and DIGI-88FS. »...
  • Page 30: Technical Specifications

    DIGI-88FS Installation Guide Technical Specifications Input/Output Connections HDMI Inputs Eight (8) HDMI Type A Receptacle HDMI Outputs Eight (8) HDMI Type A Receptacle RS232 One (1) Female DE9 connector Ethernet One (1) Shielded RJ45 Female IR Input One (1) 3.5mm TRS...
  • Page 31 DIGI-88FS Installation Guide...
  • Page 32 Please contact us with your questions and comments. Intelix 8001 Terrace Ave, Ste 201 Middleton, WI 53562 Phone: 608-831-0880 Toll Free: 866-462-8649 Fax: 608-831-1833 www.intelix.com supportlibav@libav.com Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
