Downloading Logged Data to the PC
Note: The RS232 communication symbol should NOT be displayed in the LCD when
downloading.

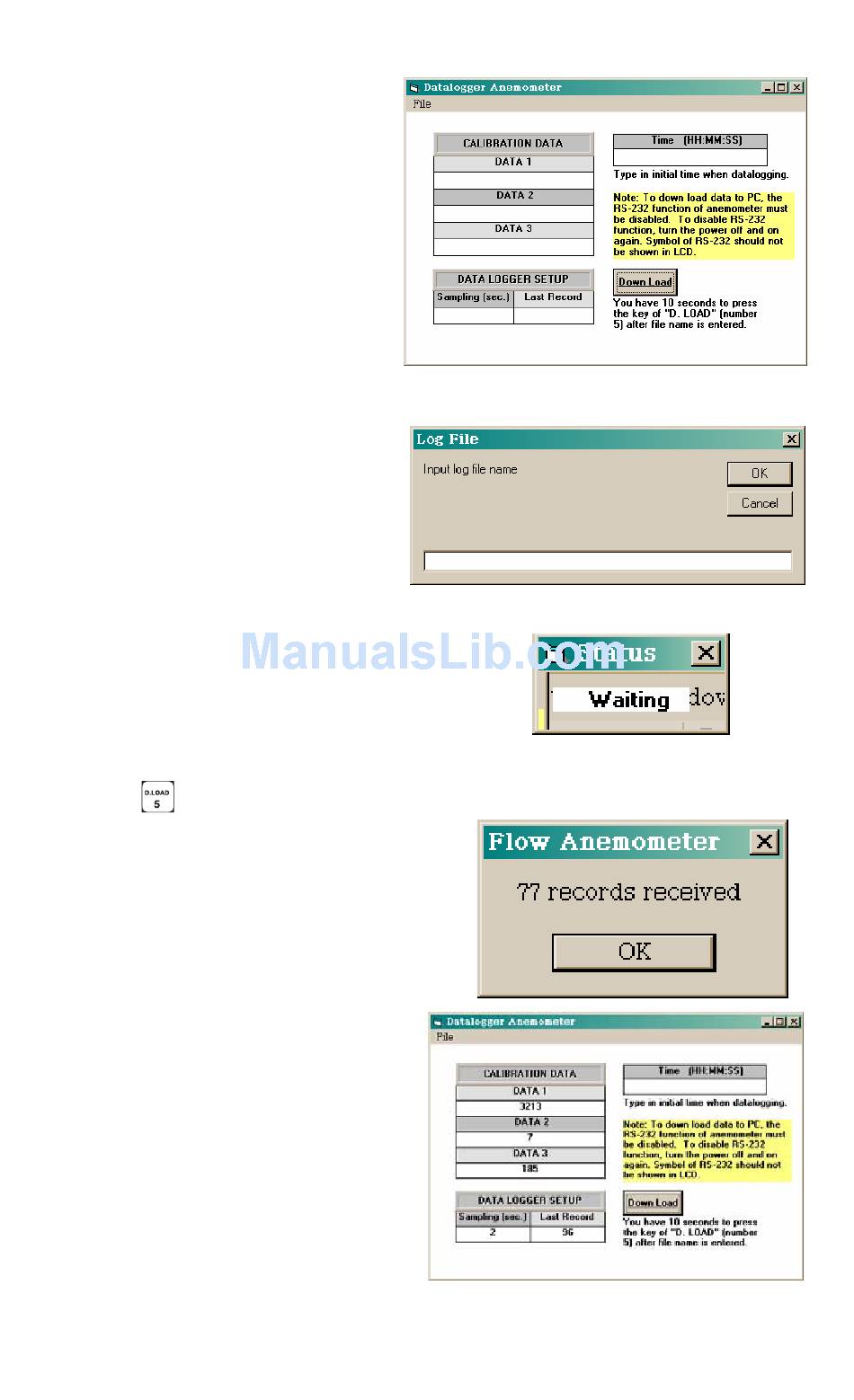

1. Click Datalogger on the menu.
The Datalogger Anemometer
screen will open.
2. Click the Download button. The
Log File screen will open.
Enter a File name and click OK
button.
The Status screen will open.
Status screen will count up the number of
readings being transferred.
3. Press to initiate data transfer from
the meter to the PC
4. When transfer is completed click OK.
5. The datalogger screen will appear
and display the number of records
and the sampling rate they were
taken at.
6. Click File and Exit. Data can now be
viewed
Model 451126 Version 1.6 February 2004
