Summary of Contents for Extech Instruments EasyView EA31

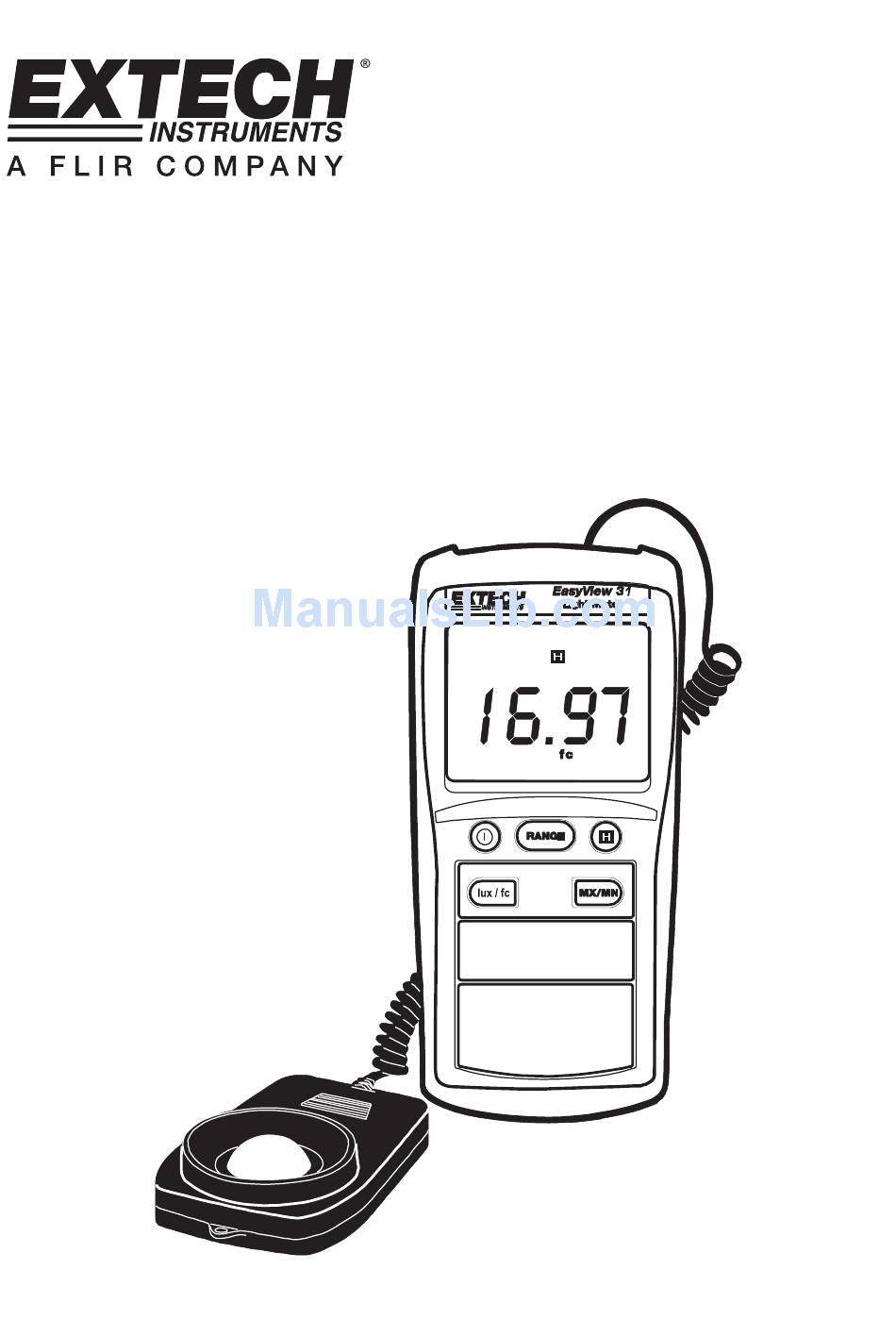

- Page 1 User's Guide EasyView Digital Light Meter Model EA31...

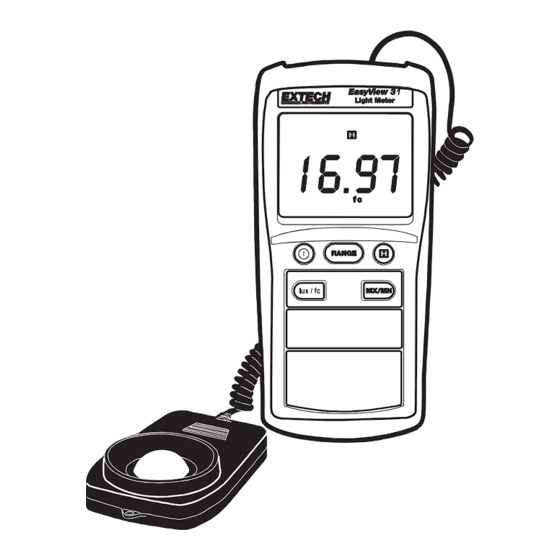

- Page 2 Introduction Congratulations on your purchase of the Extech EasyView Digital Light Meter which measures the amount of light falling on a surface (illuminance) in Foot-candles or Lux. This device measures up to 20,000 Fc and 20,000 Lux. Careful use of this meter will provide years of reliable service. Meter Description LCD display Range button...
- Page 3 Operation Power ON or OFF Press the button to turn power on or off. Units of measure Press the lux / fc button to select the unit of measure. “fc” or “lux” will appear in the display. Light sensor 1. The light sensor is attached to the meter with a coiled cable which allows placement of the sensor up to approximately 3 feet from the meter.
- Page 4 Reference Foot candles Typical Light Levels >10000 >107600 Sunlight 1000 to 10000 10760 to 107600 Operating Table Assembly (fine) Football stadium 100 to 1000 1076 to 10760 Emergency room Drafting table Overcast day Assembly (general) Classroom 10 to 100 107 to 1076 Casual reading Shipping area Stairwell...
-
Page 5: Specifications
“BT” appears on the LCD Power supply 6 ‘AAA’ cells; Battery life approx 400 hours Copyright © 2012 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. www.extech.com...
