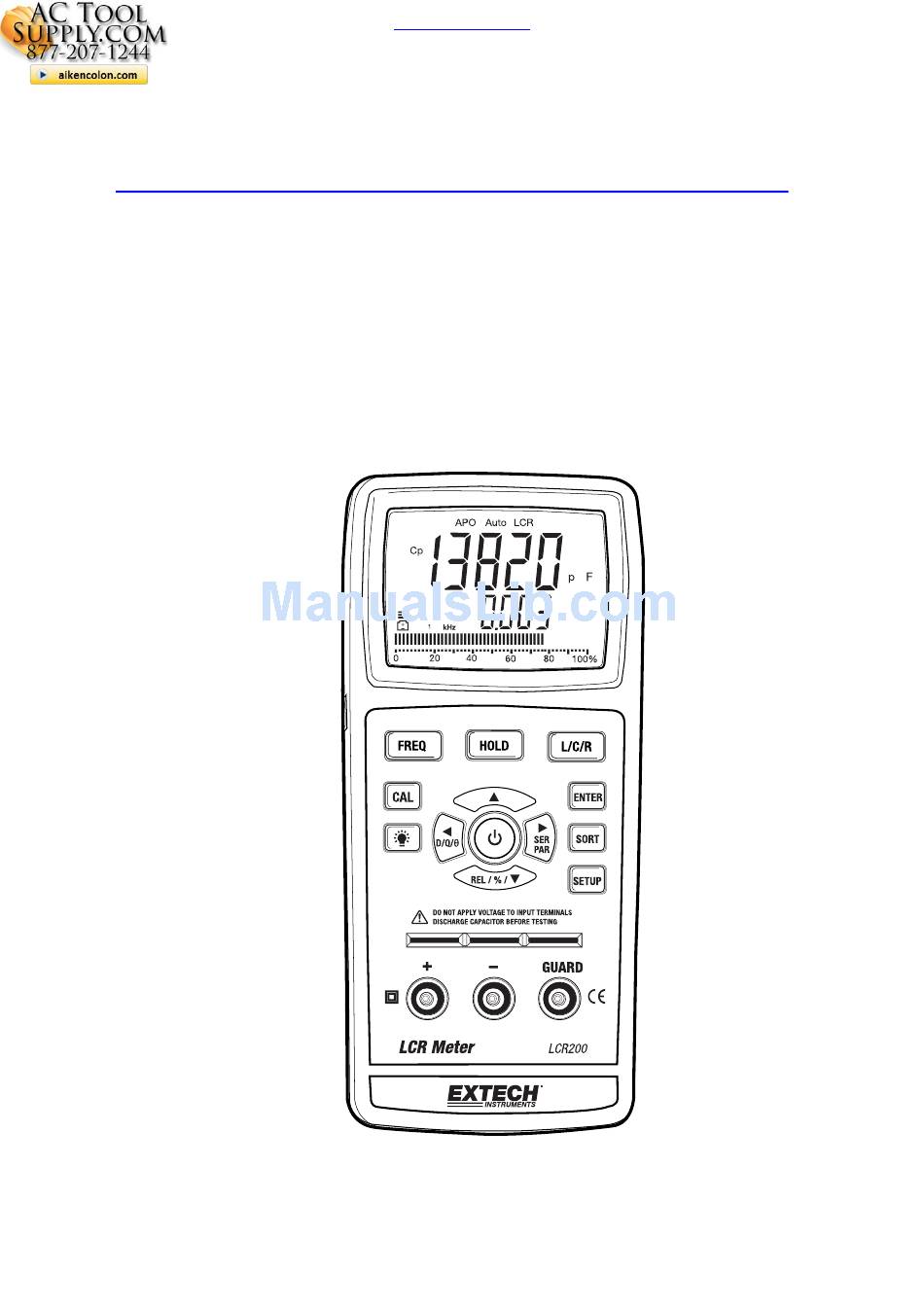

- Page 1 User's Guide Extech LCR200 Passive Component LCR Meter Digital LCR Meter Model LCR200 actoolsupply.com...
- Page 2 Introduction Congratulations on your purchase of Extech's Model LCR200 LCR meter. This meter will accurately measure capacitors, inductors and resistors using the test frequencies of 100Hz, 120Hz 1 kHz, 10 kHz and 100 kHz. The dual display will simultaneously display the associated quality factor, dissipation or phase angle value using a series or parallel equivalent circuit.
-

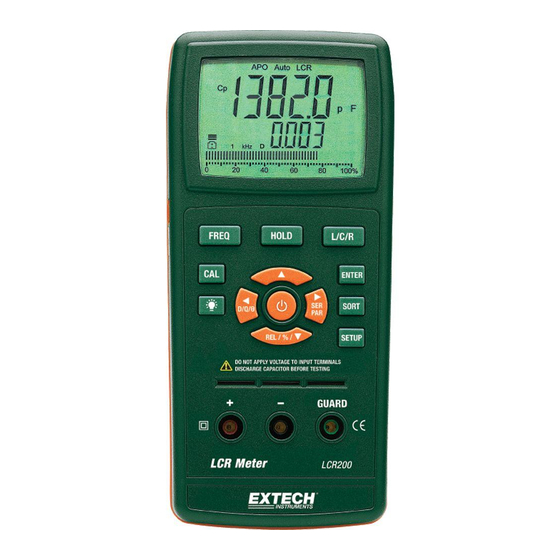

Page 3: Meter Description
11. Hold Button 12. RS232 Port (not active on this model) 13. L/C/R Button 14. Enter Button 15. ►, SER/PAR Button 16. Sort Button 17. Setup Button 18. Power Button 19. Stand (rear) 20. Battery Compartment (rear) LCR200-EU-EN V1.5 11/13 actoolsupply.com... -
Page 4: Operation
Press the FREQ button to change the test frequency. The selections are: 100Hz, 120Hz, 1kHz, 10kHz and 100kHz. Data Hold Press the HOLD button to freeze the reading in the display. Push the HOLD key again to cancel the hold mode and return to normal operation. LCR200-EU-EN V1.5 11/13 actoolsupply.com... - Page 5 ± 0.5% ± 1% ± 2% ± 5% ± 10% ± 20% +80% -20% Press the ENTER button to store the Tolerance setting. Press the SORT button for > 2 seconds to exit the Sorting mode. LCR200-EU-EN V1.5 11/13 actoolsupply.com...
- Page 6 The RS232 port is not active on this meter. AC Adaptor The meter can be powered from an AC adaptor (9VDC, 1A). When an AC adaptor is used, APO is disabled. Purchase a Linear Power Supply (9V 1A) from a third party. LCR200-EU-EN V1.5 11/13 actoolsupply.com...
- Page 7 / accumulators are sold! Disposal in the household garbage is prohibited! Optional Accessories LCR203 SMD Component Tweezers Used to quickly measure and sort chip components. LCR205 SMD Component Fixture Used to accurately measure surface mount devices LCR200-EU-EN V1.5 11/13 actoolsupply.com...
-
Page 8: Specifications
± ( 0.5%rdg + 5digits ) 2MΩ ± ( 1.0%rdg + 5digits ) ± ( 1.0%rdg + 5digits ) After calibration 20MΩ ± ( 1.0%rdg + 5digits ) ± ( 2.0%rdg + 5digits ) After calibration LCR200-EU-EN V1.5 11/13 actoolsupply.com... - Page 9 ± (1.0%rdg + 5digits ) -------------------------- After calibration * If the impedance is larger than 10kΩ, Cp is shown on the display. * If the impedance is less than 10kΩ, Cs is shown on the display. LCR200-EU-EN V1.5 11/13 actoolsupply.com...
- Page 10 2000mH ± (0.5% + 5d ) ----------------------- Note: * If the impedance is larger than 10kΩ, Lp is shown on the display. * If the impedance is less than 10kΩ, Ls is shown on the display. LCR200-EU-EN V1.5 11/13 actoolsupply.com...
