Summary of Contents for Extech Instruments EN510
- Page 1 USER MANUAL ENVIRONMENTAL METER Model EN510 Additional User Manual Translations available at www.extech.com...

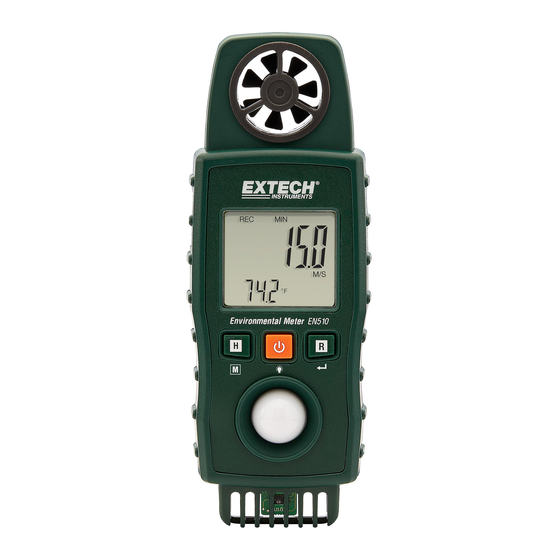

- Page 2 Introduction Thank you for selecting the Extech EN510 Environmental Meter. This instrument measures Air Velocity with Air temperature, Air Flow (volume), Light, Relative Humidity % with Air temperature, Dew Point temperature, Web bulb temperature, Type K temperature (external probe), Heat Index temperature, and Wind Chill temperature. The backlit LCD includes primary and secondary displays plus a variety of intuitive status indicators.
-
Page 3: Meter Description

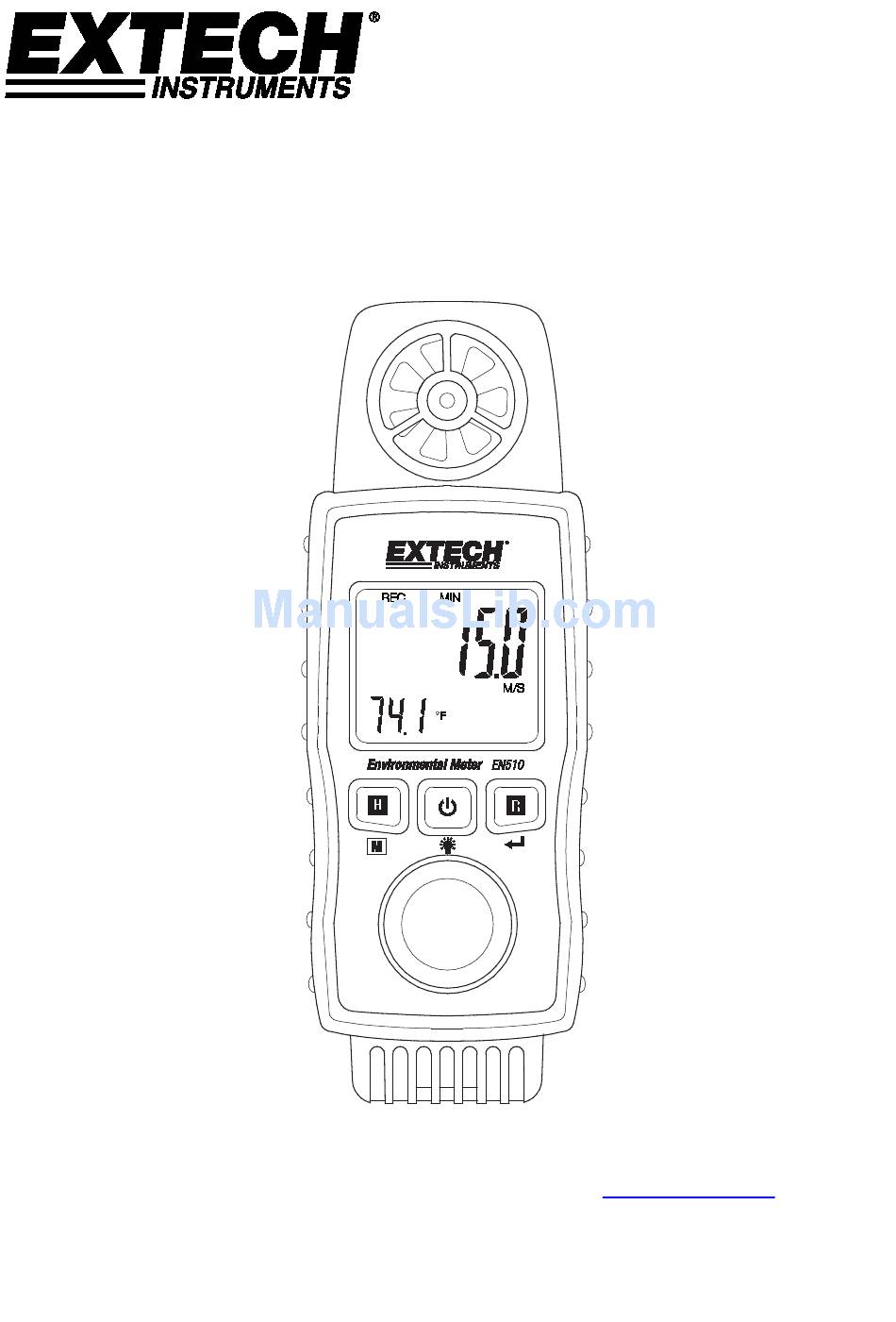

Lanyard not pictured. Battery compartment and tripod mount on rear of meter LCD Description MAX/MIN Record icon MAX Display MIN Display Display Hold Primary Display Units of Measure Temperature Display Reverse Orientation Display Units of Measure (for reverse display) EN510-en-GB_V1.0 8/17... -
Page 4: Meter Functions
See units list below: Air Velocity units M/S, km/h, mph, knot, FPM Air Flow units CFM (ft ) and CMM (m Temperature units F (for air, wind chill, dew point, wet bulb, heat index, and Type K) Light units Foot-candles, LUX EN510-en-GB_V1.0 8/17... -
Page 5: Measurement Modes
• CHiLL Wind chill; rH Relative Humidity (with air temperature); dP Dew point; _Et Wet bulb; HEAt Heat index; tYPE Type K thermocouple temperature (attach thermocouple to meter) • Place the meter or type K probe in the measurement area and view the readings on the LCD. EN510-en-GB_V1.0 8/17... - Page 6 Area (A) = Radius (r) π = 3.14 and r = radius x radius Where Cubic equations CFM (ft /min) = Air Velocity (ft/min) x Area (ft CMM (m /min) = Air Velocity (m/s) x Area (m ) x 60 EN510-en-GB_V1.0 8/17...
-
Page 7: Maintenance
Cleaning and Storage Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or solvents. Do not allow moisture to come in contact with any of the sensors. EN510-en-GB_V1.0 8/17... -
Page 8: Specifications
0.8 to 38.8 0 to 50 0.1° ±1.2°C °C 32 to 122 0.1° ±2.5°F °F Ft/min and FPM: feet per minute MPH: miles per hour m/s: meters per second knots: nautical miles per hour km/h: kilometers per hour EN510-en-GB_V1.0 8/17... - Page 9 ±(0.4% + 0.5°C) °C -50.1 to -100.0 ±(0.4% + 1°C) -58.0 to 2372.0 ±(0.4% + 1°F) °F -58.1 to -148.0 ±(0.4% + 1.8°F) Accuracy is stated for meter only. Additional error is introduced by the external Type K probe. EN510-en-GB_V1.0 8/17...
- Page 10 1.1523 1 km/h 0.2778 54.69 0.54 0.6222 1 MPH 0.4464 87.89 0.8679 1.6071 Copyright © 2017 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO-9001 Certified www.extech.com EN510-en-GB_V1.0 8/17...
