1. Package Contents

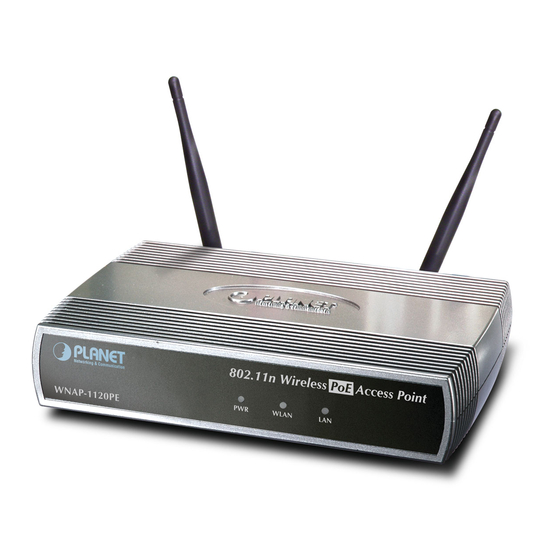

l 1 x WNAP-1120/WNAP-1120PE
l 1 x 5V1A Power Adapter
l 1 x User's Manual CD
l 2 x 3dBi External Antenna
l 1 x Ethernet Cable
l 1 x Quick Installation Guide
1. If any of the above items are missing or
damaged, contact your local dealer for
support.
2. In the following information, the terms of
Note
"11n AP" will mean WNAP-1120/ WNAP-
1120PE unless it is specified.
– 1 –
2. Physical Installing
WPS/Reset
SMA Connectors
(EX: PoE for WNAP-1120PE only)
LAN Port
5V Power Socket
SMA Connectors
– 2 –
Advertisement
Related Manuals for Planet WNAP-1120
Summary of Contents for Planet WNAP-1120
- Page 1 2. Physical Installing LAN Port WPS/Reset 5V Power Socket 1. Package Contents SMA Connectors SMA Connectors l 1 x WNAP-1120/WNAP-1120PE l 1 x 5V1A Power Adapter (EX: PoE for WNAP-1120PE only) l 1 x User’s Manual CD l 2 x 3dBi External Antenna l 1 x Ethernet Cable l 1 x Quick Installation Guide 1. If any of the above items are missing or damaged, contact your local dealer for support. 2. In the following information, the terms of Note “11n AP” will mean WNAP-1120/ WNAP- 1120PE unless it is specified. – 1 – – 2 –...
- Page 2 1. Please Connect bundled antennas to the two SMA connec- 1. ONLY use the power adapter supplied with tors. 11n AP. Otherwise, the product may be 2. Please Connect the LAN PC or network devices to 11n AP damaged. LAN port with RJ-45 Ethernet cable. 2. For the power supply of WNAP-1120PE, you could use either IEEE 802.3af PSE Note device or 5VDC Adapter. Please do not use 5V adapter and PSE devices at the same time. It may damage the 11n AP devices. 4. After the hardware connection done, please refer to below for the configuration. 3. Please Connect power adapter to the power socket on 11n AP, and plug the other end of the power pack into an electrical outlet.
- Page 3 2. After enter the IP address and press Enter key, you can 3. Web Configuration see the dialog box appear as below, please enter the User name and Password with “admin”. Then press “OK”. The following instructions will guide you to complete to login the 11n AP WEB UI settings. Pease use the following IP address in your PC when you set 11n AP at first time.
- Page 4 User manual in the bundled CD-ROM. If you have any difficulty on resolving the problem while installing or using 11n AP, please feel free to contact with your local dealer or PLANET for support. 2011-E10300-000 –...
