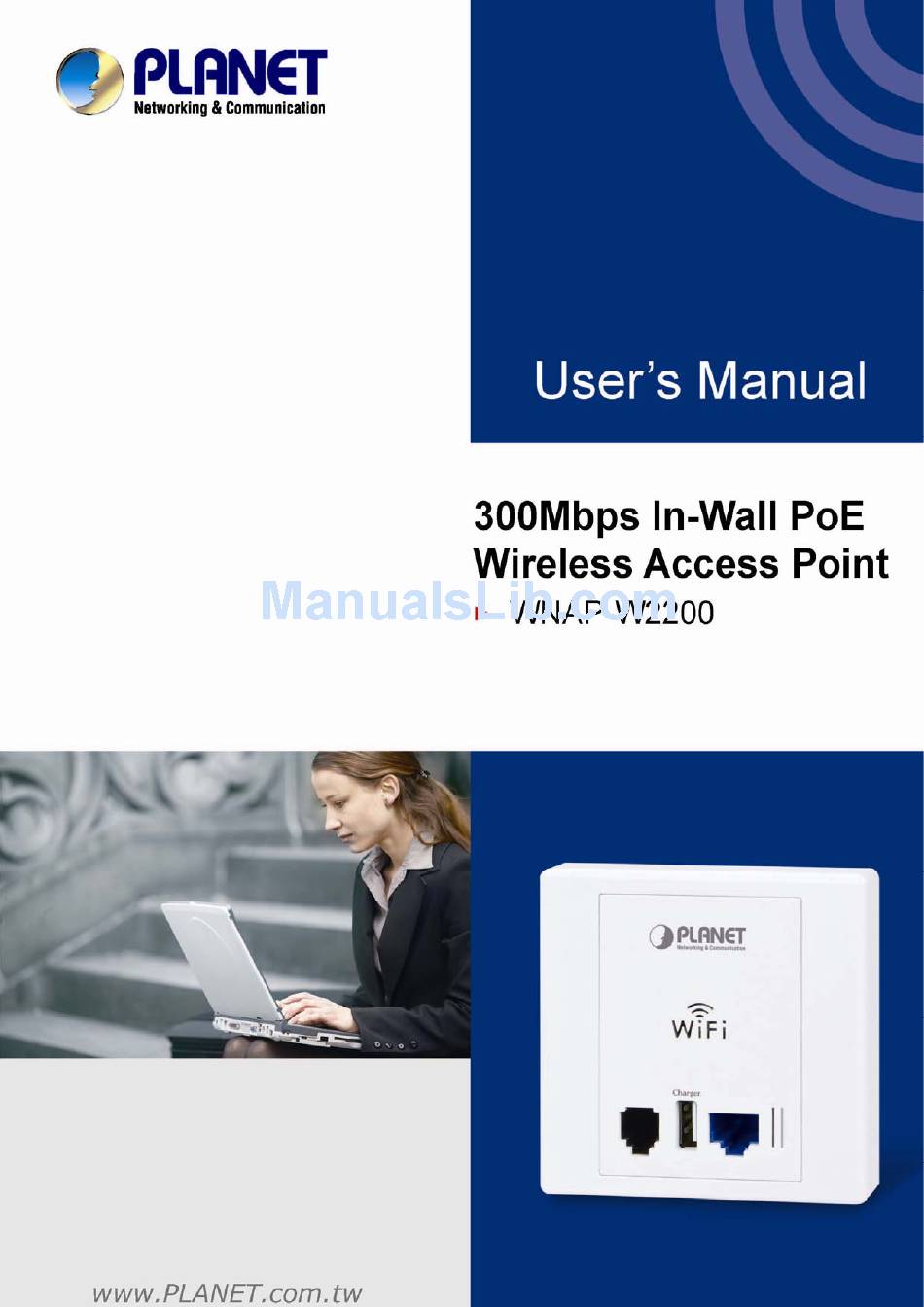

Planet WNAP-W2200 User Manual

300mbps in-wall poe wireless access point
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WNAP-W2200 and is the answer not in the manual?

Questions and answers

Related Manuals for Planet WNAP-W2200

Summary of Contents for Planet WNAP-W2200

  • Page 2: Federal Communication Commission Interference Statement

    Copyright Copyright  2014 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
  • Page 3 Federal Communication Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication...
  • Page 4 Revision User Manual for PLANET 300Mbps In-wall PoE Wireless Access Point Model: WNAP-W2200 Rev: 2.0 (May, 2014) Part No. EM-WNAP-W2200_v2.0 (2081-E10540-001)

  • Page 5: Table Of Contents

    CONTENTS Chapter 1. Product Introduction......................1 Package Contents ....................... 1 Product Description......................2 Product Features......................... 4 Product Specifications ....................... 5 Chapter 2. Hardware Installation ......................7 Product Outlook ........................7 2.1.1 Panel Layout......................8 2.1.2 Hardware Description ....................8 Chapter 3. Connecting to the AP ......................10 System Requirements ......................10 Installing the AP ........................10 Chapter 4.
  • Page 6 Windows XP (Wireless Zero Configuration) ..............44 Windows 7 (WLAN AutoConfig)..................46 Mac OS X 10.x........................49 iPhone / iPod Touch / iPad ....................53 Appendix A: Planet Smart Discovery Utility..................56 Appendix B: Troubleshooting......................57 Appendix C: Specifications........................59 Appendix D: Glossary.........................61...
  • Page 7 FIGURE 2-1 WNAP-W2200 P ..................7 IGURE RODUCT UTLOOK 2-2 WNAP-W2200 P ....................8 IGURE ANEL AYOUT 3-1 WNAP-W2200 I ................. 11 IGURE NSTALLATION IAGRAM 3-2 WNAP-W2200 U ..................11 IGURE SAGE IAGRAM 4-1 TCP/IP S ........................13 IGURE ETTING 4-2 W ......................13...
  • Page 8 6-8 C ....................47 IGURE ONNECTING TO A ETWORK 6-9 C ....................48 IGURE ONNECTED TO A ETWORK 6-10 M OS – N ....................49 IGURE ETWORK ICON 6-11 H ..............49 IGURE IGHLIGHT AND SELECT THE WIRELESS NETWORK 6-12 E .......................50 IGURE NTER THE ASSWORD 6-13 C ....................50...

  • Page 9: Chapter 1. Product Introduction

    User Manual of WNAP-W2200 Chapter 1. Product Introduction 1.1 Package Contents Thank you for choosing PLANET WNAP-W2200. Before installing the AP, please verify the contents inside the package box. WNAP-W2200 CD-ROM (User Manual included) Quick Installation Guide Screw x 2 If there is any item missing or damaged, please contact the seller immediately.

  • Page 10: Product Description

    1.2 Product Description All-in-One Hotel Room Wireless Solution The WNAP-W2200 comes with one RJ-45 port for connecting IPTV or laptop, one RJ-11 port for phone pass-through, and the high-speed 300Mbps wireless connectivity for iPhone, iPad and Android smart phones. In addition, the USB charger port keeps your devices full with power anytime.
  • Page 11 Convenient USB Charger To provide better services for travelers, the WNAP-W2200 is built in with one USB 2.0 charger whose output 5V DC power can charge any USB compliant mobile devices, e.g., cell phones, pads, and other handheld devices.

  • Page 12: Product Features

    User Manual of WNAP-W2200 1.3 Product Features  Standard Compliant Hardware Interface  Complies with IEEE 802.11n Wireless LAN speed up to 300Mbps  2 x 10/100Base-TX Port with 1-port PoE (PD, Powered Device)  1 x RJ-11 Port for Telephone Transparency ...

  • Page 13: Product Specifications

    User Manual of WNAP-W2200 1.4 Product Specifications WNAP-W2200 Product 300Mbps 802.11n Wireless In-wall Access Point Hardware Specifications 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port (Rear Panel) PoE Port ※ IEEE 802.3af PD Port LAN Port 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port...
  • Page 14 User Manual of WNAP-W2200 Wireless: 25 Web-based (HTTP) management interface SNMP management, LED On/Off control, Schedule Reboot System Management Supports Planet Smart Discovery & Centralized Management Utility System Log Environments Operating: -10 ~ 45 degrees C Temperature Storage: -40 ~ 70 degrees C...

  • Page 15: Chapter 2. Hardware Installation

    User Manual of WNAP-W2200 Chapter 2. Hardware Installation Please follow the instructions below to connect the WNAP-W2200 to the existing network devices and your computers. 2.1 Product Outlook  Dimensions: 86 x 86 x 35 mm (L x W x H) ...

  • Page 16: Panel Layout

    2.1.1 Panel Layout The front and rear panel provide a simple interface monitoring the AP. Figure 2-2 shows the hardware interface of the WNAP-W2200. Hardware Interface Figure 2-2 WNAP-W2200 Panel Layout 2.1.2 Hardware Description LED definition Object Description Power on...
  • Page 17 User Manual of WNAP-W2200 H/W Interface definition Object Description 10/100Mbps RJ-45 port , Auto MDI/ MDI-X PoE Port (802.3af PoE) Connect LAN port to the PoE injector to power on the device. 10/100Mbps RJ-45 port , Auto MDI/ MDI-X LAN Port Connect this port to the network equipment.

  • Page 18: Chapter 3. Connecting To The Ap

    TCP/IP protocols The above PCs are installed with Web browser.  1. The AP in the following instructions means PLANET WNAP-W2200. 2. It is recommended to use Internet Explore 8.0 or above to access the AP. 3.2 Installing the AP Before installing the AP, make sure your PoE switch is connected to the Internet through the broadband service successfully at this moment.
  • Page 19 ※ The Ethernet cable should not exceed 8cm in length from the end connecting to PoE port to the part that goes through the outlet box. Figure 3-1 WNAP-W2200 Installation Diagram Step 2. Follow the figure below to connect the network devices.

  • Page 20: Chapter 4. Quick Installation Guide

    These values can be changed as you desire. In this guide, we use all the default values for description. Connect the WNAP-W2200 with your PC by an Ethernet cable plugging in LAN port on one side and in LAN port of PC on the other side.
  • Page 21 User Manual of WNAP-W2200 Figure 4-1 TCP/IP Setting Then click OK to save your settings. Now, you can run the Ping command in the command prompt to verify the network connection between your PC and the AP. The following example is on Windows 7 OS. Please follow the steps below: Click on Start >...
  • Page 22 User Manual of WNAP-W2200 Open a command prompt and type ping 192.168.1.253, and then press Enter. If the result displayed is similar to Figure 4-3, it means the connection between your PC and the AP has been established successfully. Figure 4-3 Successful Result of Ping Command...

  • Page 23: Starting Setup In The Web Ui

    User Manual of WNAP-W2200 4.2 Starting Setup in the Web UI It is easy to configure and manage the AP with the web browser. Step 1. To access the configuration utility, open a web browser and enter the default IP address http://192.168.1.253...

  • Page 24: Chapter 5. Configuring The Ap

    User Manual of WNAP-W2200 Chapter 5. Configuring the AP This chapter delivers a detailed presentation of AP’s functionalities and features under 7 main menus below, allowing you to manage the AP with ease. Figure 5-1 Main Menu During operation, if you are not clear about a certain feature, you can simply click the “Help” button to read all the related helpful info.

  • Page 25: Status

    User Manual of WNAP-W2200 5.1 Status On this page, you can view information about the current running status of the WNAP-W2200, including LAN interface, wireless interface settings and status, and firmware version information.  System Status This section displays system status.

  • Page 26: Wireless Status

    User Manual of WNAP-W2200  Wireless Status This section allows you to view the wireless info listed below: Figure 5-3 Wireless Status The page includes the following fields: Object Description  Radio: Displays whether wireless is On or Off.  Network Mode: Displays currently active network mode.

  • Page 27: Traffic Statistics

    User Manual of WNAP-W2200  Traffic Statistics This section displays statistics information. Figure 5-4 Traffic Statistics The page includes the following fields: Object Description  SSID: Displays the traffic of the SSID.  Total RX Traffic: Displays MB of RX Traffic.

  • Page 28: F Igure 5-5 W Ireless C Lients

    User Manual of WNAP-W2200  Wireless Clients This section displays the information of wireless clients. Figure 5-5 Wireless Clients The page includes the following fields: Object Description  ID: Displays the number of wireless client.  MAC Address: Displays MAC address of wireless client.

  • Page 29: Lan Setup

    If a DHCP server exists in your network, you can select this option, Dynamic and thus the WNAP-W2200 is able to obtain IP settings automatically from that DHCP server. Enter the IP address of your AP or reset it in dotted-decimal notation (factory ...
  • Page 30 User Manual of WNAP-W2200 When the IP address of the WNAP-W2200 is changed, the clients on the network often need to wait for a while or even reboot before they can access the new IP address. For an immediate access to the AP, please flush the netbios cache on the client computer by running the “nbtstat –r”...

  • Page 31: Dhcp Server

    User Manual of WNAP-W2200 5.3 DHCP Server The menu contains submenus of the settings about DHCP. Please refer to the following sections for the details. 5.3.1 DHCP Server Choose menu “DHCP Server” to configure the settings for DHCP server on this page. After the configuration is done, please click the “Save”...

  • Page 32: Dhcp Client List

    User Manual of WNAP-W2200  Secondary DNS Enter the other DNS address which is optional. Server: 5.3.2 DHCP Client List This section displays the information of DHCP clients. Figure 5-8 DHCP Client List The page includes the following fields: Object Description ...

  • Page 33: Wireless

    User Manual of WNAP-W2200 Wireless The wireless menu contains submenus of the settings about wireless network. Please refer to the following sections for the details. 5.4.1 Basic Choose menu “Wireless  Basic” to configure the security settings for the wireless network on this page. After the configuration is done, please click the “Save”...
  • Page 34 User Manual of WNAP-W2200 connected with a different AP. Enter the clients you want to allow connection to the WNAP-W2200 in  Maximum Clients: the field. None It allows any device to join the network without  Security Mode: performing any security check.

  • Page 35: Radio

    User Manual of WNAP-W2200 WPA is a medium level encryption and is supported by most wireless devices and operating systems. WPA2 WPA2 is a high level encryption and is supported by most wireless devices and operating systems. AES is a specification for the encryption of electronic data.

  • Page 36: Advanced

    User Manual of WNAP-W2200 with the AP with auto-negotiation speed, and 11n wireless client to connect the device with 11g speed. Allow the wireless client to connect with the device 11b Mode in 11b mode at the maximum speed of 11Mbps.

  • Page 37: F Igure 5-11 W Ireless A Dvanced

    User Manual of WNAP-W2200 Figure 5-11 Wireless Advanced The page includes the following fields: Object Description The interval of time that this access point broadcasts a beacon. Beacon is  Beacon Interval: used to synchronize the wireless network. Default is “100”.

  • Page 38: Wireless Access Control

    Choose menu “Wireless  Wireless Access Control” to allow or deny the computer of specified MAC address to wirelessly connect with the WNAP-W2200 on this page. After the configuration is done, please click the “Save” button to save the settings.

  • Page 39: F Igure 5-13 W Ireless Qvlan

    User Manual of WNAP-W2200 Figure 5-13 Wireless QVLAN The page includes the following fields: Object Description  VLAN Enable: Click “Enable” to enable the 802.1Q VLAN function.  VLAN ID: You can specify a VLAN ID for each SSID here. The default is 1000.

  • Page 40: Snmp

    User Manual of WNAP-W2200 5.5 SNMP Simple Network Management Protocol (SNMP) is a popular protocol for network management. It is widely used in local area networks (LAN) for collecting information, and managing and monitoring network devices, such as servers, printers, hubs, switches, and routers from a management host.
  • Page 41 Object Description Set the name to access the AP. Default is “Administrator”.  Administrator Name: Set the AP’s name. Default is “WNAP-W2200”.  Device Name: Set the AP’s network location.  Location: Indicates the community read access string to permit reading this AP’s SNMP information.

  • Page 42: Tools

    User Manual of WNAP-W2200 5.6 Tools This section focuses on how to maintain AP, including Restore to Factory Default Setting, Backup/Restore, Firmware Upgrade, Reboot, Set Password, and Logs. 5.6.1 Maintenance  Firmware Update Firmware upgrade is released periodically to improve the functionality of your device and also to add new features.

  • Page 43: Time

    User Manual of WNAP-W2200 Figure 5-16 Reboot  Reboot: Click this button to reboot the device. 5.6.2 Time This section assists you in setting the Wireless AP’s system time. You can either select to set the time and date manually or automatically obtain the GMT time from Internet.

  • Page 44: F Igure 5-18 L Ogin T Imeout

    User Manual of WNAP-W2200 The page includes the following fields: Object Description  Sync with Internet Select it to update the system time by synchronizing with a public time server over the Internet. Time Servers: Configure the interval of synchronizing time.

  • Page 45: Logs

    User Manual of WNAP-W2200 Figure 5-19 Auto Reboot Setting The page includes the following fields: Object Description  Auto Reboot: Click it to enable auto reboot function. Enter the Reboot Time (24-hour format) to enable this function to take effect.
  • Page 46 User Manual of WNAP-W2200 Figure 5-20 View Logs  Refresh: Click this button to update the log.  Clear: Click this button to clear the current log.  Log Setup You set up the number of logs and log server.

  • Page 47: Backup Settings

    This section allows you to back up the current settings or to restore the previous settings configured on the device. Choose menu “Tools Backup Settings” to back up or restore the configuration of the WNAP-W2200. Once you have configured the Wireless AP the way you want it, you can save these settings to a configuration file on your local hard drive that can later be imported to your wireless AP in case the device is restored to factory default settings.

  • Page 48: F Igure 5-23 R Estore To F Actory D Efault

    User Manual of WNAP-W2200 Figure 5-22 Backup & Restore The page includes the following fields: Object Description Once you have configured the device the way you want, you can save these settings to a configuration file on your local hard drive that can...

  • Page 49: Set Password

    Web-based utility. The default user name and password are “admin”. This page will allow you to add or modify the user name and password. Choose menu “Tools Set Password” to change the user name and password which is inputted to access the web UI of the WNAP-W2200. -41-...
  • Page 50 User Manual of WNAP-W2200 Figure 5-24 Setting Login Password The page includes the following fields: Object Description Enter the old user name.  Old User Name: Enter the old password.  Old Password: Enter the new user name.  New User Name: Enter the new password.

  • Page 51: Diagnostics

    User Manual of WNAP-W2200 5.6.6 Diagnostics This section is used to ping an IP address or domain name. Figure 5-25 Diagnostics -43-...

  • Page 52: Chapter 6. Quick Connection To A Wireless Network

    User Manual of WNAP-W2200 Chapter 6. Quick Connection to a Wireless Network In the following sections, the default SSID of the WNAP-W2200 is configured to “default”. 6.1 Windows XP (Wireless Zero Configuration) Step 1: Right-click on the wireless network icon displayed in the system tray Figure 6-1 System Tray –...

  • Page 53: F Igure 6-3 E Nter The Network Key

    User Manual of WNAP-W2200 Step 4: Enter the encryption key of the Wireless AP (1) The Wireless Network Connection box will appear (2) Enter the encryption key that configured in section 5.3.2 (3) Click the [Connect] button Figure 6-3 Enter the Network Key Step 5: Check if “Connected”...

  • Page 54: Windows 7 (Wlan Autoconfig)

    User Manual of WNAP-W2200 Some laptops are equipped with a “Wireless ON/OFF” switch for the internal wireless LAN. Make sure the hardware wireless switch is switched to “ON” position. 6.2 Windows 7 (WLAN AutoConfig) WLAN AutoConfig service is built-in on Windows 7 that can be used to detect and connect to wireless network.

  • Page 55: F Igure 6-7 T Ype The Network Key

    User Manual of WNAP-W2200 If you will be connecting to this Wireless AP in the future, check [Connect automatically]. Step 4: Enter the encryption key of the Wireless AP (1) The Connect to a Network box will appear (2) Enter the encryption key that configured in section 5.3.2...

  • Page 56: F Igure 6-9 C Onnected To A N Etwork

    User Manual of WNAP-W2200 Figure 6-9 Connected to a Network -48-...

  • Page 57: Mac Os X 10.X

    6.3 Mac OS X 10.x .3 Mac OS X 10.x In the following sections, the default SSID of the WNAP-W2200 is configured to “default”. In the following sections, the default SSID of the WNAP-W2200 is configured to “default”. Step 1: Right-click on the network icon displayed in the system tray The AirPort Network Connection menu will appear Figure 6-10 Mac OS –...

  • Page 58: F Igure 6-13 C Onnected To The N Etwork

    User Manual of WNAP-W2200 Figure 6-12 Enter the Password If you will be connecting this Wireless AP in the future, check [Remember this network]. Step 5: Check if the AirPort is connected to the selected wireless network. If “Yes”, then there will be a “check” symbol in front of the SSID.
  • Page 59 User Manual of WNAP-W2200 There is another way to configure the MAC OS X Wireless settings: Step 1: Click and open the [System Preferences] by going to Apple > System Preferences or Applications Figure 6-14 System Preferences Step 2: Open Network Preference by clicking on the [Network] icon...
  • Page 60 User Manual of WNAP-W2200 Step 3: Check Wi-Fi setting and select the available wireless network (1) Choose the AirPort on the left-menu (make sure it is ON) (2) Select Network Name [default] here If this is the first time to connect to the Wireless AP, it should show “No network selected”.

  • Page 61: Iphone / Ipod Touch / Ipad

    6.4 iPhone / iPod Touch / iPad .4 iPhone / iPod Touch / iPad In the following sections, the default SSID of the WNAP-W2200 is configured to “default”. In the following sections, the default SSID of the WNAP-W2200 is configured to “default”.
  • Page 62 User Manual of WNAP-W2200 Figure 6-19 Wi-Fi setting – Not Connected Step 3: Tap the target wireless network (SSID) in “Choose a Network…” (1) Turn on Wi-Fi by tapping “Wi-Fi” (2) Select SSID [default] Figure 6-20 Turn On Wi-Fi Step 4: Enter the encryption key of the Wireless AP...

  • Page 63: Figure 6-21 Iphone -- Enter The Password

    User Manual of WNAP-W2200 Figure 6-21 iPhone -- Enter the Password Step 5: Check if the device is connected to the selected wireless network. If “Yes”, then there will be a “check” symbol in front of the SSID. Figure 6-22 iPhone -- Connected to the Network...

  • Page 64: Appendix A: Planet Smart Discovery Utility

    User Manual of WNAP-W2200 Appendix A: Planet Smart Discovery Utility To easily list the WNAP-W2200 in your Ethernet environment, the Planet Smart Discovery Utility from user’s manual CD-ROM is an ideal solution. The following installation instructions guide you to running the Planet Smart Discovery Utility.

  • Page 65: Appendix B: Troubleshooting

    User Manual of WNAP-W2200 Appendix B: Troubleshooting If you found the AP is working improperly or stop responding to you, please read this troubleshooting first before contacting the dealer for help. Some problems can be solved by yourself within a very short time.
  • Page 66 User Manual of WNAP-W2200 use IP address to communicate with a remote server, but can’t use host name, please check DNS setting. a. ‘Broadcast ESSID’ set to off? I can’t locate my AP by my b. All two antennas are properly secured.

  • Page 67: Appendix C: Specifications

    User Manual of WNAP-W2200 Appendix C: Specifications WNAP-W2200 Product 300Mbps 802.11n Wireless In-wall Access Point Hardware Specifications 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port (Rear PoE Port Panel) ※ IEEE 802.3af PD Port LAN Port 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port...
  • Page 68 Max. Supported Clients Wireless: 25 Web-based (HTTP) management interface SNMP management, LED On/Off control, Schedule Reboot System Management Supports Planet Smart Discovery & Centralized Management Utility System Log Environments Operating: -10 ~ 45 degrees C Temperature Storage: -40 ~ 70 degrees C...

  • Page 69: Appendix D: Glossary

    User Manual of WNAP-W2200 Appendix D: Glossary 802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input  multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased data throughput via spatial multiplexing and increased range by exploiting the spatial diversity, perhaps through coding schemes like Alamouti coding.
  • Page 70 User Manual of WNAP-W2200 SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key identifying a  wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This is typically the configuration parameter for a wireless PC card.
