Pppoe (Dsl) - D-Link GO-RT-N150 User Manual

Section 3 - Configuration
Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a
username and password. This option is typically used for DSL services. Make sure you remove any PPPoE software from your
computer. The software is no longer needed and will not work through a router.

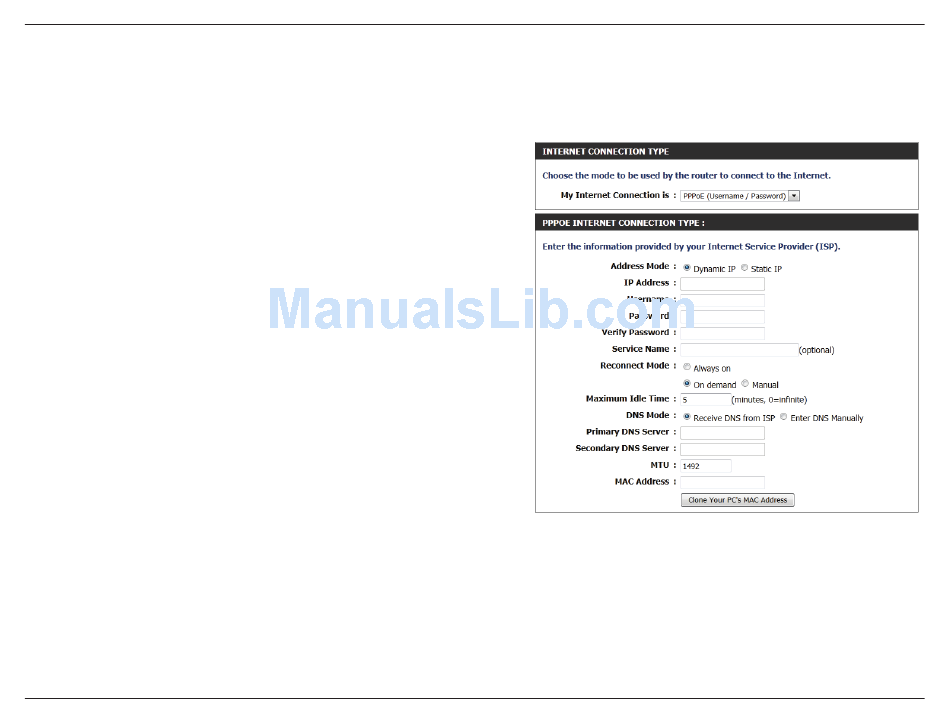

My Internet
Select PPPoE (Username/Password) from the
Connection:
drop-down menu.
Address Mode:
Select Static if your ISP assigned you the IP
address, subnet mask, gateway, and DNS server
addresses. In most cases, select Dynamic.
IP Address:
Enter the IP address (Static PPPoE only).
User Name:
Enter your PPPoE user name.
Password:
Enter your PPPoE password and then retype the
password in the next box.
Service Name:
Enter the ISP Service Name (optional).
Reconnection
Select either Always-on, On-Demand, or
Mode:
Manual.
Maximum Idle
Enter a maximum idle time during which the
Time:
Internet connection is maintained during
inactivity. To disable this feature, enable Auto-
reconnect.
DNS Addresses:
Enter the Primary and Secondary DNS Server
Addresses (Static PPPoE only).
You may need to change the Maximum
D-Link GO-RT-N150 User Manual

PPPoE (DSL)

17
