Power Supply; System Setup - Detecto MS 15 Operation Manual

Place stainless steel platform on weighbridge by aligning holes in weighbridge with pins located on
bottom of platform.
Figure 2

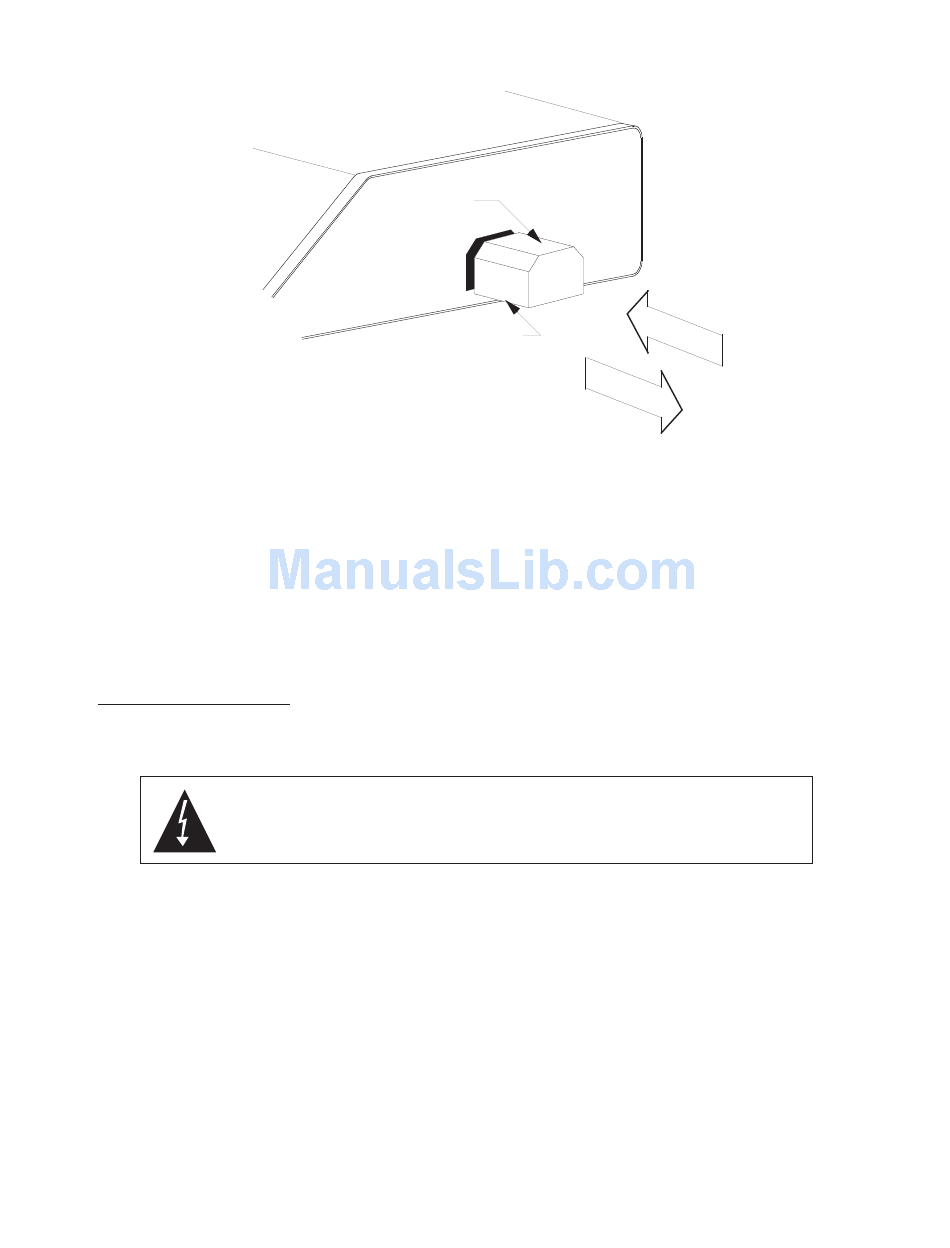

Rate/Program Cartridge Installation
The Rate/Program Cartridge may have been shipped separate. If so, it must be installed in the
instrument before beginning operation. This module is inserted into the cutout on the right side of the
instrument as shown in Figure 2. Note that the label on the Rate/Program Module is on the bottom
side and that the connector end of the Module is inserted into the opening in the instrument
enclosure.
Insert the power cord plug into a grounded wall outlet. This completes the installation procedure.
POWER SUPPLY NOTE!
If an extension cord must be used, it should be a 3-wire fully grounded type. On Models requiring 220
VAC power, it is the responsibility of the customer to have the proper power cord plug installed which
conforms to national electrical codes and local codes and ordinances.
To avoid electrical hazard DO NOT under any circumstances, cut,
remove or bypass the power cord grounding prong.
Before operation may begin it will be necessary to enter operational parameters into your
MS15/MS30/MS100/MS1600. Once this data is entered, it will be retained in memory and used
whenever necessary. If it is necessary to change this data at a later point in time, repeat this
procedure.
Turn the MS15/MS30/MS100/MS160 on while pressing the ENTER key. The system will display:
and then change to
then change to
Rate/Program
Cartridge
Label Side

SYSTEM SETUP

DETECTO MS15/MS30/MS100/MS1600 VX.X
INSTALLED AT XXX
DEFAULT? (1/0) X
3
Down
Push to
Insert
Pull to
remove
