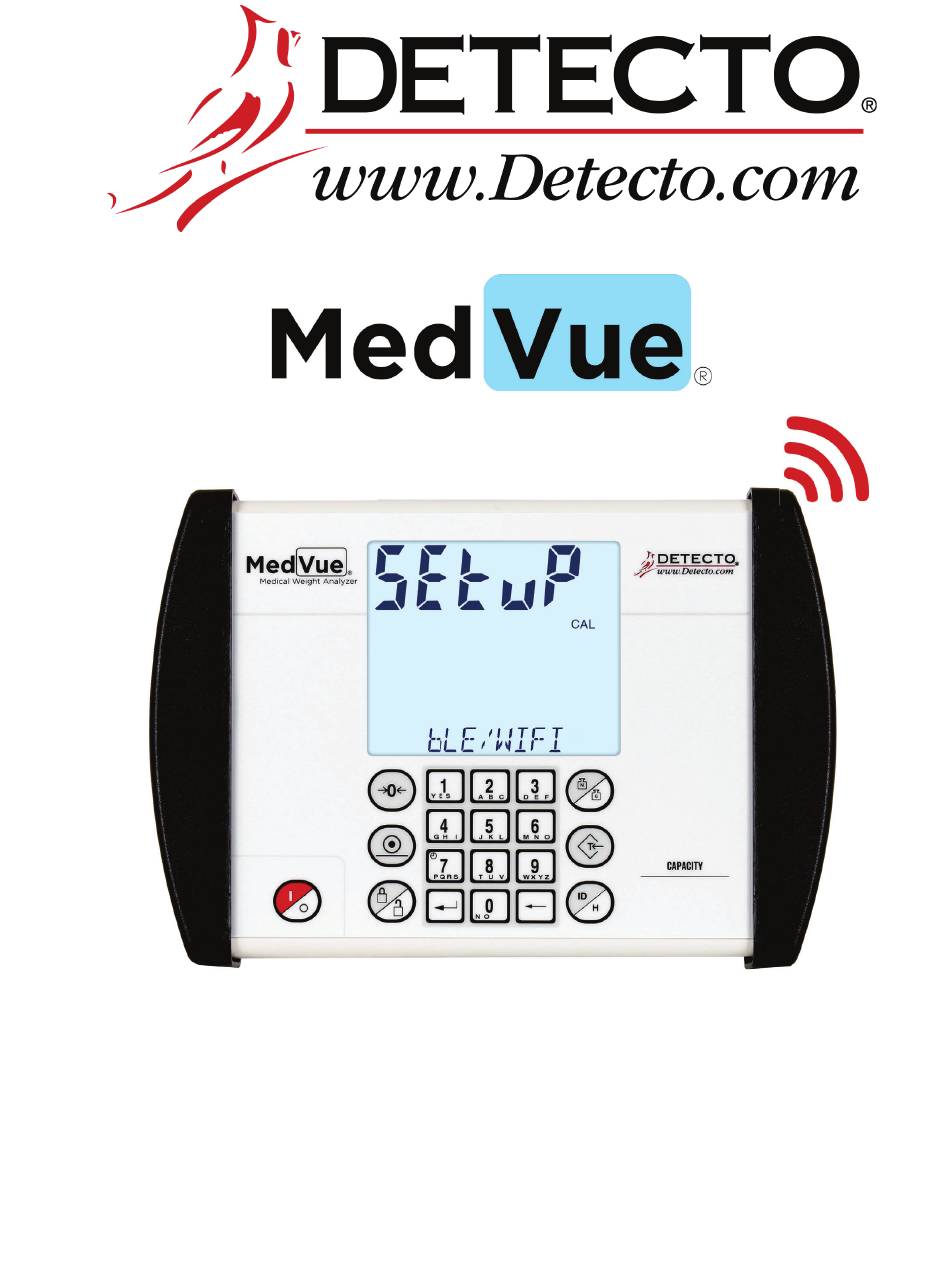

- Page 1 MV1C MedVue Medical Weight Analyzer Wi-Fi and Bluetooth Setup and Operation Manual 8555-0550-0M Rev B MV1C and MV2C with Wi-Fi and Bluetooth...
- Page 2 8555-0550-0M Rev B MedVue with Wi-Fi and Bluetooth...
- Page 3 INTRODUCTION This manual is furnished for the MV1C MedVue® Medical Weight Analyzer with the Redbird Wi-Fi and Bluetooth Low Energy (BLE) wireless transmitter inside the weight indicator enclosure. It has been supplied in addition to the MedVue Medical Weight Analyzer Owner’s Manual, 8555-M512-O1, and should be consulted for guidance through setup and operation of the Redbird Wi-Fi and Bluetooth (BLE) wireless transmitter.
-
Page 4: Table Of Contents
Custom Services ..........Page 13 Detecto SMA Service (0x907a0000-8699-47dd-ab30-d7aad5f83e54) ..Page 13 SMA Commands . -
Page 5: Wi-Fi Networking
WI-FI NETWORKING The wireless transmitter inside the MV1C MedVue® Medical Weight Analyzer enclosure can easily be enabled and configured for use on a Wi-Fi network. Wi-Fi Features Soft Access Point (AP) for setting credentials for Wi-Fi module Setup option to select static or dynamic IP address Built-in web server to display weight, height, and BMI TCP/IP connection for continuous output of weight, height, and BMI WI-FI SETUP... - Page 6 WI-FI SETUP, CONT. Enable and Configure Wi-Fi Networking, Cont. bLE ON/OFF 8. With displayed, press the ENTER key. WIFI ON/OFF 9. The display will change to show and the current setting. 10. Press the 1 (YES) key to select to enable Wi-Fi and then press the ENTER key. dHCP ON/OFF 11.
- Page 7 WI-FI SETUP, CONT. Enable and Configure Wi-Fi Networking, Cont. CLR WIFI CREdS 15. The display will prompt and show the current setting. This is the prompt to clear the Wi-Fi credentials (SSID and password). Press the ENTER key if the current setting is acceptable. Otherwise, press the 0 (NO) or 1 (YES) key to select a new setting, and then press the ENTER key to save it.
-
Page 8: Configure Wi-Fi Network Module
WI-FI SETUP, CONT. Configure Wi-Fi Network Module Without Wi-Fi credentials, the Wi-Fi module will enter listening mode, in which it functions as a Wi-Fi access point. The SSID of the AP is of the form “REDBIRD_WIFI_XX:XX”, where XX:XX is the last 4-digits of the MAC address. Use a Wi-Fi device, such as a Smartphone, tablet, or laptop to connect to the MV1C. - Page 9 WI-FI SETUP, CONT. Configure Wi-Fi Network Module, Cont. Enter the Network Name (SSID), Password, and Device Name (optional) for the network you wish to connect to. Note that the Device Name can be anything. Click on the Connect button and the module should try to connect to that network. This may take several seconds. The module will store these network credentials and connect to this network each time the MV1C is turned on.
-
Page 10: Changing The Network Credentials
Changing the Network Credentials To change the network credentials, perform the following steps: 1. With the MV1C turned ON and in the Gross weight mode, press and hold the CLEAR key for approximately 3 seconds. SETUP REVIEW 2. The display will change to show 3. -
Page 11: Wi-Fi Operation
WI-FI OPERATION Web Server While the MV1C is connected to a network you can access the hosted web page. To view the web page, proceed to the IP address of the Redbird module with “/webserver.html” added to it. For example, if the IP address is “192.168.0.5”, enter 192.168.0.5/webserver.html and a page like the following should appear. -
Page 12: Tcp/Ip Connection
WI-FI OPERATION, CONT. TCP/IP Connection Continuous output is available by TCP/IP connection to the MV1C’s IP address at port 10001. The MV1C will transmit a single set of weight data each time the SMA weight request <LF>W<CR> is received. Each time the SMA weight request <LF>R<CR> is received, the MV1C will transmit weight data continually until another SMA command is received. -
Page 13: Bluetooth Low Energy (Ble)
Weight Measurement o Weight Scale Feature Custom Services o Detecto SMA Service Enable Bluetooth (BLE) Networking The MV1C allows you to view and change the Bluetooth Settings without having to perform setup using the calibration switch. The operational settings are entered using the keypad. -
Page 14: Bluetooth Pairing
BLUETOOTH LOW ENERGY (BLE), CONT. bLE/WIFI 5. Press the ID/HEIGHT key until is shown in the Menu area of the display. bLE/WIFI 6. With displayed, press the ENTER key. The display will change to show REdbIRD REV and the Redbird Software version in the Settings area of the display. bLE ON/OFF 7. -
Page 15: Interfacing To Ble
Standard Services per Bluetooth SIG Reference adopted specifications at https://www.bluetooth.com/specifications/gatt Device Information Service (0x180A) Characteristics Number Value(s) Attributes Manufacturer 0x2A29 “Detecto” READ Name String Model Number 0x2A24 “MedVue” READ String Software Revision 0x2A28 “1.0.XX” software of MedVue... -
Page 16: Bluetooth Interface Standard Protocols
BLUETOOTH INTERFACE STANDARD PROTOCOLS Bluetooth Characteristic – Weight_Measurement: 0x2A9D Widely accepted BLE GATT profiles are used to transmit data to other devices/software that have implemented these profiles. Data is passed via BLE using GATT characteristic “Weight Measurement” (0x2A9D) as defined by Bluetooth SIG. Refer to the data table below about Weight Measurement Characteristics. -
Page 17: Custom Services
SMA Commands The SMA commands shown in the WI-FI AND BLUETOOTH SMA COMMANDS table on pages 14 and 15 of this manual can be sent using the Detecto SMA Service’s Rx Cmd characteristic (0x907a0001-8699-47dd-ab30-d7aad5f83e54). Responses will put out a notification on the Tx Cmd characteristic (0x907a0002-8699-47dd- ab30-d7aad5f83e54). -
Page 18: Wi-Fi And Bluetooth Sma Commands
1. 0A 4D 46 47 3A 44 65 74 65 63 74 6F 0D = MFG:Detecto 2. 0A 4D 4F 44 3A 4D 45 44 56 55 45 0D = MOD:MEDVUE 3. 0A 52 45 56 3A 58 2E 58 2E 58 58 0D = REV:X.X.XX... - Page 19 WI-FI AND BLUETOOTH SMA COMMANDS, CONT. Command Hex Rep. Response N – scale 0A4E0D Each time sent you will get the next line of scale information information until there is no longer any information. scroll 1. 0A 54 59 50 3A 53 0D = TYP:S 2.
-
Page 20: Display Scale Wi-Fi And Bluetooth Settings
DISPLAY WI-FI AND BLUETOOTH SETTINGS The MV1C MedVue® Medical Weight Analyzer allow you to view the Wi-Fi and Bluetooth Settings without having to perform a calibration switch setup. To display the Wi-Fi and Bluetooth Settings, follow the steps below: 1. With no weight on the scale, press and hold the 0 (NO) key for about 5 seconds until the REdbIRD REV display changes to show and the Redbird Software version in the... - Page 21 (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
- Page 22 This warranty sets forth the extent of our liability for breach of any warranty or deficiency in connection with the sale or use of the product. Detecto will not be liable for consequential damages of any nature, including but not limited to, loss of profit, delays or expenses, whether based on tort or contract.
- Page 23 8555-0550-0M Rev B MedVue with Wi-Fi and Bluetooth...
- Page 24 Cardinal Scale Manufacturing Co. 102 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-2153 Technical Support: 1-866-254-8261 Printed in USA E-mail: tech@cardet.com 8555-0550-0M Rev B 03/20 8555-0550-0M Rev B MedVue with Wi-Fi and Bluetooth...
