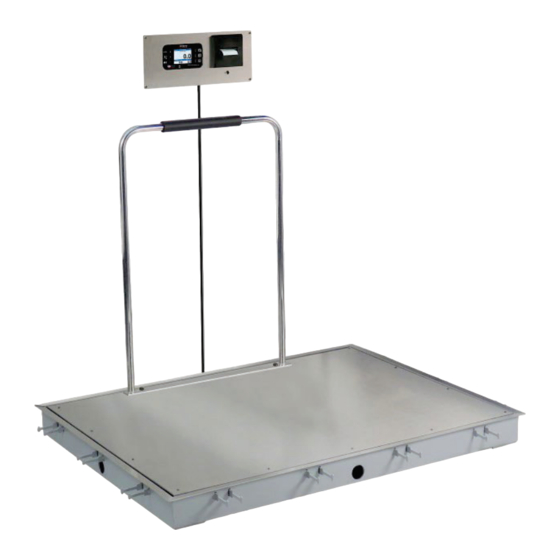

Detecto ID-3636S-855RMP Owner's Manual

Solace in-floor dialysis scales with wi-fi and bluetooth 5.0
Hide thumbs Also See for ID-3636S-855RMP:
Table of Contents

Advertisement

Quick Links

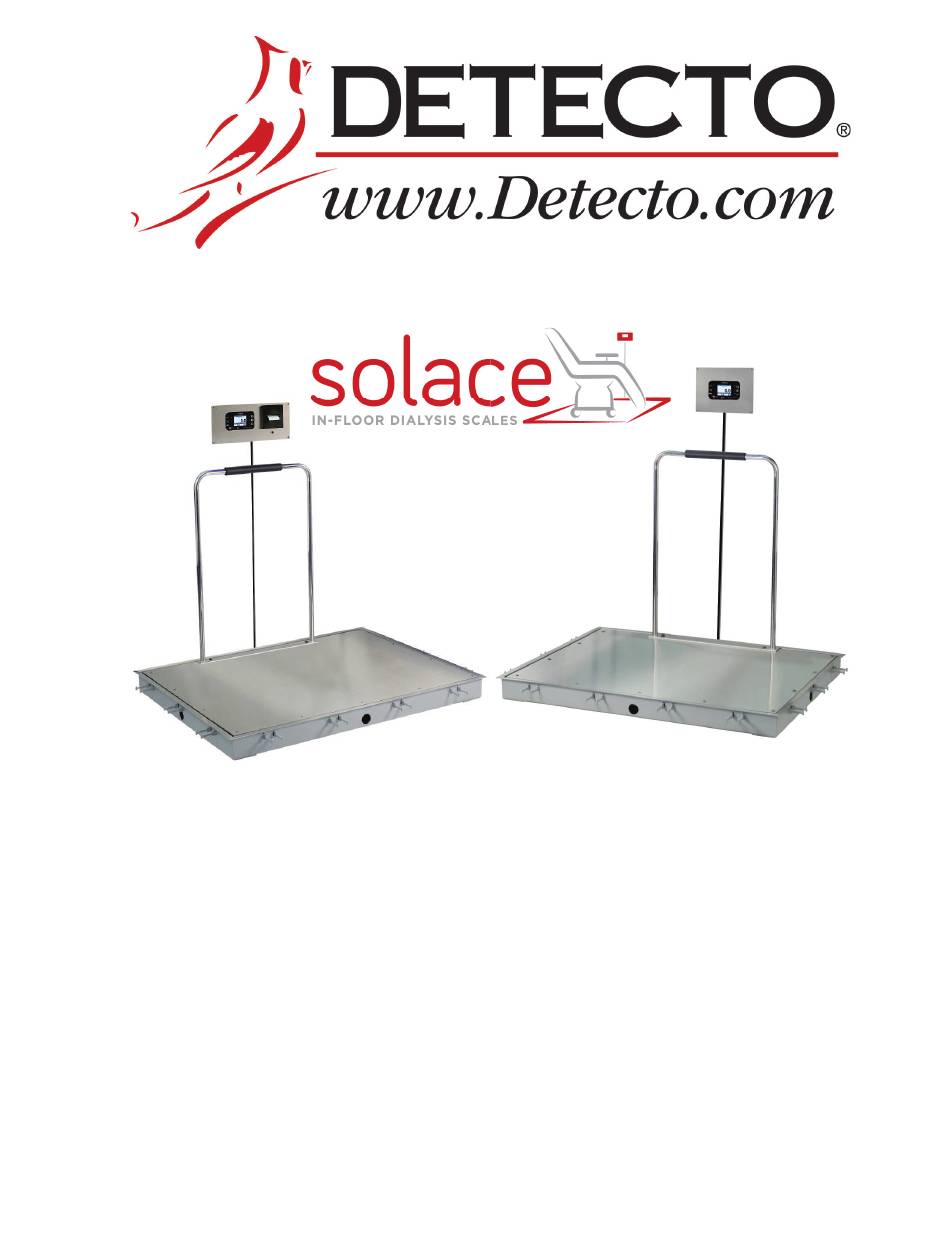

Solace In-Floor
Dialysis Scale
with Wi-Fi and Bluetooth 5.0
Owner's Manual
3300-0298-0M Rev E Solace Setup and Calibration
1

Advertisement

Table of Contents
loading

Related Manuals for Detecto ID-3636S-855RMP

Summary of Contents for Detecto ID-3636S-855RMP

  • Page 1 Solace In-Floor Dialysis Scale with Wi-Fi and Bluetooth 5.0 Owner’s Manual 3300-0298-0M Rev E Solace Setup and Calibration...
  • Page 2 3300-0298-0M Rev E Solace Setup and Calibration...
  • Page 3 INTRODUCTION Thank you for purchasing our Detecto Solace In-Floor Dialysis Scale. The Solace series in- floor scales are ideal for dialysis clinics, emergency rooms, and clinical facilities where fast, efficient patient measurement is necessary. The Solace series is flush-mounted with the floor and include the pit frame and trim ring, plus an interface cable from the scale to the indicator.
  • Page 4 PROPER DISPOSAL When this device reaches the end of its useful life, it must be properly disposed of. It must not be disposed of as unsorted municipal waste. Within the European Union, this device should be returned to the distributor from where it was purchased for proper disposal. This is in accordance with EU Directive 2002/96/EC.

  • Page 5: Table Of Contents

    Custom Services ........... . Page 54 Detecto SMA Service (0x907a0000-8699-47dd-ab30-d7aad5f83e54) ..Page 54 SMA Commands .

  • Page 7: Specifications

    SPECIFICATIONS Specification Description Capacity: 1,000 lb x 0.2 lb / 450 kg x 0.1 kg Weighing/Height Units: Pounds/Inch (lb, in) or Kilograms/Centimeters (kg, cm) Standard sizes include: 36 x 36 in / 91 x 91 cm, 48 x 36 in / 122 x 91 cm, 48 x 48 in / 122 x 122 cm, and Platform Sizes: 72 x 48 in / 183 x 122 cm (Custom sizes and configurations are available)
  • Page 8 3300-0298-0M Rev E Solace Dialysis Scale Owner’s...

  • Page 9: Site Preparation Requirements

    SITE PREPARATION REQUIREMENTS The Solace In-Floor Dialysis Scale is a precision weight indicating instrument. As with any precision instrument, it requires an acceptable environment to operate at peak performance and reliability. This section is provided to assist you in obtaining such an environment. Environmental For indoor use only.

  • Page 10: Ac Power Connection

    AC POWER CONNECTION The Solace In-Floor Dialysis Scale has been designed to operate from a connection to a permanent power source and contains an internal power supply that can be easily connected 100 to 240 VAC 50/60Hz. 1. Referring to the figure below, remove the conduit knockout from the enclosure, and replace it with a conduit connector per local Electrical Code.

  • Page 11: Weighing Units/Height Measurement Selection

    1. Press the key to turn the scale on. 2. The scale display will show the software version for a few seconds, the Detecto logo briefly, and then change to a WARNING screen. This screen is displayed to inform and warn you that once you have made the weighing units/height measurement selection, it is PERMANENT and cannot be changed.

  • Page 12: Keypad Functions

    KEYPAD FUNCTIONS W W EIGHT: P P OUNDS/ / G G ROSS A A C AUTO LOCKED 155.7 TARE PATIENT/CHAIR WEIGHT 855RM Keypad (without Printer) W W EIGHT: P P OUNDS/G G ROSS A A C AUTO LOCKED 155.7 T T ARE PATIENT/CHAIR WEIGHT 855RMP Keypad (with Printer) DO NOT operate the keys or touchscreen with pointed objects (pencils, pens, etc..).
  • Page 13 KEYPAD FUNCTIONS, CONT. This is the Zero key. Press and release this key to reset the display to zero. Note that when this key is pressed with weight on the scale platform, the display will zero the weight up to 100% of the scale capacity, and the display will change to zero (0.0).

  • Page 14: Annunciators

    ANNUNCIATORS The annunciators are displayed on the Weight screen to show that the indicator is in the mode corresponding to the annunciator label or that the status indicated by the label is active. Weight Mode W W EIGHT: P P OUNDS/GRO O SS A A C C Power Status...

  • Page 15: Dialysis Operation

    DIALYSIS OPERATION ALWAYS assist the patient on and off the scale to ensure they do not fall. NEVER leave a patient unattended while they are on the scale. Failure to maintain control of the patient at all times can result in serious injury to the patient and/or you.
  • Page 16 DIALYSIS OPERATION, CONT. 5. Press TARE PATIENT/CHAIR WEIGHT on the touchscreen. 6. The display will change to show the TARGET FLUID REMOVAL screen. T T ARGET FLUID REMOVAL Key in the numeric target fluid to be removed. SAVE CANCEL 7. Using the numeric keys, enter the amount of fluid to be removed from the patient, and then press the Save key.
  • Page 17 DIALYSIS OPERATION, CONT. 11. Once the amount of fluid removed from the patient is equal to or greater than the TARGET FLUID REMOVAL weight value, the background of the display will change to red, and an alarm (a beeping sound) will turn on. W W EIGHT: P P O O UNDS/GROSS A A C...

  • Page 18: Dialysis Operation With Patient Id

    DIALYSIS OPERATION WITH PATIENT ID ALWAYS assist the patient on and off the scale to ensure they do not fall. NEVER leave a patient unattended while they are on the scale. Failure to maintain control of the patient at all times can result in serious injury to the patient and/or you.
  • Page 19 DIALYSIS OPERATION WITH PATIENT ID, CONT. 8. Press TARE PATIENT/CHAIR WEIGHT on the touchscreen. 9. The display will change to show the TARGET FLUID REMOVAL screen. T T ARGET FL L UID REMOVAL Key in the numeric target fluid to be removed.
  • Page 20 DIALYSIS OPERATION WITH PATIENT ID, CONT. 14. Once the amount of fluid removed from the patient is equal to or greater than the TARGET FLUID REMOVAL weight value, the background of the display will change to red, and an alarm (a beeping sound) will turn on. W W EIGHT: P P OUNDS/GROSS A A C...

  • Page 21: Scale Setup

    1. Press the key to turn the indicator on. 2. The indicator will show the Detecto logo briefly and then change to the Weight screen. 3. With the Weight screen displayed, press the Menu key. 4. The display will change to show the Settings Overview 1 screen.
  • Page 22 To Enter Setup, Cont. SETTINGS OVERVIEW 2 <<< Wi-Fi/BLE Module Rev: 1.0.01 Bluetooth: On This value will not be shown if BLE Adv: Icon Scale F8:F0:05:D8:9D:DD Bluetooth: = Off. Wi-Fi: On, Status: Disconnected Network SSID: Dynex617 DHCP: On These values will not be IP: 192.168.0.133 shown if Wi-Fi = Off.
  • Page 23 Settings Page 1 SETTINGS PAGE 1 Model: Dialysis Date: 2/24/2020 Time: 12:24:44 Language: English <<< Exit >>> Model: This will change the default settings and operation of the scale. For example, selecting “Dialysis” as the model changes the scale to use the software specially designed for dialysis patient care.
  • Page 24 Settings Page 2 SETTINGS PAGE 2 OIML: No Units: lb, in Filter Mode: 0 Zero Tracking: 10 <<< Exit >>> OIML: Touching this key will toggle the OIML setting to Yes or No. NOTE: This setting should be enabled for all EU models to comply with regulations. Allowable settings for OIML are: Yes or No.
  • Page 25 Settings Page 3 SETTINGS PAGE 3 Capacity 1: 600.0 Capacity 2: 1000.0 Interval 1: 2 Interval 2: 5 <<< Exit >>> Capacity 1: Touching this key will open the capacity screen. This will allow you to set the capacity of the first range.
  • Page 26 Settings Page 4 SETTINGS PAGE 4 Decimal 1: 1 Decimal 2: 1 Motion Range: 3 Gravity: 0.000000 <<< Exit >>> Decimal 1: Touching this key will open the decimal entry screen. This will allow you to set the decimal point precision for the first weight range. Using the numeric keys, enter a new setting, and then press the Save key.
  • Page 27 Settings Page 5 SETTINGS PAGE 5 Calibrate Scale Load Cell Trim Power up Zero: No Auto Locking: 5 s <<< Exit >>> Calibrate Scale Touching this key will allow for calibration of the scale. Refer to the CALIBRATION section of this manual for instructions to select the calibration mode and how to perform calibration. Load Cell Trim Touching this key will allow for trimming (adjusting the output of) the load cells in the scale.
  • Page 28 Press the <<< key to return to the Settings Page 5. Press the Exit key to exit Setup and return to the Weight screen. Requires device to have an activated license. Must purchase Detecto WACONNECT. 3300-0298-0M Rev E Solace Dialysis Scale Owner’s...
  • Page 29 Settings Page 7 SETTINGS PAGE 7 Bluetooth: On Wi-Fi: Off SSID: Dynex617 The SSID: value will not be shown if Wi-Fi: = Off. <<< Exit >>> Bluetooth: Touch this key to open a selection screen to turn the Bluetooth 5.0 wireless transmitter On or Off.
  • Page 30 Settings Page 8 SETTINGS PAGE 8 DHCP: On IP: 192.168.0.133 NM: 255.255.255.0 The settings for NM: and GW: will not be GW: 192.168.0.1 shown if DHCP: = On. <<< Exit DHCP: Touching this key will open an entry screen to allow you to select the DHCP setting. This setting selects whether the Wi-Fi wireless transmitter will use a dynamic IP address assigned by a DHCP server or a static IP address.

  • Page 31: Calibrate Scale

    CALIBRATE SCALE Calibration Modes The Solace In-Floor Dialysis Scale has four modes that can be used to perform calibration. The modes are as follows: 1 = SmartCal SmartCal is the most precise method of calibration. It requires that a calibrated load be placed over each load cell of the scale platform only once.
  • Page 32 To Enter Calibration 1. With the scale turned on and the Weight screen displayed, press the Menu key. 2. The display will change to show the Settings Overview 1 screen. SETTINGS OVERVIEW 1 >>> Revision 1.00.09, Display Rev. 1.0.18 Audit Trail -- Cal=4, Cfg=2 Range 1: 600.0 x 0.2 -- 2: 1000.0 x 0.5 Weight Units=lb Height Units=in...
  • Page 33 To Enter Calibration, Cont. SETTINGS PAGE 5 Calibrate Scale Load Cell Trim Power up Zero: No Auto Locking: 5 s <<< Exit >>> 8. Select Calibrate Scale from the Settings Page 5 screen. 9. The display will change to show the “Number of Points” screen. CALIBRATE SCALE Number of points at which the...
  • Page 34 1 = SmartCal 1. With the “Number of Points” screen displayed, press the 1 key on the touchscreen and then press the Save key. CALIBRATE SCALE Number of points at which the scale will be calibrated. 1 = SmartCal SAVE CANCEL 2.
  • Page 35 1 = SmartCal, Cont. 4. The display will change to show “Working” for a few seconds and then change to show “Set test weight over Cell 1”. CALIBRATE SCALE Working To calibrate zero, remove any weight from the scale before proceeding SAVE CANCEL 5.
  • Page 36 1 = SmartCal, Cont. 8. The display will change to show “Working” for a few seconds and then change to show “Set test weight over Cell 3”. CALIBRATE SCALE Set test weight over Cell 3 and press Save. SAVE CANCEL 9.
  • Page 37 2 = Two Calibration Points 1. With the “Number of Points” screen displayed, press the 2 key on the touchscreen and then press the Save key. CALIBRATE SCALE Number of points at which the scale will be calibrated. 1 = SmartCal SAVE CANCEL 2.
  • Page 38 2 = Two Calibration Points, Cont. 5. Place the calibrated test weight (full test load) on the scale, enter the value for the test weight, and then press the Save key. CALIBRATE SCALE 1000.0 NOTE: A minimum of 50% of the scale's This is the known capacity is required, test weight...
  • Page 39 3 = Three Calibration Points 1. With the “Number of Points” screen displayed, press the 3 key on the touchscreen and then press the Save key. CALIBRATE SCALE Number of points at which the scale will be calibrated. 1 = SmartCal SAVE CANCEL 2.
  • Page 40 3 = Three Calibration Points, Cont. 4. With the “Known test weight” screen displayed, place the first calibrated test weight (half the test load) on the scale, enter the value for the test weight and then press the Save key. CALIBRATE SCALE 500.0 This is the known...
  • Page 41 4 = Four Calibration Points 1. With the “Number of Points” screen displayed, press the 4 key on the touchscreen and then press the Save key. CALIBRATE SCALE Number of points at which the scale will be calibrated. 1 = SmartCal SAVE CANCEL 2.
  • Page 42 4 = Four Calibration Points, Cont. 4. With the “Known test weight” screen displayed, place the first calibrated test weight (one fourth the test load) on the scale, enter the setting for the test weight and then press the Save key. CALIBRATE SCALE 250.0 This is the known...
  • Page 43 4 = Four Calibration Points, Cont. 8. With the “Known test weight” screen displayed, place the third calibrated test weight (full test load) on the scale, enter the setting for the test weight, and then press the Save key. CALIBRATE SCALE NOTE: A minimum of 50% 1000.0 of the scale's capacity is...

  • Page 44: Load Cell Trim

    LOAD CELL TRIM Performing Load Cell Trim 1. With the scale turned on and the Weight screen displayed, press the Menu key. 2. The display will change to show the Settings Overview 1 screen. SETTINGS OVERVIEW 1 >>> Revision 1.00.09, Display Rev. 1.0.18 Audit Trail -- Cal=54, Cfg=12 Range 1: 600.0 x 0.2 -- 2: 1000.0 x 0.5 Weight Units=lb...
  • Page 45 Performing Load Cell Trim, Cont. SETTINGS PAGE 5 Calibrate Scale Load Cell Trim Power up Zero: No Auto Locking: 4 sec. <<< Exit >>> 8. Select Load Cell Trim from the Settings Page 5 screen. LOAD CELL TRIM 1: 2.941 mV 2: 3.334 mV 3: 3.148 mV 4: 1.747 mV...
  • Page 46 Performing Load Cell Trim, Cont. 11. Repeat Step 10 until all corners have the same reading. Cell locations are for reference only! Load Cell Cable Solace Weight Display 12. Press the Exit key to exit Load Cell Trim and return to the Settings Page 5 screen. 13.

  • Page 47: Wi-Fi And Bluetooth 5.0

    WI-FI AND BLUETOOTH 5.0 The Detecto Solace In-Floor Dialysis Scale has a Wi-Fi and Bluetooth 5.0 wireless transmitter inside the weight display that has been designed for an environment where interfacing the scale to a Wi-Fi network or pairing to a Bluetooth-capable device is desired.
  • Page 48 Enable and Configure Wi-Fi Networking, Cont. 6. The display will change to show the Settings Page 1 screen. SETTINGS PAGE 1 Model: Dialysis Date: 11/6/2019 Time: 12:24:44 Language: English <<< Exit >>> 7. Press the >>> key to advance to the Settings Page 7 screen. SETTINGS PAGE 7 Bluetooth: Off...
  • Page 49 Enable and Configure Wi-Fi Networking, Cont. 10. Press the >>> key to advance to the Settings Page 8. SETTINGS PAGE 8 DHCP: On IP: 192.168.0.133 NM: 255.255.255.0 The settings for NM: and GW: will not be GW: 192.168.0.1 shown if DHCP = On. <<<...

  • Page 50: Configure Wi-Fi Network Module

    Configure Wi-Fi Network Module Without Wi-Fi credentials, the Wi-Fi module will enter listening mode, in which it functions as a Wi-Fi access point. The SSID of the AP is of the form “REDBIRD_WIFI_XX:XX”, where XX:XX is the last 4-digits of the MAC address. Use a Wi-Fi device, such as a Smartphone, tablet, or laptop to connect to the scale.
  • Page 51 Configure Wi-Fi Network Module, Cont. Enter the Network Name (SSID), Password, and Device Name (optional) for the network you wish to connect to. Note that the Device Name can be anything. Click on the Connect button and the module should try to connect to that network. This may take several seconds. The module will store these network credentials and connect to this network each time the scale is turned on.

  • Page 52: Changing The Network Credentials

    Changing the Network Credentials 1. With the scale turned on and the Weight screen displayed, press the Menu key. 2. The display will change to show the Settings Overview 1 screen. 3. Press Setup on the touchscreen. 4. The display will change to show the ENTER PASSCODE screen. 5.

  • Page 53: Wifi Operation

    WIFI OPERATION Web Server While the scale is connected to a network you can access the hosted web page. To view the web page, proceed to the IP address of the Redbird module with “/webserver.html” added to it. For example, if the IP address is “192.168.0.5”, enter 192.168.0.5/webserver.html and a page like the following should appear.

  • Page 54: Tcp/Ip Connection

    TCP/IP Connection Continuous output is available by TCP/IP connection to the scale’s IP address at port 10001. The scale will transmit a single set of weight data each time the SMA weight request <LF>W<CR> is received. Each time the SMA weight request <LF>R<CR> is received, the scale will transmit weight data continually until another SMA command is received.

  • Page 55: Bluetooth Low Energy (Ble)

    Weight Measurement o Weight Scale Feature Custom Services o Detecto SMA Service Enable Bluetooth (BLE) Networking NOTE: Default Network Settings are: Wi-Fi = Off, Bluetooth = Off, and DHCP = On. 1. With the scale turned on and the Weight screen displayed, press the Menu key.
  • Page 56 Enable Bluetooth (BLE) Networking, Cont. 4. The display will change to show the ENTER PASSCODE screen. ENTER PASSCODE Enter passcode to access settings. Press CANCEL to exit. SAVE CANCEL 5. Using the 10-key on the touchscreen enter 64870, and then press the Save key. 6.

  • Page 57: Bluetooth Pairing

    Enable Bluetooth (BLE) Networking, Cont. IMPORTANT! If an attempt is made to turn Bluetooth (BLE) off when a device is connected to the scale, the display will show the error message Error - BLE Off. SETTINGS PAGE 7 Error – BLE Off Wi-Fi: On SSID: Dynex617 <<<...

  • Page 58: Interfacing To Ble

    Standard Services per Bluetooth SIG Reference adopted specifications at https://www.bluetooth.com/specifications/gatt Device Information Service (0x180A) Characteristics Number Value(s) Attributes Manufacturer 0x2A29 “Detecto” READ Name String Model Number 0x2A24 “Icon” READ String Software Revision 0x2A28 “1.0.XX” software of scale...

  • Page 59: Bluetooth Interface Standard Protocols

    BLUETOOTH INTERFACE STANDARD PROTOCOLS Bluetooth Characteristic – Weight_Measurement: 0x2A9D Widely accepted BLE GATT profiles are used to transmit data to other devices/software that have implemented these profiles. Data is passed via BLE using the GATT characteristic “Weight Measurement” (0x2A9D) as defined by Bluetooth SIG. Refer to the data table below about Weight Measurement Characteristics.

  • Page 60: Custom Services

    SMA Commands The SMA commands shown in the WI-FI AND BLUETOOTH SMA COMMANDS table on pages 55 and 56 of this manual can be sent using the Detecto SMA Service’s Rx Cmd characteristic (0x907a0001-8699-47dd-ab30-d7aad5f83e54). Responses will put out a notification on the Tx Cmd characteristic (0x907a0002-8699-47dd- ab30-d7aad5f83e54).

  • Page 61: Wi-Fi And Bluetooth Sma Commands

    1. 0A 4D 46 47 3A 44 65 74 65 63 74 6F 0D = MFG:Detecto 2. 0A 4D 46 44 3A 41 70 65 78 0D = MOD:Icon 3. 0A 52 45 56 3A 31 2E 30 2E 31 34 0D = REV:X.X.XX...
  • Page 62 WI-FI AND BLUETOOTH SMA COMMANDS, CONT. Command Hex Rep. Response N – scale 0A4E0D Each time sent you will get the next line of scale information information until there is no longer any information. scroll 1. 0A 54 59 50 3A 53 0D = TYP:S 2.

  • Page 63: Display Scale Wi-Fi And Bluetooth Settings

    1. Press the key to turn the scale on. 2. The scale will show the Detecto logo briefly and then change to the Weight screen. 3. With the Weight screen displayed, press the Menu key. 4. The display will change to show the Settings Overview 1 screen.

  • Page 64: Error And Operation Messages

    ERROR AND OPERATION MESSAGES The Solace In-Floor Dialysis Scale is equipped with diagnostic software that tests various portions of the scale’s circuitry and verifies proper operation. Should a problem be detected, an error or status message will be displayed. The following lists these messages and their meaning.

  • Page 65: Changing The Paper Roll And Ribbon Cartridge

    CHANGING THE PAPER ROLL AND RIBBON CARTRIDGE BASE PAPER SLOT LEFT RIGHT COVER REMOVE INSERT PAPER MUST THIS END THIS END FEED FROM PAPER FIRST FIRST BOTTOM OF ROLL SPINDLE ROLL To Change the Paper Roll 1. Referring to the upper two images, slide the cover in the direction indicated to OPEN, and then lift the cover off the base and set aside.

  • Page 66: Care And Cleaning

    CARE AND CLEANING NOTE: The scale contains no user-serviceable parts and maintenance should be limited to occasional cleaning. General Cleaning Instructions Always remove the power before cleaning. DO NOT pour or spray water directly on the indicator to clean. The indicator is not waterproof and covering it with water will damage it and void the warranty.

  • Page 67: Statement Of Limited Warranty

    Detecto. period of two (2) years from date of shipment. Detecto shall be B.) Has had serial number altered, defaced, or removed. the sole judge of what constitutes a defect.
  • Page 68 Cardinal Scale Manufacturing Co. 102 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-2153 Technical Support: 1-866-254-8261 E-mail: tech@cardet.com Printed in USA 3300-0298-0M Rev E 09/20 3300-0298-0M Rev E Solace Dialysis Scale Owner’s...
