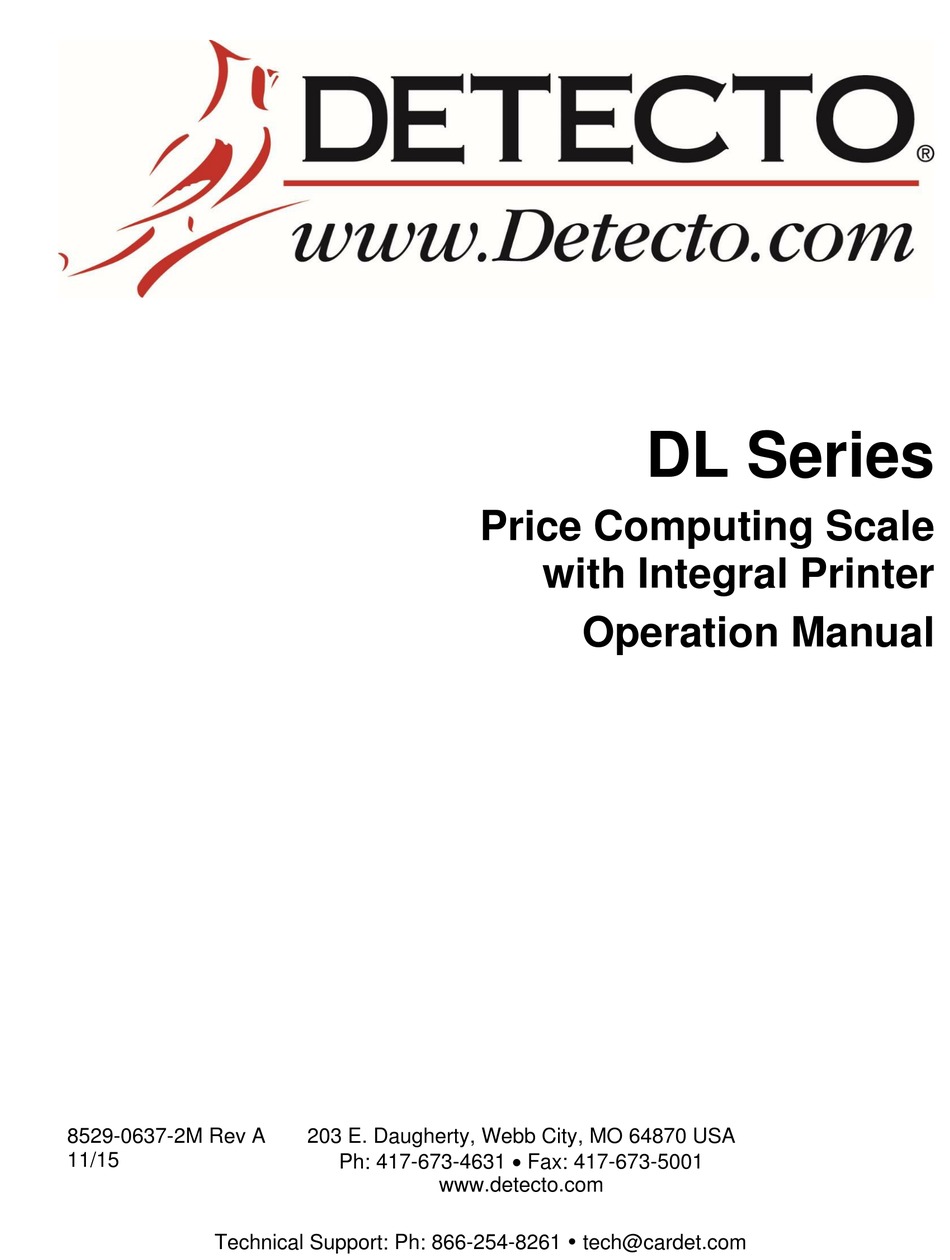

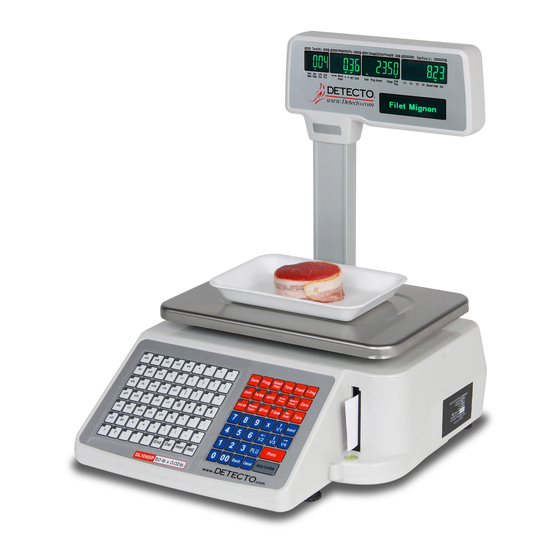

  • Page 1 Price Computing Scale with Integral Printer Operation Manual 8529-0637-2M Rev A 203 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631  Fax: 417-673-5001 11/15 www.detecto.com Technical Support: Ph: 866-254-8261  tech@cardet.com 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 2 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 3 INTRODUCTION Thank you for purchasing our Detecto DL Series Price Computing Scale with Integral Printer. Your scale has been designed to operate from 115 VAC 50/60 Hz. This manual will guide you through setup and operation of your scale. Please read it thoroughly before attempting to operate this scale and keep it handy for future reference.
  • Page 4 You may find the booklet "How to Identify and Resolve Radio TV Interference Problems" prepared by the Federal Communications Commission helpful. It is available from the U.S. Government Printing Office, Washington, D.C. 20402. Request stock No. 001-000-00315-4. 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 5: Table Of Contents

    Price Discount by Subtraction                                                21 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 6 CARE AND CLEANING                                                       29 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 7: Specifications

    Operating Temperature: 32 ~ 104°F (0° ~ 40°C) Printer: Thermal Print Print Media: 58mm x 40mm and 40mm x 30mm gap thermal paper 58mm and 40mm width plain thermal paper PLU: 5990 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 8: Abreviations And Glossary

    Specification. Parameter that control the behavior of the scale T-Sale Temporarily Sale Amount The quantity of the goods, weight or count. It means weight (lb) for weight PLU and count (pcs) for count PLU 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 9: Installation

    Power Connection The scale uses an external AC power cord that is to be used in a standard 110/120 VAC 50/60Hz grounded wall outlet. 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 10: Printer

    PRINTER Install Gap Labels 1.Open Upper door Step 1 - Open door of scale printer Step 2 - Remove paper retainer Step 3 - Paper through 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 11 PRINTER, CONT. Step 4 - Paper path Step 5 - Finish paper install 11.Cover door 12.Press【Feed】 Step 6 - Close door of scale printer 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 12: Gap Paper Mounts Recycle

    Different from the way in installing gap paper shown. U-shaped paper retaining spring is not needed anymore. All you need to do is to put the paper into the paper sensor and let the tear part be outside. 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 13: Operations Concerning Paper

     After the paper is rolled out, malfunctions have been eliminated if without any warning. If alarm E7.10 means calibration abnormity, pls try again after confirming the sticker perper has been used.  Then, press 【Feed】to print the test page  Go to normal operation processes. 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 14: Keypad Functions

    KEYPAD FUNCTIONS DL1030 Keypad and Front Display DL1030 Rear Display 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 15 KEYPAD FUNCTIONS, CONT. DL1030P Keypad DL1030P Display 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 16 Repeat last print in current buffer (Repeated print data would not be stored in print deal records as sale record.). This function can be forbidden in Spec. Tare Manually enter and remove Tare. 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 17 Delete the character at position of cursor Insert Enter into insert mode. Insert mode is activated when cursor is flashing Input method editor. Switch the input languages: En-1(in small letters), En-2 (in big letters), press accumulate to confirm 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 18: Display Annunciators

    Is turned on to indicate the data in Change($)/Unit Price $/lb window Change is displayed as change. Is turned on to indicate the data in Change($)/Unit Price $/lb window Unit is displayed as goods U.Price. Price 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 19: Total Price ($) Window

    Dot Matrix Display Dl103P units have an additional 160×32 dot matrix LCD display. It displays time or ad- message or accumulation record in idle mode; and displays PLU’s name in PLU mode. 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 20: Operation Indicators

    Error, scale will display error code Ex.xx 2 Beeps (Long key press) Confirms long key press Character Reference Number Characters 0~9 Characters A~M Characters N~Z Dash, under line, above line, three lines of special symbols 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 21: Set Date, Time And Store Name

    Switch to EN-2 EN-2 【Switch】 Save editing text PLU.14 Name OK-Edit Save to the scale. 【Amend】 Return to sale mode 0.000 0.000 0.00 0.00 【Sale】 〖Sale〗, 〖Sum〗 on. 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 22: Fast Plu Programming

    O= No, 1= Yes Press right Arrow 【】. If Shelf Date Print Where X= PLU.31 PC-Ud number of days 【1】-【9】. Enter Shelf Days entered using numeric keys Save PLU 【Amend】 PLU.00 noSEt 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 23: Quick Key Programming

    Scale State / Display Comment Operation Change / Weight / Tare Total Unit Price Enter Quick Key 【F-Prog】+ SCPLU 1-01 Program Mode 【QK】. Enter PLU SCPLU 1-01 【1】 【0】. Save SCPLU 【Amend】 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 24: Operation

    0.00 0.00 Place container on 0.00 0.25 0.00 0.00 scale Press Tare 0.25 0.00 0.00 0.00 Tare on 【Tare】 Note: With all weight removed, press Tare key again to cancel Tare off 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 25: Keypad Tare

    Note 3 Only manual tare can change tare. If a PLU has PLU Tare, Lock Tare cannot overwrite PLU tare. Note 4 Once tare locked, it cannot be unlocked unless users unlock tare manually. 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 26: Batch Print Mode (Only For Piece Count Plu)

    0.000 After weight is stable. 1.900 0.00 0.00 Print automatically. 0.000 Take goods PLU10 off 0.000 0.00 0.00 0.000 Exit PLU 〖Sum〗 on. 【Cancel】 〖Auto Mode〗, Exit Auto Mode 【Pre-Pack】 〖Lock PLU〗off. 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 27: Temporary-Sale By Weight

    2.00 0.00 【PLU】 〖Single〗on. Input discount data 0.100 -0.100 0.10 0.00 【1】 【0】 Discount in 0.100 -0.100 1.90 0.00 【-Num】 〖Discount〗on. subtraction Clear current PLU 0.000 0.000 0.00 0.00 〖Sum〗 on. 【Cancel】 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 28: Report Printing Operation

    If end number input is not 0 and less than start number, no buffer would be printed. N o t e 3 The hints about currently print object may appear on the screen for just a few moment when N o t e 4 system is printing. 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 29: Print Plu Report

    If end number input is 0, system would only print the buffer appointed by start number. N o t e 2 If end number input is not 0 and less than start number, no buffer would be printed. N o t e 3 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 30: Clear Report Information Manually

    Return to sale mode 0.000 0.000 0.00 0.00 〖Sale〗, 〖Sum〗 on. 【Sale】 This operation would clear the records of all deals. And it’s irreversible. Please operate it N o t e 1 carefully. 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 31: Print Format

    If sale PLU has been set for a specific print format (not 0), system would use the print format. If no specific print format has been set to sale PLU (The setting number is 0.), the print format would be Spec000. 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 32: Barcode Printing

    MISC code for total label. Using PLU PLU’s Item-Code is code in Item-Code yyyyyy POS system. Note 1 If users need special bar code format, please use PC suite or contact their service center. 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 33: Error Codes

    Some keys are pressed when the means the key in 8th column from the left and 5th row from E7.01 scale starts. the top is pressed. In this interface, the second window displays the calibrated times. 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 34 The printer may not be connected or in the state that the E7.19 There is no response from the printer. printer could not print. Enter Account interface. Calculate reports and then clear the E7.30 Alarm for full storage of deals records. reports. 8529-0637-2M Rev A  DL Series Operation Manual...
  • Page 35: Care And Cleaning

    DO remove power before cleaning with a damp cloth. DO provide clean AC power and adequate protection against lightning damage. DO keep the surroundings clear to provide clean and adequate air circulation. 8529-0637-2M Rev A  DL Series Operation Manual...
