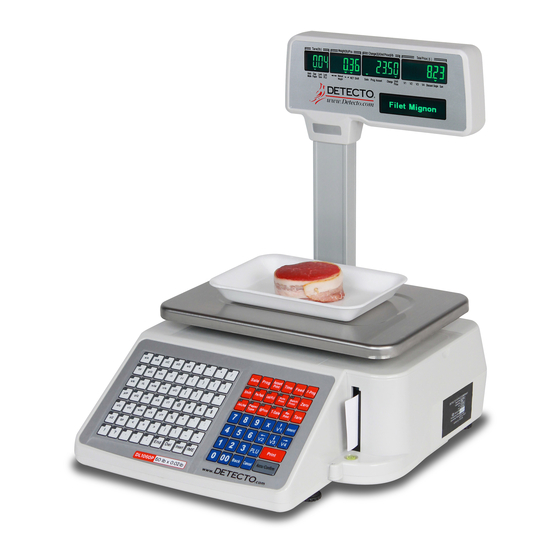

DL Series
Price Computing Scale
with Integral Printer
Owner's Manual
8529-0637-2M Rev C  DL Series Owner's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL Series and is the answer not in the manual?

Questions and answers

Related Manuals for Detecto DL Series

Summary of Contents for Detecto DL Series

  • Page 1 DL Series Price Computing Scale with Integral Printer Owner’s Manual 8529-0637-2M Rev C  DL Series Owner’s Manual...
  • Page 2 8529-0637-2M Rev C  DL Series Owner’s Manual...
  • Page 3 This manual will guide you through the setup and operation of your scale. Please read it thoroughly before attempting to operate this scale and keep it available for future reference. This manual is for use with the following DL Series Price Computing Scale models: DL1030, DL1030P, DL1060, and DL1060P COPYRIGHT All rights reserved.
  • Page 4 You may find the booklet "How to Identify and Resolve Radio-TV Interference Problems" prepared by the Federal Communications Commission helpful. It is available from the U.S. Government Printing Office, Washington, D.C. 20402. Request stock No. 001-000-00315-4. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 5: Table Of Contents

    Pre-Pack Mode (only for weight PLU)                                          24 8529-0637-2M Rev C  DL Series Owner’s Manual...
  • Page 6 To Enter Privilege Mode                                                    40 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 7: Specifications

    Separate die-cut UPC (58mm x 60mm, 500/roll) 6600-3003 Separate die-cut UPC, Safe Handling Image, (58mm x 50mm, 500/roll) 6600-3004 Separate WPC blank label (58mm x 40 mm, 700/roll) Dimensions 13.8 in (351 mm) 12.8 in (324 mm) 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 8: Abbreviations And Glossary

    Specification - A parameter that controls the behavior of the scale T-Sale Temporary Sale Amount The quantity of the goods, weight, or count. It means weight (lb) for weight PLU and count (pcs) for count PLU 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 9: Installation

    The scale uses an external AC power cord that is to be used in a standard 120 V AC 50/60Hz grounded wall outlet.  NOTE: The DLX50 DL Series Scale Utility is available for download for users without a CD drive on their computer. Download the utility from Detecto.com at: https://detecto.com/resources/softwaredetail/dlx50-dl-series-scale-pc-utility...

  • Page 10: Printer

    PRINTER Install Gap Labels Step 1 – Remove Weighing Platform and Printer Cover Door Remove Printer Cover Door Step 2 - Remove Main Paper Spool Retainer   8529-0637-2M Rev C  DL Series Owner’s Manual...
  • Page 11 Now manually turn the return spool shaft counter-clockwise until it wraps around a time or two. NOTE: The paper should wrap around the return spool shaft enough times so it won’t slip. 8529-0637-2M Rev C  DL Series Owner’s Manual...
  • Page 12 Installation of the gap paper is now complete. NOTE: After installing the gap paper, it is recommended to perform a gap calibration. Refer to Step 6 on the next page for the procedure to perform a gap calibration. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 13: Perform Gap Calibration

    5. Turn the scale OFF. Step 7 – Replace Printer Cover Door 1. Replace the printer cover door and re-install the weighing platform. 2. The scale is ready for normal operation mode. Replace Printer Cover Door 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 14: Install Plain Paper

    Calibration, perform the Gap Calibration to eliminate the malfunction. • When installing gap paper, make sure the edge of the gap paper does not exceed the print head. (Do Not Block the Paper-Out Sensor!) Paper-Out sensor 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 15: Setting Of Print Format

    A. Print formats include label print and receipt print. If the user needs a custom print format, use the DLX50 DL Series Scale Utility or contact your service representative. Note that the DLX50 DL Series Scale Utility can be download at: https://detecto.com/resources/softwaredetail/dlx50-dl-series-scale-pc-utility...

  • Page 16: Barcode Printing And Scanning

    POS system. E. If a special bar code format is needed, please use the DLX50 DL Series Scale Utility or contact your service representative. Instructions on how to customize print formats are in the DLX50 DL Series Scale Utility manual, 8529-0638-0M.

  • Page 17: Keypad Functions

    KEYPAD FUNCTIONS DL1030 Keypad and Front Display DL1030 Rear Display 8529-0637-2M Rev C  DL Series Owner’s Manual...
  • Page 18 KEYPAD FUNCTIONS, CONT. DL1030P Keypad DL1030P Display 8529-0637-2M Rev C  DL Series Owner’s Manual...
  • Page 19 Repeat last print in the current buffer (Repeated print data would not be stored in deal records as sale record.). This function can be forbidden in print Spec. Tare Manually enter and remove Tare. 8529-0637-2M Rev C  DL Series Owner’s Manual...
  • Page 20 PLU (Price Look Up) name. The SP (space) key is used to enter a blank space during text input. During normal operations, the white lettered (alpha) keys, including the SP (space) key, are used for the PLU Quick-Keys. Pressing the Quick-Key will output its assigned PLU. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 21: Display Annunciators

    This is turned on when the data in the Change($)/Unit Price $/lb window Change is displayed as change. Unit This is turned on when the data in the Change($)/Unit Price $/lb window Price is displayed as goods. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 22: Total Price ($) Window

    Total Price($) window. Dot Matrix Display The DL Series Price Computing Scale has an additional 160 × 32 dot matrix text display. It is used to display the date, time and day, ad-message, or accumulation records when in the idle mode;...

  • Page 23: Operation Indicators

    This confirms a key has been pressed and held. Seven-Segment Display Character Reference Number Characters 0 through 9 Characters A through M Characters N through Z Dash, underline, above the line, three lines of special symbols 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 24: Set Date And Time

    5. Once the store name has been entered, press the Amend key to save the setting. 6. Press the Sale key to return to the normal operation mode. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 25: Fast Plu Programming

    2. Otherwise, use the numeric keys to enter the desired Item Code, and then press the V4 key. The dot matrix window will change to Step:3 / Unit. Step: 3 / Unit There are two (2) applicable unit selections for the DL Series scale: 2 = Piece Count 6 = Weighable Items in lbs (default setting) 1.
  • Page 26 3. Otherwise, press the Sale key to return to the normal operation mode. 4. If the 1 = Yes setting is acceptable, press the V4 key. 5. The dot matrix window will change to Step:31 / Shelf Date. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 27: Quick Key Programming

    4. Use the numeric keys to enter the PLU number to be assigned to the Quick Key. 5. Press the Amend key to save the setting. 6. Repeat the above steps for all PLU numbers to be assigned to a Quick Key. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 28: Operation

    NOTE: If the container is removed from the scale platform, the Weight window will change to show a negative weight (the weight of the container). 4. To clear the Tare weight, remove the container from the scale platform, and then press the Tare key again. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 29: Keypad Tare (Entering Known Container Weight)

    Note 2 Only entering a manual tare can change the tare. If a PLU has PLU Tare, Lock Tare cannot overwrite the PLU tare. Note 3 A locked tare locked must be manually unlocked. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 30: Batch Print Mode (Only For Piece Count Plu)

    7. Repeat steps 4, 5, and 6 to print labels for the remainder of the items. 8. Press the Cancel key when finished printing the desired PLU labels. 9. Press the Pre-Pack key to exit the Pre-Pack Mode. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 31: Temporary-Sale By Weight

    NOTE: To clear the current temporary PLU and return to the normal operation mode, press the Cancel key, otherwise proceed to step 4. 4. Press the Print key to print a label. 5. The scale will return to the normal operation mode. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 32: Report Printing Operation

    N o t e 3 If the number input for the end buffer is not 0 but is less than the number input for the start number, no buffer data will be printed. N o t e 4 The display windows may momentarily show the currently printed items while the system is printing. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 33: Print Total Report

    8. Press the 1 key and then the Accu/Confirm key to print the daily report of today. (Refer to Note 4). 9. Press the Sale key to return to the normal operation mode. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 34: Print Dept. Report

    8. Press the 1 key and then the Accu/Confirm key to print the daily report of today. (Refer to Note 4). 9. Press the Sale key to return to the normal operation mode. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 35: Print Class Report

    8. Press the 1 key and then the Accu/Confirm key to print the daily report of today. (Refer to Note 4). 9. Press the Sale key to return to the normal operation mode. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 36: Print Plu Report

    2-2 on the dot matrix window. 9. Use the numeric keys to enter 20 (end PLU), and then press the Accu/Confirm key. 10. Press the Sale key to return to the normal operation mode. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 37: Clear Report Information Manually

    Account on the dot matrix window. Note that the Account annunciator will still be on and the Lock Tare annunciator will be flashing. 8. Press the Sale key to return to the normal operation mode. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 38: Clear All Reports And Records Information

    Note that the Account annunciator will still be on and the Lock Tare annunciator will be flashing. 10. Press the Sale key to return to the normal operation mode. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 39: Error Codes

    Discounted Unit Price has to E1.24 be higher than the discount upper limit Cannot enter special sale Selected PLU has a conflict with special sale E1.30 mode mode, select again 8529-0637-2M Rev C  DL Series Owner’s Manual...
  • Page 40 The printer may not be connected or in a state E7.19 printer that the printer could not print Alarm for full storage of deal Enter the Account interface E7.30 records Calculate reports and then clear the reports 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 41: Troubleshooting Guide

    B. On the DL1030P and DL1060P, check to make sure the connection between the tower display cable and the main circuit board has been properly made. Refer to the INSTALLATION, Attachment of Tower Display section of this manual. 8529-0637-2M Rev C  DL Series Owner’s Manual...
  • Page 42 (E7.10), it means there is still a gap calibration issue. Please try the procedure again after confirming the correct paper has been used. • Press the Feed key to print the test page. • Go to the normal operation mode. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 43: Frequently Asked Questions

    How do I change the format of my labels? Answer Instructions on how to customize print formats are in the DLX50 DL Series Scale Utility manual, 8529-0638-0M. Refer to the SCALE PARAMETERS, Custom Print Formatting section for details. The manual can be downloaded at: https://detecto.com/themes/ee/site/default/asset/img/resources/resources_brochures/DLX-...
  • Page 44 The factory default setting for minimum weight on the DL1030/1030P is 0.2 lbs and 0.4 lbs on the DL1060/1060P. The setting can be changed using the DLX50 DL Series Scale Utility and then exported to the scale using a USB flash drive.

  • Page 45: Care And Cleaning

    DO remove power before cleaning with a damp cloth. DO provide clean AC power and adequate protection against lightning damage. DO keep the surroundings clear to provide clean and adequate air circulation. 8529-0637-2M Rev C  DL Series Owner’s Manual...

  • Page 46: Calibration

    This scale was calibrated at the factory and should not require adjustment. In the event that the scale should need calibration, the following describes the calibration of the DL Series Price Computing NTEP legal-for-trade scale. A qualified technician should perform this function to maintain the instrument’s high degree of accuracy.
  • Page 47 15. Turn the scale back ON and test for accuracy. 16. Re-install the large plastic cover on the bottom of the scale with the Phillips screws and 2 sealing screws removed earlier. 8529-0637-2M Rev C  DL Series Owner’s Manual...
  • Page 48 (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect. During the first ninety (90) days Detecto may choose to replace the product at no charge to the buyer upon inspection of the returned item.
  • Page 49 8529-0637-2M Rev C  DL Series Owner’s Manual...
  • Page 50 Cardinal Scale Manufacturing Co. 102 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-2153 Technical Support: 1-866-254-8261 E-mail: tech@cardet.com 8529-0637-2M Rev C 01/21 8529-0637-2M Rev C  DL Series Owner’s Manual...
