Model EMG-32
ERGONOMIC
MIXER-GRINDER/CHOPPER
OPERATING MANUAL AND PARTS LIST
�
�
IMPORTANT NOTICE
This Manual contains important
safety instructions which must
be strictly followed when using
Item No. EMG92099 Manual
Item No. EMG92099 Manual
this equipment.
Form No. EMG32MAN-8-07-7 ACME
Form No. EMG32MAN-11-03-6 COMM
Advertisement
Table of Contents
Related Manuals for BIRO EMG-32
Summary of Contents for BIRO EMG-32

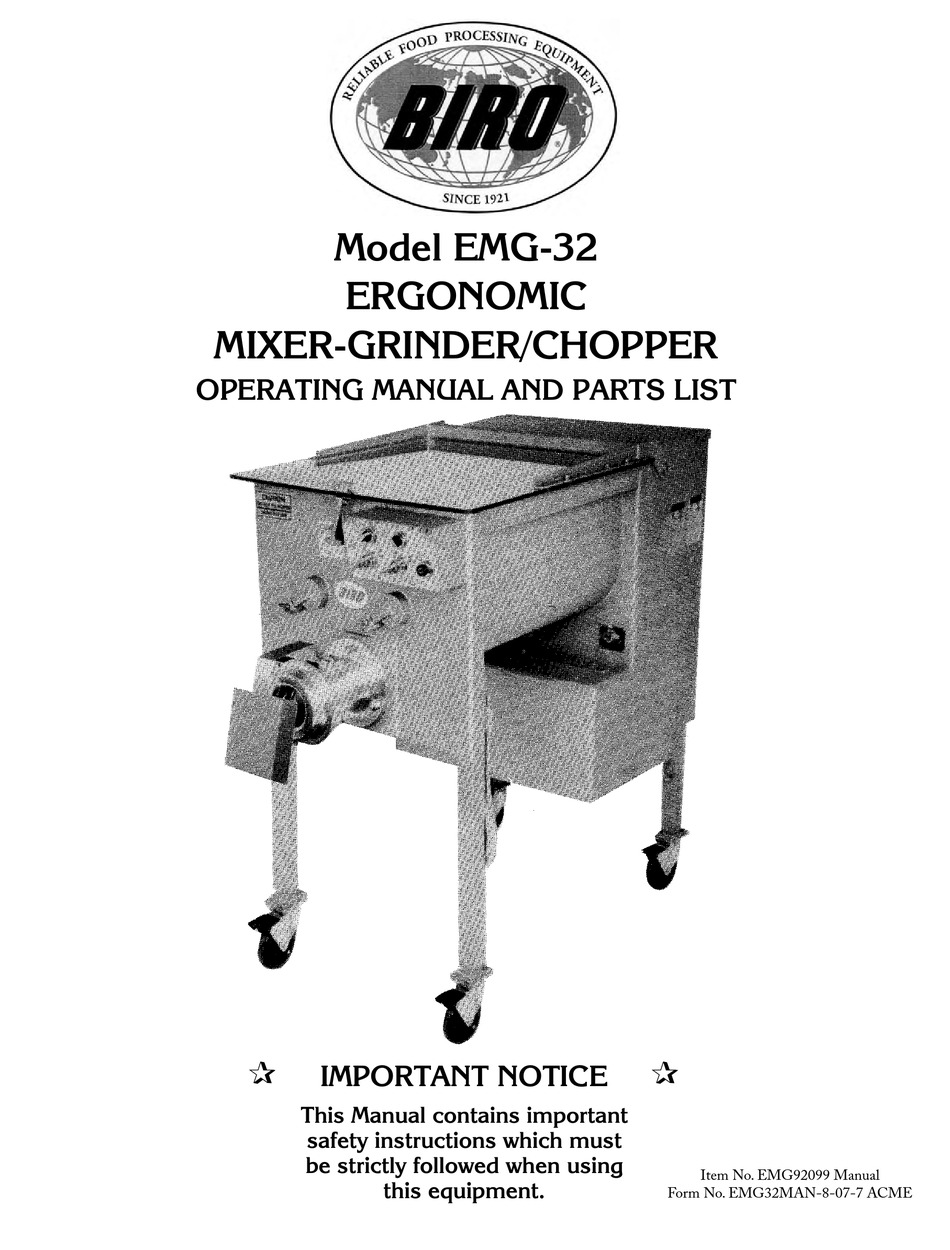

- Page 1 Model EMG-32 ERGONOMIC MIXER-GRINDER/CHOPPER OPERATING MANUAL AND PARTS LIST � � IMPORTANT NOTICE This Manual contains important safety instructions which must be strictly followed when using Item No. EMG92099 Manual Item No. EMG92099 Manual this equipment. Form No. EMG32MAN-8-07-7 ACME...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page NOTICE TO OWNER AND OPERATORS ..................1 SAFETY TIPS ............................2 INSTALLATION ..........................3 OPERATION ............................ 5 GRINDER KNIFE & PLATE DO’S & DON’TS ...............6 FOOD HANDLING TO PREVENT CONTAMINATION ..........6 TO PROCESS PRODUCT ....................6 MAINTENANCE ........................ 7 GRINDER BOWL INSTALLATION ................ -
Page 3: Notice To Owner And Operators
No one should use or service this machine without proper training and supervision. All opera- tors should be thoroughly familiar with the procedures contained in this Manual. Even so, BIRO cannot anticipate every circumstance or environment in which its products will be used. You, the owner and operator, must remain alert to the hazards posed by the function of this equipment —... -
Page 4: Safety Tips
� NEVER Alter This Machine From its Original Form as Shipped From Factory. DO NOT Operate Machine With Missing Parts. � PROMPTLY REPLACE Any Worn or Illegible Warning Labels. � ALWAYS Read Operation and Service Manual BEFORE Operating, Cleaning, or Servicing. � USE ONLY BIRO Parts and Accessories Properly Installed. -
Page 5: Installation
UNCRATING AND SET UP 1. Read this Manual thoroughly before installation and operation. Do not proceed with installation and operation if you have any questions or do not understand anything in this Manual. Contact your local Distributor, or BIRO first. -
Page 6: Motor Specifications
8. The size of the electrical wiring required from the power source to the mixer-grinder/chopper is a MINIMUM OF No. 10 WIRE. 9. The BIRO Manufacturing Company is not responsible for permanent wiring, connection or installation NOTE TO OWNER AND ELECTRICIAN: IF THIS MACHINE IS NOT CORD... -
Page 7: Operation
15. Check placement of all warning labels and Manual. Machine is now ready for trained operators to process product. 16. Use meat deflector attached to grinding bowl to eliminate meat splatter. 17. Contact your local Distributor of BIRO directly if you have any questions or problems with the installation or operation of this machine. OPERATION TO AVOID SERIOUS PERSONAL INJURY �... -
Page 8: Grinder Knife & Plate Do's & Don'ts
OPERATION (Cont.) � NEVER Open Machine During Operation. � DO NOT Wear Gloves While Operating. � DO NOT Tamper With, Bypass, Alter, or Modify This Equipment in Any Way From Its Original Condition. � NEVER Operate Machine With Product Mixer Safety Cover Opened or Removed or Magnetic Interlock Switch By-Passed. -
Page 9: Maintenance
� NEVER Bypass, Alter, or Modify This Equipment in Any Way From Its Original Condition. � PROMPTLY REPLACE Any Worn or Illegible Warning Labels. � USE ONLY GENUINE BIRO Parts and accessories Properly Installed. A. GRINDING BOWL INSTALLATION 1. Mount the grinding bowl on the two threaded studs on the front of the machine. Tighten in position with provided nuts. -
Page 10: Chain Tension
B. LUBRICATION (cont.) Recommended types of chain lubricant are those with Molybdenum Disulphide or Graphite added. Also bonded lubricants such as Dow Corning Molykote 321R or equivalent are excellent for open chains. The lubricant should be of a viscosity whereby it will “flow” somewhat and penetrate the internal working surfaces. Thick stiff greases are of little value because they cannot work into moving parts of the chain. - Page 12 LUBRICATION FOR GROVE GEAR REDUCER 1. Factory Filling The speed reducers are oil filled at the factory to the proper level for the standard mounting position. The oil level should be checked and adjusted (if necessary) prior to operation, using the oil level plug provided and while the unit is oriented in its operating position.
- Page 13 EMG20301G-R GROVE GEAR REDUCER LUBRICATION AND MAINTENANCE AFTER SERIAL No. 6987 VIEW IS FROM OPPOSITE END OF DRUM LUBRICANTS FOR EMG20301G-R GROVE GEAR WORM REDUCER The precision-made gears and bearings in Grove Gear Speed Reducers require high-grade lubricants of the proper viscosity to maintain trouble-free performance. For best results, use lubricants on the following chart for worm gear reducers.
-
Page 14: Mixer Drive Shaft Seal Replacement
#53953, MIXER DRIVE SHAFT SEAL REPLACEMENT 1. Clean the inside of the groove of the mixer drive shaft seal and mating contact surface of the tub wall throughly with scotch-bright or a roughing pad. 2. Dispense a small amount of #454 Loctite adhesive to both these areas - assure even coverage. 3. -
Page 15: Cleaning
LWAYS Thoroughly Clean Equipment at Least Daily. � ALWAYS Thoroughly Clean Equipment at Least Daily. Procedure to This Machine Before Cleaning or Servicing. CLEANING THE EMG-32 MIXER-GRINDER EANING THE EMG-32 MIXER-GRINDER CLEANING THE EMG-32 MIXER-GRINDER � ONLY Use Recommended Cleaning Equipment, Materials, and Procedures. -
Page 16: Mixing Paddle: Installation; S/N's 6001 To 6057
MIXING PADDLE INSTALLATION S/N’s 6001 to 6057 The Mixing Paddles ARE NOT INTER- CHANGEABLE, however they are timed to allow for proper mix action. PADDLE INSTALLATION: Install the corresponding mixer paddles by matching the male and female hub drives with the respective female and male paddle hubs. -
Page 17: Mixing Paddle History By Serial Number
MIXING PADDLE HISTORY BY SERIAL NUMBER... -
Page 18: Electric Footswitch Parts List & Diagram
ELECTRIC FOOT SWITCH FOOTSWITCH PARTS LIST 224-2 Cord connector, wt, straight, " 52654 Male plug w/6’ cord, 5 wire 56292 Female receptacle 90° 52661 Male plug w/12’ cord, 5 wire 52668 Footswitch w/12’ cord and plug 53693 Footswitch 53693-A Cover guard 53693-C Cover gasket 53693-D... -
Page 19: Electrical Schematic With Electric Footswitch
ELECTRICAL SCHEMATIC... - Page 20 ELECTRICAL SCHEMATIC EMG-32 WITH SERIAL NO. 6075-6300 WITH ELECTRICAL FOOT SWITCH OPTION THREE PHASE...
-
Page 22: Electrical Schematic With Pneumatic Footswitch
ELECTRICAL SCHEMATIC STARTING WITH SERIAL NO. 6301 – ON WITH PNEUMATIC FOOT SWITCH OPTION THREE PHASE... - Page 23 ELECTRICAL SCHEMATIC EMG-32 WITH SERIAL NO. 6075-6300 WITH PNEUMATIC FOOT SWITCH OPTION THREE PHASE...
-
Page 24: Electrical Subplate Components
Part No. Description Part No. Description 226EE-0L01.9G Overload, B18K-G, 1.3-1.9 AMP, EMG90675 Reversing contactor – 24 volt 440-460 Volt EMG92003 Subplate electrical 226EE-0L4I EMG92014 Overload, B18K-I, 2.5-4 AMP, Fuse block 208-240 Volt EMG92015 Jumper – internal 3 pole 56300R Air switch – DPDT Momentary EMG92016 Din rail –... -
Page 25: Parts List, Not Shown Parts
Din rail, 11 inches long Line” EMG92022 Strain relief connector .375-.500 R 53689 Cord connector, 10/4 AL EMG92099 EMG-32 Operating Manual 53891 Auger drive shaft key H653-E Warning label, English 53894 Auger drive shaft lock washer H653-F Warning label, French... - Page 29 JOURNAL BOX ASSEMBLY P/N – 53886 Item No. Description Item No. Description 53609 Journal box, #62001 on 53889, 53939 Rear bearing cup/cone 53724 Auger drive shaft, #62001 assembly, order H311A 53891 Auger drive shaft key 53785 Journal box seal (2 ea.) 53894 Auger drive shaft lock washer 53886...
-
Page 30: Optional Equipment
OPTIONAL EQUIPMENT... -
Page 31: Safety Label Locations
SAFETY LABEL LOCATIONS CAUTION KEEP HANDS OUT OF HOPPER... -
Page 33: Operator Signature Page
OPERATOR’S SIGNATURE PAGE WARNING READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE SIGNING BELOW MY SIGNATURE ATTESTS THAT I HAVE COMPLETELY READ AND UNDERSTAND THIS MANUAL. I REALIZE THAT THIS MACHINE, IF OPERATED CARELESSLY, CAN CAUSE SERIOUS INJURY TO MYSELF AND OTHERS. SUPERVISOR’S NAME (PRINT) SIGNATURE... -
Page 34: Limited Warranty
BIRO is not responsible for service charges or labor required to replace any part covered by this limited warranty or for any damages resulting from misuse, abuse, lack of proper or recommended service.
