Warranty
Marshall Electronics warranties to the first consumer that this OR-901-XDI LCD monitor will (under
normal use) be free from defects in workmanship and materials, when received in its original container,
for a period of one year from the purchase date. This warranty is extended to the first consumer only,
and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with
a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above.
Therefore, labor and parts may be charged to the consumer. This warranty does not apply to the
product exterior or cosmetics. Misuse, abnormal handling, alterations or modifications in design or
construction void this warranty. It is considered normal for a minimal amount of pixels, not to exceed
three, to fail on the periphery of the display active viewing area. Marshall Electronics reserves the option
to refuse service for display pixel failure if deemed unobtrusive to effective use of the monitor by our
technicians. No sales personnel of the seller or any other person is authorized to make any warranties
other than those described above, or to extend the duration of any warranties on behalf of Marshall
Electronics, beyond the time period described above. Due to constant effort to improve products and
product features, specifications may change without notice.
Marshall Electronics, Inc.
1910 East Maple Avenue
El Segundo, CA 90245
Tel.: (800) 800-6608 / (310) 333-0606
Fax: (310)333-0688
www.LCDracks.com / sales@lcdracks.com
Page 36 of 36
2011 07- 29 v-1.0.3
Marshall Electronics

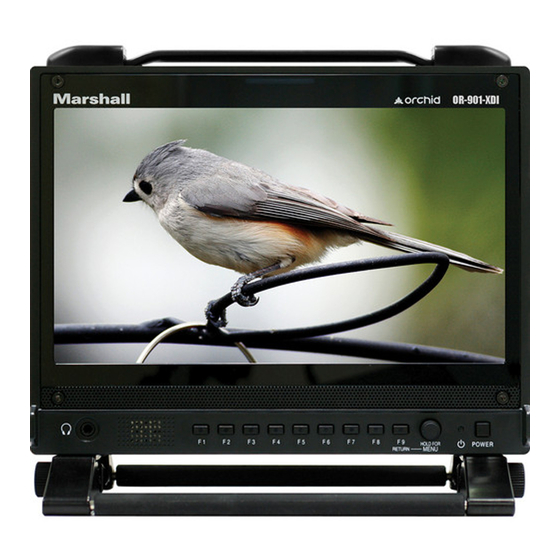

Fully Featured 9.0" Camera Top / Rack Mountable / Portable LCD Field Monitor
Operating Instructions
OR-901-XDI
With HDSDI x HDMI Cross Conversion
Advertisement
Table of Contents
Related Manuals for Marshall Electronics orchid OR-901-XDI
Summary of Contents for Marshall Electronics orchid OR-901-XDI
-

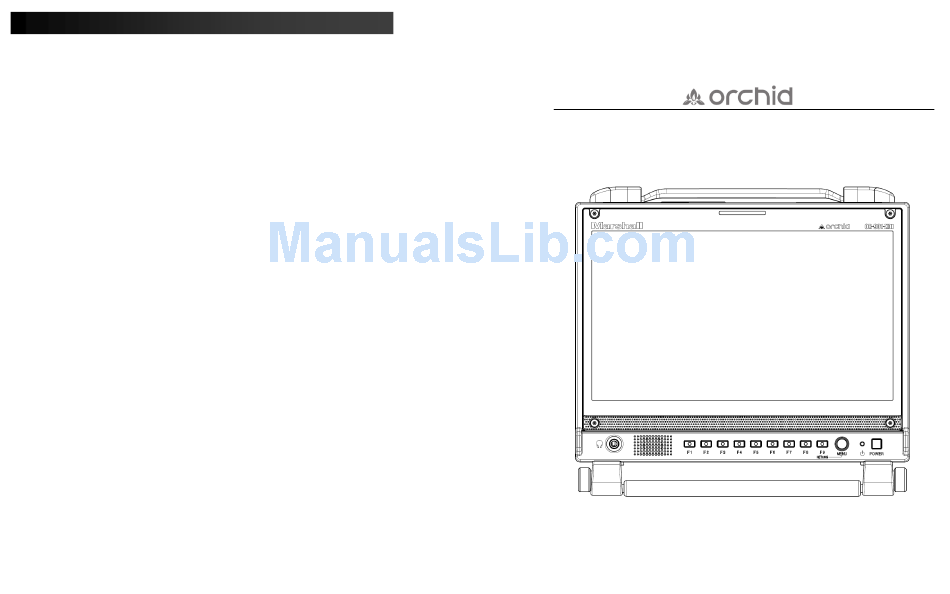

Page 1: Operating Instructions
Fully Featured 9.0” Camera Top / Rack Mountable / Portable LCD Field Monitor three, to fail on the periphery of the display active viewing area. Marshall Electronics reserves the option to refuse service for display pixel failure if deemed unobtrusive to effective use of the monitor by our With HDSDI x HDMI Cross Conversion technicians. - Page 2 Maintenance / Color Calibration / Upgrade Procedure ■ Screen Cleaning Periodically clean the screen surface using ammonia-free cleaning wipes (Marshall Part No. V-HWP-K). A clean micro-fiber cloth can also be used using only non-abrasive and ammonia-free cleaning agents. Do not use paper towels. Paper towel fibers are coarse and may scratch the surface of the polycarbonate faceplate or leave streaks on the surface.
-
Page 3: Table Of Contents
Specifications Contents Optional Accessories for OR-901-XDI ....................... 5 Product Overview ............................6 Features..............................7 High Resolution 9.0” Panel ......................... 7 Input Cross Conversion ........................7 Waveform Monitor Function........................ 7 Real-Time Color Vectorscope......................7 3D Production Tools..........................7 3D Side by Side View ........................7 3D Luminance Difference View ....................... - Page 4 SETUP SUBMENU ■ Format Display AUDIO UTIL ............................17 Auto This mode will display the video format information WAVEFORM ............................. 18 for about 8 seconds whenever video format is changed. VECTORSCOPE..........................18 Off - This mode will not display any video format CLIPGUIDE ............................
-
Page 5: Optional Accessories For Or-901-Xdi
REMOTE SUBMENU Optional Accessories for OR-901-XDI ■ Pin 1 through Pin 8: The RJ-45 Remote connector on the rear panel has 8 pins. Pin 5 is Ground, while the remaining 7 pins are pulled high to 3.3VDC and may be used for Tally or other Remote Commands. -
Page 6: Product Overview
Encoder on the front panel of the OR-901-XDI. Each of these F-keys may be assigned to any one of 31 The Orchid OR-901-XDI is a single 9.0” fully featured camera-top and video assist monitor system. The different functions as required by the job or individual OR-901-XDI offers built-in fully automatic HDSDI to HDMI &... -
Page 7: Features
CLIPGUIDE SUBMENU Features ■ CLIPGUIDE Use this menu to turn the ClipGuide function On or Off. High Resolution 9.0” Panel The OR-901-XDI features an all-digital 8-bit, 960 x 540 resolution panel chosen to allow monitoring of ■ Mode HD 1920 x 1080 video formats without scaling artifacts. The LCD panel features a nominal brightness Allows the choice of which ClipGuide function you want of 320 cd/m2 and a contrast ratio of 1000:1 making this display ideal in a variety of environments and to display. -
Page 8: Clipguide
Features LAYOUTS ClipGuide The ClipGuide function operates with both the Waveform display and Monochrome/Color picture display. Both the upper and lower ClipGuide levels are user-adjustable in order to accurately display over-and-under exposures during different shooting conditions. For example, the upper ClipGuide limit may be set to 85 IRE and the lower limit to 10 IRE. -
Page 9: Select Color Temperature And Gamma Mode
(24 Watts).Connect the required cables for video signal input and output (Power must be applied to the OR-901-XDI for the active loop-through and Cross Conversion outputs to be activated). All BNC connectors are rated at 75 . The OR-XDI is compatible with all Marshall Electronics Battery Adapters. -
Page 10: Front Panel Features
WAVEFORM SUBMENU Front Panel Features ■ Layout: Use this menu to choose from several available preset screen layouts. Choosing any of the available preset layouts will override the settings in the Waveform, Size and Position menus. ■ Waveform: Use this menu to turn the Waveform display On or Off when in the Normal mode. -
Page 11: Rear Panel Features
AUDIO CONFIGURATION SUBMENU Rear Panel Features ■ Front Volume Adjusts Headphone and speaker volume on the front panel. This value is adjustable from 0 to 40. Setting to 0 will Mute the output. ■ Headroom Start Adjusts the point at which the level meters will change color from Green to Yellow. -
Page 12: Hdmi Output With Active Indicator
Rear Panel Features MARKER CONFIGURATION SUBMENU Marker: HDMI Output with Active Indicator Use this setting to enable or disable all on-screen markers. HDMI(TYPE-A), Loop through & Cross converted, HDCP enabled output. The Active LED will This setting affects the Center marker, Aspect markers, and illuminate when the output is connected to a valid HDMI input. -
Page 13: Compatible Formats
SCREEN SUBMENU Compatible Formats ■ Scan Normal (Zero Scan) The whole picture should be visible without any OR-901-XDI Supported video formats cropping. When in normal mode you should not see non-active areas such as SAV, EAV. Interface Over (End-User TV Production Scan) Video Signal Formats Component 5% of the picture is cropped and zoomed to fill... -
Page 14: On Screen Menu Contents
COLOR SUBMENU The Color submenu allows the user to access to the Color Management Controls. ■ Color Matrix Auto System automatically selects correct matrix. Typically, 601 for SD Formats, 709 for HD Formats. User can manually set to RGB. RGB should be used with GBR422 systems. Conforms to ITU-R BT.601 matrix. -
Page 15: On Screen Menu Contents
On Screen Menu Contents Menus and Navigation MODEL NAME OR-901-XDI INFO INPUT SDI 1 To access the menu system Press and Hold the MENU Rotary Encoder for 3 seconds. VIDEO FORMAT 1080i / 60 COLOR MATRIX COLOR TEMP Step through menu items by using the RotoMenu control. 3D REVIEW Choose a submenu or select a menu item by pushing the RotoMenu control. -
Page 16: Screen
On Screen Menu Contents On Screen Menu Contents RETURN WAVEFORM MON VECTORSCOPE SCAN NORMAL, OVERSCAN, ZOOM CLIPGUIDE AUTO TIMECODE LTC ASPECT TIMECODE VITC 1 16:9 TIMECODE VITC 2 PAYLOAD HISTOGRAM FALSE COLOR TG MONO FALSE COLOR MTF MONO / COLOR 3D LEFT EYE GREEN 3D RIGHT EYE... -
Page 17: Audio
On Screen Menu Contents On Screen Menu Contents RETURN RETURN SDI 1 FRONT VOLUME 0 TO 40 SDI 2 HEADROOM START -6 to -60 [-20] is SMPTE Standard CVBS HEADROOM END 0 to -20 [-6] is Normal setting LEFT CHANNEL CHANNEL1 TO CHANNEL 16 AUDIO COMP... -
Page 18: Waveform
On Screen Menu Contents On Screen Menu Contents RETURN RETURN SDI 1 NORMAL SDI 2 CVBS LAYOUT ALM16 QUAD COMP QUAD2 HDMI GAMMA 1.0 WAVEFORM WHITE GAMMA 1.8 GAMMA 2.0 PARADE GAMMA 2.2 SIZE SMALL, MEDIUM, LARGE GAMMA 2.4 LEFT TOP GAMMA 2.6 WAVEFORM LEFT BOT...
