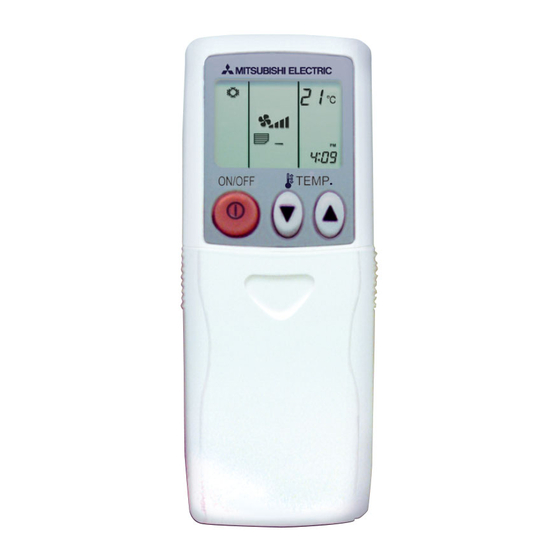

Mitsubishi Electric PAR-FL32MA Installation Manual

For packaged air conditioner wireless remote controller.
Hide thumbs


Advertisement

For Packaged Air Conditioner
Wireless Remote Controller

Installation Manual

This installation manual contains only the description of how to install the wireless remote controller unit PAR-FL32MA.
For your safety, first be sure to read " 1 Safety Precautions " described below thoroughly and then install the wireless remote controller unit PAR-
FL32MA correctly.
1

Safety Precautions

G The following two symbols are used to denote dangers that may be caused by incorrect use and their degree:
WARNING
This symbol denotes what could lead to serious injury or death if you misuse the PAR-FL32MA.
CAUTION
This symbol denotes what could lead to a personal injury or damage to your property if you misuse the PAR-FL32MA.
G After reading this installation manual, keep it in a place where the final user can see it anytime.
When someone moves, repairs or uses the PAR-FL32MA, make sure that this manual is forwarded to the final user.
Ask your dealer or technical representative to install the unit.
Any deficiency caused by your own installation may result in an electric shock
or fire.
Install in a place which is strong enough to withstand the weight of the
PAR-FL32MA.
Any lack of strength may cause the PAR-FL32MA to fall down, resulting in per-
sonal injury.
Never modify or repair the PAR-FL32MA by yourself.
Any deficiency caused by your modification or repair may result in an electric
shock or fire.
Consult with your dealer about repairs.
Do not install in any place exposed to flammable gas leakage.
Flammable gases accumulated around the body of PAR-FL32MA may cause
an explosion.
Do not use in any special environment.
Using in any place exposed to oil (including machine oil), steam and sulfuric
gas may deteriorate the performance significantly or give damage to the com-
ponent parts.
Do not wash with water.
Doing so may cause an electric shock or a malfunction.
Do not install in any place at a temperature of more than 40
°
°
less than 0
C (32
F) or exposed to direct sunlight.
2
Confirming the Supplied Parts
Check that the box includes the following parts in addition to this installation manual:
Parts Name
Wireless remote controller
Remote controller holder
AAA alkaline battery
Tapping screws 4.1 × 16
Instruction book
Only use AAA batteries (LR03). Replace low batteries with new AAA batteries (LR03). Observe the polarity of the batteries as indicated, and insert the
negative end first.
WARNING
Ensure that installation work is done correctly following this installation
manual.
Any deficiency caused by installation may result in an electric shock or fire.
All electrical work must be performed by a licensed technician, according
to local regulations and the instructions given in this manual.
Any lack of electric circuit or any deficiency caused by installation may result in
an electric shock or fire.
Do not move and re-install the PAR-FL32MA yourself.
Any deficiency caused by installation may result in an electric shock or fire.
Ask your distributor or special vendor for moving and installation.
To dispose of this product, consult your dealer.
CAUTION
Do not install in any steamy place such a bathroom or kitchen.
Avoid any place where moisture is condensed into dew. Doing so may cause an
electric shock or a malfunction.
Do not install in any place where acidic or alkaline solution or special
spray are often used.
Doing so may cause an electric shock or malfunction.
Do not touch any circuit board with your hands or with tools. Do not allow
dust to collect on the circuit board.
Doing so may cause fire or an electric shock.
°
°
Do not touch any control button with your wet hands.
C (104
F) or
Doing so may cause an electric shock or a malfunction.
Do not press any control button using a sharp object.
Doing so may cause an electric shock or a malfunction.
Quantity
1
1
2
2
2
PAR-FL32MA
1
