Network DVR System
Your best choice for digital video recording and remote surveillance
VP-404R(H)/4048R(H)
Hardware
User Manual
(Version:V1.4.3)
www.vpon21.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP-404R and is the answer not in the manual?

Questions and answers

Summary of Contents for Vpon VP-404R

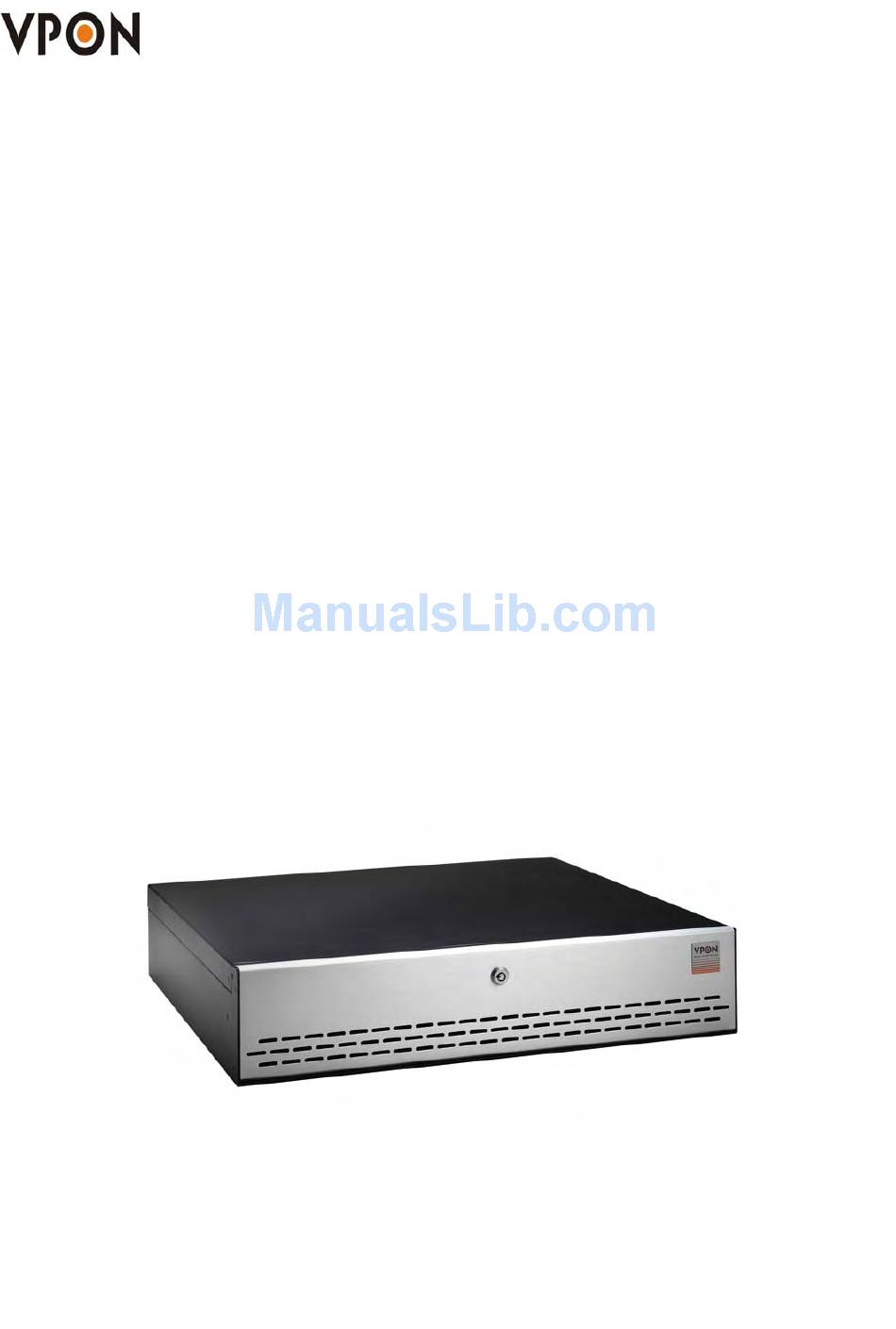

  • Page 1 Network DVR System Your best choice for digital video recording and remote surveillance VP-404R(H)/4048R(H) Hardware User Manual (Version:V1.4.3) www.vpon21.com...
  • Page 2: Important Information

    When unpacking your VPON unit, check for missing or damaged items. If any item is missing, or if damage is evident, DO NOT INSTALL OR OPERATE THIS PRODUCT. Contact your dealer or us for assistance.
  • Page 3: Table Of Contents

    Appendix Appendix A: Operation via local keyboard -----------------------------------------------------------------------I Appendix B: IrDA mode (IR Remote Control) -----------------------------------------------------------------II Appendix C: Guide to revise firmware of VPON --------------------------------------------------------------IV Appendix D: View video by PDA or Cell phone --------------------------------------------------------------IV Appendix E: NET I/O(optional) -----------------------------------------------------------------------------------V...
  • Page 4: Overview

    CD-RW. Up to 8 cameras can be connected to a single VP-404R(H) / VP-4048R(H) unit. Full motion video with audio over Internet or intranet is supported. Video output can be viewed using a standard PC and web browser with custom plug-in software.
  • Page 5: System Requirements

    Chapter 1: Overview Easy to use Plug and recording, non-Windows embedded Linux system Easy configuration via local keyboard, IR Control, Home Page or Mouse Standard web browser as the client application Customization • Supports HTML file upload for home page customization •...
  • Page 6: Product Specifications

    Chapter 1: Overview 1.4 Product Specifications Model VP-404R / VP-4048R VP-404RH / VP-4048RH Video Standard Support NTSC / PAL Composite video, BNC Connector Video Input 4 or 8 Audio Input VGA Output 24 bit true color HDD Mobile Rack IR Remote control...
  • Page 7: Back Panels

    VGA output USB2.0 ports LAN port Audio input / Speaker RS485 COM port output 1.6 About the GUI The VP-404R(H) / VP-4048R(H) can be configured and operated using either the local GUI, or over a network. 1.6.1 The local GUI...
  • Page 8: The Network Gui

    Chapter 1: Overview 1.6.2 The network GUI...
  • Page 9: Getting Started

    Chapter 2: Getting Started Chapter 2. Getting Started Read this section to get your VP-404R(H) / VP-4048R(H) up and running. This section assumes that the VP-404R(H) / VP-4048R(H) is already connected and cameras are attached. For more information, see the user manual supplied with the unit. Live footage can be viewed either on the local screen connected to the VP-404R(H) / VP-4048R(H) or over a network if a connection exists.
  • Page 10: Install The Hard Disk Inside The Dvr System

    2.2 Install the Hard Disk Inside the DVR System Install the hard disk(s). You can install up to 3 SATA hard disks to VP-404R(H) / VP-4048R(H) according to your demands. When you only install ONE hard disk, you can install it either inside the...
  • Page 11 Chapter 2: Getting Started Installation procedure: Step 1: Loosen the seven M3x6 screws. Then push the cover backward and pull it upward to remove it. Step 2: Loosen four M3x6 screws on the hard disk rack. Note: The hard disk rack is tightened on the machine originally. Step 3: Tighten the four 6#32x6 screws at both sides of the hard disk rack.
  • Page 12 Chapter 2: Getting Started Step 5: Use four M3x6 screws to lock the hard disk rack on the bottom of the machine. Step 6: After finishing all installation, then close the cover and use seven M3x6 screws to tighten it. Step 7: Completes the hard disks installation.
  • Page 13: Appendix

    Appendix Appendix A: Operation via local keyboard To get VP-404R(H) / VP-4048R(H) up and running via local keyboard, a keyboard is required. The interface of VP-404R(H) / VP-4048R(H) operation is as following figure. 2~13 14 15 18 19 1. Esc: Cancel Provide cancel and close function.
  • Page 14: Appendix B: Irda Mode (Ir Remote Control)

    Appendix B: IrDA mode (IR Remote Control) Users can operate VPON via IR remote control or local keyboard. There will be a OSD screen on the VGA monitor. Before operating VPON via IR remote control, please make sure that VPON has...
  • Page 15 N. Screen Display Change display mode to single or quad. The In turns button is not used for the VPON series. The IR remote control has four gray triangular buttons surrounding the OK button, resembling a baseball diamond. These are the primary buttons that you will be using the majority of the time.
  • Page 16: Appendix C: Guide To Revise Firmware Of Vpon

    IP/pdamain.htm) on the Internet Explore in your cell phone or PDA. 1. Open a browser window on a terminal that has network access to the VP-404R(H) / VP-4048R(H) 2. Type the IP address (http://DVR IP/pdamain.htm) of the VP-404R(H) / VP-4048R(H) in the browser address bar.
  • Page 17: Appendix E: Net I/O(Optional)

    1)VP-204 - Power consumption: 1.2W(max) Power requirement: DC 10-30V Interface: 10Mbps 2)VPON DVR and NET I/O device should be in the same LAN segment, if you have many VPON DVR. Each VPON DVR must be separated in different LAN segment by router.
  • Page 18: Appendix F: Troubleshooting

    • Clear the ARP list. • If you are running MS Proxy Client on your PC, and the IP address assigned to the VP-404R(H) / VP-4048R(H) is not a valid local IP on the network, allocate a valid local IP address to the VP-404R(H) / VP-4048R(H) or disable MS Proxy Client from the Control Panel.
