Summary of Contents for Vpon VP-504

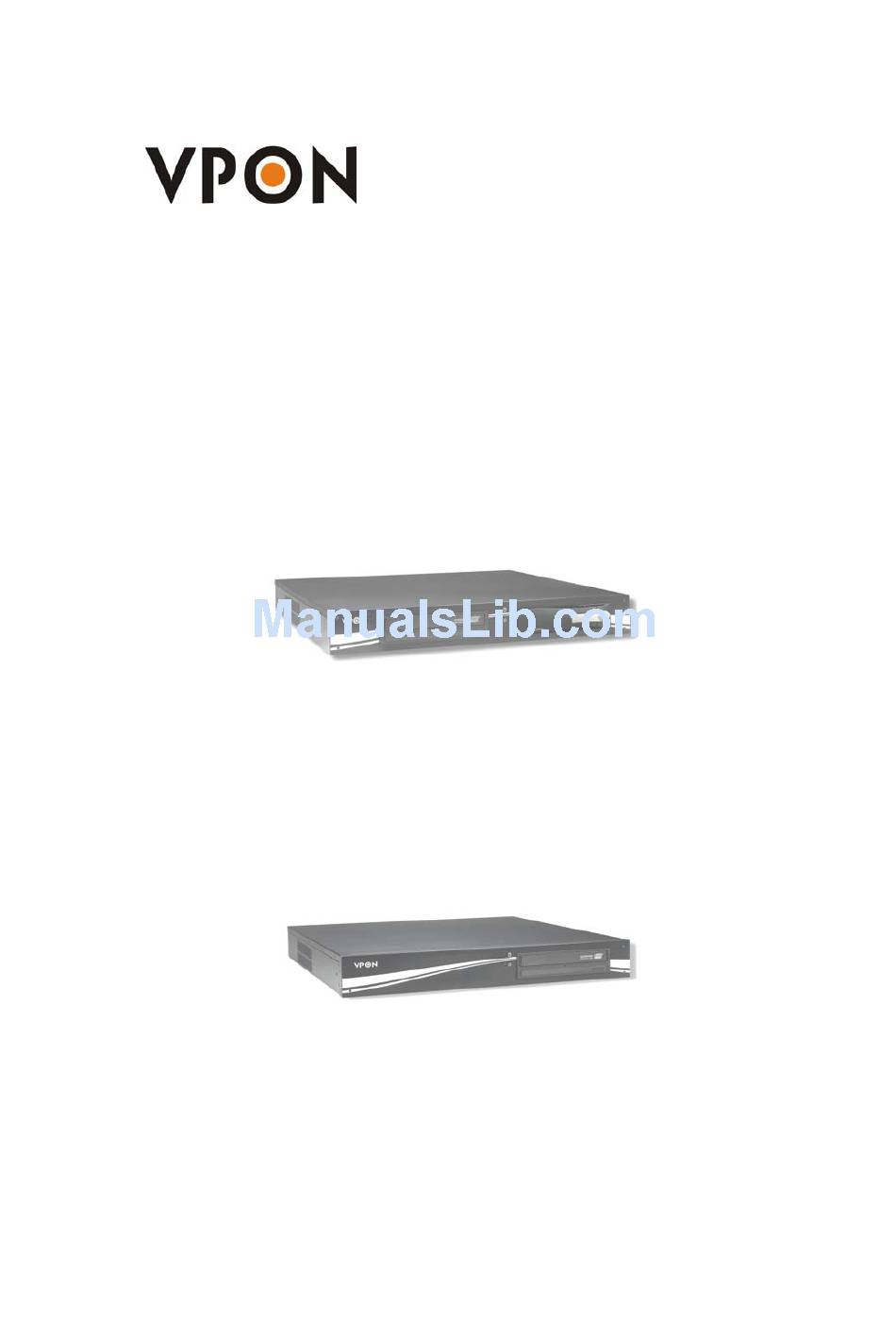

- Page 1 Network DVR System Software User Manual VP-504 / 508 VP-504H / 508H...
- Page 2 When unpacking your VPON unit, check for missing or damaged items. If any item is missing, or if damage is evident, DO NOT INSTALL OR OPERATE THIS PRODUCT. Contact your dealer or us for...
-
Page 3: Table Of Contents
1.2 System Requirements ………………………………………………………6 Chapter 2: VPON network operations 2.1 First Time Step-by-step Setup ………………………………………………7 I. Connecting VPON to a PC for simple networking …………………………8 II. Default IP address of VPON ………………………………………………8 2.2 Surveillance screen panel …………………………………………………..11 2.3 Play button ………………………………………………………………….11 2.4 Exit button ………………………………………………………………….12... - Page 4 3. “LIVE’ Key Function ……………………………………………………….28 4. “IO” Key Function …………………………………………………………..29 5. “GO TO” Key Function ……………………………………………………..30 6. “SET UP” Key Function …………………………………………………….31 [ System Setup ] 1) System Setup …………………………………………………………….31 2) Password Protect ………………………………………………………..32 3) Video ……………………………………………………………………..32 4) Disks ……………………………………………………………………...34 5) TV out ……………………………………………………………………34 6) OSD Text ………………………………………………………………...35 7) GPIO ……………………………………………………………………..35...
- Page 5 7. “POS” Key Function ………………………………………………………...51 8. “Status” Key Function ………………………………………………………51 9. “Video” Key Function ………………………………………………………52 10. “PTZ Panel” Key Function ………………………………………………….53 11. “Play Panel’ Key Function ………………………………………………….54...
- Page 6 VP-504(H)/508(H) Features / Notification / Specifications Removable Hard Driver initiation When finished all connections for powering VPON, please be noticed that must turn on the key of mobile rack before starting the Hard Disk usage. VP-504(H)/508(H) control interface GUI (Graphic User Interface) control.
- Page 7 2) Digital I/O Box Connections The digital I/O box is used to connect to alarm input and relay output. I/O box(8 sensor input、2 relay output) External alarm input: The I/O box allows 8 digital inputs for sensors, divided in 8 groups: (IN1 GND1), (IN2, GND2), …, (IN8, GND8).
- Page 8 Specifications Model VP-504/508 VP-504H/508H Video Stadard Support NTSC / PAL Composite video Video Input 4 or 8 Audio Input VGA Output 24 bit true color TV-Out Support NTSC / PAL Composite video, RAC Connector CD-RW Support IDE CD-RW 3.5” drive bay...
-
Page 9: Chapter 1: Introduction
/ software configurations. A sample configuration is shown below. The installation is easy: All you have to do is to plug the power and assign VPON an IP address for Internet connection. Then, you can view the video through your browser, Internet Explorer at any time, anywhere. -
Page 10: Vpon Main Features
1.1 VPON Main Features Video & audio recording Up to 4 or 8 camera inputs (color or B/W) Up to 30 fps on each camera for local monitoring Record / display / playback simultaneously Built-in QUAD / MUX functions for local monitoring... -
Page 11: System Requirements
1.2 System Requirements Composite CCD camera, V8 or camcorder… (NTSC or PAL standard) The equipment for connecting to network: 1. Network mode: RJ-45 Ethernet network port connected to Internet and a public IP address 2. Others: RS-232 Port and a serial cable for connecting to host PC. 3. -
Page 12: Chapter 2: Vpon Network Operations
Chapter 2: VPON Network Operations 2.1 First Time Step-by-step Setup For first time startup, VPON is set to default value when it is delivered from factory. The default settings of VPON are as following. Running Mode Network Mode User’s Name WEBMONITOR User’s Password... -
Page 13: Connecting Vpon To A Pc For Simple Networking
II. Default IP address of VPON is 192.168.10.10. ： In order to access it , IP address of the PC has to be in the same LAN as VPON. It is recommended to set IP address of the PC into 192.168.10.XXX, which XXX is within the range of 0 to 255. - Page 14 255.255.255.0 Note: Please keep record for the original IP address and Subnet Mask.. After the configuration of VPON is finished, you may want to fold back the host PC to its original values. 5. Run a web browser and connect to http://192.168.10.10...
- Page 15 When the following window appears. Click on the Download DCS.EXE” link. 7. The download will begin and the following window will appear. 8. Click Open to download and install the new plug-in. The download status is displayed and you are prompted for an installation location. 9.
-
Page 16: Surveillance Screen Panel
10. When installation is complete you will be able to view the VP- 504(H)/508(H) Home Page. 2.2 Surveillance screen panel The Surveillance Screen Panel is very similar to the one on the local GUI. See Surveillance screen panel on chapter3. There is no Sequence button one the network GUI. -
Page 17: Exit Button
2.6 Setup button Click the SETUP button to display the setup screen.Use the setup screen to change user definable parameters for the VP-504(H)/508(H). Choose a submenu from the list on the left and click the link to display it. 2.6.1 System Information Click the System Information link to display the System Information page. -
Page 18: Audio Setting
2) High quality level causes larger data rate for both storage & transmission. 2.6.3 Audio Setting Use the Audio menu to set up the audio parameters for the VP-504(H)/508(H). You can set following parameters: 1. Audio Source: Select an audio input and output source. -
Page 19: Set Date And Time
4. Microphone Control Timeout：There is only a user can control microphone at a time. This timeout value limits the maximum period in seconds that user can own the right without any bother except that from the administrator. Once timeout, anybody can request to gain the control right of Microphone except the original owner. -
Page 20: System Configuration
Select one of four Compression algorithms. There are H.263, JPEG, Motion-JPEG and MPEG4. Set Video resolution 320x240 or 640x480. Click the “Done” button and go back to the home page of VPON.VPON will save these parameters and reboot. During the period of rebooting, VPON will not transmit any video. -
Page 21: Set Serial Ports
(from 1 to 6) and the timeout of exclusive control right. At a given time, there is only one user can control the camera connected to VPON. This time-out value is the maximum period in seconds the user can own the right without any interrupt except coming from the administrator. -
Page 22: Alarm & Remote Control
1. You can choose the item "Set Names and On-Screen Display" from VPON home page to enter this page. You can set the server name if you have multiple VPON on network. You can also set camera names to indicate the physical location of the cameras or any identification for easy understanding. -
Page 23: Set User's Authority
2.6.11. Set User’s Authority Use the Set User’s Authority page to set the individual privileges of up to 256 users. Enter the user number in the user field. Assign a name and password in the respective fields. To restrict users from viewing particular cameras, select the required cameras from camera 1~8. Enable Camera Control , Audio and playback of the video recording as needed. -
Page 24: Record Schedule
2.6.13 Record Schedule Use the Record page to set up to 16 automatic recording schedules. For each record schedule, select the day and start and stop times for recording. For each camera, select off, Normal Recording, Motion Detection Recording , GPI Trigger Recording or MD& GPI Trigger Recording to record only when motion is detected. -
Page 25: Gpi Trigger Recording
Trigger. Click “Done” button to save the new setting. 2.6.16 Set Pre-Alarm On the left side of VPON main page, click “Pre-Alarm” to set pre-alarm function When enable this function, VPON will record camera video before triggered event happens or motion detects. -
Page 26: Playback Recorded Files
2.6.17. Playback recorded files The playback page enables you back a video recording of your choice. Specify the day and time in the To and From fields and click the Play file on this time. Field to play back files in the specified time duration. -
Page 27: Search
11. “Source” - You can select the file status from “Source”, “Motion”, or “GPI” to play the recorded data. 11-1 “Video Source” - When selecting “Source”, VPON will play the recorded video from general camera sources. 11-2 “Motion Detection” - When selecting “Motion”, VPON will play the recorded video from videos recorded by motion detection. -
Page 28: Send Mail
2.6.19. Send Mail The VP-504(H)/508(H) can send a snapshot by E-mail when triggered by an alarm. Use the Send Mail page to set E-mail details for each camera. Select GPI or motion detection to trigger Put e-mail address Select the camera... -
Page 29: Back To Home Page
Fill in all the details using mouse and keyboard and click Done when complete. 2.6.21 Back to Home Page The Back to Home Page link will redirect you back to the VP-504(H)/508(H) home page. 2.6.22 View Video Without Plugins You can view video even if the machine you are working on does not have the plug-ins necessary for full functions. -
Page 30: View Video Without Plugins
You will need to enter an administrator user name and password to view without plug-ins. -
Page 31: Graphic User Interface (Gui)
Graphic User Interface (GUI) for Chapter 3: VPON Graphic User Interface (GUI) VPON GUI (Graphic User Interface) Date/Time Hard Disk Space I) Play II) LIVE III) IV) GOTO V) POS VI) SETUP VII) VIDEO PTZ Control Panel SET: Set PTZ Camera Position... -
Page 32: Gui Functions Description
II. GUI Functions Description 1. “Play” Key Function Press “Play” key to playback a recorded file. A window will pop up on the screen display a table of the recorded files in a list of one file per hour. Select the desired time slot and press “OK” key to start playing the recorded data. Please see Figure 3.2.1. -
Page 33: Surveillance Screen Panel
2. “Surveillance Screen” Panel The surveillance screen’s selection panel includes screen segment selection, previous/next screen, switch channel, and camera connection status. See Figure 3.2.2. Screen Segment Selection, Previous/Next Page, and Sequence Show Numbering Status and Selection of Connected Camera Figure 3. 2.2 Function Selection: (A) Full Screen (E) Next Page... -
Page 34: Io" Key Function
You can do the same to the other 7 groups of DI. Active GPI (Input) and GPO (Output) points depend on the IO module connected Figure 3.2.5 Note: The GPIO module of the VP-504(H)/508(H) has “8 GPI” points and “ 2GPO”... -
Page 35: Goto" Key Function
points. Function of the GPI Indicating Light： First Row of GPI: Indicating light will be ON immediately when the alarm is triggered. The staff at the site can see the alarm light on the screen within the shortest time, and the light on the first row has the prompt reporting function. -
Page 36: Set Up" Key Function
Figure 3.2.7 6. “SET UP” Key Function 【System Setup】 The setup contents of the VPON system include parameters of the system setup, record setup, alarm and motion detection. Please see Figure 3.2.8. Press “SET UP”, the system set-up screen will appear. -
Page 37: Password Protect
The Password Protect screen helps you to enable password protection, set administrator and user passwords, set the auto lock period and lock the system immediately. Enabling password protection prevents unwanted users from accessing or configuring the VP-504(H) /508(H). Enter new passwords for Admin and User in the corresponding fields. Set an auto lock time if required in the Auto lock after field. - Page 38 Local Display: enables viewing the selected camera video signal on the local display. If this option is set to Off, the camera is still optional and its video can be recorded if needed. Video Input： Use the Video input menu to assign a number to each camera connected to the VP-504 (H)/508(H).
-
Page 39: Disks
Usually you will want to call the camera connected to port 1, “Camera 1” but you could assign it any number between 1 and 8. Disks： Use the Disks menu to configure network disks that the VP-504(H)/508(H) uses to record data. If no disk is connected, (No Device) appears in the Disk Device field. TV output：... -
Page 40: Osd Text
OSD Text： Use the OSD Text menu to assign text for each of the connected cameras. For instance, you may like to have text Saying “c1” on the image from a camera installed in the c1. To display the OSD text: 1. -
Page 41: Ptz Setup
PTZ cameras used and set each camera that has one connected to Yes. The timeout value represents the time given to the cameras to respond a command. TCP/IP： Use the TCP/IP menu to enter TCP/IP address details for the VP-504(H)/508(H). -
Page 42: Account
Account： Use the Account menu to set up an administrator name and password as well as the super user name and passwords. You can also use this menu to set up to 256 additional users, their passwords and their permissions on the system. Select the user number and assign a Name and password to it. -
Page 43: Serial Ports
Serial ports： The RS232 serial ports (COM1) is used to attach PTZ camera control cables, external modems, or Data Capture to the VP-504(H)/508(H). Use the Serial Port menu to set parameters for the serial ports. System info： Use the System Info menu to display the system information such as disk parameters,... -
Page 44: Date/Time
NOTE：There are no configurable fields on this page. Click OK or Cancel to leave the screen. Date/Time： Use the Date/Time menu to set the precise time and date on the system. You can also set the local time zone in the T.Zone field. ISP：... -
Page 45: Registry
The Registry menu enables you to set up the registry server for your device. If you are using a dynamic IP address for the VP-504(H)/508(H), you can set up the device to post its IP address to the VPON registry server. You can then look up your IP from the MAC address or server name. -
Page 46: Algorithm
Algorithm： Use the Dimension option to set the resolution of the video (320x240 or 640x480). We default resolution setting is 320x240. Use the Algorithm option to set compression standard of the video (H.263, MPEG4, JPEG or M-JPEG). The default compression is MPEG4. NTP setup：... -
Page 47: License
License： The function of POS will be activated after input the license key. Click the Register button when you see the “#POS” , it mean register successful. Note: The license in the following is an example only. Each DVR should have different license number. -
Page 48: Revise Firmware
Revise firmware： Use the Revise Firmware menu to upgrade the VP-504(H)/508(H) firmware. Click Revise Firmware?(Yes/No) to start the firmware upgrade process. Click Cancel or No to abort the attempt. Reboot system： Use the Reboot System menu to reboot or shutdown the system. -
Page 49: Dvr Setup
【Record Setup】 Click the “Record Setup” option in the system setup to show the screen as shown in Figure 3.2.9. Figure 3.2.9 DVR setup： Use the DVR menu under the Record Setup tab to set the Digital Video Recorder parameters. Select either Auto Stop or Cyclic Recording. -
Page 50: Gpi Trigger
GPI Trigger： Use the GPI Trigger menu under the Record Setup tab to enable recording video from specified cameras when triggered by an external alarm (GPI) connected to the system. For instance, you may want to record video from a camera installed at your front door when the door lock is opened. -
Page 51: Alarm Setup
【Alarm】 Alarm setup： Use the Alarm Setup menu under the Alarm tab to define what action is taken when an alarm is triggered. Through this menu, you can set up an E-mail address to which an E-mail is sent when the alarm is generated, or set up the device to display a video popup message on your monitor, or place a voice call. -
Page 52: Gpi Alarm
A voice call message can be recorded using an internal or external microphone, and can be played back using an internal or external speaker. Up to 60 voice messages can be recorded and stored on the VP-504(H)/508(H) and used for different alarm events. -
Page 53: Motion Alarm
Motion Alarm Use the Motion Alarm menu under the Alarm tab to set what actions are taken when a motion detection alarm is generated. You can set up the alarm through a message, a beep, a video popup, a voice call, or E-mail. Video lost Use the Video Lost menu under the Alarm tab to set what actions are taken when video signal from a camera is not available. -
Page 54: Disk Error
is set to Auto Stop. You can set up the alarm through a message, a beep, voice call, or E-mail. Disk error Use the Disk Error menu under the Alarm tab to set what actions are taken when there is an error while accessing the disk. -
Page 55: Motion Detection
【Motion Detection】 Click the “Motion Detection” option in the figure and the screen will show as Figure 3.2.10. Figure 3.2.10 Motion Detection Setup Procedure 1. Camera: Select the camera for setting motion detection 2. Enable (Yes/No): Turn On/Off the motion detection. 3. -
Page 56: Pos" Key Function
button to make a square sensitive to motion. Use the right mouse button to make it insensitive. Click OK to save changes. 7. “POS” Key Function Click the “POS Key Function in the figure and the screen will show as Figure 3.2.11. -
Page 57: Video" Key Function
Figure 3.2.12 Users can know current recording and file status from the Status panel. Following status are displayed: Data: shows the time and area of the recorded data during the recording period. Motion: shows the location where motion detection was triggered during the recording period. -
Page 58: Ptz Panel" Key Function
(1) (2) (3) (4) (5) Figure 3.2.13 Drag the following items with the mouse to adjust the desired value. (1) Brightness (2)Contrast (3) Saturation (4)Hue (5)Quality 10. “PTZ Panel” Key Function PTZ ( pan/ tilt /zoom ) Control: It is a remote camera control. Users can control the surveillance screen through the remote camera (PTZ) lens aiming at the preset monitoring position of the PTZ camera or the monitoring angle of the camera for adjustments, such as Zoom in/out, Focus in/out, and moving UP/DOWN/Left/Right to adjust and determine the... -
Page 59: Play Panel' Key Function
PTZ Setup Preset points Recall points Zoom In/Out Focus Moving Speed Select Figure 3. 2.14 To setup preset positions Move camera to the position you want and then press the number under “Set” to save it as pre-set point. There are 6 pre-set points. To call back preset positions Press a number under “Call”... - Page 60 (10) (12) Figure 3.2.15 (14) (11) (13) Functional Description (1) Date & time indicator -- The minute & second indicator here will vary with the playback progress. (2) File size of current playback file (3) Play back speed indicator – Indicate current playback speed (4) Step forward &...
