Vpon VP-504 User Manual

Network dvr system
Hide thumbs Also See for VP-504:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Software User Manual
Network DVR System
Hardware User Manual
VP-504 / 508
VP-504H / 508H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP-504 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vpon VP-504

Summary of Contents for Vpon VP-504

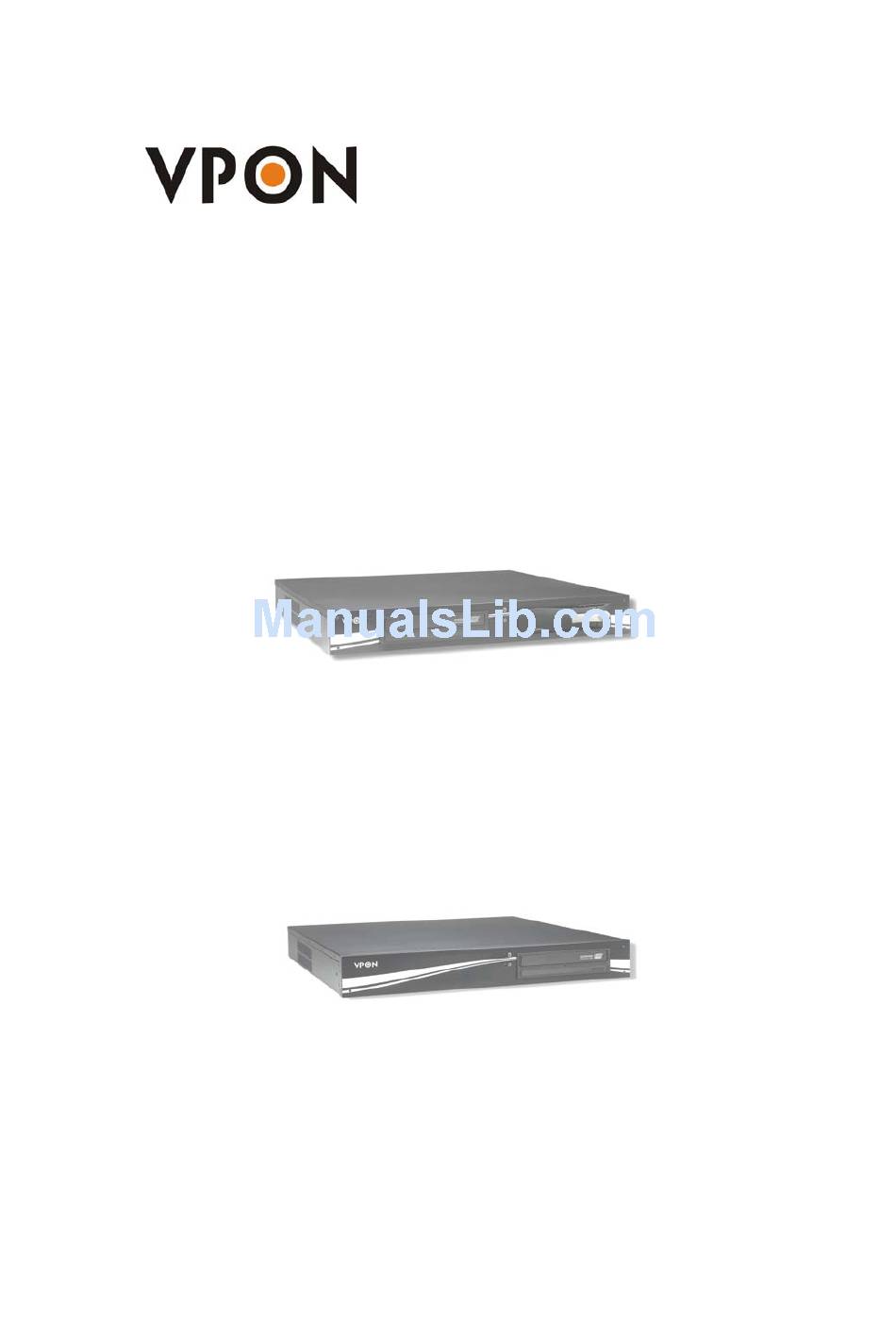

  • Page 1 Network DVR System Hardware User Manual VP-504 / 508 VP-504H / 508H...
  • Page 2 The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice. Note: Formosa21 will not be obligated to the responsibility outside the scope of VPON DVR. Trademarks VPON ®...
  • Page 3 Retain this manual with the original bill of sale for future reference and, if necessary, warranty service. When unpacking your VPON unit, check for missing or damaged items. If any item is missing, or if damage is evident, DO NOT INSTALL OR OPERATE THIS PRODUCT.

  • Page 4: Table Of Contents

    Chapter1. Getting Started ………………………………………………………………………..1 1.1 Unpacking the VP-504(H)/508(H) ……………………………………………………1 1.2 Introducing the VP-504(H)/508(H) …………………………………………………2 1.3 Overview ……………………………………………………………………………..2 1.4 Connecting peripheral devices to VP-504(H)/508(H) ……………………………5 1.5 Turning on the VP-504(H)/508(H) ……………………………………………….5 1.6 About running modes ………………………………………………………………6 1.7 Graphic User Interface ……………………………………………………………….7 “PLAY”...

  • Page 5: Chapter1. Getting Started

    Chapter1. Getting Started The Chapter introduces the VP-504(H)/508(H), explains how to set the unit up for the first time, and covers basic operation. More detailed explanations of the functions of the VP-504 (H)/508(H) are covered in later chapters. 1.1 Unpacking the VP-504(H)/508(H) If any of the following items are missing or appear damaged, contact your vendor immediately.

  • Page 6: Introducing The Vp-504(H)/508(H)

    /software configurations. The installation is easy: All you have to do is to plug the power and assign VPON an IP address for Internet connection. Then, you can view the video through your browser, Internet Explorer at any time, anywhere. It is perfect for factory/office monitoring, ATM surveillance, children care, security system, tourism, sales presentation and more...VPON is the new era of the network...
  • Page 7 PC for the configuration / browsing 1. Pentium 4 CPU or better, desktop PC or notebook 2. 256 MB RAM or above 3. AGP VGA Card 4. Microsoft Windows 98/2000/ME/XP or above 5.Internet Browser (Microsoft Internet Explorer 6.0 or above) 1.3.3 Front panel A) VP-504/508...
  • Page 8 CD-ROM HDD light Power light Removable hard disks B) VP-504H/508H HDD light Power light CD-ROM 1.3.4 Back panel 1 Power switch LAN ports 2 Digital I/O Audio ports 3 Keyboard and Mouse ports (PS/2) TV out ports 4 Video in ports Video out ports 5 Reset Power input...

  • Page 9: Connecting Peripheral Devices To Vp-504(H)/508(H)

    When the VP-504(H)/508(H) is fully connected up as described in Connecting peripheral devices to the VP-504(H)/508(H) on the page 5, turn on the machine via using the power switch on the back side of the machine. (Back panel on page 4 for the locations.)

  • Page 10: About Running Modes

    VP-504(H)/508(H) to work on your network. When you have been allocated a new address by your network administrator, use the remote control to enter it into the VP-504(H)/508(H). See the software manual in the CD for detailed instructions.

  • Page 11: Graphic User Interface

    1.7 Graphic User Interface (GUI) VPON GUI (Graphic User Interface) Date/Time Hard Disk Space I) Play II) LIVE III) IV) GOTO V) POS VI) SETUP VII) VIDEO PTZ Control Panel SET: Set PTZ Camera Position (6 sets) Call : Call Set Surveillance...

  • Page 12: Surveillance Screen" Panel

    Figure1.1 Fields of the file table includes: (1) Lock -- A “*” indicates this file was locked. A locked file cannot be deleted or over written. (2) Date/Time -- Indicate the date & time this file was created. (3) Motion Detection -- A “M”...

  • Page 13: Live" Function

    Figure 1.3 3. “LIVE” Key Function Press the “Live” key directly to show the live video at the camera site. Users can view the live video from the surveillance screen. See Figure 1.4. Description: a 4-screen segment. LIVE Figure 1.4 4.

  • Page 14: Goto" Function

    IO module connected Figure 1.5 Note: The GPIO module of the VP-504(H)/508(H) has “8 GPI” points and “ 2GPO” points. Function of the GPI Indicating Light： 1. First Row of GPI: Indicating light will be ON immediately when the alarm is triggered.

  • Page 15: Chapter2. Network Mode

    Otherwise, enter the default login name “webmonitor” and the password “oyo” then clock OK. 5. If you are using the VP-504(H)/508(H) for the first time, you are prompted to install Live Video ActiveX. Download and run the file to install ActiveX. If you choose not to install ActiveX, you can view videos from the VP-504(H)/508(H) by clicking on the View Video without Plugins link at the bottom of the page.

  • Page 16: Using Xdsl Or Cable Internet

    2.2.3 Finding the IP address of the VP-504(H)/508(H) on the registry server 1. To find the IP address of the VP-504(H)/508(H) when using DHCP, you need to search the registry server which the VP-504(H)/508(H) is registered to use a computer connected to the Internet and a standard browser.

  • Page 17: Using Dial-Up Internet

    8. Enter the number of the phone line connected to the VP-504(H)/508(H), as well as the administrator user name and password. 9. To access the VP-504(H)/508(H), use an Internet browser on the PC to access 10.0.0.1. Note : As this a PPP connection, only one user can access the VP-504(H)/508(H) at a time.
  • Page 18 Appendix A： Notification 1)VP-504(H)/508(H) Rear Panel 2) Digital I/O Box Connections The digital I/O box is used to connect to alarm input and relay output. I/O box(8 sensor input、2 relay output) External alarm input: The I/O box allows 8 digital inputs for sensors, divided in 8 groups: (IN1 GND1), (IN2, GND2), …, (IN8, GND8).
  • Page 19 － ＋ NC 1 NO 1 COM 1 － ＋ DC power Specifications Model VP-504/508 VP-504H/508H Video Stadard Support NTSC / PAL Composite video Video Input 4 or 8 Audio Input VGA Output 24 bit true color TV-Out Support NTSC / PAL Composite video, RAC Connector...
  • Page 20 Q: You can access VPON in intranet, but failed to access it in internet. 1. Verify your intranet is connected to internet. 2. Verify if a valid public IP is assigned to VPON or a valid public IP is mapped to a valid local IP assigned to VPON.
  • Page 21 3. Clear your browser’s cache and make browser to check if there is newer version of web page at every visit. Q: If you can access video of VPON in intranet, but failed to access video from internet: 1. Check the settings of firewall and proxy server. VPON use standard HTTP protocol and port 80.
