Summary of Contents for Vpon VP-9008

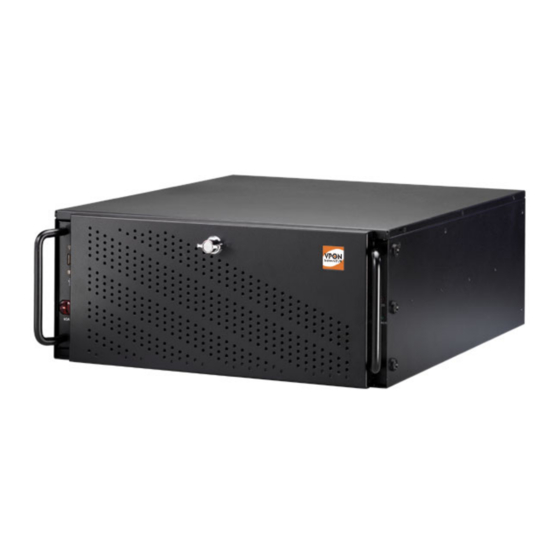

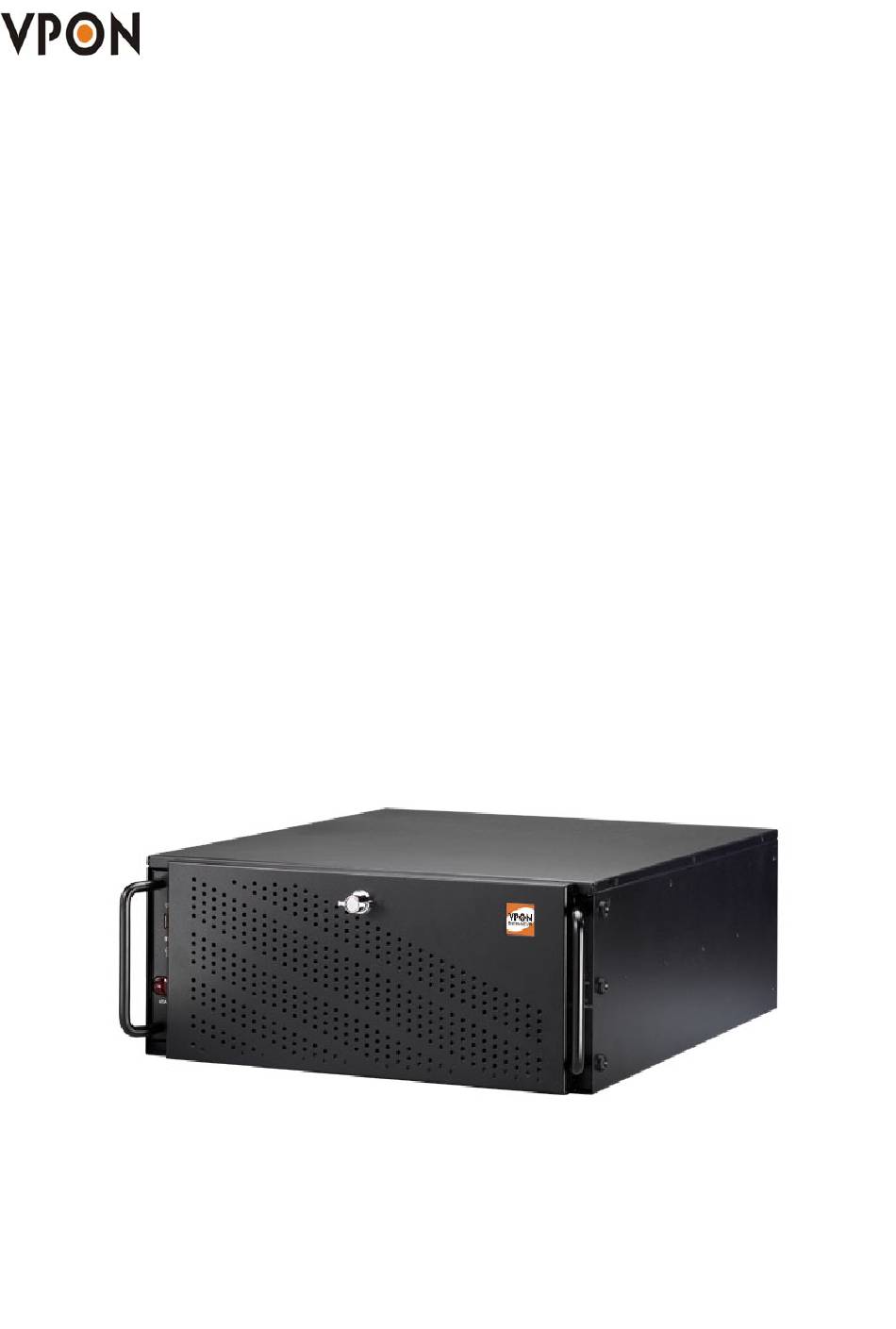

- Page 1 Network DVR System Your best choice for digital video recording and remote surveillance VP-9008/9012/9016 Hardware User Manual (Version:V1.4.3) www.vpon21.com...
- Page 2 When unpacking your VPON unit, check for missing or damaged items. If any item is missing, or if damage is evident, DO NOT INSTALL OR OPERATE THIS PRODUCT. Contact your dealer or us for assistance.
-
Page 3: Table Of Contents
Contents Contents 1.Introduction 1.1 Main Features for VP-9008 / VP-9012 / VP-9016-----------------------------------------------------------1 1.2 Product Specifications-------------------------------------------------------------------------------------------2 1.3 System requirements---------------------------------------------------------------------2 1.4 Front Panel--------------------------------------------------------------------------------3 1.5 Back Panel---------------------------------------------------------------------------------3 2.Turning on the VP-9008 / VP-9012 / VP-9016 2.1 Change from GUI modes to IR mode --------------------------------------------------------------------4... -
Page 4: Main Features For Vp-9008/ Vp-9012 / Vp-9016
DVR are real-time audio & video recording and up to 16 cameras in one system. It was powered by VPON network DVR on chip and thumbnail browsing technology. User can do the live surveillance, recording, playback, remote viewing and backup at the same time. -
Page 5: Product Specifications
Chapter 1. Introduction 1.2 Product Specifications: Model VP-9008 VP-9012 VP-9016 Support NTSC/PAL composite video Video Input (connectors) Audio Input Sensor Input/ Relay Output VGA Output 24 bit true color IR Remote Control Built-in IR receiver HDD Mobile Rack CD-RW Compression Standard MPEG4, H.263, M-JPEG, JPEG... -
Page 6: Front Panel
Chapter 1. Introduction PC for the configuration / browsing 1. Pentium 4 CPU or better, desktop PC or notebook 2. 128 MB RAM or above 3.AGP VGA Card 4. Microsoft Windows 98/2000/ME/XP or above 5. Internet Browser (such as Microsoft Internet Explorer 6.0 or above) 1.4 Front Panel USB 2.0 IR Receiver... -
Page 7: Turning On The Vp-9008 / Vp-9012 / Vp-9016
Change it from mouse mode to IR mode. The unit will reboot. If the VP-9008 / VP-9012 / VP-9016 is in mouse running mode, a graphical user interface (GUI) with clickable buttons will be displayed on screen as shown below. In this running mode, the IR remote control will not function. - Page 8 Chapter 2. Turning on the VP-9008 / VP-9012 / VP-9016 2. From the list on the left of the screen, click the Running Mode heading to display the running mode menu. 3. From the Control dropdown box, choose IR Control.
-
Page 9: Appendix
Appendix Appendix A: Operation via local keyboard To get VP-9008 / VP-9012 / VP-9016 up and running via local keyboard, a keyboard is required. The interface of VP-9008 / VP-9012 / VP-9016 operation is as following figure. 2~13 14 15 18 19 1. -
Page 10: Appendix B: Irda Mode (Ir Remote Control)
Appendix B: IrDA mode (IR Remote Control) Users can operate VPON via IR remote control or local keyboard. There will be a OSD screen on the VGA monitor. Before operating VPON via IR remote control, please make sure that VPON has... - Page 11 N. Screen Display Change display mode to single or quad. The In turns button is not used for the VPON series. The IR remote control has four gray triangular buttons surrounding the OK button, resembling a baseball diamond. These are the primary buttons that you will be using the majority of the time.
-
Page 12: Appendix C: Guide To Revise Firmware Of Vpon
1. If you want to download and update the system firmware, please check with your distributor to verify eligibility. 2. Open Windows Internet Explorer and type in your VPON DVR IP address like this: “http://VPON IP/revise.htm” 3. Browse for the saved copy of the updated firmware and click revise program then start to the update process. -
Page 13: Appendix D: View Video By Pda Or Cell Phone
Explore in your cell phone or PDA. 1. Open a browser window on a terminal that has network access to the VP-9008 / VP-9012 / VP-9016 2. Type the IP address (http://DVR IP/pdamain.htm) of the VP-9008 / VP-9012 / VP-9016 in the browser address bar. -
Page 14: Appendix F: Troubleshooting
• Clear the ARP list. • If you are running MS Proxy Client on your PC, and the IP address assigned to the VP-9008 / VP-9012 / VP-9016 is not a valid local IP on the network, allocate a valid local IP address to the VP-9008 / VP-9012 / VP-9016 or disable MS Proxy Client from the Control Panel. - Page 15 • Verify your intranet is connected to the Internet. • Verify if a valid public IP is assigned to the VP-9008 / VP-9012 / VP-9016 or a valid public IP is mapped to a valid local IP assigned to VP-9008 / VP-9012 / VP-9016.
