IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS.

Please read and save these instructions. This manual contains important
instructions for the ON Series UPS family. Follow these instructions during the
unpacking, installation and maintenance of the UPS and batteries. If you have a
problem with the UPS, please refer to this manual before calling the ONEAC
Technical Services. The Troubleshooting section on page 24 addresses most
UPS-related issues.
Licenses and Trademarks
ONEAC, ON Series, Virtual Kelvin Ground, ONBoost and Environmental
Reference Ground, are all registered trade marks of ONEAC Corporation. All
other trademarks, product and corporate names are the property of their respective
owners.
ONEAC USA
27944 North Bradley Road
Libertyville, IL 60048-9700
USA
Telephone: (847) 816-6000
Toll Free: (800) 327-8801
Facsimile: (847) 680-5124
www.oneac.com
Entire contents copyright © 2005 ONEAC Corporation. All rights reserved. Reproduction in whole or
in part without permission is prohibited. All information subject to change without notice.
913-408 @ Rev. D
ON Series m User Instruction Manual

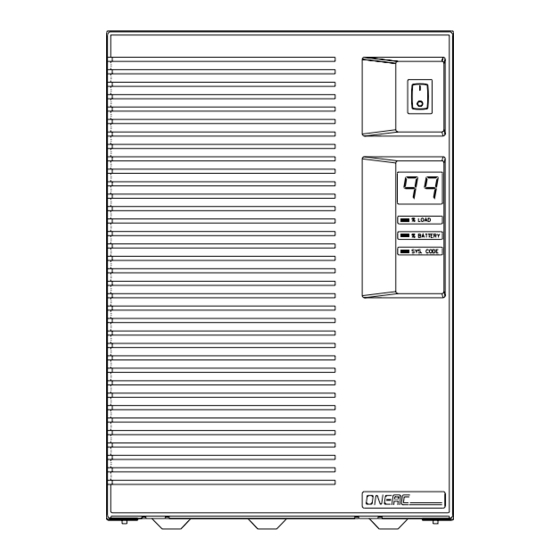

ON Series m UPS User Manual
ON Series
User Instruction Manual
m UPS
®
ONEAC EUROPE
George Curl Way
Southampton, Hampshire SO18 2RY
Telephone: +44 (0) 2380 610311
Facsimile: +44 (0) 2380 610852
11/05

Advertisement

Table of Contents

Troubleshooting

loading
Need help?

Need help?

Do you have a question about the ON Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ONEAC ON Series

  • Page 1: Important Safety Instructions

    Facsimile: +44 (0) 2380 610852 Facsimile: (847) 680-5124 www.oneac.com Entire contents copyright © 2005 ONEAC Corporation. All rights reserved. Reproduction in whole or in part without permission is prohibited. All information subject to change without notice. 913-408 @ Rev. D...
  • Page 3: Table Of Contents

    UPS Disposal ..................24 Troubleshooting ................24 Warranty ..................27 Batteries ..................27 Life Critical Applications ............. 27 Disclaimer .................. 27 Limitations of Warranty .............. 28 Exclusive Remedies ..............28 Return Procedure ............... 28 ON Series m UPS User Instruction Manual...
  • Page 5: Introduction

    We take pride in every unit that leaves our manufacturing facility Registering Your To ensure that your ON Series e UPS model and serial number are registered, complete and mail the ONEAC UPS enclosed postage-paid warranty card or register on line at www.oneac.com.
  • Page 6: Fcc Compliance

    The user is responsible for correcting the interference. Please check with ONEAC Technical Services before attempting to repair or return any ONEAC product. If an ONEAC UPS needs repair or replacement, ONEAC Technical Services will issue a Return Material Authorization (RMA) number along with instructions on how to return the UPS.
  • Page 7: Safety

    UPS may be lethal. Internal components are powered even when the power switch is in the “OFF” position. Even with the battery disconnected and the unit unplugged, energy is stored in high voltage capacitors and represents a severe shock hazard. ON Series mUPS User Instruction Manual...
  • Page 8: Set-Up And Installation

    CAUTION: Do not cover or install the UPS in a confined or enclosed space. Grounding the Unit To eliminate shock hazard, the ON Series e UPS needs to be connected to a properly grounded AC receptacle. Before applying power, verify that the available line voltage and frequency matches those listed on the rear-panel label.
  • Page 9: Changing Frequency

    Set-Up and Installation Changing Frequency This ON Series m UPS was designed to operate at frequencies of either 50 Hz or 60 Hz. The table below shows the frequency settings as shipped from the factory. Table 1. Frequency Settings Model...
  • Page 10: Connections

    UPS to the upright position. Connections Connecting External Battery Enclosure(s) For additional runtime, some ON Series m UPSs can use extra batteries housed in a separate enclosure. Use only ONEAC part number ONMXBC-217. The UPS power module and battery enclosure(s) are shipped separately.
  • Page 11 Power Switch fig. 3: ON Series m UPS Front Panel I and J models ON Series m UPSs with I and J in the part numbers are equipped with (1) IEC 320 (M) input connector ON Series mUPS User Instruction Manual...
  • Page 12 UPS. See fig. 5. If more than one device will be connected to the UPS, use additional IEC 320 (M/F) cords. Contact ONEAC for additional IEC 320 (M/F) cords if needed. fig. 5: Supplied IEC 320 (M/F) Cord 1. Disconnect the input power cord(s) from the device(s) the UPS will be protecting.
  • Page 13 UPS to the AC utility power source as shown in figure fig. 7. fig. 7: Connecting the ON Series UPS to AC Utility Power Source For connecting more than one device to be protected by the same UPS, use additional IEC 320 (M/F) cords, see fig.
  • Page 14 Set-Up and Installation When the power switch is toggled to the ( | ) “ON” position, power is immediately supplied to the output connectors. The ON Series m UPS will perform a self-test when turned on. Toggling the power switch to the( ) “standby”...
  • Page 15: Self Test

    When power returns, the UPS will return to on-line operation and the battery(ies) will automatically recharge. Overload If the load on the UPS exceeds its capacity, the red and green LEDs will blink. The audible alarm will sound once every minute. ON Series mUPS User Instruction Manual...
  • Page 16: Indicator Lights

    UPS is on inverter. If blinking, it indicates the battery is charging when on line or low battery if running on inverter. RED - When the red LED is on solid, it indicates there is a problem with the battery charger or ON Series mUPS User Instruction Manual...
  • Page 17: Communications (Factory Installed Options)

    A positive signal (3 to 24 V DC) on pin 20 with respect to pin 21 shuts down the UPS. A signal at or below ground allows the UPS to keep running. ON Series mUPS User Instruction Manual...
  • Page 18: Features And Specifications

    Shutdown (to UPS) Shutdown (to UPS) Interface Port ON Series m 600 ON Series m 300 fig. 11: ON Series m Interface Port Features and Surge voltage withstand capability: ANSI/IEEE C62.41 Category A&B, 6 kV/200 & 500 Amp, Specifications 100 kHz ringwave Surge voltage let-through (max): Less than 10 V Normal mode (L-N), less than 0.5 V Common mode...
  • Page 19 3-6 year typical lifetime, hot-swap replaceable Recharge time to 60% available capacity: 6-10 hours The ON Series m UPS models are listed for UL2601-1 and CSA-C22.2 compliance and carry the CE Mark for testing to the EN60601-1 standard for Medical Electrical equipment. Designs are compliant with all specification parameters for Class...
  • Page 20: Specifications And Characteristics

    [pin 20 (+) to pin 21 (-)] Input Signal (high shuts down inverter) Maximum Collector Voltage (VDC) Maximum Collector Current (mADC) Maximum Output Voltage @ 5 mADC Table continued on next page Output Type opto-isolated open collector transistor ON Series mUPS User Instruction Manual...
  • Page 21: Physical/Electrical Specifications/Performance Characteristics

    Ringwave Less than 10 V Normal mode (L-N), less than 0.5 V Common mode (N-G) Surge Voltage Let-Through when subjected to C62.41 6kV Cat. A pulse Normal and Common Mode Clamping instantaneous Response Time ON Series mUPS User Instruction Manual...
  • Page 22: Safety & Approvals

    EN 50081-1 / 01.92 (Generic Emission - Residential, Commercial and Light Industrial) EN 60601-1-2 / 05.93 (Medical equipment) EN 55011 / (ISM Equipment) EN 55022 / 08.94 (ITE Equipment) EN 61000-3-2 / 04.95 EN 61000-3-3 / 01.95 ON Series mUPS User Instruction Manual...
  • Page 23: Typical Runtime

    250 VA 0:07 0:20 300 VA 0:05. 0:15 NOTE: Due to application specific conditions, your actual run time may be different. Table 8. ON Series m 600 VA Extendable Runtimes Typical Runtime ONm600X Plus1 Plus2 Plus 3 Plus 4 Plus 5...
  • Page 24 United States UL2601-1 (Medical Electrical Equipment, Part 1 General Requirements for Safety) Canada CSA 22.2 EN 60601-1 Medical Electrical Equipment Europe EN60950 Information Technology Equipment as amended by EN 50091-1 Standard for Uninterruptible Power Systems ON Series mUPS User Instruction Manual...
  • Page 25: Battery Consideration

    (+) terminal on the battery. NOTE:In the next step be aware that a small arc may occur while connecting the black wire to the battery terminal. 6. Connect the black wire to the (-) terminal on the ON Series mUPS User Instruction Manual...
  • Page 26: Replacing External Battery Enclosure(S)

    Battery Wires Battery fig. 12: ON Series m UPS Battery Replacement Replacing External For additional runtime, the ON Series m 600 VA Battery Enclosure(s) UPS supports extra batteries housed in a separate enclosure. The UPS power module and battery enclosure(s) are shipped separately.
  • Page 27: Battery Disposal

    3 or in Europe at +44 (0) 2380 610311 for an RMA number. Mark the RMA number on the packing slip and shipping carton. 2. Phone ONEAC Corporation for the number of a local battery collection site (US only). ON Series mUPS User Instruction Manual...
  • Page 28: Ups Disposal

    You can access these numbers on the back panel of the unit on a label located near the receptacles. Always check with ONEAC Technical Services before attempting to repair or return any ONEAC product. ON Series mUPS User Instruction Manual...
  • Page 29: Troubleshooting

    Troubleshooting If you have questions or problems regarding you ON Series m UPS, refer to the troubleshooting table below. Table 10. Troubleshooting Problem Possible Cause Solution Front Panel Switch not Switch the Power Switch to (I) “ON”. Reduce the load on the UPS by UPS will not turn ON UPS’s input circuit...
  • Page 30: Warranty

    ONEAC’s option, any defective component, circuit board, or module contained within the product only when it is returned with an ONEAC Return Material Authorization (RMA) number to ONEAC or to an ONEAC-designated repair facility. In all cases, the...
  • Page 31: Limitations Of Warranty

    Except as set forth herein and except as to title, there are no warranties, express or implied, or any affirmations of fact or promises by ONEAC for the products, their merchantability, or fitness for any particular purpose. In no event shall ONEAC be liable for lost profits, goodwill or any other special or...
