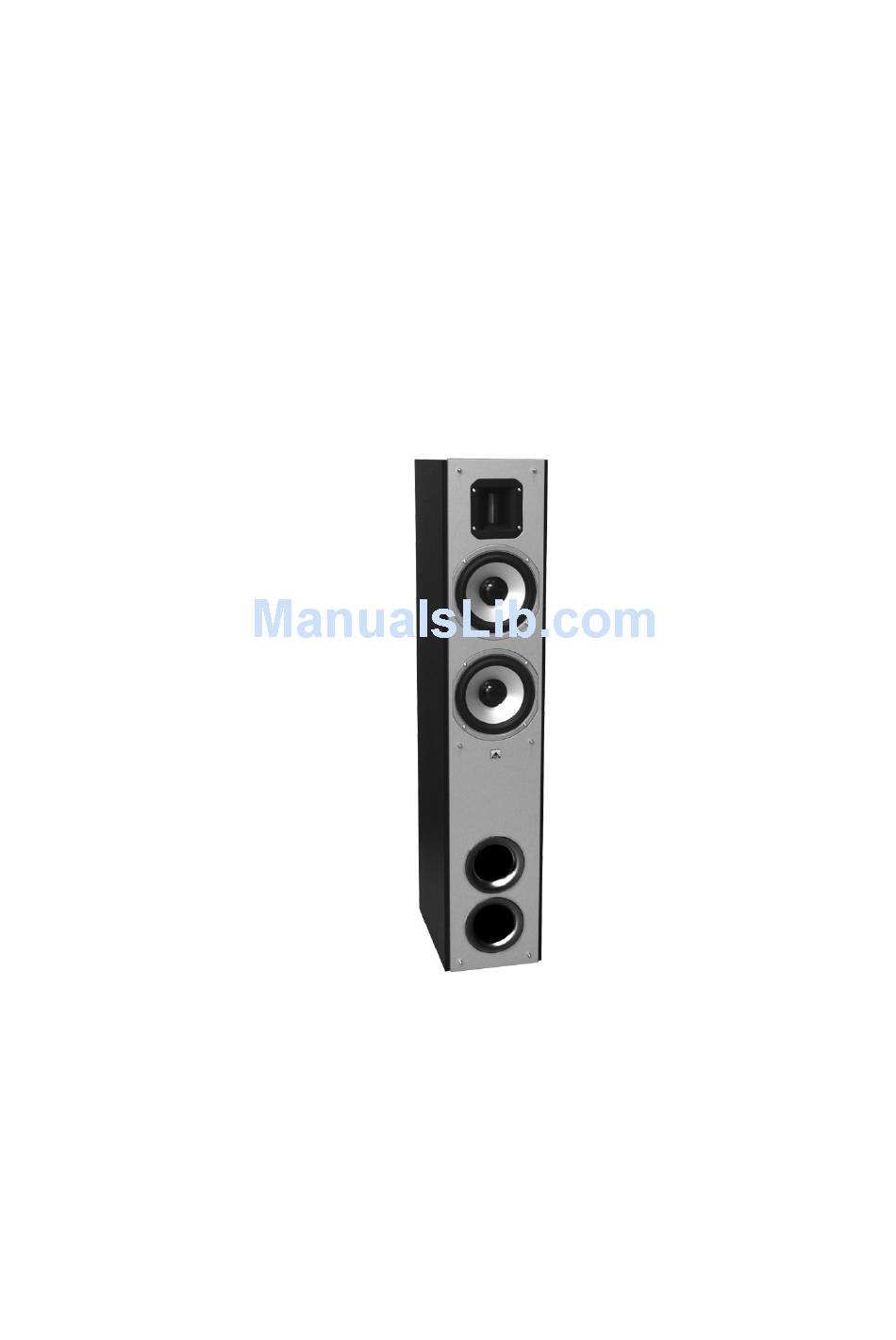

XTZ 89 FRONT Fullrange Speaker Owners Manual © 2008 XTZ AB , www.xtz.se... -
Page 2: Table Of Contents
Appendix Page: Introduction About XTZ Technical presentation Preparations Tips for installation and placement Mounting and connections Sound settings Technical specifications Service & Troubleshooting - 2 -... -
Page 3: Introduction
Introduction Introduction We would like to thank you for buying XTZ 89 Front. The XTZ 89 Front offers a large numbers of possibilities. In order to utilize your new speaker in the best possible way, please read this manual carefully before using your speaker for the first time. -
Page 4: Technical Presentation
Technical presentation Cabinet design The cabinet is constructed with a narrow baffle - not only an aesthetically neat shape but also an advantage in terms of sonic since you have a more stable baffle which effectively muffles resonances in the cabinet. -
Page 5: Preparations
reproduction and a long life. Crossover filter/ We have chosen a -12 dB crossover filter Terminal with good transient response and minimum phase shiftings. Only quality capacitors and low impedance coils are used. (Read more about filters on our website.) The terminal is gold plated and accepts both banana plugs and cable. -
Page 6: Tips For Installation And Placement
Tips for installation and placement This chapter contains general information about installing and placing your speakers. These are general hints and tips, so there may be exceptions. What room will Even the most competent HiFi equipment provide the best will sound mediocre in the wrong sound reproduction? environment. - Page 7 Front speakers In order to obtain the correct stereo perspective the loudspeakers should be placed symmetrically in front of the listener. The distance between the speakers should be roughly 80% of the distance between the listener and one of the speakers. Or put in another way, the angle seen by the by the listener should be about 45 degrees, as shown on the picture.
-
Page 8: Mounting And Connections
Mounting and connecting tips Mounting options Normally the XTZ 89 FRONT is placed near a TV set or a projector screen. The wall behind affect the reproduction of the speaker and characteristics. Please take your time to try out the best placement. -
Page 9: Sound Settings
By putting the supplied bass reflex plugs Mechanical into the port, you can alter the lower adjustment of the boundary frequency of the XTZ 89 FRONT. boundary frequency Also, the treble level might be adjusted in order to adapt the speaker to your listening room/ preference. -
Page 10: Technical Specifications
Technical specifications Type of construction 2½-way bass reflex box which is mechanically adjustable in four different modes (Room-Tuning). Tweeter is adjustable in 2 levels Dimensions 1000 x 200 x 300 mm (Height x Width x Depth) 20,3 kg Weight Magnetically shielded Gold plated/Banana plug/Pole screw Connectors... -
Page 11: Service & Troubleshooting
In case the service/support please contact us at packing is insufficient, the support@xtz.se transportation company will not compensate any damages. Website: www.xtz.se Please be sure to enclose a copy of your receipt, and a short description of the problems/defects. Support...
