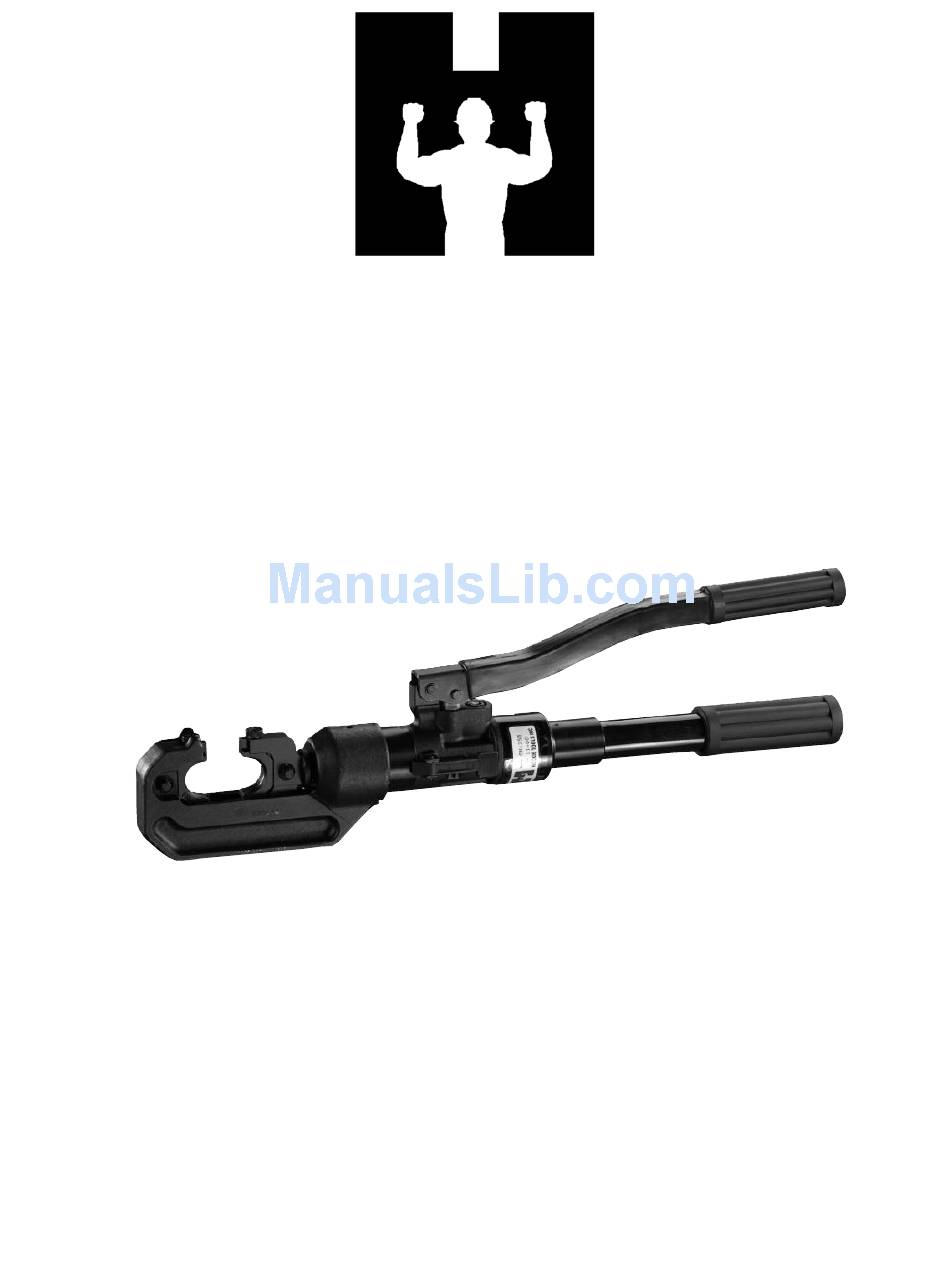

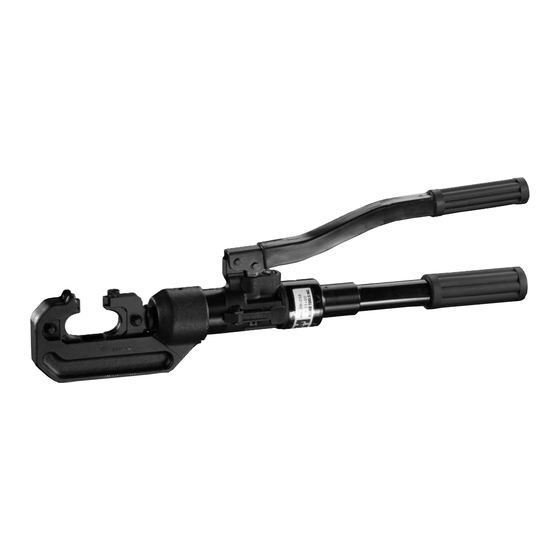

- Page 1 HUSKIE TOOLS, INC. Operating Instruction Manual For CN-258 Compression Tool with Parts List...
-
Page 2: Specifications
CN-258 SPECIFICATIONS SPECIFICATIONS SERVICE ENTRANCE Output 6.6 ton CRIMPER Weight 8.5 lbs. • Length 21" Accepts both “O” and “W” Style Dies Jaw Opening .950" • Two-Stage Rapid Advance CONNECTOR RANGE • External Pressure Adjustment Lugs #6-500 MCM Cu Splices #6-300 MCM Al •... - Page 3 Continue to pump the tool handle and completely crimp the connector. The CN-258 has a built in bypass cartridge that will automatically activate when full pressure is reached. There will be a noticeable decrease in handle pressure when the by-pass is reached.
- Page 4 MODEL CN-258 DIAGRAM http://www.huskietools.com info@huskietools.com...
- Page 5 MODEL CN-258 PARTS LIST DESCRIPTION CODE QTY. DESCRIPTION CODE QTY. Head C58-01 Valve Screw (20) C60-21 Collar 58-04 Strainer C60-22 Spring (5) 58-03 Filter C60-23 Push Pin 58-02 SI-15 Ring C60-24 Retaining Screw 58-01 S-40 O-Ring C60-25 Die Retaining Screw...
- Page 6 Failure due to misuse, abuse or repairs attempted by anyone other than Huskie Tools, Inc., or an authorized service center render this warranty null and void. Our patented drop-out bypass cartridge can be re-calibrated or tested at no charge for the life of the tool.
- Page 7 MODEL CN-258 WARRANTY OW TO GET SERVICE UNDER THE TERMS OF THE LIMITED WARRANTY Return your product directly to Huskie Tools, Inc. as our representative network is not prepared to service the product under the terms of this warranty. 1. Write, call or fax Huskie stating the tool’s purchase date and problem. You will be given a RGA # to assure that your merchandise will be properly handled upon its receipt.
