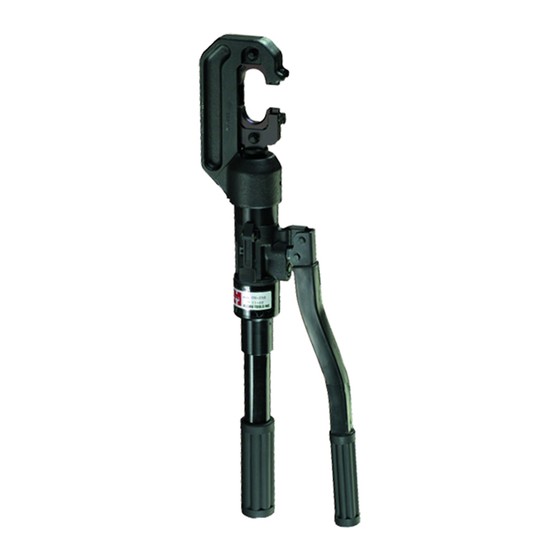

CN-258: 6 Ton Compression Tool
195 Internationale Blvd
Glendale Heights, IL 60139
Phone 800-860-6170
Fax 800-345-3767
1
www.spartacogroup.com
800-860-6170
Advertisement
Related Manuals for Huskie Tools CN-258
Summary of Contents for Huskie Tools CN-258
- Page 1 OPERATION MANUAL OPERATION MANUAL CN-258 CN-258: 6 Ton Compression Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
-
Page 2: Table Of Contents
REGISTRATION/ TABLE OF CONTENTS THANK YOU... Table of Contents for purchasing a Huskie Tools product. Our Registration/ Contents......2 mission is to supply the finest steel cable connecting and cutting tools and cable-related Warranty..........3 products to the transmission and distribution markets. -
Page 3: Warranty
WARRANTY Warranty Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 1 year warranty. -
Page 4: Safety
SAFETY Wear eye protection: Safety Alert Symbol: when operating this tool. Failure to wear eye protection could result in serious eye injury from flying This safety alert symbol indicates a potential debris. personal injury hazard; it is not used for messages related to property damage only. -
Page 5: Specs/Kit Includes
If you wish to use Burndy “W” type dies, simply slip the “W” type over the D-3 nest die and snap them into the locked position. Huskie Tools carries a wide range of market equivalent dies. Pressure can be checked with Huskie’s PG-15 pressure gauge. The tool comes complete with a carrying case. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Compression 1. Select the appropriate compression die set for the connector and cable being used. 2. To insert the dies, depress the die release pin on the ram, and slide die into place. Then, depress release pin on “C” head as well and slide other die half in place. Be sure both die halves are secure before operating the tool. - Page 7 OPERATING INSTRUCTIONS PRECAUTION FOR THE TOOL 1. Always point the tool AWAY from other people. 2. If the tool is stored for an extended period at a temperature of less than 25º F (-5ºC), the tool should be allowed to return to room temperature to ensure smooth operation Use the tool only after it has been at room temperature for 1 hour.
-
Page 8: Breakdown
BREAKDOWN www.spartacogroup.com 800-860-6170... -
Page 9: Parts List
PARTS LIST DESCRIPTION CODE QTY. DESCRIPTION CODE QTY. Head C58-01 Valve Screw (20) C60-21 Collar 58-04 Strainer C60-22 Spring (5) 58-03 Filter C60-23 Push Pin 58-02 SI-15 Ring C60-24 Retaining Screw 58-01 S-40 O-Ring C60-25 Die Retaining Screw C58-02 P-28 O-Ring 300-21 D3 Saddle Dies C58-03... - Page 10 NOTES www.spartacogroup.com 800-860-6170...
