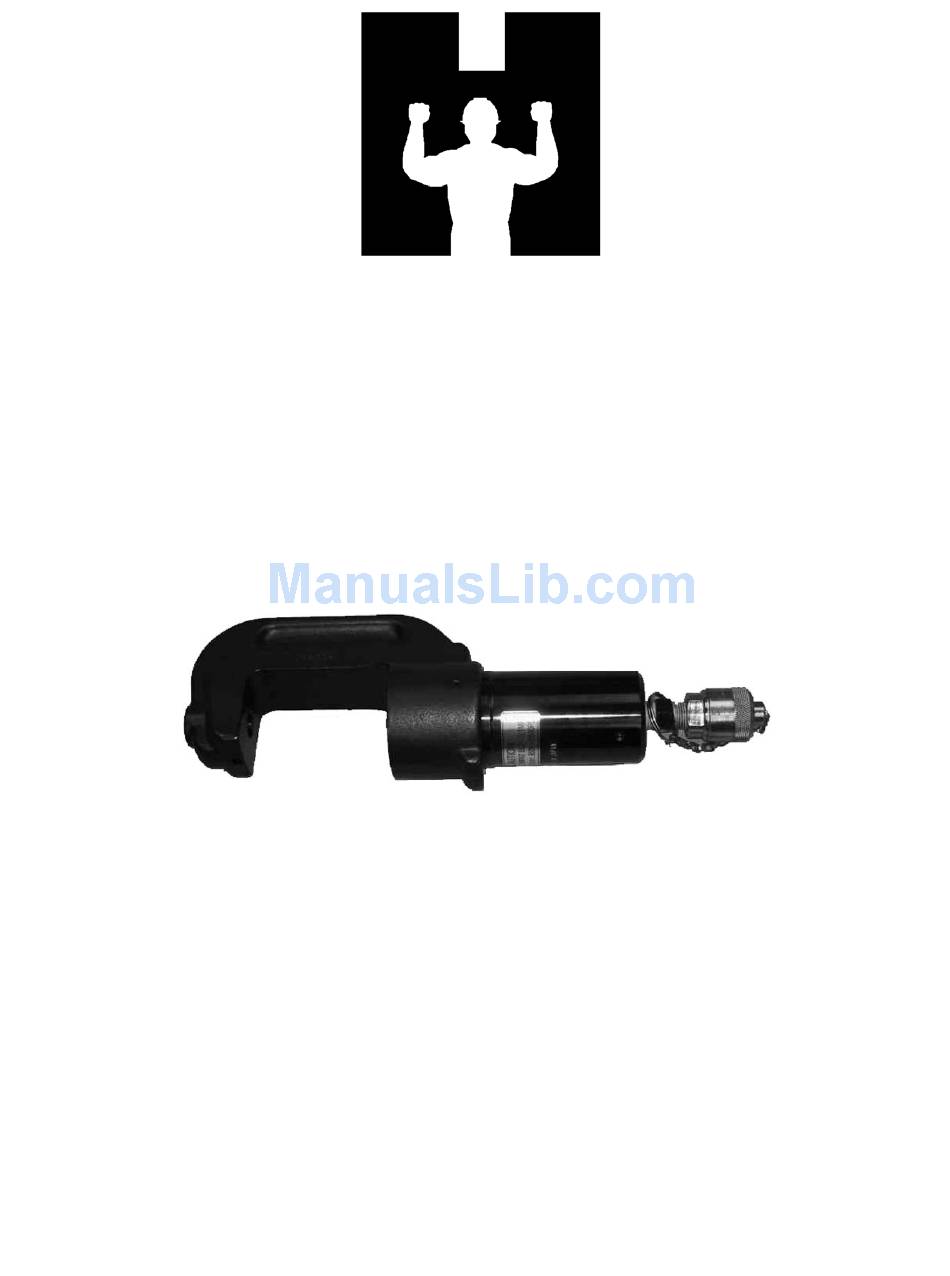

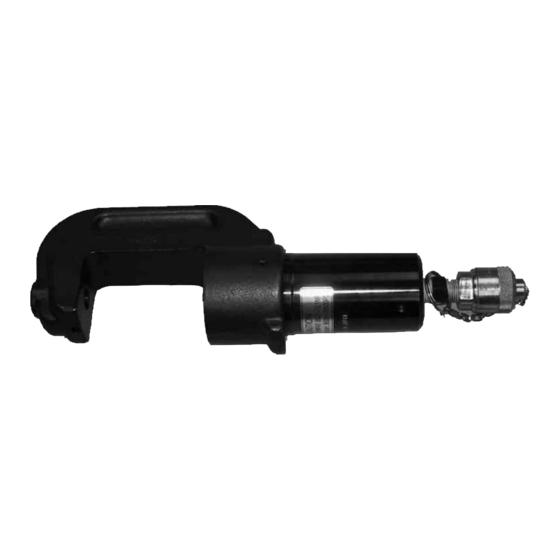

- Page 1 HUSKIE TOOLS, INC. Operating Instruction Manual For EP-510HK Compression Tool with Parts List...
- Page 2 EP-510HK SPECIFICATIONS 12 TON C-HEAD SPECIFICATIONS 1.5” JAW OPENING Output 12 ton Weight 13.5 lbs. • Length 14" Accepts Kearny WH-2, PH-2, WH-3 Style Dies Jaw Opening 1.5" • 1.5" Jaw Opening CONNECTOR RANGE • UDK-1 Die Adapter available for all 12 Ton “U”...
- Page 3 PH-2 dies. (Huskie HTK-series) To insert WH-2 and PH-2 style dies on the EP-510HK, locate rounded edge of die and place towards back of “C” head. Loosen the set screws on both the “C” head and ram, then push the dies into place and secure by tightening set screws.Be sure both die halves are secure before operating the tool.
- Page 4 MODEL EP-510HK DIAGRAM http://www.huskietools.com info@huskietools.com...
- Page 5 MODEL EP-510HK PARTS LIST NO. DESCRIPTION CODE QTY. NO. DESCRIPTION CODE QTY. M6 X 10 SCREW (C.P.) 46-06 HEAD 510K-03 M5 X SCREW (C.P.) P55A-02 SER-38 SCRAPER L100-10 SPRING ANCHOR SCREW (2) 510K-04 P-7 BACK-UP RING (B.C.) RB-49 P-7 O-RING...
- Page 6 Failure due to misuse, abuse or repairs attempted by anyone other than Huskie Tools, Inc., or an authorized service center render this warranty null and void. Our patented drop-out bypass cartridge can be re-calibrated or tested at no charge for the life of the tool.
- Page 7 MODEL EP-510HK WARRANTY OW TO GET SERVICE UNDER THE TERMS OF THE LIMITED WARRANTY Return your product directly to Huskie Tools, Inc. as our representative network is not prepared to service the product under the terms of this warranty. 1. Write, call or fax Huskie stating the tool’s purchase date and problem. You will be given a RGA # to assure that your merchandise will be properly handled upon its receipt.
- Page 8 198 N. Brandon Drive Glendale Heights, Illinois 60139 (630) 893-7755 Fax (800) 345-3767 Toll Free 1-800-860-6170 http://www.huskietools.com info@huskietools.com...
