OPERATION MANUAL
OPERATION MANUAL
CN-58H

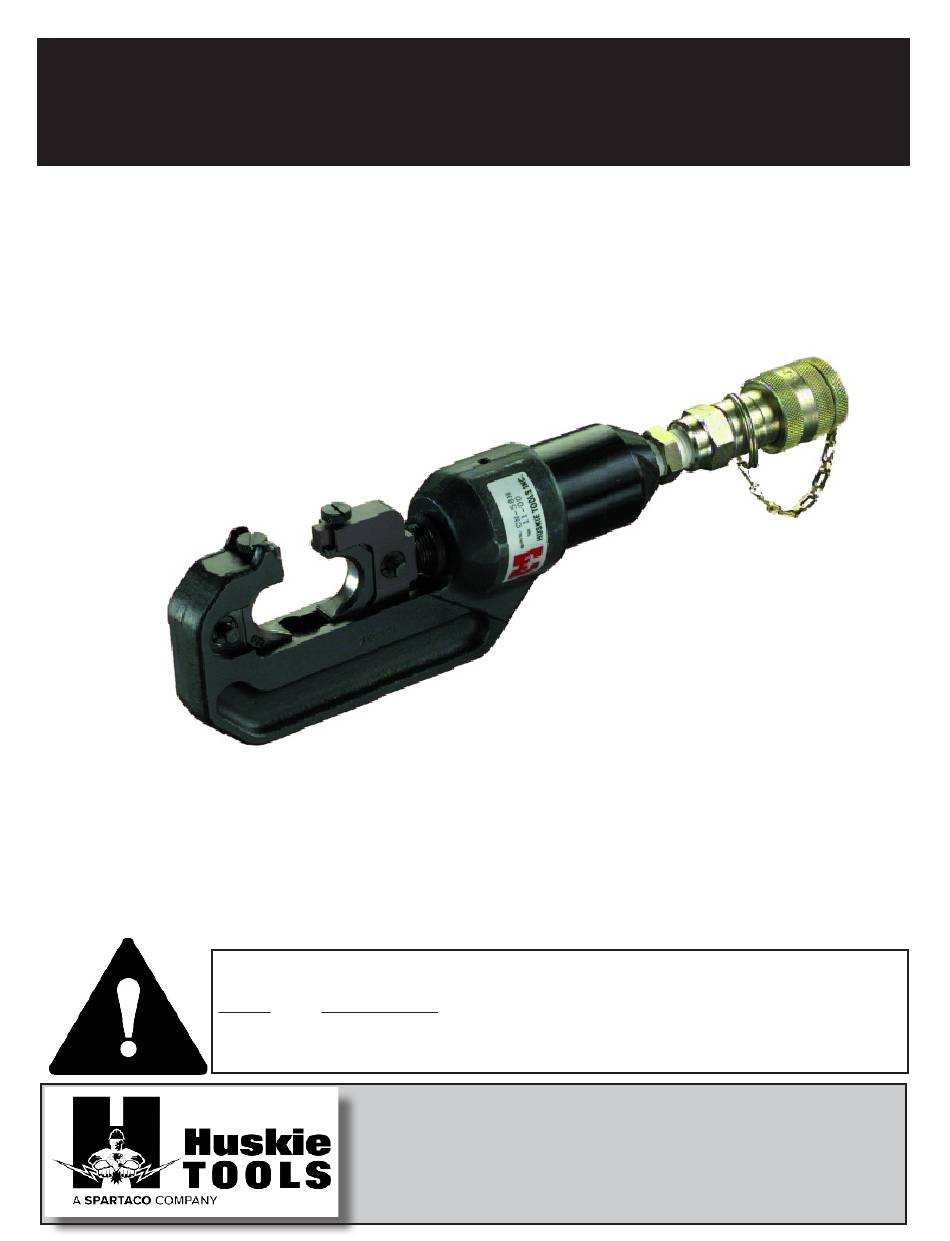

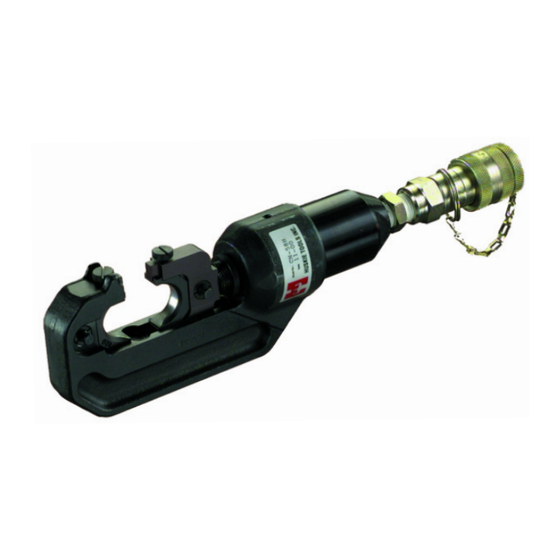

CN-58H: 6 Ton Remote Compression C-Head
195 Internationale Blvd
Glendale Heights, IL 60139
Phone 800-860-6170
Fax 800-345-3767
1
www.spartacogroup.com
800-860-6170
Advertisement
Related Manuals for Huskie Tools CN-58H
Summary of Contents for Huskie Tools CN-58H
- Page 1 OPERATION MANUAL OPERATION MANUAL CN-58H CN-58H: 6 Ton Remote Compression C-Head Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
-
Page 2: Table Of Contents
REGISTRATION/ TABLE OF CONTENTS THANK YOU... Table of Contents for purchasing a Huskie Tools product. Our Registration/ Contents......2 mission is to supply the finest steel cable connecting and cutting tools and cable-related Warranty..........3 products to the transmission and distribution markets. -
Page 3: Warranty
WARRANTY Warranty Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 1 year warranty. -
Page 4: Safety
SAFETY Wear eye protection: Safety Alert Symbol: when operating this tool. Failure to wear eye protection could result in serious eye injury from flying This safety alert symbol indicates a potential debris. personal injury hazard; it is not used for messages related to property damage only. -
Page 5: Specs/Kit Includes
• 3/8” Male Screw Type Coupler Provided • Protective Rubber Boot on “C” Head CN-58H remote operated “C” head requires an external pumping source of 10,000 psi. It accepts Kearney “O” type and Burndy “W” type dies. It is a service entrance compression tool and the smallest of our compression tool line. -
Page 6: Operating Instructions
It is important that all connections are tight for tool to function properly. 3. Select appropriate compression die set for the connector and cable being used. Either “W” or “O” style dies can be used with the CN-58H tool (Huskie HT58 Series or HT Series Dies). - Page 7 OPERATING INSTRUCTIONS PRECAUTION FOR THE TOOL 1. Always point the tool AWAY from other people. 2. If the tool is stored for an extended period at a temperature of less than 25º F (-5ºC), the tool should be allowed to return to room temperature to ensure smooth operation Use the tool only after it has been at room temperature for 1 hour.
-
Page 8: Breakdown
BREAKDOWN www.spartacogroup.com 800-860-6170... -
Page 9: Parts List
PARTS LIST Head C58-01 Collar 58-04 Spring (5) 58-03 Push Pin 58-02 Retaining Screw 58-01 Die Retaining Screw C58-02 D3 Saddle Dies C58-03 M5 X 8 Screw 410-49 Die Holder C58-04A Stroke Adjusting Nut C58-05A Spring (391) 58H-01 M4 X 5 Screw (C.P.) 55A-24 Ram (N.S.) 58H-02A... - Page 10 NOTES www.spartacogroup.com 800-860-6170...
- Page 11 NOTES www.spartacogroup.com 800-860-6170...
- Page 12 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
