OPERATION MANUAL
OPERATION MANUAL
EP-410H

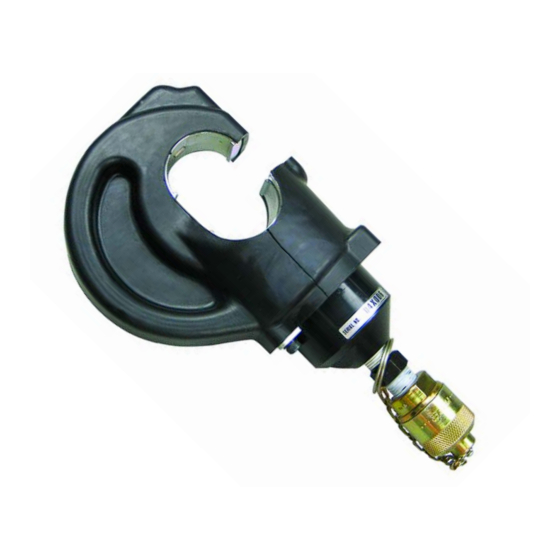

EP-410H: 12 Ton Compression C-Head
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.
195 Internationale Blvd
Glendale Heights, IL 60139
Phone 800-860-6170
Fax 800-345-3767
www.spartacogroup.com
Advertisement
Related Manuals for Huskie Tools EP-410H
Summary of Contents for Huskie Tools EP-410H
- Page 1 OPERATION MANUAL OPERATION MANUAL EP-410H EP-410H: 12 Ton Compression C-Head Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767...
-
Page 2: Table Of Contents
REGISTRATION/ TABLE OF CONTENTS THANK YOU... Table of Contents for purchasing a Huskie Tools product. Our Registration/ Contents......2 mission is to supply the finest steel cable connecting and cutting tools and cable-related Warranty..........3 products to the transmission and distribution markets. -
Page 3: Warranty
WARRANTY Warranty Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 1 year warranty. -
Page 4: Safety
SAFETY Wear eye protection: Safety Alert Symbol: when operating this tool. Failure to wear eye protection could result in serious eye injury from flying This safety alert symbol indicates a potential debris. personal injury hazard; it is not used for messages related to property damage only. -
Page 5: Specs/Kit Includes
Features • Protective Rubber Boot on “C” Head EP-410H is a traditional C-head with a one-inch jaw opening. It will accept all “U” type dies currently used in 12 ton tools on today’s market. A 10,000 psi external pump is required to operate the C-head. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Compression 1. Before connecting the tool head, make sure the pump and hose being used is working properly, and adjusted to and rated at 10,000 psi. The use of a pump or hose not rated at 10,000 psi working pressure may cause severe damage and result in personal injury. 2. - Page 7 OPERATING INSTRUCTIONS PRECAUTION FOR THE TOOL 1. Always point the tool AWAY from other people. 2. If the tool is stored for an extended period at a temperature of less than 25º F (-5ºC), the tool should be allowed to return to room temperature to ensure smooth operation Use the tool only after it has been at room temperature for 1 hour.
-
Page 8: Breakdown
BREAKDOWN www.spartacogroup.com 800-860-6170... -
Page 9: Parts List
PARTS LIST DESCRIPTION CODE QTY. M10 X 10 Screw (F.P.) 16-41 Spring (177) 410-01 Retainer Pin (A) 410-02 Die Release Pin (A) 410-03 2.5 X 25 Drive Pin (BW) 410-04 Head 410-05 M4 X 10 Screw 410-06 M4 Lock Washer 410-07 410-08 Stopper... - Page 10 NOTES www.spartacogroup.com 800-860-6170...
- Page 11 NOTES www.spartacogroup.com 800-860-6170...
- Page 12 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
