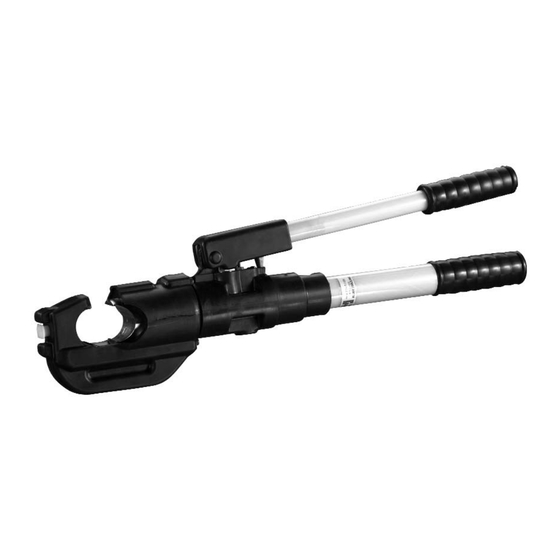

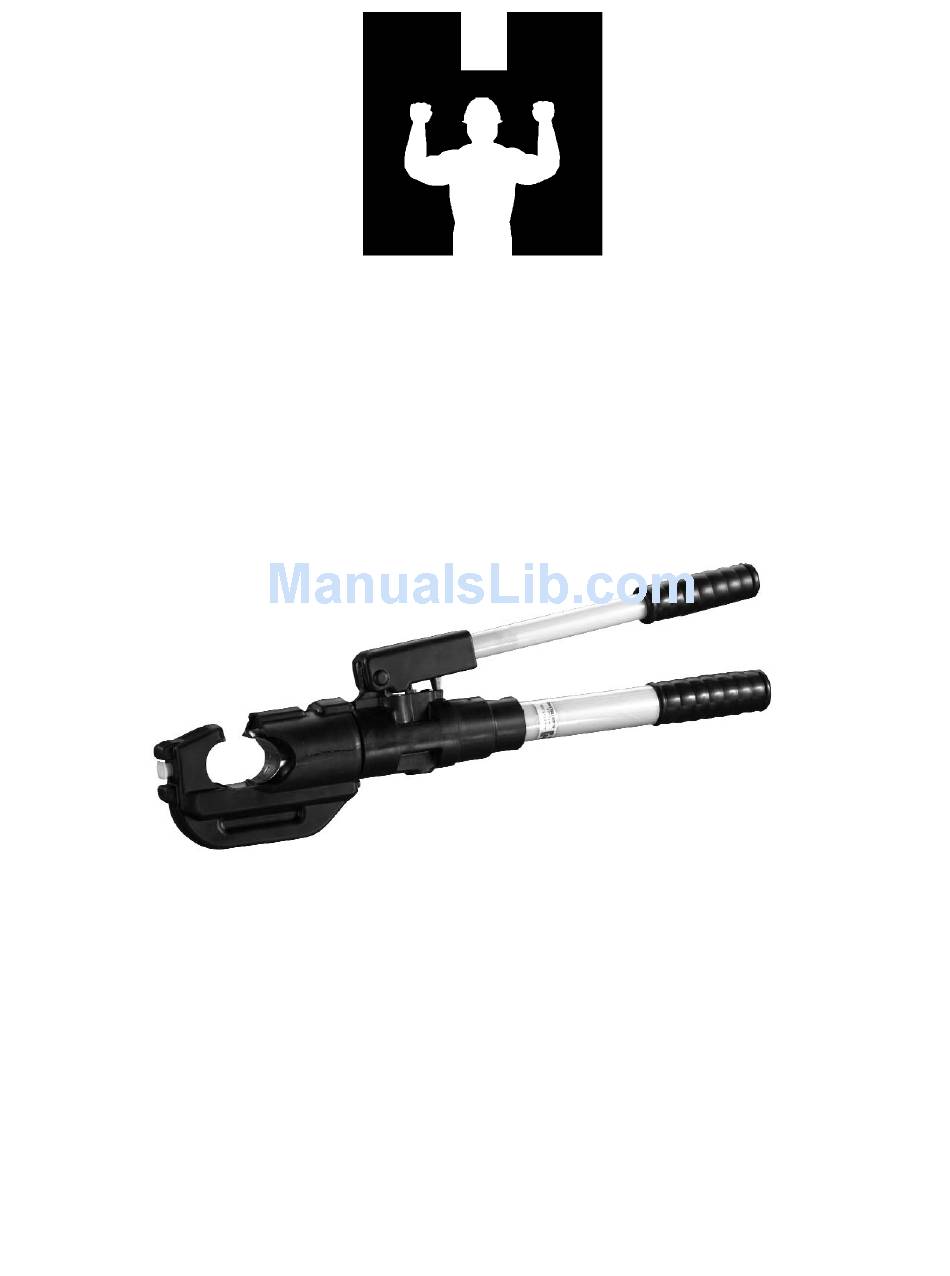

- Page 1 HUSKIE TOOLS, INC. Operating Instruction Manual For EP-510C Compression Tool with Parts List...
-
Page 2: Specifications
EP-510C SPECIFICATIONS SPECIFICATIONS 12 TON COMPRESSION TOOL Output 12 ton 1.65” JAW OPENING Weight 16.5 lbs. • Length 25" 1.65" Jaw Opening Jaw Opening 1.65" • Accepts all 12 Ton “U” Type Dies CONNECTOR RANGE • Lugs & Splices up to 750 MCM Lugs &... - Page 3 Always clean tool after use to keep ram track clear of dirt and debris. OPERATING INSTRUCTIONS FOR THE EP-510C Select the appropriate compression die set for the connector and cable being used. All “U” style Huskie HT41-series dies can be used with these tools.
- Page 4 MODEL EP-510C DIAGRAM http://www.huskietools.com info@huskietools.com...
- Page 5 MODEL EP-510C PARTS LIST NO. DESCRIPTION CODE QTY. NO. DESCRIPTION CODE QTY. 2 X 12 Drive Pin (BW) 351-28 Valve Screw (10) 410-44 Die Release Knob 510-01B Spring (67) 85-39 Screw (16) 510-02 9/32" Ball 16-40 Spring (257) 510-03 Spring (66)
- Page 6 Failure due to misuse, abuse or repairs attempted by anyone other than Huskie Tools, Inc., or an authorized service center render this warranty null and void. Our patented drop-out bypass cartridge can be re-calibrated or tested at no charge for the life of the tool.
- Page 7 MODEL EP-510C WARRANTY OW TO GET SERVICE UNDER THE TERMS OF THE LIMITED WARRANTY Return your product directly to Huskie Tools, Inc. as our representative network is not prepared to service the product under the terms of this warranty. 1. Write, call or fax Huskie stating the tool’s purchase date and problem. You will be given a RGA # to assure that your merchandise will be properly handled upon its receipt.
- Page 8 198 N. Brandon Drive Glendale Heights, Illinois 60139 (630) 893-7755 Fax (800) 345-3767 Toll Free 1-800-860-6170 http://www.huskietools.com info@huskietools.com...
