OPERATION MANUAL
OPERATION MANUAL
R-750C
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.
R-750C: Ratchet Cable Cutter
195 Internationale Blvd
Glendale Heights, IL 60139
www.spartacogroup.com
Phone 800-860-6170
Fax 800-345-3767
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Huskie Tools R-750C
Summary of Contents for Huskie Tools R-750C
- Page 1 OPERATION MANUAL OPERATION MANUAL R-750C R-750C: Ratchet Cable Cutter Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
-
Page 2: Table Of Contents
REGISTRATION/ TABLE OF CONTENTS THANK YOU... Table of Contents for purchasing a Huskie Tools product. Our Registration/ Contents......2 mission is to supply the finest steel cable connecting and cutting tools and cable-related Warranty..........3 products to the transmission and distribution markets. -
Page 3: Warranty
WARRANTY Warranty Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 1 year warranty. -
Page 4: Safety
SAFETY Wear eye protection: Safety Alert Symbol: when operating this tool. Failure to wear eye protection could result in serious eye injury from flying This safety alert symbol indicates a potential debris. personal injury hazard; it is not used for messages related to property damage only. -
Page 5: Specs/Kit Includes

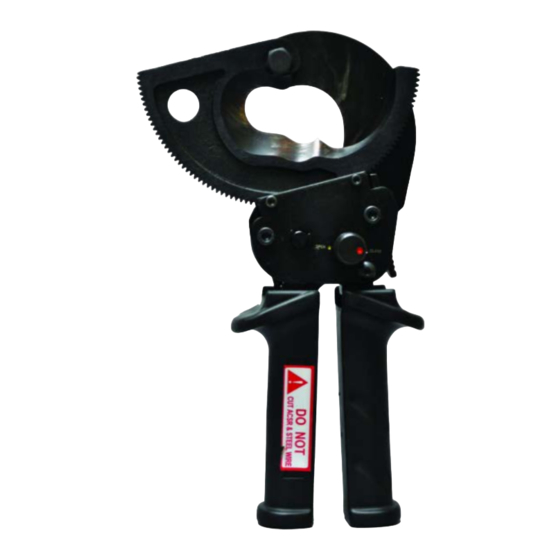

• Thumb Lever to Release the Blade • Ratchet System R-750C has a ratchet mechanism that has been designed to withstand the stress of 750 MCM copper and aluminum cables with a maximum O.D. of 1-3/4.” The blades have a 100% cutting surface which provides the best possible cutting leverage. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS UNLOCKING THE HANDLES 1. Turn the Lock/Release Axle Knob so that the red dot on the knob lines up with the green dot on the frame. CUTTING A CABLE 1. Insure the cutter handles are unlocked. 2. With no cable inserted into the cut entry, cycle the blade forward through the ratchet simply by pushing it through. - Page 7 OPERATING INSTRUCTIONS PRECAUTION FOR THE TOOL 1. Always point the tool AWAY from other people. 2. If the tool is stored for an extended period at a temperature of less than 25º F (-5ºC), the tool should be allowed to return to room temperature to ensure smooth operation Use the tool only after it has been at room temperature for 1 hour.
-
Page 8: Breakdown
BREAKDOWN www.spartacogroup.com 800-860-6170... -
Page 9: Parts List
PARTS LIST DESCRIPTION CODE Fixed Blade Slide Blade Fixed Handle Screw Spring Board Handle Gear Axle Sleeve Spring Plastic Handle Gear Cushion Block Screw Bearing Screw Screw Screw Screw Washer Washer Washer Washer Washer Washer Axis Snap Ring Snap Ring Snap Hook www.spartacogroup.com 800-860-6170... - Page 10 NOTES www.spartacogroup.com 800-860-6170...
- Page 11 NOTES www.spartacogroup.com 800-860-6170...
- Page 12 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
