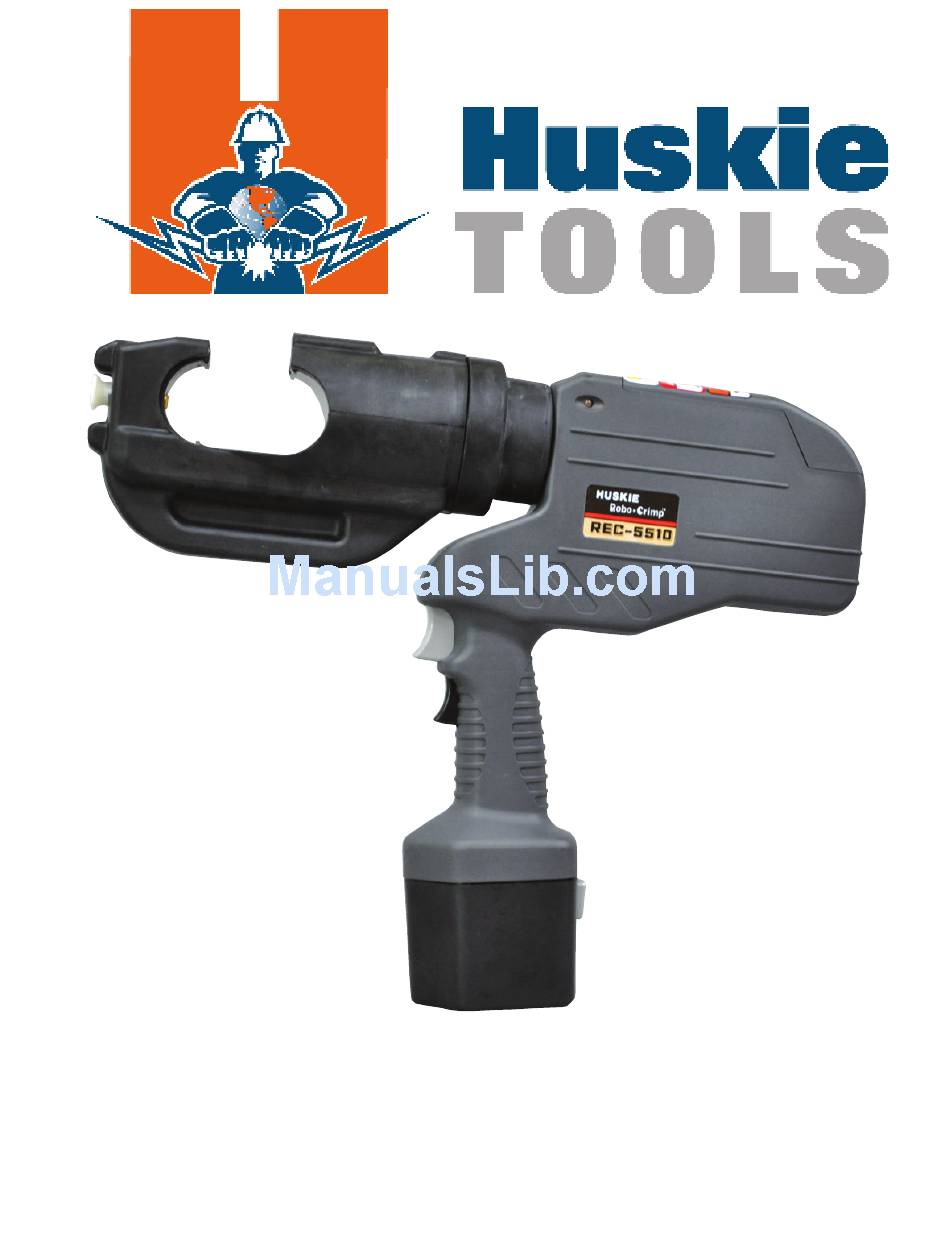

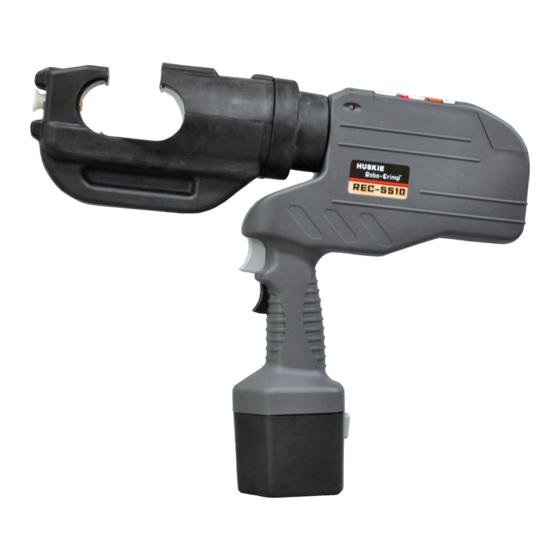

- Page 1 OPERATING INSTRUCTION MANUAL REC-5510 12 TON BATTERY- POWERED COMPRESSION TOOL 1.65” JAW OPENING...
- Page 2 Connect with us! @huskietoolsinc facebook.com/huskietools linkedin.com/company/huskie-tools youtube.com/user/huskietools www.huskietools.com...
-
Page 3: Specifications
SPECIFICATIONS REC-5510 FEATURES Output: 12Ton • One Hand Operation Weight: 16.5 Ibs. with battery • Tested up to 75kV Size: 16” L x 12” H x 3”W • Rotational Head Jaw Opening: 1.65” • Rapid Advance • Ergonomically Balanced CRIMPING ESTIMATES • Ergonomic Pistol Grip Handle • Weather Resistant Housing BP-80 • Audible Bypass when Predetermined Pressure 4/0 Cu is Achieved. 500 MCM Cu • Includes DIE-CASE... -
Page 4: Kit Includes
KIT INCLUDES Battery and Charger • 1 Battery Powered Tool • BP-80 Huskie Tools Lithium Ion Battery • 1 Carrying Case • CH-90 Huskie Tools Tri-Chemistry Charger • 1 CH-90 Tri-Chemistry Charger • This charger can charge the BP-80 and ALL previous • 2 BP-80 Lithium Ion Batteries Huskie Tools batteries, including the BP-70, BP-70EI • 1 Carrying Strap... -
Page 5: Charging The Battery
OPERATING INSTRUCTIONS CHARGING THE BATTERY 1. Insert the plug end into a 120V power source. The LED (Power) indicator will be steady green indicating the charger is now in “stand-by” mode and ready to charge the battery. Do not plug the charger into a generator as this will likely cause the fuse in the charger to short, and will not operate. 2. To charge a drained battery, insert the battery into the charger. The LED indicator shows a steady amber while charging. A depleted battery will be completely charged in approximately 50-70 minutes. The LED indicator will show a steady green when the battery is fully charged. 3. If the LED indicator goes out or is flashing quick amber, this could be a possible short in the battery circuit, or a problem with the charger itself. It is best to consult the factory at 1-800-860-6170 for service if such a condition occurs. 4. For technical questions or difficulty in operation, please call our customer service department at 1-800-860-6170. - Page 6 OPERATING INSTRUCTIONS COMPRESSION 1. Select the appropriate size dies for the connector being used. 2. Insert half of the die into the C-head by sliding it while lifting the die release knob. 3. Press the trigger to advance the ram until the die release pin is accessible. Then insert the other half of the die into the ram while pressing the die release pin. 4. Press the trigger and advance the ram so the connector is held between the dies.
-
Page 7: Important Operating Precautions
IMPORTANT OPERATING PRECAUTIONS PRECAUTION FOR THE TOOL 1. Select appropriate dies for the connector to be compressed. Incorrect combinations result in inferior connections of the conductors. Consult your connector manufacturer for the recommended die/connector combinations. 2. Always point the tool AWAY from other people. 3. If the tool is stored for an extended period at a temperature of less than 25º F (-5ºC), the tool should be allowed to return to room temperature to ensure smooth operation Use the tool only after it has been at room temperature for 1 hour. - Page 8 BREAKDOWN www.huskietools.com...
- Page 9 REC-5510 PARTS LIST DESCRIPTION CODE QTY. DESCRIPTION CODE QTY. M4 X 20 Screw 558-01 Spring (590) R150-23 Housing (R) 551-01 PS-20 Pent Seal R150-24 M3 X 6 Screw R150-02 P-20 Back-Up Ring (B.C.) 35-18 Top Cover 551-02 Pump Piston (1) 558-15 Switch Unit 551-10 P-6 O-Ring RB-70 LED Harness 558-05...
-
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION Consult Factory for Repair Ser- Insufficient Hydraulic Oil vice MOTOR RUNS, BUT THE Invert tool to allow air to rise to- TOOL JAWS WILL NOT AD- Air Block in Hydraulic System wards the top of the oil bladder VANCE Consult Factory for Repair Ser- Defective Hydraulic Circuit vice Consult Factory for Repair Ser- Insufficient Hydraulic Oil MOTOR RUNS, TOOL JAWS vice ADVANCE, BUT WILL NOT Defective Suction Valve or By- Consult Factory for Repair Ser- BUILD PRESSURE pass Cartridge vice Defective Battery Charge or Replace Battery Bad Contact or Loose Battery Check all Connections and Connections... -
Page 11: Warranty
WARRANTY Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 3 year warranty. The BP-70E, BP-70EI, BP-70MH, and BP-80 batteries carry a 5 year or 1,000 recharge cycles warranty from the date stamped on the battery. PRODUCT WARRANTY REC-Series battery operated products... - Page 12 WARRANTY HOW TO GET SERVICE UNDER THE TERMS OF THE LIMITED WARRANTY Return your product directly to Huskie Tools, Inc. as our representative network is not Prepared to service the product under the terms of this warranty. 1. Write, call or fax Huskie stating the tool’s purchase date and problem. You will be given a RGA # to assure that your merchandise will be properly handled upon its receipt.
- Page 14 198 N. Brandon Drive Glendale Heights, Illinois 60139 Toll Free 1-800-860-6170 Fax (800) 345-3767 huskietools.com 6/12 info@huskietools.com...
