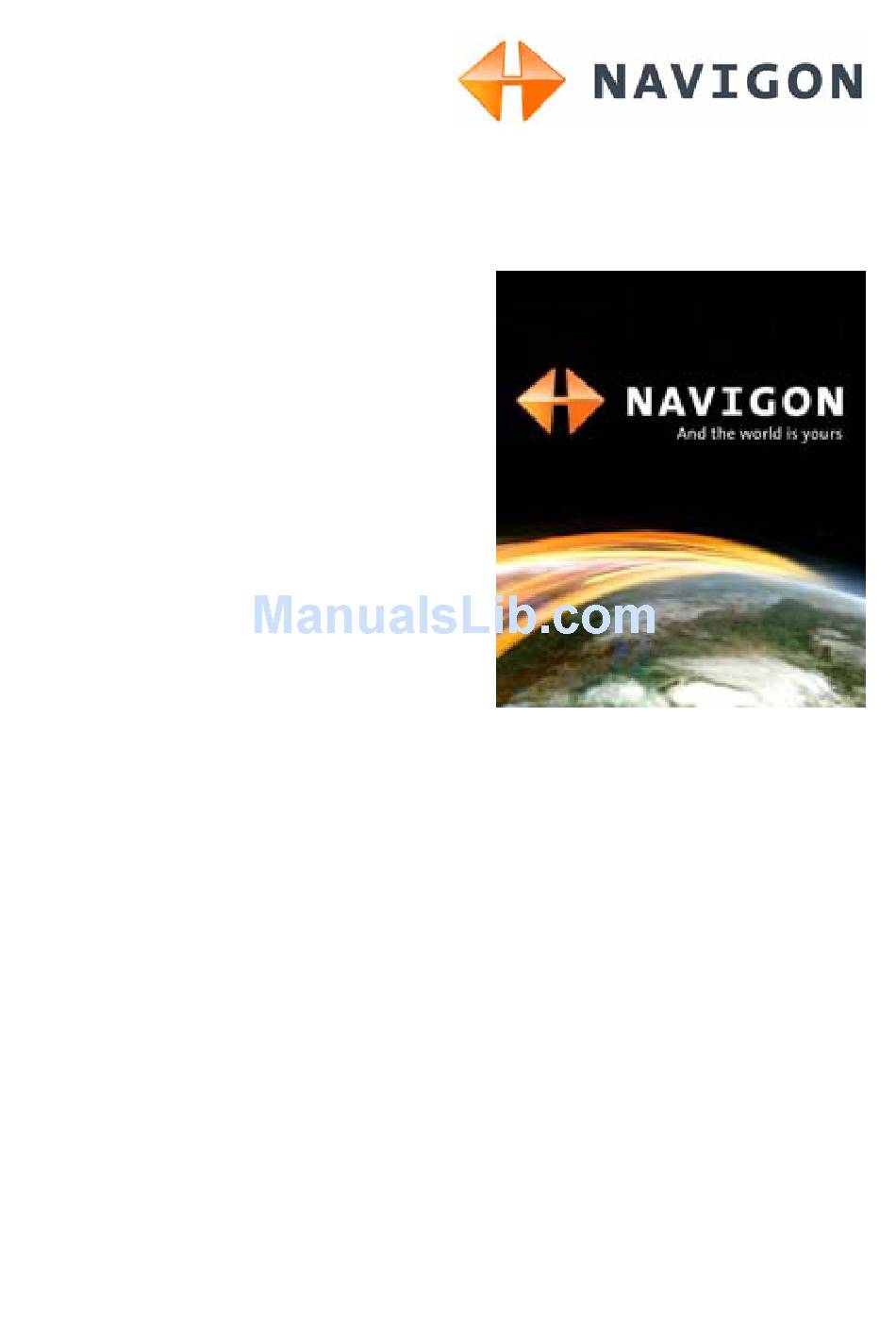

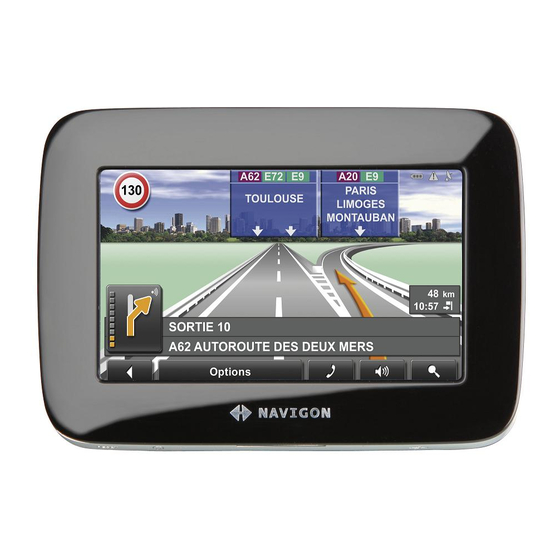

- Page 1 User's manual NAVIGON 7100 | 7110 English (UK) June 2007...
- Page 2 The information contained herein may be changed at any time without prior notification. This manual nor any parts thereof may not be reproduced for any purpose whatsoever without the express written consent of NAVIGON AG, nor transmitted in any form either electronically or mechanically, including photocopying and recording.
-
Page 3: Table Of Contents
1.2.2 Trademarks ................7 Customer Service..................8 Before you begin................10 Scope of Delivery ...................10 Description of the NAVIGON 7100 | 7110..........11 Preparing NAVIGON 7100 | 7110 for use ..........12 2.3.1 Assembling the mains adapter ..........12 2.3.2 Charging the rechargeable battery...........12 2.3.3 Inserting a memory card............12 2.3.4... - Page 4 User's manual NAVIGON 7100 | 7110 Switching on NAVIGON 7100 | 7110 .............21 4.4.1 Forgotten your password?............21 Navigation ..................21 Starting NAVIGON 7100 | 7110 .............22 5.1.1 Initialising the GPS-receiver .............22 Specifying a new destination..............23 5.2.1 Specifying the destination country..........23 5.2.2 Destination address..............24...
- Page 5 User's manual NAVIGON 7100 | 7110 Working with the map..............39 Maps ....................39 Map in Preview mode................40 Map in Navigation mode.................41 Reality View....................43 Map in Destination search mode............44 9.5.1 Operating in Destination search mode ........45 Useful functions................46 10.1 GPS status, storing the current location..........46 10.2 Turn-by-Turn List..................47...
- Page 6 User's manual NAVIGON 7100 | 7110 12.6.7 Ending the call................57 12.7 Hands-free module troubleshooting ............57 Appendix ..................58 13.1 Technical data ..................58 13.2 Declaration of Conformity...............59 Index ....................60 Table of Contents User's manual...
-
Page 7: Introduction
Liability The software and the manual are subject to change without notice. NAVIGON AG is not liable for the accuracy of the information contained in this manual or for damages resulting from the use of this manual. We always appreciate any suggestions that will allow us to offer improved performance of our products in the future, or information regarding malfunction. -
Page 8: Customer Service
Customer Service Our service team staff are available via telephone or E-mail in many countries. You can find additional information at the NAVIGON AG website under (www.navigon.com) in the "Service & Support" section. Telephone Support Note: All quoted costs refer to calls made from a land line within the relevant country. - Page 9 User's manual NAVIGON 7100 | 7110 France Telephone: 0891-650065 Service times: Monday to Saturday from 8 a.m. to 8 p.m. CET Costs: € 0.225/min. Great Britain Telephone: 0905-8480701 Service times: Monday to Friday from 7 a.m. to 7 p.m. (local time) Costs: 0.25 GBP/min.
-
Page 10: Before You Begin
User's manual NAVIGON 7100 | 7110 Spain Telephone: 807-001205 Service times: Monday to Friday from 8 a.m. to 8 p.m. CET Costs: 8 a.m. - 8 p.m.: € 0.356/min. + € 0.104 per call 8 p.m. - 8 a.m.: € 0.288/min. + € 0.104 per call... -
Page 11: Description Of The Navigon 7100 | 7110
User's manual NAVIGON 7100 | 7110 Description of the NAVIGON 7100 | 7110 Touch screen Microphone Reset Headset socket (also used to connect TMC-antenna) Mini-USB-socket for USB-cable / Mains adapter / Car charger cable Stylus Show Map On/Off/Standby Slot for SD-memory card... -
Page 12: Preparing Navigon 7100 | 7110 For Use
The LED of the NAVIGON 7100 | 7110 lights orange during charging. The LED lights green when the NAVIGON 7100 | 7110 is fully charged. Note: It takes approx. 4-5 hours to charge the device when the battery is flat. -
Page 13: Preparing The Navigation System For Use
3. Adjust the navigation device so that it can be seen easily. Supplying power to the navigation device Included in delivery of the NAVIGON 7100 | 7110 is a car charger cable with which power can be supplied to the navigation device via the vehicle's cigarette lighter. -
Page 14: Navigation With Gps
User's manual NAVIGON 7100 | 7110 2. Secure the antenna to the windscreen using the suction cups. Navigation with GPS GPS is based on a total of 24 satellites that circle the earth and, in doing so, are constantly transmitting their position and time. The GPS receiver receives this data and calculates its own geographical position on the basis of the information transmitted by the various satellites. -
Page 15: Safety Information For The Navigation Device
User's manual NAVIGON 7100 | 7110 Caution! Check that the cradle is secured and adjusted properly before each journey. Note: If you have not understood the spoken instructions, or you're not sure about what to do next, you can refer briefly to the map or arrow view of your navigation system. -
Page 16: Safety Guidelines When Installing In Your Car
User's manual NAVIGON 7100 | 7110 Note: Create a backup of the data contained on the memory card provided. Note: The memory card must remain inserted in the device during operation of the navigation system. Note: Use SD- or MMC-memory cards only! Ensure that memory card contacts are clean and undamaged. -
Page 17: Information
User's manual NAVIGON 7100 | 7110 (Louder (Quieter (Volume on/off 2. Tap the (Volume button again. The volume bar closes. Information Symbols located at the top of the screen are used to display information. The GPS symbol can show the following GPS-reception status: No GPS: The built-in GPS receiver is not operational. -
Page 18: Software Keyboard
No Bluetooth: Bluetooth is deactivated. Connected: The NAVIGON 7100 | 7110 is connected to another device. Not connected: The NAVIGON 7100 | 7110 is not connected to another device. Bluetooth is activated. Software keyboard A software keyboard appears on the screen when text entries are necessary. -
Page 19: Lists
User's manual NAVIGON 7100 | 7110 All entries can be made on the software keyboard using the fingertips. Only capital letters can be entered. When entering town or street names you need not enter any special characters or umlauts. The navigation system fills in these characters for you automatically. -
Page 20: Menus
User's manual NAVIGON 7100 | 7110 A description of all available options can be found in chapter "Options" on page 37. Menus Some buttons have menus which open when activated. Tap on a menu button to execute its function. If you would like to quit the options list without selecting a function, tap on the button you used to open the menu. -
Page 21: Cancelling Password Protection
User's manual NAVIGON 7100 | 7110 Note: The new password must contain precisely 4 digits. Cancelling password protection The P window is open. ASSWORD 1. Tap on Options > Deactivate password lock 2. Enter the password that is currently valid in the Enter password field. -
Page 22: User's Manual Navigon
User's manual NAVIGON 7100 | 7110 As soon as GPS reception is restored, the navigation system calculates any change of position which has occurred in the meantime. Navigation may simply be continued. Arriving at your destination When you have reached the specified destination, a message to this effect will be displayed. -
Page 23: Specifying A New Destination
Specifying a new destination New destinations for the NAVIGON 7100 | 7110 are all destinations that you have not yet navigated, or you have not yet stored. You can enter an address here, select a special destination, or select a destination from the quick search function. -
Page 24: Destination Address
User's manual NAVIGON 7100 | 7110 Note: Only countries of which at least a part is represented on the currently loaded map may be selected. 5.2.2 Destination address 1. In the M , tap on New Destination > Enter an Address. -
Page 25: Special Destinations
User's manual NAVIGON 7100 | 7110 5.2.3 Special destinations Special destinations, also called POIs (Points Of Interest) for short, are useful addresses that are catalogued according to particular criteria. Special destinations include ports, airports, restaurants, hotels, petrol stations, public buildings, doctor's surgeries, hospitals, shopping centres, etc. - Page 26 User's manual NAVIGON 7100 | 7110 For detailed information on how to start navigation, please refer to chapter "Starting navigation" on page 30. Special destinations of nationwide significance Special destinations of nationwide significance are airports, places of interest, national monuments, large ports etc. This enables you to find places of interest, for example, without having to know the name of the location.
-
Page 27: Quick Access To Special Destinations
User's manual NAVIGON 7100 | 7110 6. Tap the Start Navigation button. The map opens in Preview mode. For detailed information on how to start navigation, please refer to chapter "Starting navigation" on page 30. 5.2.4 Quick access to special destinations The quick access system contains three categories of special destinations. -
Page 28: Selecting A Saved Destination
► Note: The Call function is only available when the NAVIGON 7100 | 7110 is connected via Bluetooth to a mobile phone. For detailed information about connecting to a mobile phone, please refer to chapter "Handsfree Module" on page 51. -
Page 29: Navigating Homewards
For detailed information on how to start navigation, please refer to chapter "Starting navigation" on page 30. Navigating homewards In NAVIGON 7100 | 7110 you can save your address as home address. You can navigate to your home address at anytime by activating a single button. -
Page 30: Determining Destinations On The Map
User's manual NAVIGON 7100 | 7110 3. Tap the Start Navigation button. The map opens in Preview mode. For detailed information on how to start navigation, please refer to chapter "Starting navigation" on page 30. Determining destinations on the map You may indicate a destination directly on the map. - Page 31 User's manual NAVIGON 7100 | 7110 Route Profile A so called route profile forms the basis of the route calculation. Tap the Route Profile button if you want to view or change the route profile. Note: If you change the route options, these remain valid for subsequent navigation.
-
Page 32: Managing Destinations
User's manual NAVIGON 7100 | 7110 Managing Destinations Every destination that you enter, and the destinations from the L list may be saved to the F list. This makes ESTINATIONS AVOURITES sense if you frequently navigate to a particular destination. -
Page 33: Routes With Stages
User's manual NAVIGON 7100 | 7110 You will be prompted by a dialog window to repeat the voice command into the NAVIGON 7100 | 7110 for the selected destination. 3. Repeat the command for the selected destination into the NAVIGON 7100 | 7110. -
Page 34: Entering Route Points
User's manual NAVIGON 7100 | 7110 3. Enter the starting point. (See the corresponding section of chapter "Navigation" on page 21 ff.) 4. Tap the Set Starting Point button. The selected starting point will now be displayed next to the 0°(Starting Point) button. -
Page 35: Managing Routes
User's manual NAVIGON 7100 | 7110 Route Point Down: Moves the selected route point backwards. (Example: route point 2 becomes route point 3). Delete: Deletes the selected route point. A dialog window prompts you to confirm deletion. Managing routes You can save each planned route under a particular name. -
Page 36: Simulating Routes
User's manual NAVIGON 7100 | 7110 The R window is open. The starting point and at least OUTE LANNING one route point have been entered. 1. Tap the Show Route button. The map window opens in Preview mode. The starting point and the route points are marked by flags. For each stage, the distance and the estimated trip time is given. -
Page 37: Options
Show on Map: Shows the specified address on the map. Settings: Opens the S window. Here you can configure the navigation ETTINGS system. For more detailed information, please refer to chapter "Configuring NAVIGON 7100 | 7110" on page 49. - 37 - Options... -
Page 38: User's Manual Navigon
User's manual NAVIGON 7100 | 7110 Logbook: Opens the .L window. Here you can begin and end logbook OGBOOK recording. For detailed information, please refer to chapter "Logbook" on page 49. Saved Routes: Opens a dialog window in which you can load a stored route. -
Page 39: Working With The Map
Maps Even if you have stored several navigation maps on the navigation system's memory card, NAVIGON 7100 | 7110 can only operate with one map at a time. Tap on Options > Settings > Current Map to see which map is currently being used. -
Page 40: Map In Preview Mode
User's manual NAVIGON 7100 | 7110 Map in Preview mode You have entered a destination and tapped the Start Navigation button. - OR – You have planned or loaded a route and tapped the Show Route button. The map opens in Preview mode. The entire route is visible. -
Page 41: Map In Navigation Mode
User's manual NAVIGON 7100 | 7110 Tap on Options > Show Turn-by-Turn List to view detailed ► directions for the route. (See "Turn-by-Turn List" on page 47) Tap the (Destination search) button to view the map in ► Destination search mode. (See "Map in Destination search mode"... - Page 42 User's manual NAVIGON 7100 | 7110 If you don't have to change direction for a longer period, you will see only a forward-facing arrow. The distance for which you are to follow the road you are on is displayed beneath the arrow.
-
Page 43: Reality View
User's manual NAVIGON 7100 | 7110 Map functions in Navigation mode When the map is open in Navigation mode, tap any point on the map. Buttons with various functions will be displayed. 2D/3D: Changes between 2D and 3D mode. The symbol for the mode that is currently set is marked orange. -
Page 44: Map In Destination Search Mode
User's manual NAVIGON 7100 | 7110 The Reality View mode shows very clearly, the signposting and lanes you must follow. This display remains unchanged until you have passed the motorway junction. The map will then change back to Navigation mode. -
Page 45: Operating In Destination Search Mode
User's manual NAVIGON 7100 | 7110 Zoom Out: The map section shown becomes larger, but you will see fewer details. Zoom In: The map section becomes smaller, but you will see more details. Zoom Mode: When this button is active, you can plot a map section with the pen or with your finger. -
Page 46: Useful Functions
User's manual NAVIGON 7100 | 7110 This function is only active during navigation. Set as Destination: Adds the selected point as the last point in the route plan. If no route plan was open, the selected point will become the first point in a new route plan. -
Page 47: Turn-By-Turn List
User's manual NAVIGON 7100 | 7110 10.2 Turn-by-Turn List You can display detailed directions of the calculated route before starting navigation or at any time during navigation. This list displays all of the driving instructions in table form. The map is open in Preview mode, Navigation mode or Reality View mode. -
Page 48: Removing Blocks And Using Original Routes
User's manual NAVIGON 7100 | 7110 The navigation system calculates an alternative route avoiding the route sections selected. The new driving instructions are displayed in the T window. 3. Tap the (Back) button to close the T window. 10.2.2 Removing blocks and using original routes Section blocks can be removed at anytime. -
Page 49: Logbook
10.4 Logbook You can use NAVIGON 7100 | 7110 to record a logbook. The logbook is recorded in the "Logbook.xls" file. You can open the file with Microsoft Excel. Each recorded trip is added at the bottom of the table as a new entry. -
Page 50: Configuring Navigon 7100 | 7110
Specify whether you would like to end logbook recording or not. Configuring NAVIGON 7100 | 7110 The S window is where you can adapt NAVIGON 7100 | 7110 ETTINGS to suit your personal requirements. The settings can be reached via the options of several windows. -
Page 51: Handsfree Module
Any changes you have made will not be adopted. The S window is open again. ETTINGS Handsfree Module The hands-free function allows you to use NAVIGON 7100 | 7110 as a hands-free module for your mobile phone. 12.1 Opening the hands-free module In the navigation software, tap on (Handsfree Module). -
Page 52: Closing The Hands-Free Module
► LUETOOTH HONE 12.3 Connecting to a telephone NAVIGON 7100 | 7110 must be connected to a mobile phone in order to use the telephone functions. 12.3.1 Pairing with a mobile phone Pairing describes the procedure involved when connecting two Bluetooth devices for the first time. -
Page 53: Accepting A Call
(Ring Tone Off) if you want to turn off the ring ► tone. 12.5 Calling With NAVIGON 7100 | 7110 you can make a call in various ways: 12.5.1 Dialling a telephone number 1. In the navigation software, tap on (Handsfree Module). -
Page 54: Calling Most Recently Dialled, Received Or Missed Numbers
12.5.3 Dialling on the mobile phone When NAVIGON 7100 | 7110 is connected to a mobile phone, it functions as a hands-free kit even when the number was dialled from the mobile phone. You can also make use of the mobile phone's telephone book. -
Page 55: Adjusting The Volume
ALL IN ROGRESS 12.6.4 Transferring a call from your mobile telephone With NAVIGON 7100 | 7110, you can transfer a call from your mobile phone if a Bluetooth connection exists between the two devices. Handsfree Module - 55 -... -
Page 56: Entering Numbers
Bringing the navigation software to the foreground You can bring the navigation software to the foreground at any time. In this way, you can bring the map to the foreground during a call when you are navigating with NAVIGON 7100 | 7110. Tap on > Navigation. -
Page 57: Ending The Call
User's manual NAVIGON 7100 | 7110 12.6.7 Ending the call In the C window, tap on (Hang up) to ALL IN ROGRESS ► end the call. The B window opens. HF P LUETOOTH HONE 12.7 Hands-free module troubleshooting Practically all of the problems that may arise with the hands-free module can be solved in the following way: 1. -
Page 58: Appendix
User's manual NAVIGON 7100 | 7110 Appendix 13.1 Technical data Dimensions 131.6 x 92.4 x 23.0 mm Weight approx. 195 g Operating -10°C bis 60°C temperature Operating Storage conditions -20°C bis 70°C temperature Humidity 0% bis 90%, non-precipitating Samsung 2440-400Mhz ®... -
Page 59: Declaration Of Conformity
User's manual NAVIGON 7100 | 7110 Electronic built-in Charging Duration approx. 4-5 hours Input 100-240V ~ (Alternating current, AC) Mains adapter Output 5V =, 1A (Direct current, DC) Input 12V = (Direct current, DC) Car charger cable Output 5V =, 1A (Direct current, DC) 13.2... -
Page 60: Index
User's manual NAVIGON 7100 | 7110 Index Block..........43, 47 Energy........12, 13, 17 Bluetooth Entering data........19 Connect ........52 Connection with Mobile Phone ..52 Handsfree Module ......51 Pairing........... 52 Factory Settings ........ 39 Symbols ........18 Calibration ......... - Page 61 User's manual NAVIGON 7100 | 7110 Handsfree Module POI on Your Route ....... 43 Close..........52 Route Profile......31, 36 Connect ........52 Skip Route Point......43 Connection with Mobile Phone ..52 Start ........30, 36 Open ..........51 Turn-by-Turn List ....
- Page 62 User's manual NAVIGON 7100 | 7110 Save..........35 Telephone Simulation ........36 Connect ........52 Start Navigation ......36 Connection with Mobile Phone ..52 Starting Point ........ 33 Pairing .......... 52 Turn-by-Turn List ......37 Telephone ......... 51 Recalculate Route ......49 Show..........
