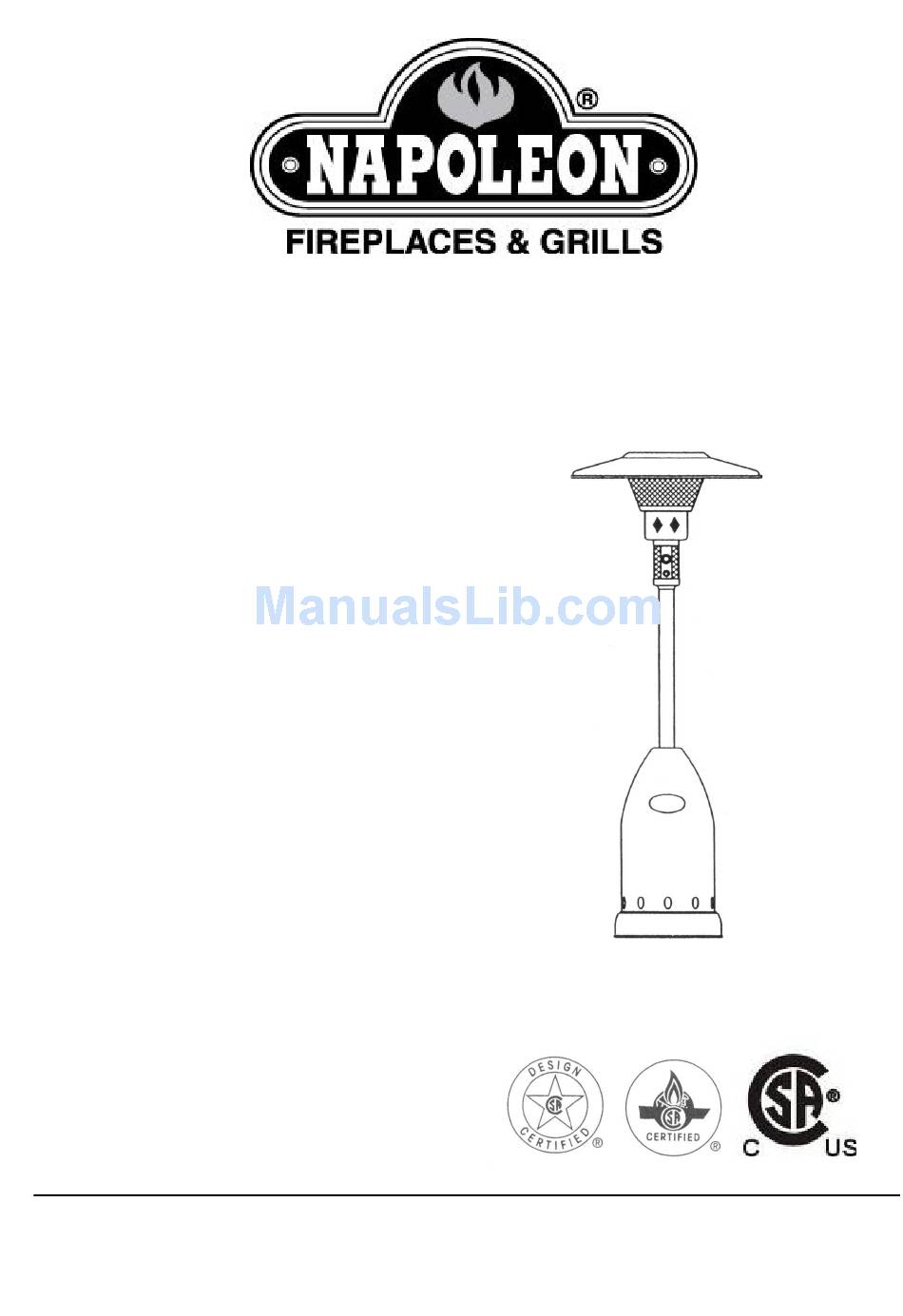

USER INSTALLATION AND OPERATION
GUIDE
INDEX
General and specifications ...................11
Security and caution .......................... 12, 13
Tools and accessories required ............ 13
Assembly instructions ........................ 14,15 & 16
Verifying the connections .................... 17
Warranty info
Carefully read this guide and all safety information
before assembling and setting up the heater
THIS APPLIANCE IS APPROVED
FOR OUTDOOR USE ONLY
TERRACE AND PATIO HEATER
Napoleon Appliance Corporation
214 Bayview Dr. Barrie, ON,
Canada L4N 4Y8,
TEL: 705-726-4278

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TERRACE AND PATIO HEATER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Napoleon TERRACE AND PATIO HEATER

Summary of Contents for Napoleon TERRACE AND PATIO HEATER

  • Page 1 TERRACE AND PATIO HEATER USER INSTALLATION AND OPERATION GUIDE INDEX General and specifications ……………….11 Security and caution …………………….. 12, 13 Tools and accessories required ………… 13 Assembly instructions …………………… 14,15 & 16 Verifying the connections ……………….. 17 Warranty info Carefully read this guide and all safety information...

  • Page 2: Read Safety Requirements Before Operation

    READ SAFETY REQUIREMENTS BEFORE OPERATION 1. The installation must conform with local codes or in the absence of local codes, with either the National Fuel Gad Code, ANSI Z223.1, or CSA B149.1, Propane Installation Code. 2. This outdoor gas appliance is not intended to be installed in or on recreational vehicles and/or boats.

  • Page 3: Safety Rules For Outdoor Gas Appliance

    SAFETY RULES FOR OUTDOOR GAS APPLIANCE 1. LP-gas supply cylinder to be used must be constructed and marked in accordance with the specifications for LP-gas cylinders of the U.S. Department of Transportation(DOT) Cylinders, or Spheres and Tubes for the Transportation of Dangerous Goods, CAN/CSA-B339. 2.

  • Page 4: For Your Safety

    FOR YOUR SAFETY 1. If you smell gas : a. Close gas supply at cylinder valve. b. Extinguish all open flame c. Proceed to a leak test d. If bubbles are detected, retighten connections. If no leaks are detected, open gas valve at cylinder and verify if you smell gas. e.

  • Page 5: Parts List

    PARTS LIST 1 Base 2 Cylinder cover 3 Ventilation opening 4 Post 5 Ignitor 6 Gas control 7 Burner assembly 8 Flame screen 9 Reflector TOOLS AND EQUIPMENT REQUIRED 10 and 13mm wrench, Philips screwdriver, medium blade Leak test solution: MIX 50/50 water and soap 1 Propane cylinder (not supplied), with QCC 1 valve ASSEMBLY INSTRUCTIONS Fix the 3 vertical supports to the base...
  • Page 6 Before assembling the burner head on post, please fix the 3 supported brackets onto burner head for assembling reflector Slide hose through bottom of post and connect to burner head. Then fasten burner on post with the 4 Philips mechanical screws M6x10mm. Sectional reflector option ONLY Assemble the reflector pieces to the middle piece using the small washers and...

  • Page 7: A Safe Location For The Heater

    Install a full gas cylinder on the base. Connect the gas regulator hose to the QCC1 Cylinder valve by turning the knob clockwise manually. Do not use a tool, tighten firmly by hand. Replace cylinder cover. LEAK TEST Now that the heater is assembled, for your safety you must perform a leak test of all connections and hoses.

  • Page 8: Clearances From Combustibles

    CLEARANCES FROM COMBUSTIBLES Respect clearances as shown: Sides of reflector : 60 cm Above reflector : 45 cm OPERATION TO LIGHT： From‘OFF’position, depress knob, turn 90° counter- clockwise and hold. Press the igniter until flame is established. Release the knob and check that the flame stays lit. If the flame goes out, wait 5 minutes then repeat steps 1 &...
  • Page 9 ● If you cannot repair a leak, turn off gas supply at the cylinder valve and contact the retailer where you purchased the heater or a qualified technician. ● Do not alter or modify in any way. ● The installation of this appliance should be done by a certified gas technician in accordance with all local, building and municipal codes.
