Owner's Manual
Standard: ANS Z83.26-2007 / CSA 2.37-2007 & ANS Z83.26a-2008/CSA 2.37a-2008

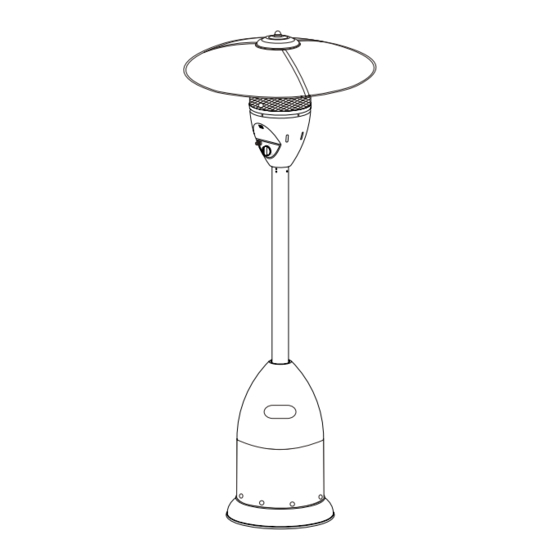

Deluxe Outdoor
Patio Heater
Gas-Fired Outdoor Infrared Patio Heaters
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
WARNING
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
WARNING
For Outdoor Use Only.
CAUTION:
Installer: Leave the instruction manual
with the user for future use.
Consumer: Please keep this manual
for future reference.
Model#: SRPH02-XXXX
Customer Item No.: PTH38PSS
Read the instructions before use.
This appliance must be installed in
accordance with such regulations as
are in force.
PTH38PGM
PTH38PCP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRPH02S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Napoleon SRPH02S

Summary of Contents for Napoleon SRPH02S

  • Page 1 02/25/2011 Owner’s Manual Standard: ANS Z83.26-2007 / CSA 2.37-2007 & ANS Z83.26a-2008/CSA 2.37a-2008 Deluxe Outdoor Patio Heater CAUTION: Installer: Leave the instruction manual Consumer: Please keep this manual Gas-Fired Outdoor Infrared Patio Heaters DANGER If you smell gas: 1. Shut off gas to the appliance.

  • Page 2: Carbon Monoxide Hazard

    DANGER WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury, death or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment. Certification Height Overall Reflector Diameter Rated Heat Input Fuel Gas Supply Manifold Pressure Injector Size(diameter) Safety Features...
  • Page 12 IGNITER BATTERY INSTALLATION Instruction For Installing Battery Remove igniter button by turning counter-clockwise.Install “AAA” battery with positive terminal up as indicated in Ignition button diagram. Replace igniter button. Control knob Ignition button AAA battery...

  • Page 13: Operation

    WARNING: DO NOT ATTEMPT TO OPERATE HEATER UNTIL YOU HAVE READ AND UNDERSTAND ALL PRECAUTIONS . FAILURE TO DO SO CAN RESULT IN SERIOUS PERSONAL INJURY, DEATH, OR PROPERTY DAMAGE. Before turning gas supply ON Your heater was designed and approved for OUTDOOR USE ONLY.
  • Page 14 3) Push and turn the control knob counter-clockwise to the "PILOT" position. Depress the control knob. Push and hold the igniter button until the pilot lights. 4) Once the pilot is lit, release the igniter button and continue to depress the control knob for 30 seconds. 5) After depressing the control knob for 30 seconds, release the control knob and turn it counter-clockwise to the “LOW”...
  • Page 15 CAUTION : AVOID INHALING FUMES EMITTED FROM THE HEATER'S FIRST USE. SMOKE AND ODOR FROM THE BURNING OF OILS USED IN MANUFACTURING WILL APPEAR. BOTH SMOKE AND ODOR WILL DISSIPATE AFTER APPROXIMATELY 30 MINUTES. THE HEATER SHOULD NOT PRODUCE THICK BLACK SMOKE. NOTE: The burner may be noisy when initially turned on.

  • Page 16: Locating Header For Use

    LOCATING HEADER FOR USE CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT, ABOVE, BESIDE OR UNDER THIS HEATER WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND COULD BE SERIOUSLY DAMAGED. This heater is primarily used for the heating of outdoor patios, decks, spas, pools and open working areas.

  • Page 17: Maintenance & Storage

    CLEANING AND MAINTENANCE : To enjoy years of outstanding performance from your heater make sure you perform the following maintenance activities on a regular basis: Keep exterior surfaces clean. Use warm soapy water for cleaning. Never use flammable of corrosive cleaning agents. While washing your unit, be sure to keep the area around the burner and pilot assembly dry at all times.
  • Page 18 Spiders and insects can nest in the burner or orifices. This dangerous condition can damage heater and render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may help clear away smaller particles. Carbon deposits may create a fire hazard. Clean dome and engine with warm soapy water if any carbon deposits develop.

  • Page 19: Troubleshooting

    PROBLEM Pilot will not light Pilot will not stay on Burner will not light PROBABLE CAUSE Gas valve may be OFF Tank fuel empty Air in supply system Loose connection Debris around pilot Loose connection Thermocouple Gas leak in line Lack of fuel pressure Pressure is low Control valve not ON...

  • Page 20: Limited Product Warranty

    LIMITED PRODUCT WARRANTY This product has a six month limited warranty, which covers workmanship and material quality. NAC warrants to the original purchaser only, that when this product is subject to normal residential use, it is free from defects in workmanship and materials for a period of six months from the original date of purchase.
