Lionel BNSF Ice Cold Express Owner's Manual

Lionel BNSF Ice Cold Express Owner's Manual

Lionel bnsf ice cold express train set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
73-1783-250
11/11
Lionel
Lionel
BNSF Ice Cold Express
BNSF Ice Cold Express
Owner's Manual
Owner's Manual
Featuring

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BNSF Ice Cold Express and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lionel BNSF Ice Cold Express

Summary of Contents for Lionel BNSF Ice Cold Express

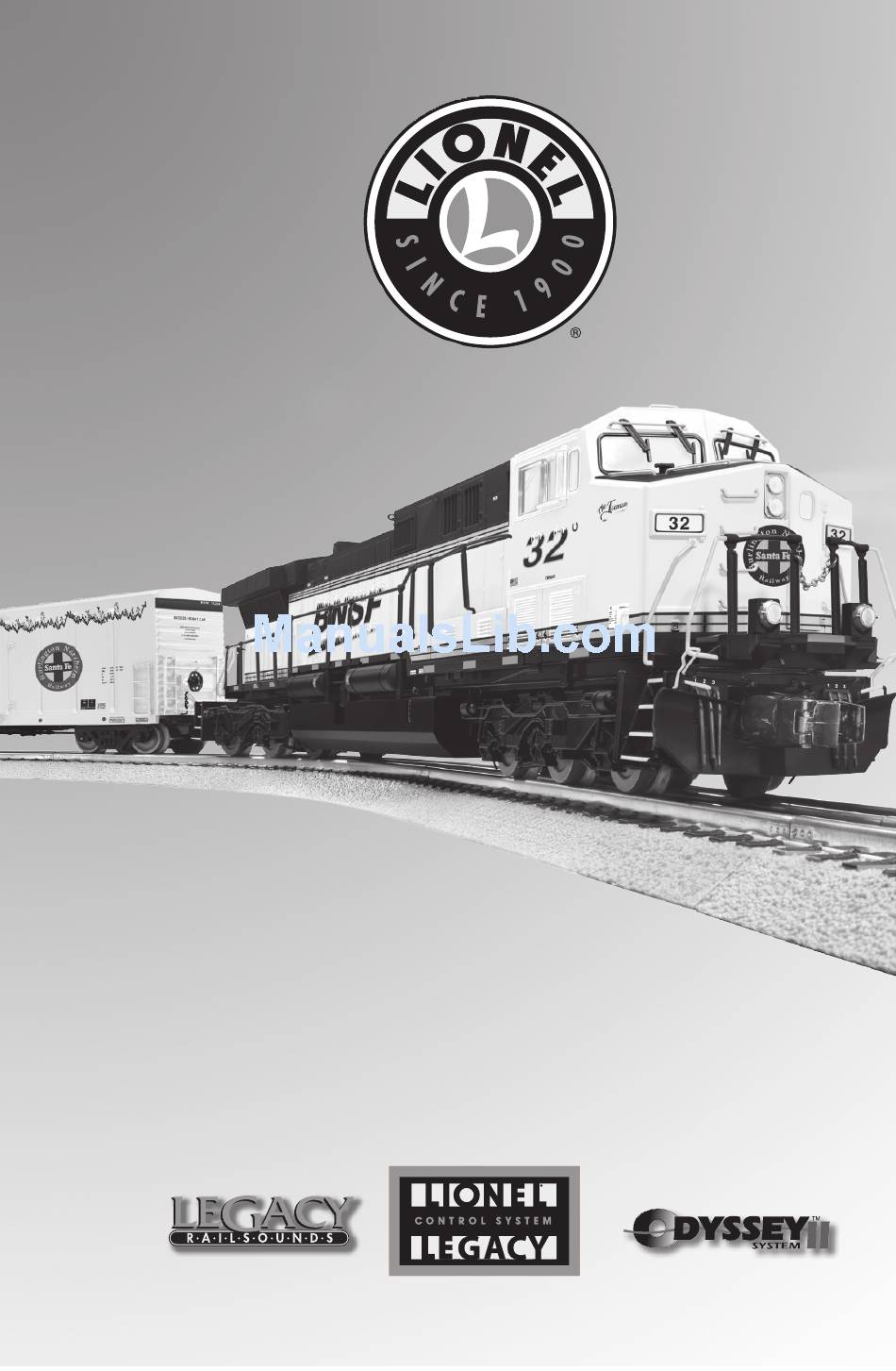

  • Page 1 73-1783-250 11/11 Lionel Lionel BNSF Ice Cold Express BNSF Ice Cold Express Owner’s Manual Owner’s Manual Featuring...
  • Page 2 The scale BNSF AC6000 diesel that leads the BNSF Ice Cold Express comes equipped with Lionel’s state-of-the-art features, including LEGACY Command Control, LEGACY RailSounds, Odyssey II speed control, and a wide variety of lighting options.

  • Page 3: Table Of Contents

    Installing the caboose roof details Removing the caboose's cupola Adding smoke fluid to the caboose's smoke unit Switching the caboose's smoke unit On or Off Installing the caboose's scale smoke stack Replacing the caboose's interior lamps Locomotive diagnostics Lionel Warranty...

  • Page 4: Running Your Train Set

    19 volts AC, may result in damage to sensitive electronic components. Note! Your locomotive requires Lionel or Lionel-compatible O-42 or larger track curves. or the finest operating experience, your locomotive is fully compatible with the LEGACY Control System. To operate in LEGACY mode, you need a LEGACY Command Base and LEGACY CAB-2 Remote Controller (6-14295).

  • Page 5: Trainmaster Command Control (Tmcc) Operations

    3. Increase track voltage to full power (no more than 19 volts AC). If a circuit breaker trips when you turn on the Lionel power supply, check the wheels of your locomotive to make sure they are all securely on the track. Check to make sure the track is free of all metals that may cause a short circuit.

  • Page 6: Conventional Transformer Operations

    1. With track power off, place your train set on the track. 2. Power up the track. If a circuit breaker trips when you turn on the Lionel power supply, check the wheels of your locomotive to make sure they are all securely on the track. Check to make sure the track is free of all metals that may cause a short circuit.

  • Page 7: Locomotive Basics

    If you prefer to operate your locomotive without smoke, locate the smoke unit switch and slide it to the NO SMK position. Refer to Figure 4 on page 8 for the location of the switch. For best performance, we recommend using Lionel smoke fluid only. Do NOT use smoke Note! fluid from ready-to-run train sets.

  • Page 8: Locomotive Switch Locations

    Locomotive basics Locomotive switch locations he functions of your locomotive's switches are outlined below. Refer to Figure 4 for the location of the switches. The instructions below are specific to this particular locomo- tive; note that available features (and switches) may differ from other loco- motives and locomotive sets.

  • Page 9: Installing The Battery

    Locomotive basics Installing the battery lthough the LEGACY RailSounds sound system is powered through the track, you may choose to install a nine-volt alkaline battery if you find that the sound system shuts down during track power interruptions (for example, at a switch or over a dirty section of track). See Figure 5 below and follow these steps to install the battery.

  • Page 10: Assigning Your Locomotive A New Id# (Legacy And Tmcc)

    Locomotive basics Assigning your locomotive a new ID# or operation in the LEGACY or TMCC environment, you will want to give each unit a unique ID#. The locomotive will respond to commands associated with its ID# while all other units will disregard these commands.

  • Page 11: Lash-Ups (For Legacy Operations Only)

    Locomotive basics Lash-ups (for LEGACY operations only) n the Command environment, building a lash-up allows you to control your locomotive as one in a prototypical manner. It is still possible to control any of the engines in the lash-up individually. When you issue a train command, the individual engine you were controlling will return to the group.

  • Page 12: Legacy Control System Operations

    LEGACY Control System operations The LEGACY CAB-2 Remote Controller Main Display Info Button Displays real-time information about your railroad Used to enter/view the info/options of system. Displays real-time feedback of operation. selected components. CTC Button Scroll Button Press and hold to turn your remote Navigates through the entire list on and off.

  • Page 13: The Velocity Throttle

    System Operations Manual, available online at www.lionel.com. The Velocity Throttle The Velocity Throttle (the red rotary knob on the bottom of your Lionel remote) is used to start your engine moving, slow it down, or speed it up. Use it simply by turning it clockwise (speed up) or counter-clockwise (slow down).

  • Page 14: The Warning Sound Controller

    LEGACY Control System operations The Warning Sound Controller Warning sounds are an important part of Lionel Railroading. Your Lionel Legacy Control System equipped engines have a real-time variable "quilling" horn. Blow the Horn by pulling down on the Warning Sound Controller.

  • Page 15: Efx Trim And Efx Bar Graph

    LEGACY Control System operations EFX Trim and EFX Bar Graph Sound and smoke effects of the engine can be trimmed higher or lower depending on your operating preference. Pressing the EFX up button will make the engine sound like it is working harder and will also increase the smoke output (if the smoke unit is turned on).

  • Page 16: Legacy Railsounds Sound System Operations

    LEGACY RailSounds sound system operations LEGACY RailSounds sound system Volume UP CrewTalk Raises the overall master volume of the LEGACY Engineer begins radio dialog, dispatcher RailSounds sound system. To independently adjust replies. the level of the background sounds only (e.g., the diesel roar and brake sounds), tap AUX1 and then this key.

  • Page 17: Legacy Railsounds Sequence Control

    LEGACY RailSounds sound system operations LEGACY RailSounds Sequence Control our LEGACY-equipped locomotive features Sequence Control. Based on the movement and speed of the locomotive, Sequence Control automatically plays the sound effects of an entire trip, from depar- ture to destination, while you run your locomotive. Prototypical horn signals, bell, and radio chatter are added automatically as you spin your throttle—no need to memorize a sequence of button presses.

  • Page 18: Crewtalk Dialog And Towercom Announcements In The Legacy Environment

    LEGACY RailSounds sound system operations CrewTalk dialog and TowerCom announcements in the LEGACY environment n addition to the automatic triggering of dialog via Sequence Control mode operation (see the pre- vious section), you may control the dialog manually. CrewTalk dialog and TowerCom announcements feature a variety of brief radio conversations between the engineer and dispatcher.

  • Page 19: Legacy Railsounds Sound System Dialog On A Round Trip

    LEGACY RailSounds sound system operations LEGACY RailSounds sound system dialog on a round trip Refer to Figure 7 for a sample dialog script for manually controlled dialog on the locomotive’s round trip using the numeric keypad. See page 17 for the Automatic Sequence Control. Locomotive STOPPED The actual dialog will vary.

  • Page 20: Trainmaster Command Control Operations

    TrainMaster Command Control operations CAB-1 Remote Controller commands he CAB-1 Remote Controller commands are detailed below. The corresponding RailSounds sound system effects are in bold italic type. Releases the ElectroCoupler on the front of the locomotive. Coupler release sound. Releases the ElectroCoupler on the rear of the tender.

  • Page 21: Cab-1 Remote Controller Numeric Keypad Commands

    TrainMaster Command Control operations CAB-1 Remote Controller numeric keypad commands hen you press the AUX1 button on your CAB-1 Remote Controller, you turn the numeric keypad into ten command buttons. After you press the AUX1 button, you will be able to press any numbered button until you address a different product.

  • Page 22: Cab-1 Remote Controller Numeric Keypad Commands

    TrainMaster Command Control operations CAB-1 Remote Controller numeric keypad commands (continued) Lowers the overall master volume of the LEGACY RailSounds sound system. To independently adjust the level of the background sounds only (e.g., diesel roar and brakes), tap AUX1 and then this key. Volume settings are retaining when track power is turned off.

  • Page 23: Conventional Transformer Operations

    • Reverse unit reset sound. Power down your track, wait three seconds, and listen for the air-release sound, which is the locomotive telling you that its Lionel Command reverse unit has reset to forward (a nine-volt alkaline battery is required).

  • Page 24: Activating Crewtalk Dialog And Towercom Announcements

    Conventional transformer operations Activating the CrewTalk dialog and TowerCom announcements n the conventional environment, CrewTalk dialog and TowerCom announcements are triggered by short horn blasts and vary with the state of the locomotive. • If the locomotive has been stopped for less than 15 seconds, a short horn blast triggers a “please standby”...

  • Page 25: Odyssey Ii Speed Control System Operations

    LEGACY Control System CAB-2 mode, Odyssey II Speed Control system provides 0-199 speed steps. For a more in-depth explanation of the LEGACY Control System features, please see your LEGACY Control System operations manual, available online at www.lionel.com. Odyssey II Speed Control TrainMaster Command Control operation hen the Odyssey II Speed Control system is activated, changes in the speed of the locomotive will correspond to each signal from the Command Base.

  • Page 26: Maintaining And Servicing Your Train Set

    Maintaining and servicing your train set Reprogramming your locomotive to restore features f your locomotive is unresponsive to your commands in the Command Control environment, we recommend that you follow this procedure to reset your locomotive. All factory default settings will be restored when you reprogram the locomotive.

  • Page 27: Lubricating Your Locomotive

    Maintaining and servicing your train set Lubricating your locomotive elp your Lionel locomotive lead a long and productive life on your railroad by maintaining it properly. To keep your locomotive lubricated, we recommend that you purchase a Lionel Lubrication and Maintenance Kit (6-62927), available from your authorized Lionel dealer.

  • Page 28: Servicing Your Locomotive's Leds

    Lionel Factory Trained Authorized Service Station. Replacing the traction tires our locomotive is equipped with traction tires (Lionel part no. 6208815206) to increase the tractive effort of your locomotive and allow it to pull more cars at once.

  • Page 29: Ditch Light Operation

    Maintaining and servicing your train set Ditch light operation our locomotive is equipped with functional ditch lights on the front of the locomotive. There are four operational states for the ditch lights: ditch lights on with oscillation when the horn sounds, ditch lights on with no oscillation when the horn sounds, ditch lights off with oscillaiton when the horn sounds, and ditch lights off with no oscillation when the horn sounds.

  • Page 30: Controlling The Mechanical Reefer Sounds

    Maintaining and servicing your train set Controlling the mechanical reefer sounds ne mechanical reefer is equipped with Volume control knob sounds. Use the volume control knob on (underside of car, compressor side) the underside of the car to adjust the volume or to silence the sounds by turning the volume all the way down.

  • Page 31: Installing The Caboose Roof Details

    Maintaining and servicing your train set Installing the caboose roof details wo small roof details have been packed separately to prevent damage in shipping. Install these pieces by pressing them into the locations shown in Figure 13. Figure 13. Caboose roof Removing the caboose's cupola emove the cupola to view the interior details.

  • Page 32: Adding Smoke Fluid To The Caboose's Smoke Unit

    The smoke generator requires the periodic addition of Lionel smoke fluid in order to function. Add five to eight drops of smoke fluid directly into the smokestack.

  • Page 33: Installing The Caboose's Scale Smokestack

    Maintaining and servicing your train set Installing the caboose's scale smokestack our caboose is equipped with an operational Wire braces smokestack that was installed at the factory. Use this smokestack when you operate the smoke generator. This stack was designed to allow the smoke Operational fluid to flow properly into the smoke generator and to smokestack...

  • Page 34: Replacing The Caboose's Interior Lamps

    Each end of the car features a red LED light. These LED’s are expected to last for the life Note! of the product and are not user serviceable. Visit your authorized Lionel Service Center for assistance. Removing the frame may cause damage to the interior. Remove the roof only.

  • Page 35: Locomotive Diagnostics

    Note that smoke-related errors can be reset a maximum of three times. On the third try, if the problem still persists, the smoke unit will be shut down and must be returned to Lionel Service for repair.

  • Page 36: Lionel Warranty

    (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
