Summary of Contents for Antec Nineteen Hundred
- Page 1 NINETEEN User HUNDRED Manual...

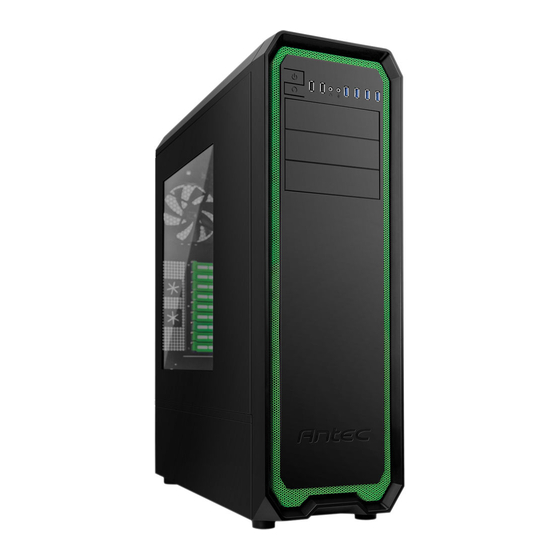

- Page 2 In addition, Its comes with 4 advance silent Fluid Dynamic bearing chassis fan which can provide lowest fan acoustic to under 18dB (A). Finally, the Nineteen Hundred is constructed of durable SECC steel that lasts for builds to come. Along with pioneering design and solid construction the Nineteen Hundred is the last word in ultimate PC builds At Antec, we continually refine and improve our products to ensure the highest quality.
-
Page 3: Table Of Contents
Table of Contents Section 1: Introduction Getting to Know Your Chassis ................5 Chassis Specifications..................6 Included Screws ....................6 Before You Begin ....................7 Section 2: Hardware Installation Setting Up ......................9 Motherboard Installation................... 9 Installing KUHLER H O Liquid Coolers ..............11 Power Supply Installation .................. -
Page 4: Section 1: Introduction
Section 1 Introduction NINETEEN HUNDRED User Manual... -
Page 5: Getting To Know Your Chassis
Getting to Know Your Chassis 1. 3 x 5.25” external tool-less drive bays 2. 12 x 3.5/2.5” internal drive bays 3. 2 x 2.5” internal drive bays 4. 3 x 120 mm front intake fans 5. 2 x 120 mm HDD internal fan mounts 6. -
Page 6: Chassis Specifications
Chassis Specifications Chassis Type Super Full Tower Chassis Color Green / Red Dimensions 27.4” (H) x 8.8” (W) x 21.8” (D) 696 mm (H) x 223.6 mm (W) x 555 mm (D) Weight 29.4 lbs / 13.36 kg Cooling Fan mounts: - 3 x 120 mm front intake fan mounts - 2 x 120 mm HDD internal fan mounts - 1 x 120 mm Rear exhaust fan mounts... -
Page 7: Before You Begin
Before You Begin In order to ensure that your building experience with the NINETEEN HUNDRED will be a positive one, please take note of the following: While working inside your NINETEEN HUNDRED, keep your chassis on a flat, stable surface. -
Page 8: Section 2: Hardware Installation
Section 2 Hardware Installation NINETEEN HUNDRED User Manual... -
Page 9: Setting Up
Setting Up Put the case upright on a flat, stable surface so that the rear panel (power supply and expansion slots) is facing you. To remove the left and right side panels, remove these thumbscrews first. Note: Place the panel thumbscrews aside carefully and remember where they are. - Page 10 The NINETEEN HUNDRED comes with 9 preinstalled motherboard standoffs. These are positioned for Standard ATX motherboards but can be relocated to accommodate other form factors. 1. Align the motherboard with the standoff holes on the motherboard tray and remember or mark which holes are lined up 2.
-
Page 11: Installing Kuhler H
Intel® LGA 1155 / 1156 / 1366 / 2011* AMD® AM2 / AM3 / AM2+ / AM3+ / FM1 *Your unit may not contain the LGA 2011 mounting bracket. To acquire this, please contact Antec customer support (information listed at end of manual). -
Page 12: Power Supply Installation
3. Preparing the KUHLER H O backplate is specific to your CPU socket. Please refer to the KUHLER O installation guide, available at http://www.antec.com/Believe_it/product.php?id=Mjc2OCYxNw== (KUHLER H O 620) or http://www.antec.com/Believe_it/product.php?id=NzA0MzcwJjE3 (KUHLER H O 920) for more information. 4. Prepare the retention ring according to the CPU socket you’re using. -
Page 13: External 5.25" Device Installation
External 5.25” Device Installation To install a 5.25” drive, you will need to remove the side panel and open the front door. (For side panel removal, please see Section 2.1.) 1. For front panel removal, please remove the screws on the both sides first 2. - Page 14 Make sure to also remove the side panel as well (see Section 2.1 for more information) (See step 3 above if you need more clearance for your drive.)
-
Page 15: Internal 3.5" / 2.5" Device Installation
Internal 2.5”/3.5” Device Installation The NINETEEN HUNDRED has 12 drive bays that are compatible with both 3.5” and 2.5” drives. To install a 3.5” drive: 1. Remove one of the drive trays by pinching the ends of the tray inward and pulling the drive tray out. - Page 16 To install a 2.5” drive: 1. Extract one of the drive trays by pinching the ends of the tray inward and pulling the drive tray out. 2. Place your 2.5” drive on the tray so that the holes line up with the 2.5” tray holes. 3.
-
Page 17: Cable Management
Cable Management There is a cable management compartment between the motherboard and right side panel, as well as cable tiedowns located on the back of the motherboard panel. You can tuck excess cables in this compartment or route them to the drive bays. Choose the cables you would like to pass through the holes behind the motherboard tray. -
Page 18: Section 3: Front I/O Ports
Section 3 Front I/O Ports NINETEEN HUNDRED User Manual... -
Page 19: Usb 2.0
Empty Pin 9 10 USB 3.0 The NINETEEN HUNDRED comes with four front panel USB 3.0 ports and includes an internal motherboard connector. To access USB 3.0 capability from the front panel: 1. Identify the USB 3.0 header on your motherboard. -
Page 20: Ac'97 / Hd Audio Ports
AC’97 / HD Audio Ports There is an Intel® standard 10-pin AC’97 connector and an Intel® 10-pin HDA (High Definition Audio) connector linked to the front panel of the chassis. Signal Names Signal Names (HDA) (AC’97) MIC2L MIC In AGND MIC2R MIC Power AVCC... -
Page 21: Rewiring Motherboard Header Connections
Rewiring Motherboard Header Connections There may come a time when you need to reconfigure the pin-out of a motherboard header connector. Examples could be for your USB header, audio input header, or some other front panel connector such as the Power Button connector. Before performing any work, please refer to your motherboard user’s manual or your motherboard manufacturer's website to confirm the pin-out needed for your connector. -
Page 22: Section 4: Cooling System
Section 4 Cooling System NINETEEN HUNDRED User Manual... -
Page 23: Included Fans
Included Fans The NINETEEN HUNDRED comes with two standard top 120 mm TwoCool™ fans and a standard rear 120 mm TwoCool™ fan and three standard front 120 mm TwoCool™. These fans have two-speed switches on the rear of the case that let you choose the speed best suited to your need. The default fan speed setting is Low. -
Page 24: Fan Switch Controller
Secure an intake fan into place by aligning it with the pegs that correspond with the fan screw holes. Fan Switch Controller The NINETEEN HUNDRED has two-speed switches on the rear of the case that let you choose the speed best suited to your need. Low mode: 600 R.P.M... -
Page 25: Air Filters
Air Filters There are three air filters in the NINETEEN HUNDRED: Top, front and PSU intake filter that can be removed and washed. It is particularly noteworthy that the top and the front filters are combined with the fan. Note: From time to time it will be necessary to wash the installed air filter. Not washing the air filter will result in higher system temperatures and possible stability problems. - Page 26 The NINETEEN HUNDRED features a removable PSU filter that can be unlocked for maintenance and locked for transport. To remove the PSU filter, push the ends of the filter down then pull the filter toward you using the tab outside of the chassis. You can also lock the filter by pushing up on the tab (once the filter is completely inside the chassis).
- Page 27 Technical Support US &Canada 1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2011 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited.
