Summary of Contents for Antec TWO HUNDRED

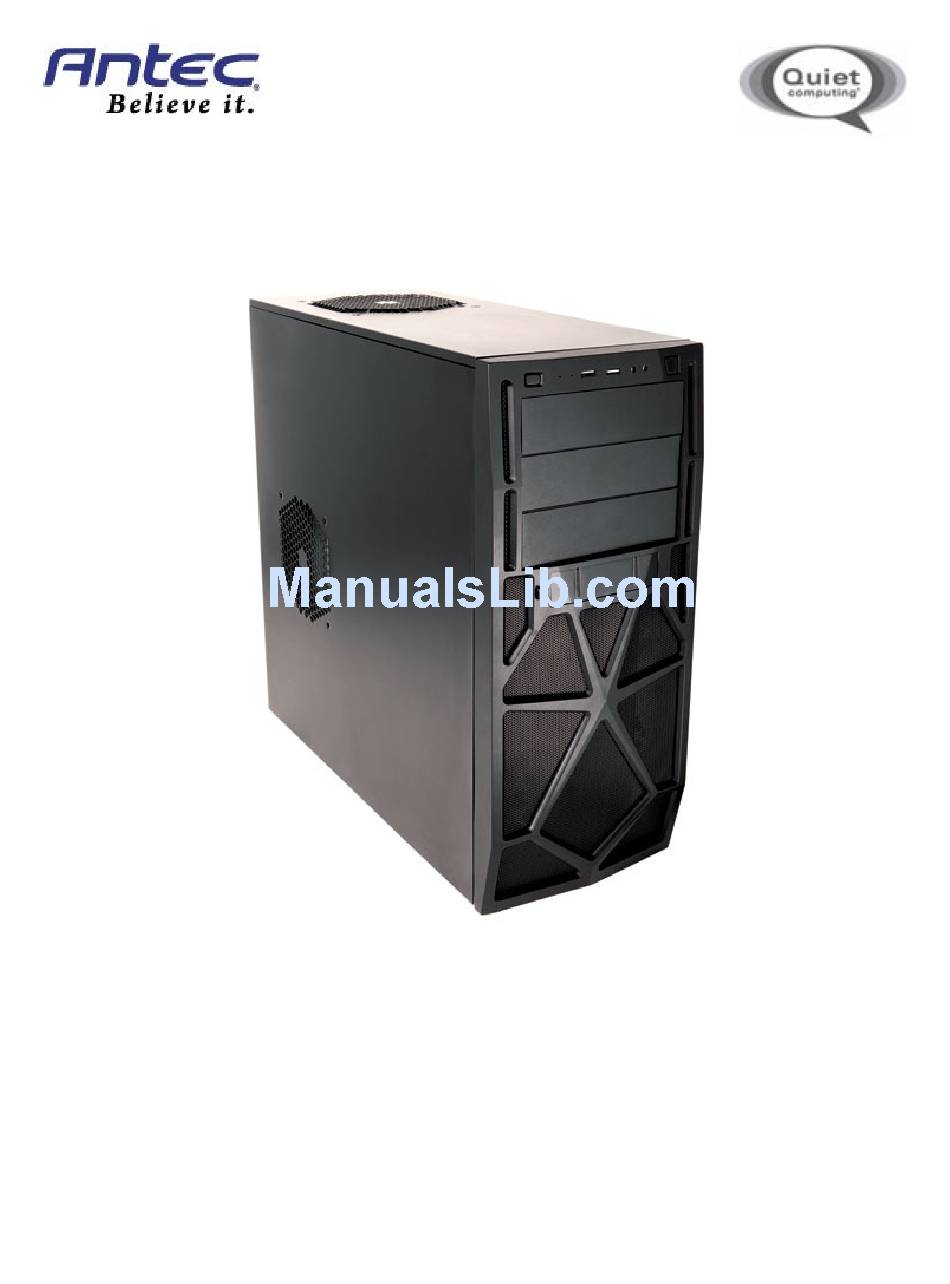

  • Page 1 UNDRED ’ ANUAL...
  • Page 2: Table Of Contents

    ABLE OF ONTENTS NTRODUCTION Case Specifications.…..………………………………………………………………………………….. 3 Diagram…………………………………………………………………….…………………………………. 3 ARDWARE NSTALLATION UIDE Setting Up….…………………………………………………………………………………………………. 4 Power Supply Installation……………………………………………………………………………… 4 Cable Management………………………………………………………………………………………. 5 Motherboard Installation..……………………………………………………………………………. 5 Internal 3.5” Device Installation……………………………………………………………………. 6 Front-Loaded Hot Swap SATA Hard Drive Caddy…………………………………………… 6 External 5.25” Device Installation…………………………………………………………………. 7 Internal 2.5”...
  • Page 3 The Two Hundred does not come with a power supply unit (PSU). Make sure you choose a power supply that is compatible with your computer components and has a long enough power harness to reach your motherboard and peripheral devices.
  • Page 4: Case Specifications

    PECIFICATIONS Case Type Gaming Mid Tower Color Black Dimensions 450mm (H) x 200mm (W) x 470mm (D) 17.7” (H) x 7.9” (W) x 18.5” (D) Weight 13.9 lbs / 6.3 kg Cooling 1 x Rear 120mm TwoCool™ fan 1 x Top special 140mm TwoCool™ fan 2 x Front 120mm fan mounts (optional) 1 x Side 120mm fan mount (optional) Drive Bays...
  • Page 5: Hardware Installation Guide

    Note: Power supplies with fans on the bottom of the power supply will need to be mounted so that the fan is facing the top of the case. The Two Hundred provides mounting holes for power supplies with standard mounting layouts to be installed upside up or upside down.
  • Page 6: Cable Management

    Screw in your motherboard to the standoffs with the provided Phillips-head screws. Note: The Two Hundred comes with a CPU cutout on the motherboard tray, which will allow you to change your CPU heatsink without removing the motherboard.
  • Page 7: Internal 3.5" Device Installation

    NTERNAL EVICE NSTALLATION The Two Hundred provides space for up to six 3.5” hard drives. Before you begin, remove the side panels and front bezel of the case as described in section 2.1. Behind the front bezel there is a fan cage which provides space for up to two fans at the front of the case.
  • Page 8: External 5.25" Device Installation

    2.7 E 5.25” D XTERNAL EVICE NSTALLATION There are three externally accessible 5.25” drive bays. Before you begin, remove both side panels and front bezel as detailed in section 2.1. Remove the drive bay faceplate by applying pressure to the inside of the plate until it pops free of the bezel.
  • Page 9: Connecting The Front I/O Ports

    I/O P ONNECTING THE RONT ORTS 3.1 USB 2.0 Connect the front I/O panel USB cable to the USB header pin on your motherboard. Check the motherboard user’s manual to ensure that it matches the table below: Signal Names Signal Names USB Power 1 USB Power 2 Negative Signal 1...
  • Page 10: Switch And Led Connectors

    3.3 P LED C OWER WITCH ESET WITCH RIVE ONNECTORS Connected to your front panel are LED and switch leads for power, reset, and HDD LED activity. Attach these to the corresponding connectors on your motherboard. Consult your motherboard manual for specific pin header locations.
  • Page 11: Cooling System

    OOLING YSTEM ™ F Rear TwoCool™ Fan – There is a 120 x 25mm TwoCool™ fan preinstalled at the rear of the case. The fan is installed so the air will be blown out of the case. This fan comes with a two-speed switch that let you choose the speed best suited to your need.
  • Page 12: Optional Fans

    There are total of three optional 120mm fan mounts—one side intake fan (on the left side panel) and two front intake fans (at the front of the HDD cage). We recommend using Antec 120mm speed control fans and setting the speed to Low. These fans must be installed so that the air is blowing into the case.
  • Page 13: Washable Air Filters

    ASHABLE ILTERS Occasionally, it will be necessary to wash the air filters. Not washing the filters may result in high system temperatures and possible stability problems. We recommend checking the air filters at least once a month initially. The frequency will change depending on environmental conditions and system usage. Users who run their systems 24/7 will have to check their filters more often than those who don’t run their systems every day.
  • Page 14 Customer Support: US & Canada 1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2009 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited.
